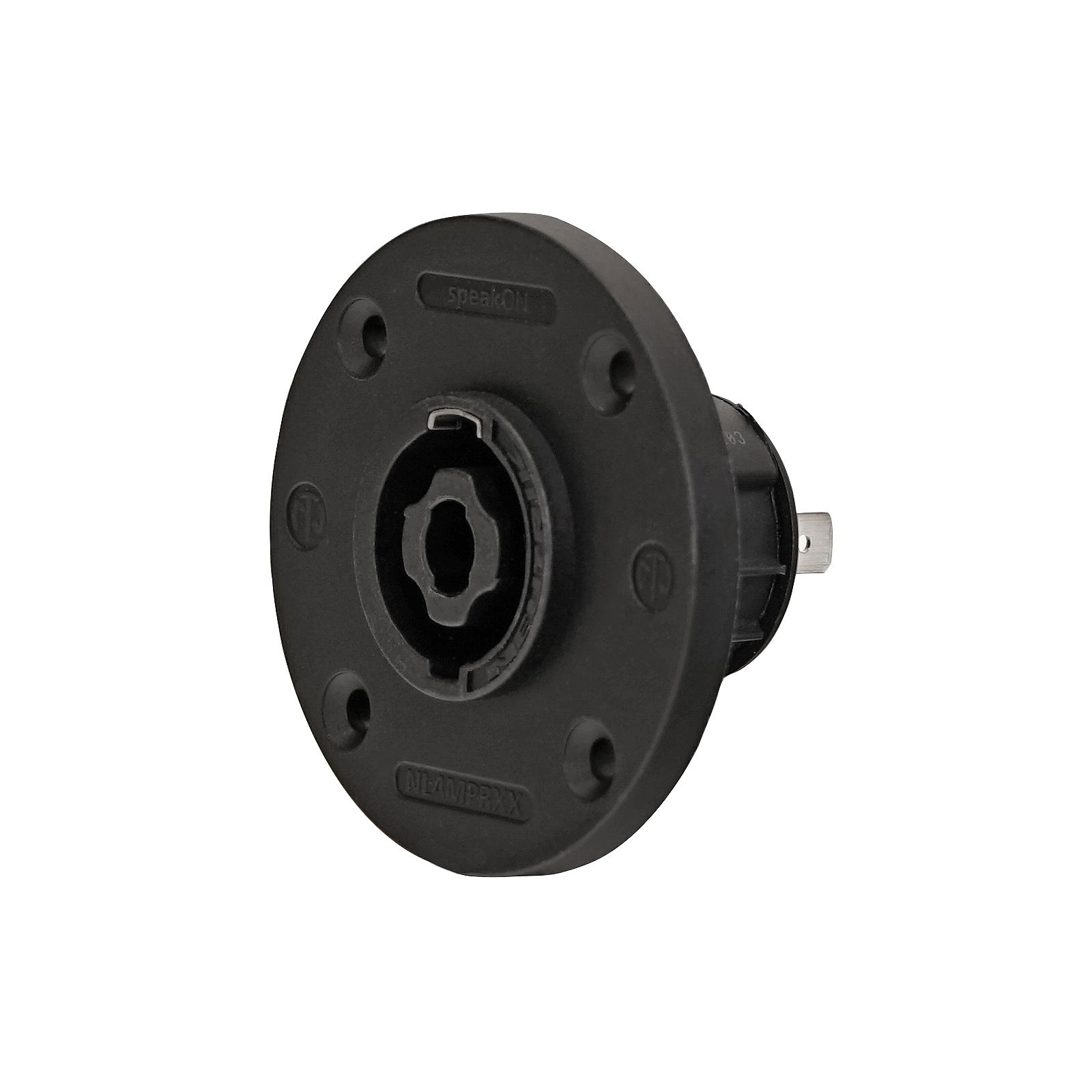

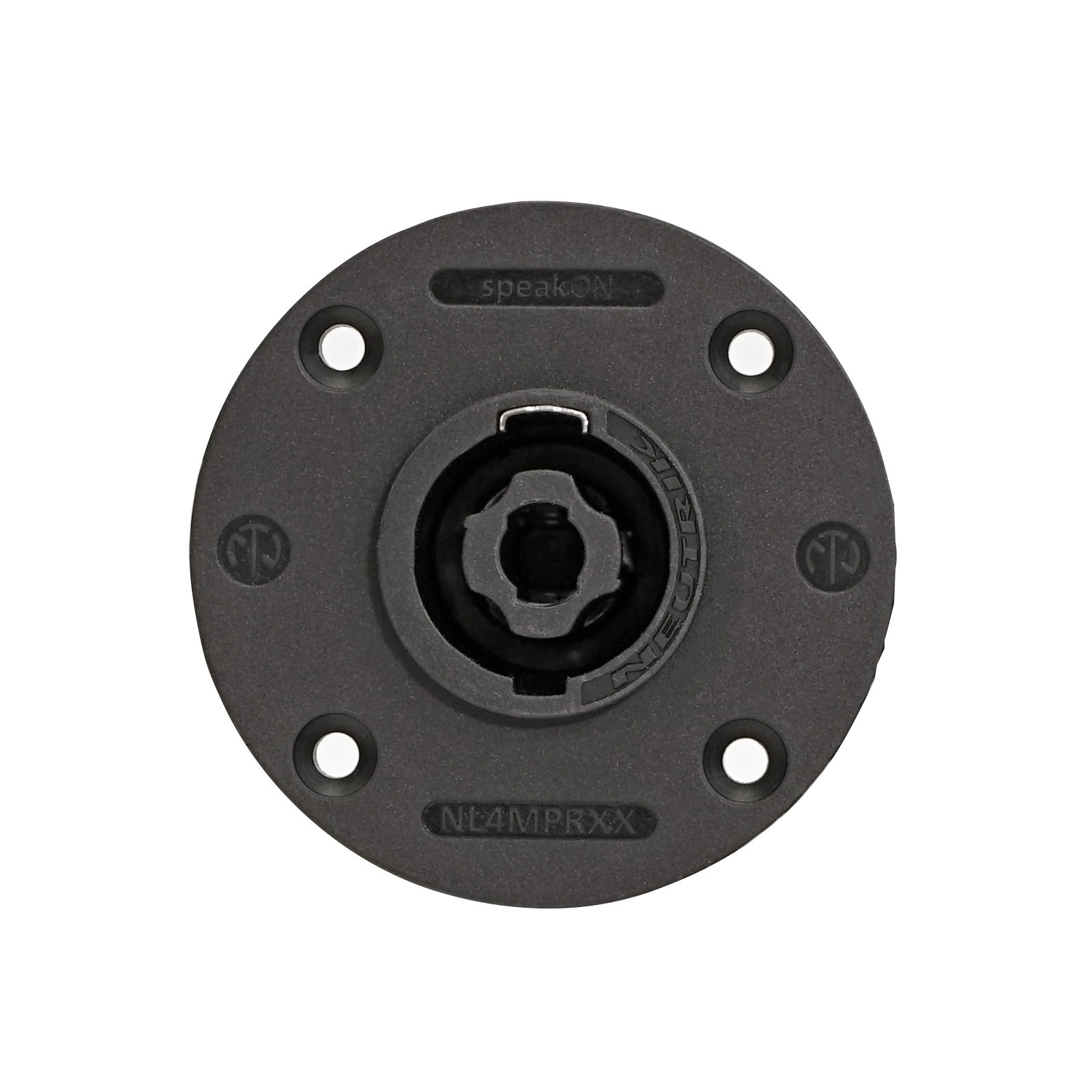

The Neutrik NL4MPRXX is a high-performance 4-pole chassis connector designed for professional audio and industrial applications. Featuring the innovative twist-lock system, this SpeakON connector ensures secure and reliable connections, even in demanding environments. Its compact D-size flange design allows for easy installation in standard panel cutouts, while its robust construction guarantees durability and longevity. Ideal for speaker and amplifier connections, the NL4MPRXX offers exceptional signal integrity with its precision-engineered contacts. Trust Neutrik for dependable connectivity solutions that meet the highest industry standards.

• Contact resistance: ≤ 2mΩ
• Dielectric strength: 2.8kVac
• Insulation resistance: 0.1GΩ (after damp heat)
• Rated current per contact: 25A RMS continuous (audio rating may be higher, depending on the signal)
• Rated voltage: 250V AC
• Attention: speakON is NOT to be used as an AC mains or power supply connector.
• Lifetime: 5000 mating cycles

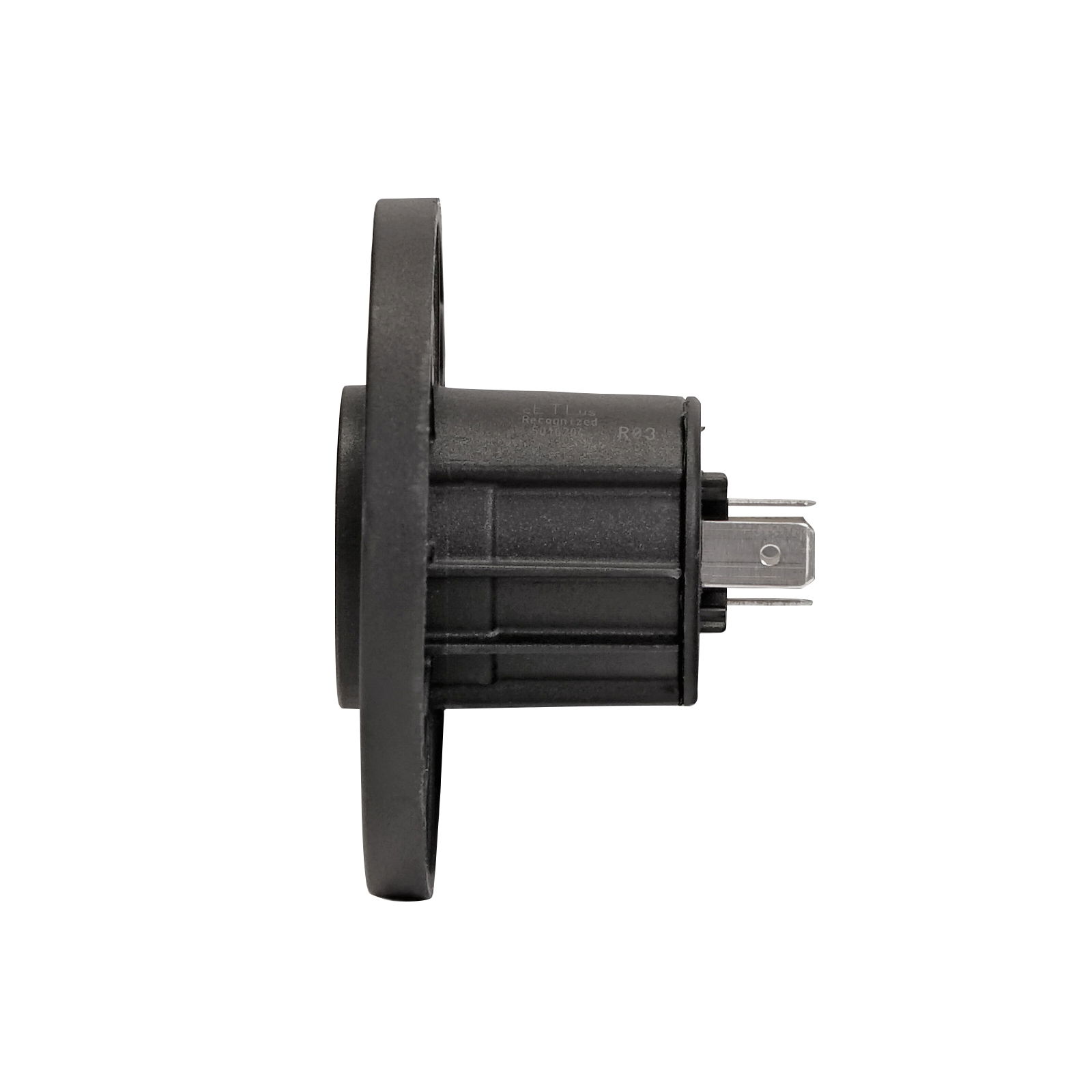

• Termination: 3/16" flat tabs (e.g., NLFASTON)
• Locking device: Quick Lock
• Chassis shape: Round G-size flange

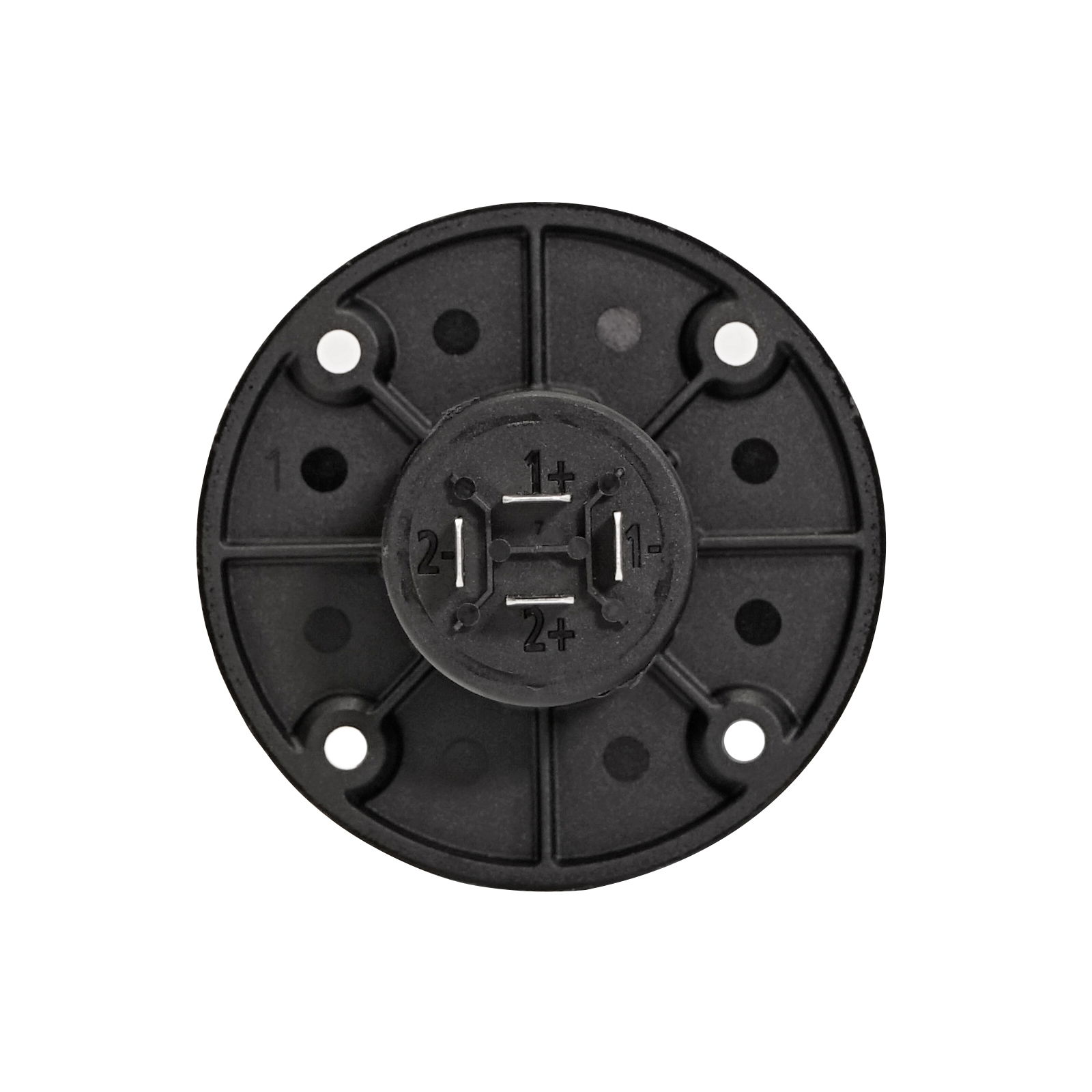

• Layout: Four through holes
• Contact plating: Silver (Ag)
• Locking element: Stainless steel
• Shell material: Polyamide (PA 6.6)
• Contacts: Copper alloy
• Flammability: UL94 V-0
• Temperature range: -30°C to +80°C
