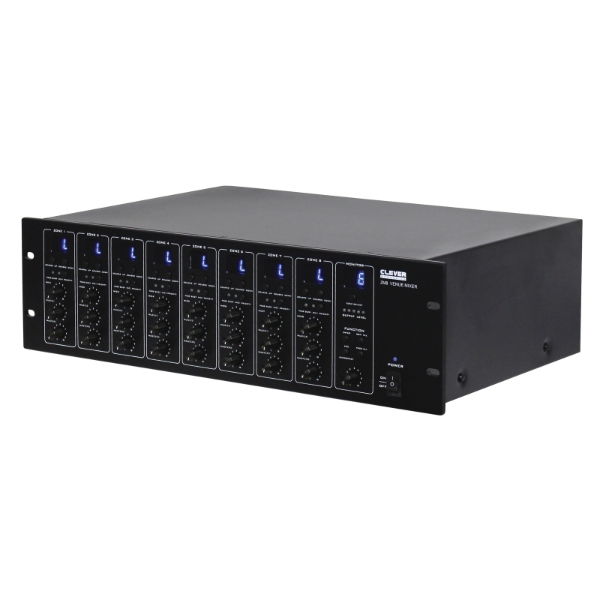

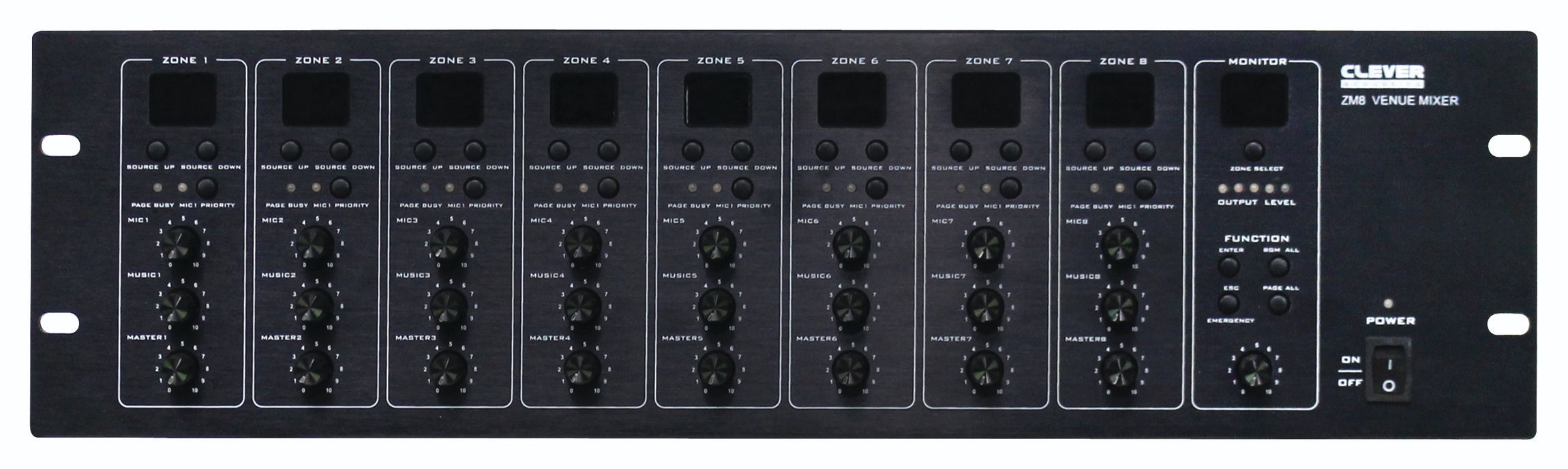

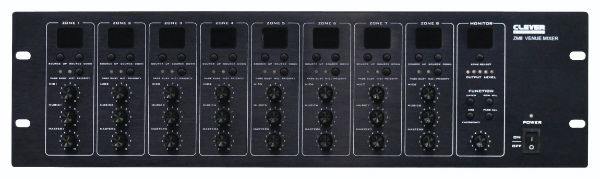

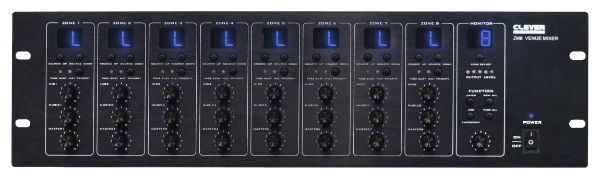

The ZM 8 Zone Mixer allows 8 signal sources plus 2 dedicated paging microphones to be routed into 8 separate zones. With the addition of more ZM 8 zone mixers each system is expandable up to a total of 32 zones. Each zone can be controlled remotely via a wall plate which offers great flexibility, whilst control is also available centrally via the master front panel. The ZM 8 zone mixer offers a complete solution for multi-zone, multi-functional venues such as entertainment establishments, hotels, shopping centres and airports. With digital LCD displays of program/local input selection and monitor selection, and LED indication for monitor output level, microphone priority and busy.

  • Outputs: 0.775V / 600Ω
  • Frequency response (MIC): 80Hz-18KHz (+1/-3dB)
  • Frequency response (Line): 20Hz-20KHz (+1/-3dB)
  • Power supply: 110V/60Hz and 240V/50Hz or DC 24V
  • Power consumption: 20W
  • Dimensions (H x W x D): 132 x 484 x 304mm
  • Weight: 10.3kg
Stock code CRAM19
Barcode / EAN 0723175524231
Packed Dims (H x W x D) 21.3 x 53 x 44.5cm
Packed Weight 10.7kg
Outer Carton Quantity 1
Commodity Code 8543709030
Country Of Origin China
Order Code: CRAM19

ZM 8 Zone Matrix System
