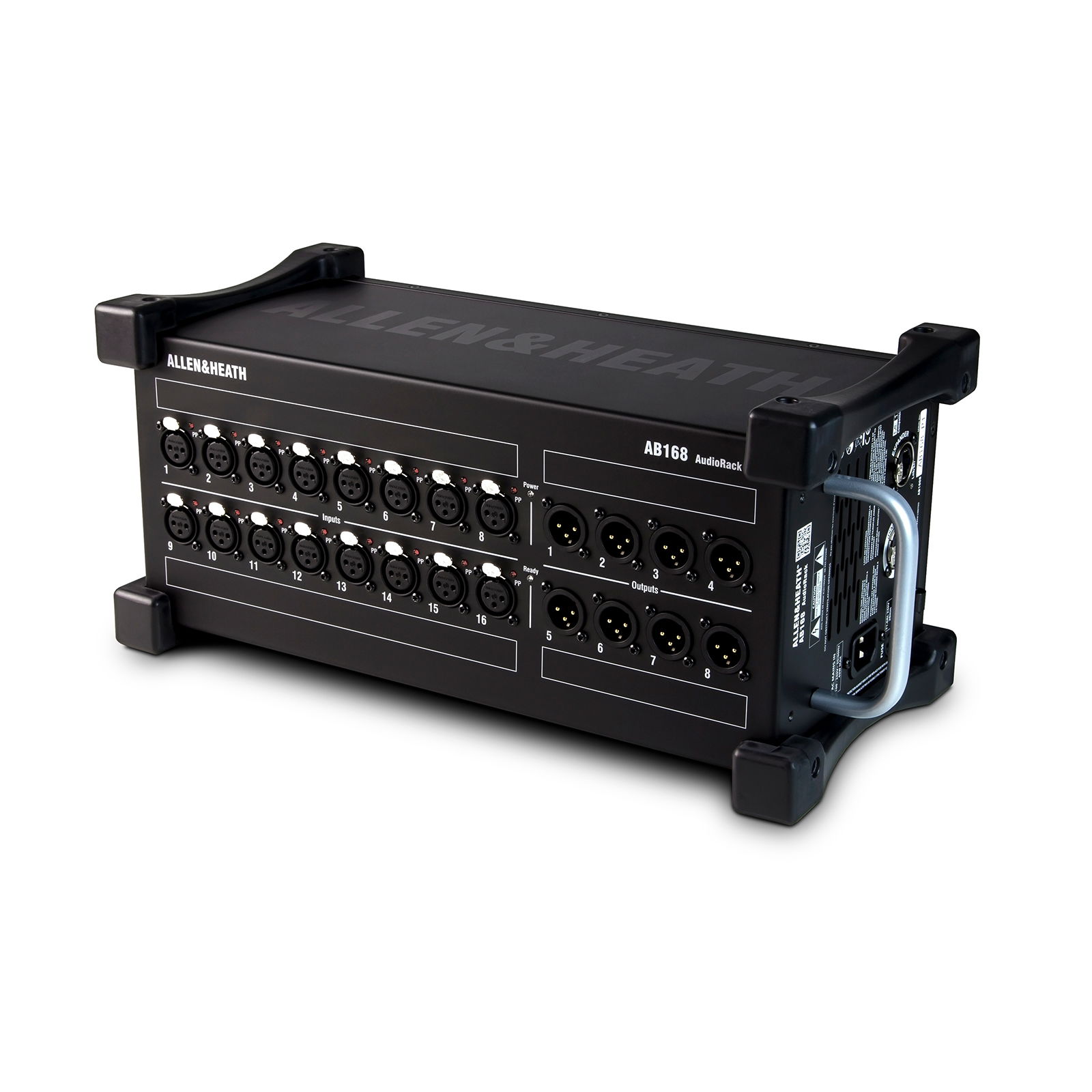

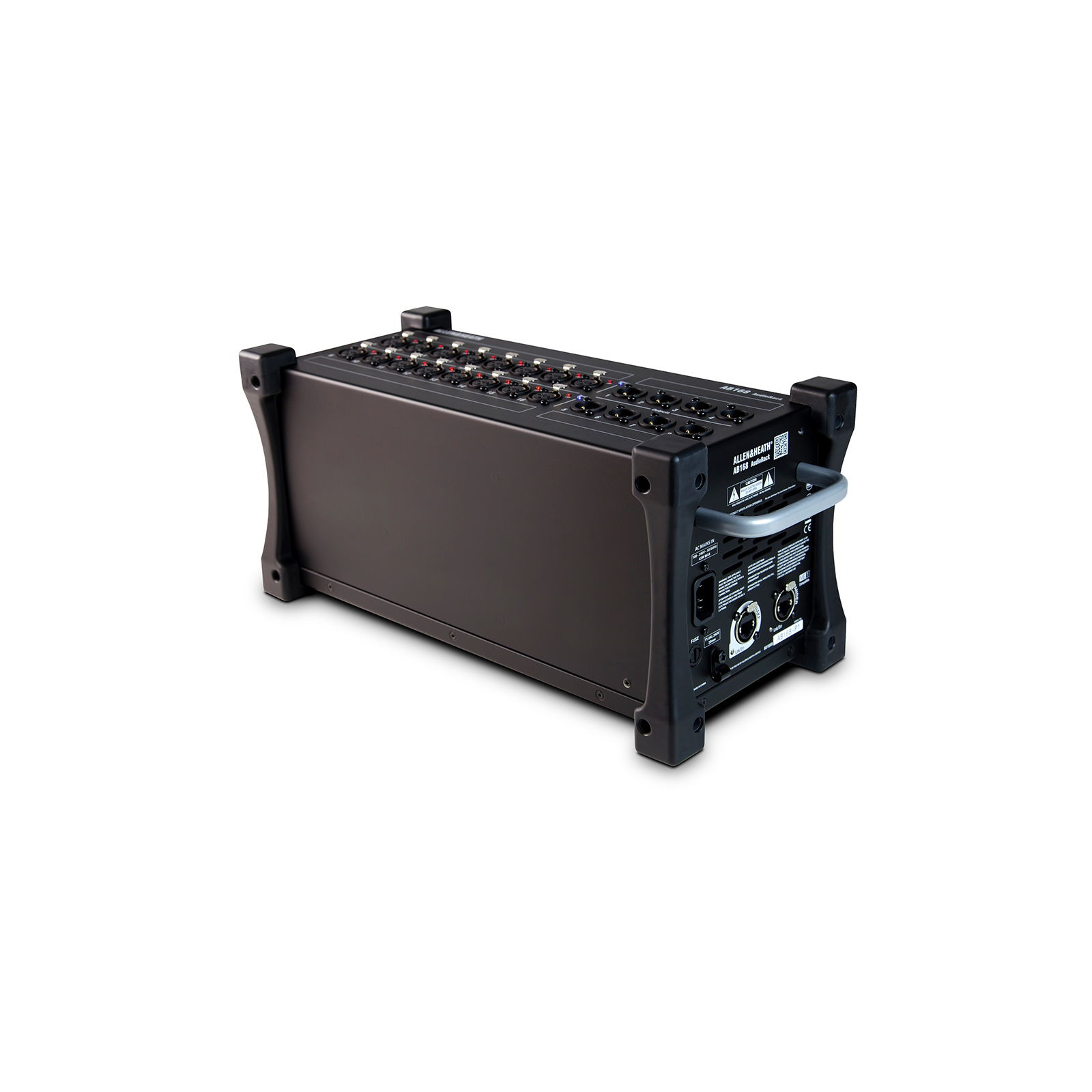

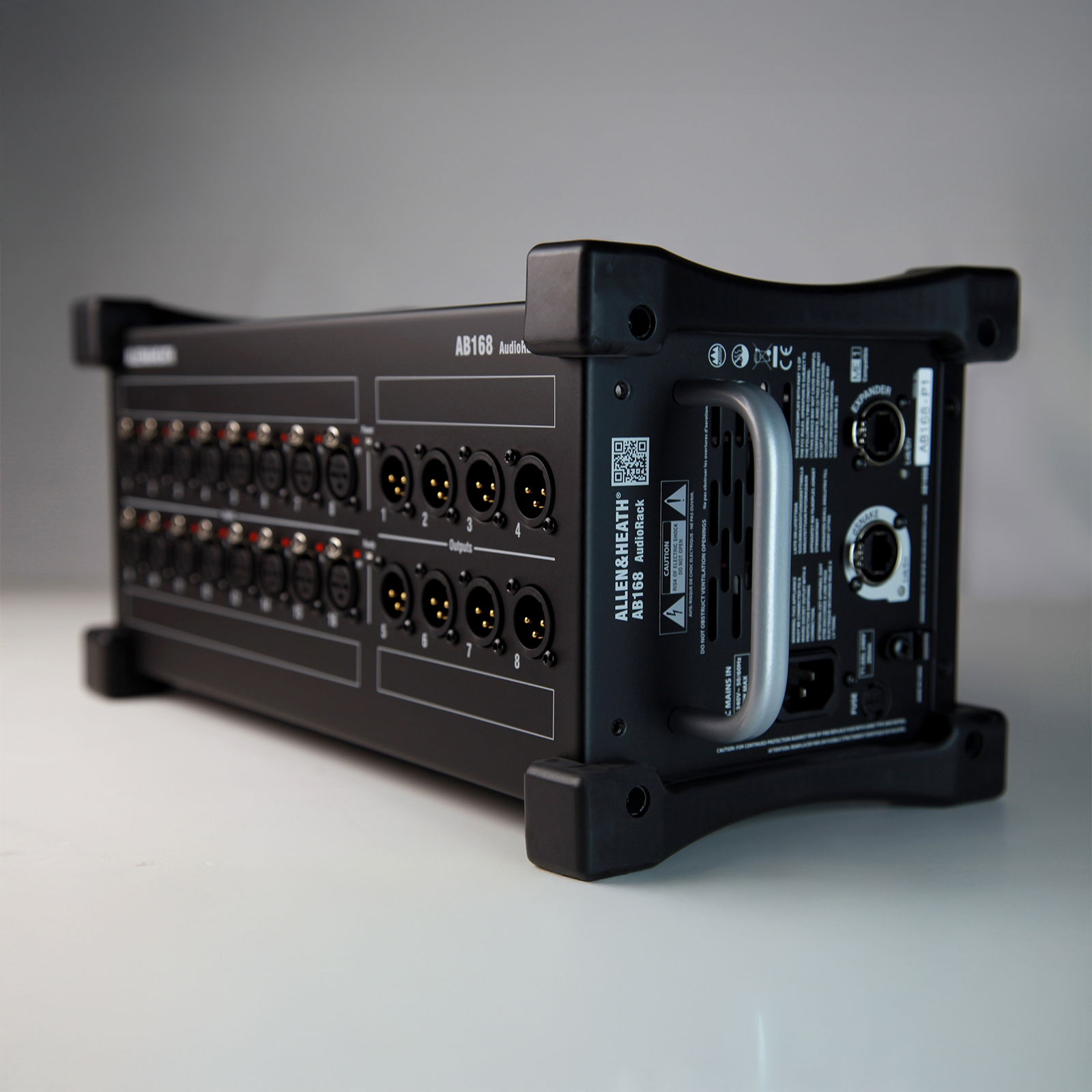

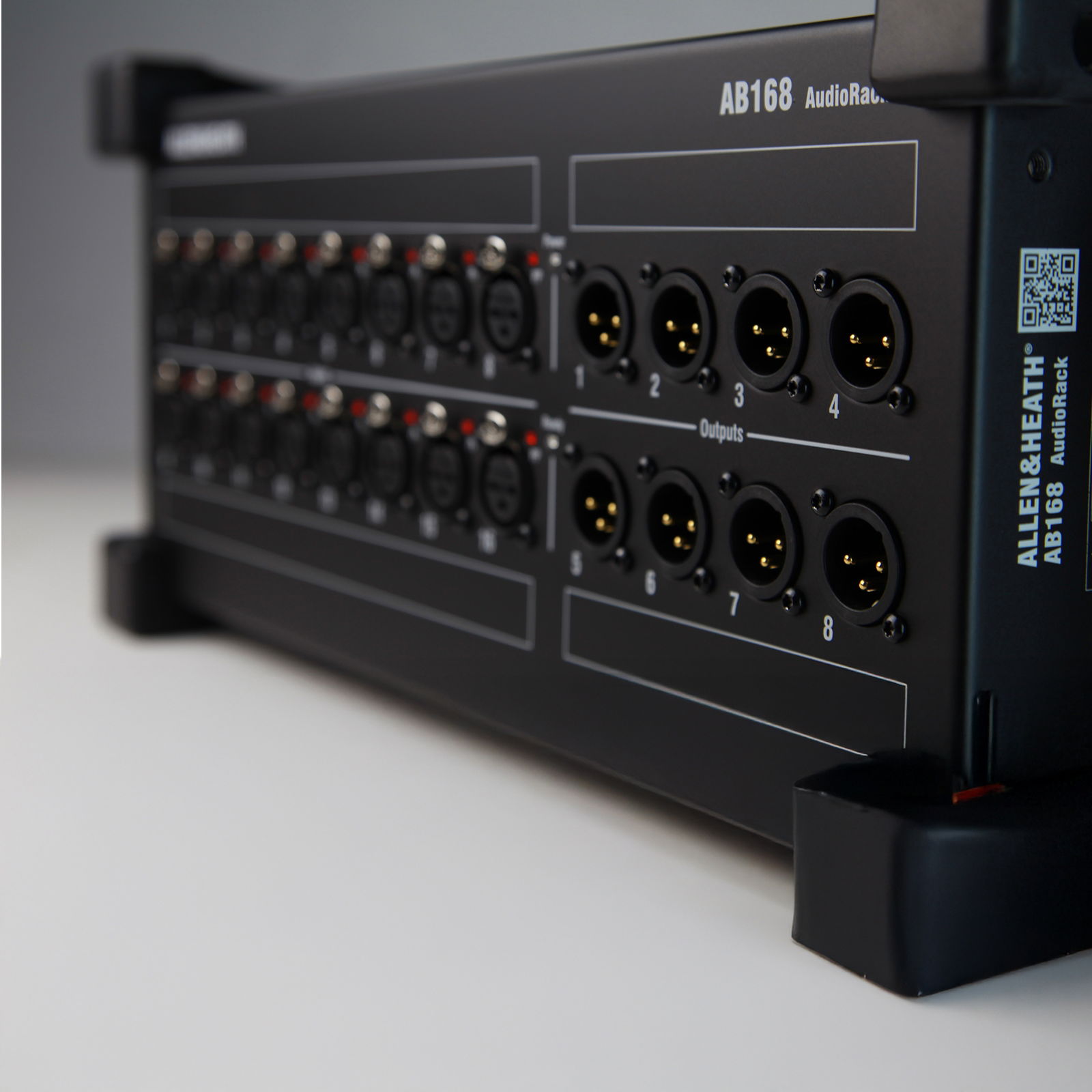

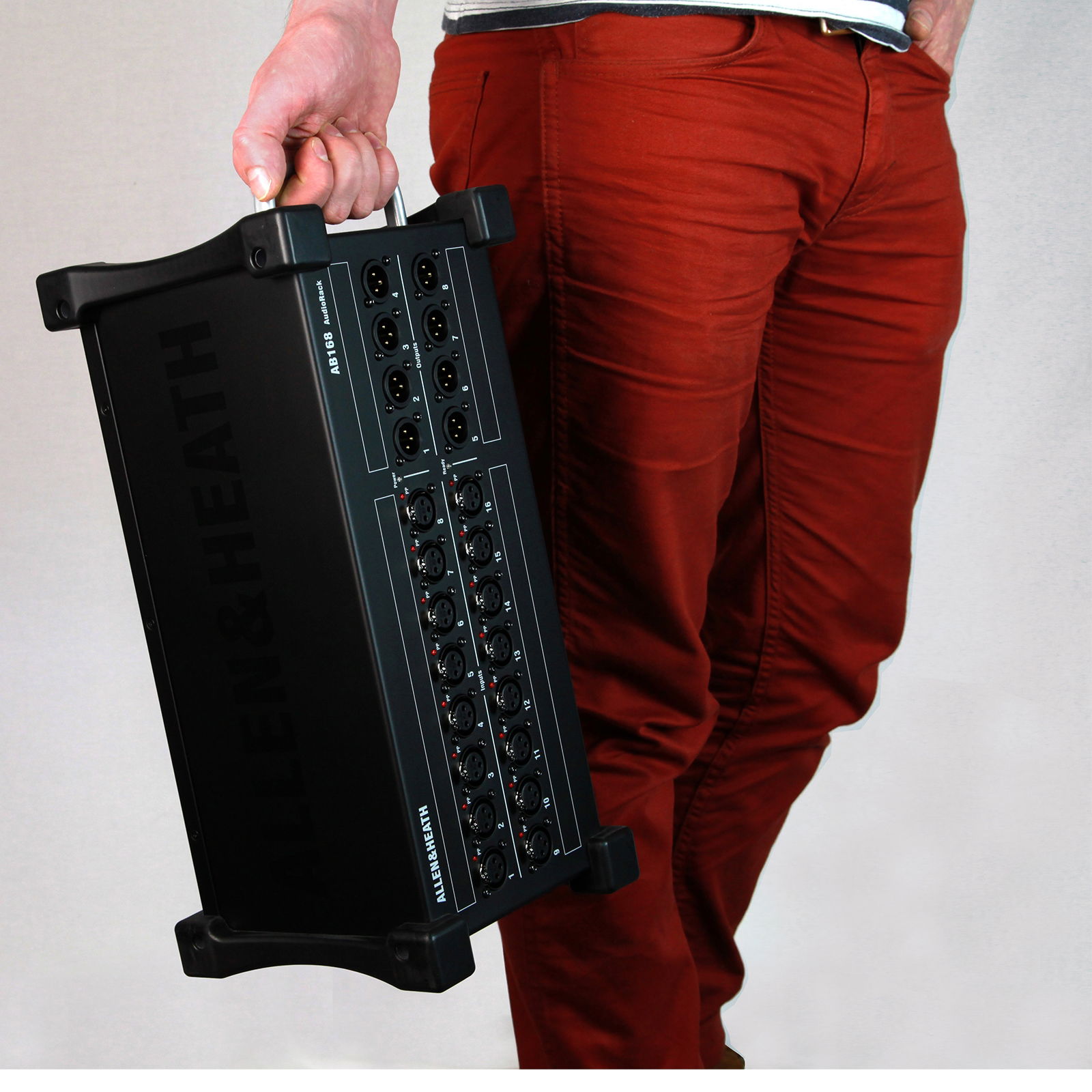

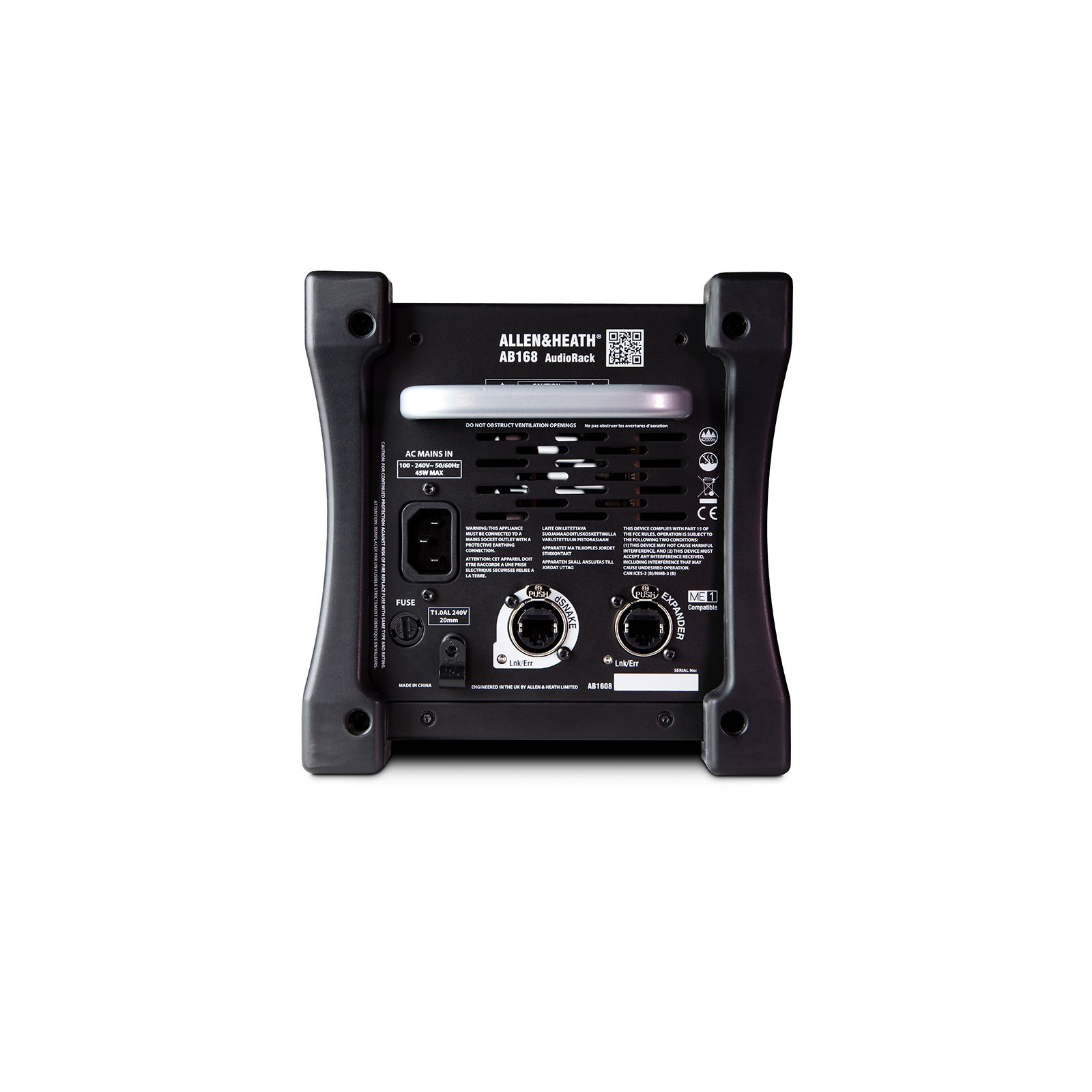

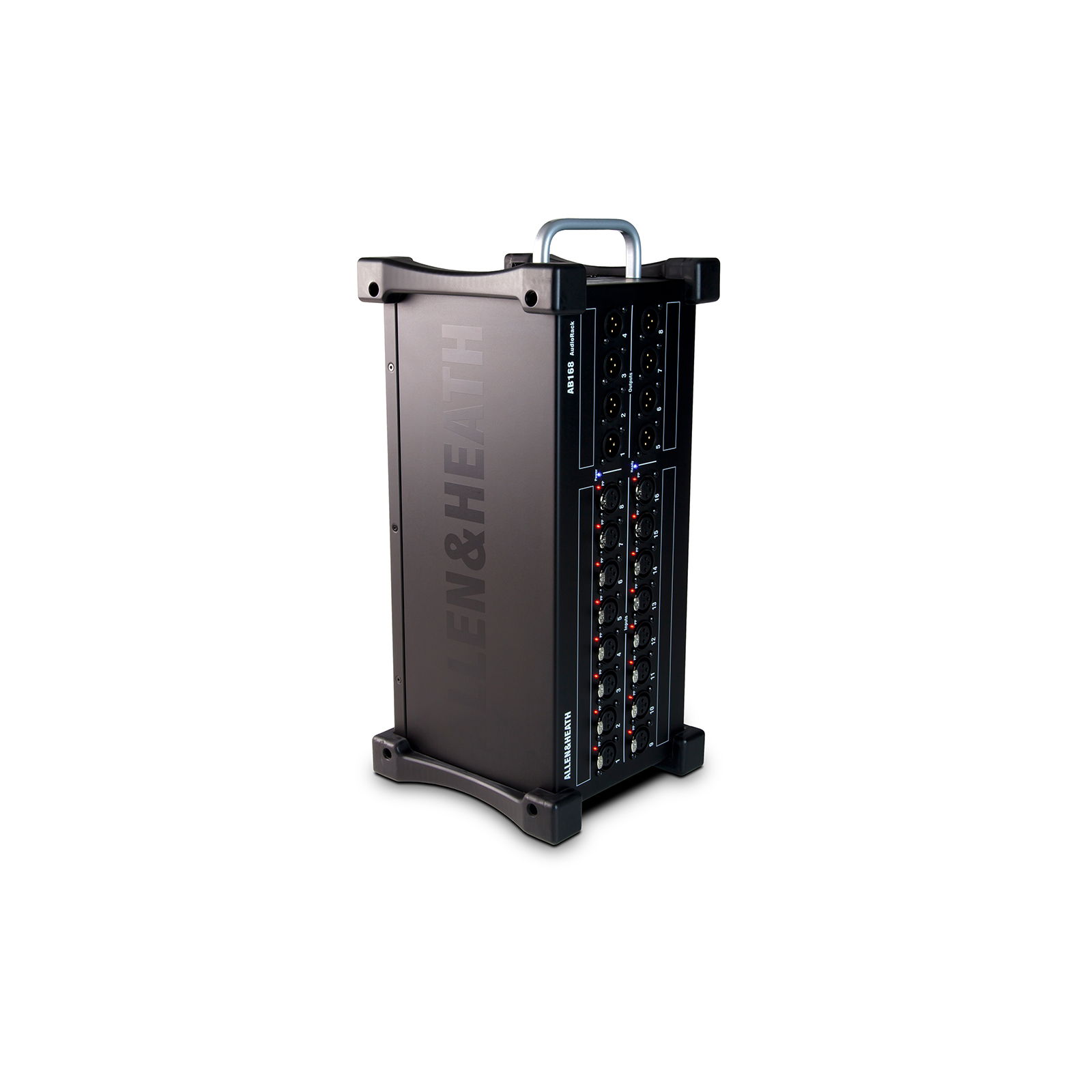

The Allen & Heath AB168 is a rugged portable AudioRack offering 16 XLR inputs and 8 XLR outputs, designed for remote I/O expansion of Allen & Heath dLive, Avantis, and SQ digital mixing systems. Connecting via a single Cat5 cable for 48kHz digital audio and remote control, the AB168 is ideal for stage applications, floor deployment, or installations where flexible input/output is required. Housed in a tough metal chassis with rubber bumpers, it’s built for touring and ready for the road.

  • Product Code: AB168
  • Inputs: 16 x XLR mic/line
  • Outputs: 8 x XLR line
  • Connectivity: dSNAKE over Cat5 (up to 120m)
  • Sampling Rate: 48kHz
  • Compatibility: SQ; dLive; Avantis
  • Dimensions: 483 x 220 x 180mm
  • Weight: 5.0kg approx.
Stock code AH0047
Order Code: AH0047

16 Input/ 8 Output Portable Rack, AB168
