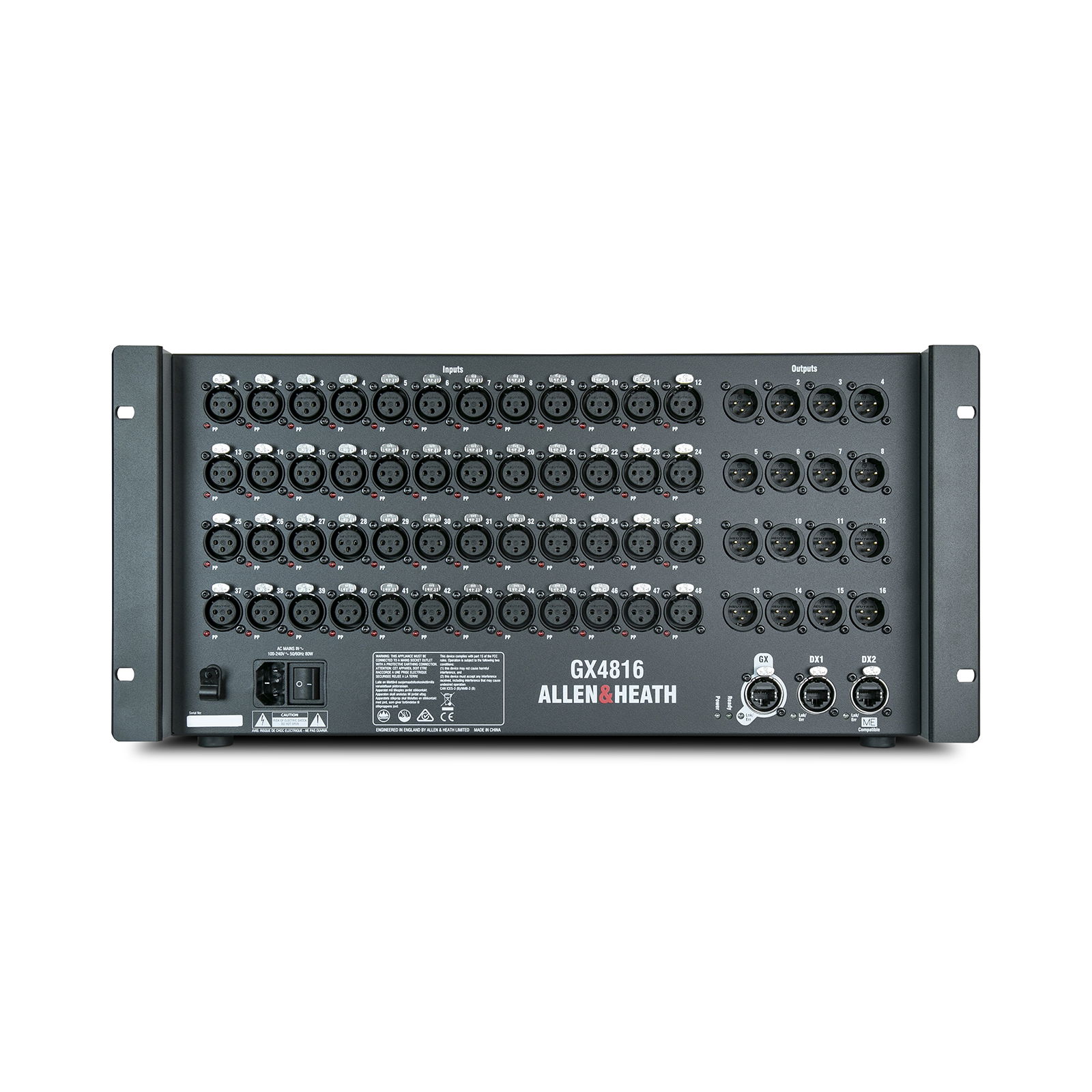

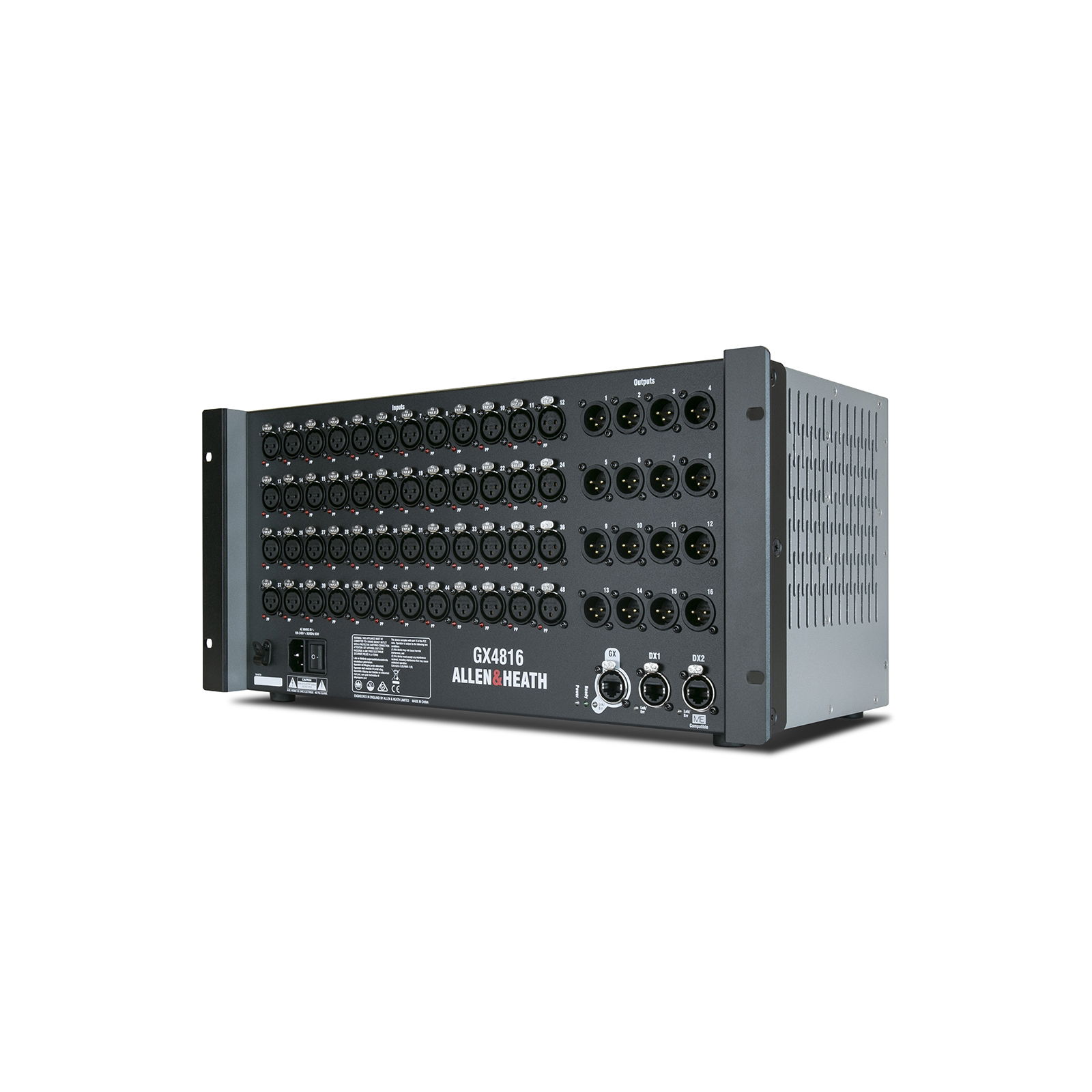

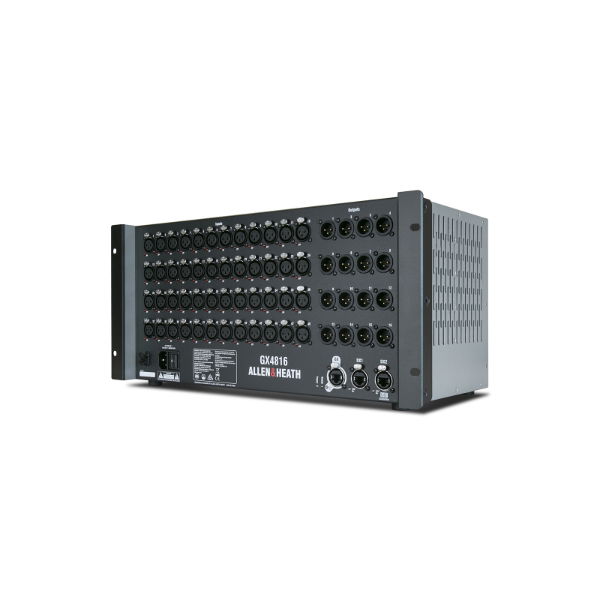

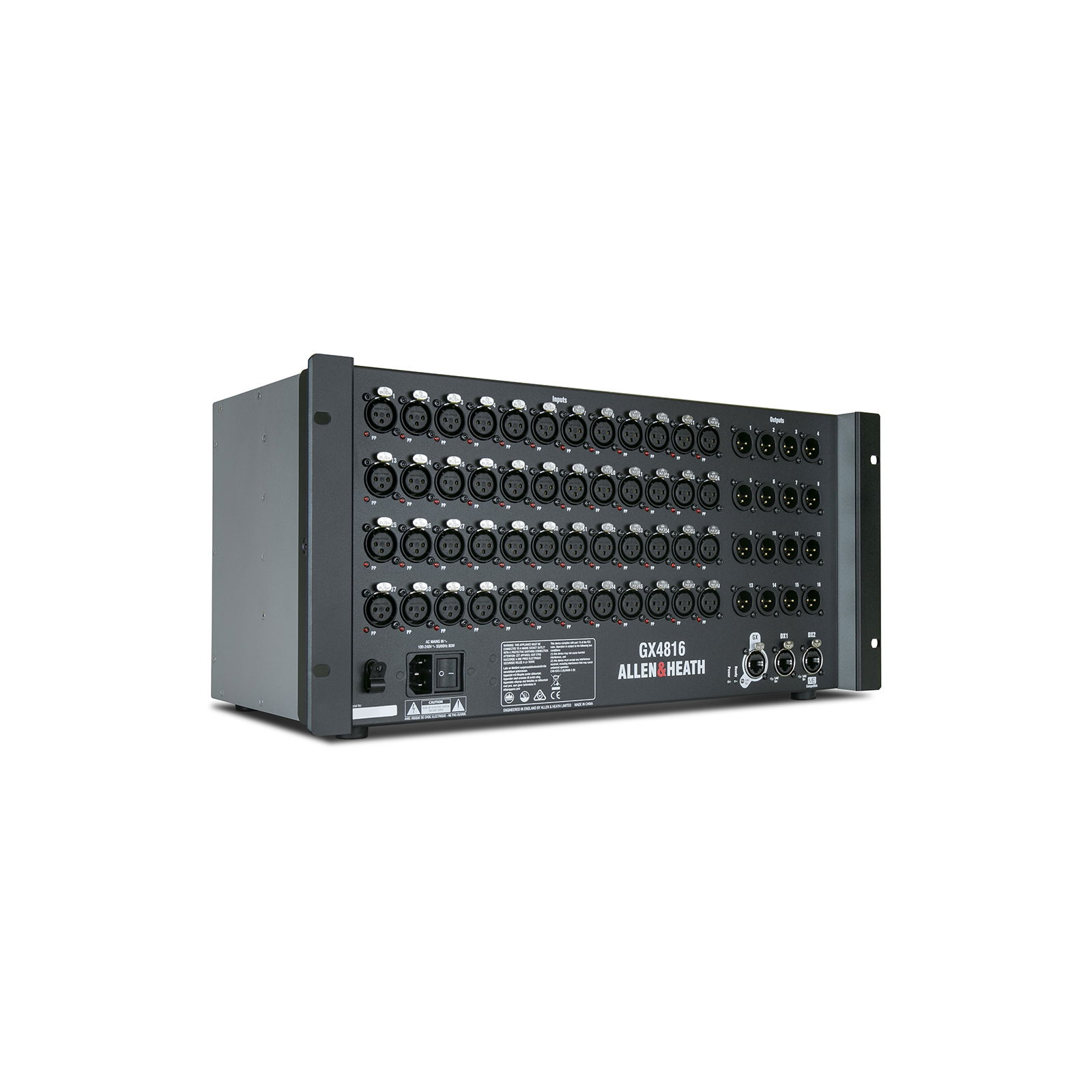

The Allen & Heath GX4816 is a high-capacity remote audio expander featuring 48 premium XLR mic/line inputs and 16 XLR line outputs at 96kHz, designed for use with SQ and dLive digital mixing systems. Connecting via a single Cat5e cable over gigaACE, the GX4816 delivers pristine audio quality and effortless integration in touring rigs, broadcast setups, and permanent installations. It also includes a DX Link port for connecting additional DX expanders, plus a dedicated I/O port for ME personal monitoring systems.

  • Product Code: GX4816
  • Inputs: 48 x XLR mic/line
  • Outputs: 16 x XLR line
  • Audio Resolution: 96kHz
  • Connection: 1 x gigaACE (EtherCon)
  • Expansion: 1 x DX Link; 1 x ME port
  • Compatibility: SQ Series, dLive Series
  • Form Factor: 5U rackmount
  • Power: Internal PSU
  • Material: Metal chassis
  • Dimensions: 482 x 221 x 302mm (W x H x D)
  • Weight: 10.5kg
Stock code AH0060
Order Code: AH0060

Expander for SQ and dLive 48 Mic/line Ins 16 Outs 96kHz, GX4816

Features

Read More
