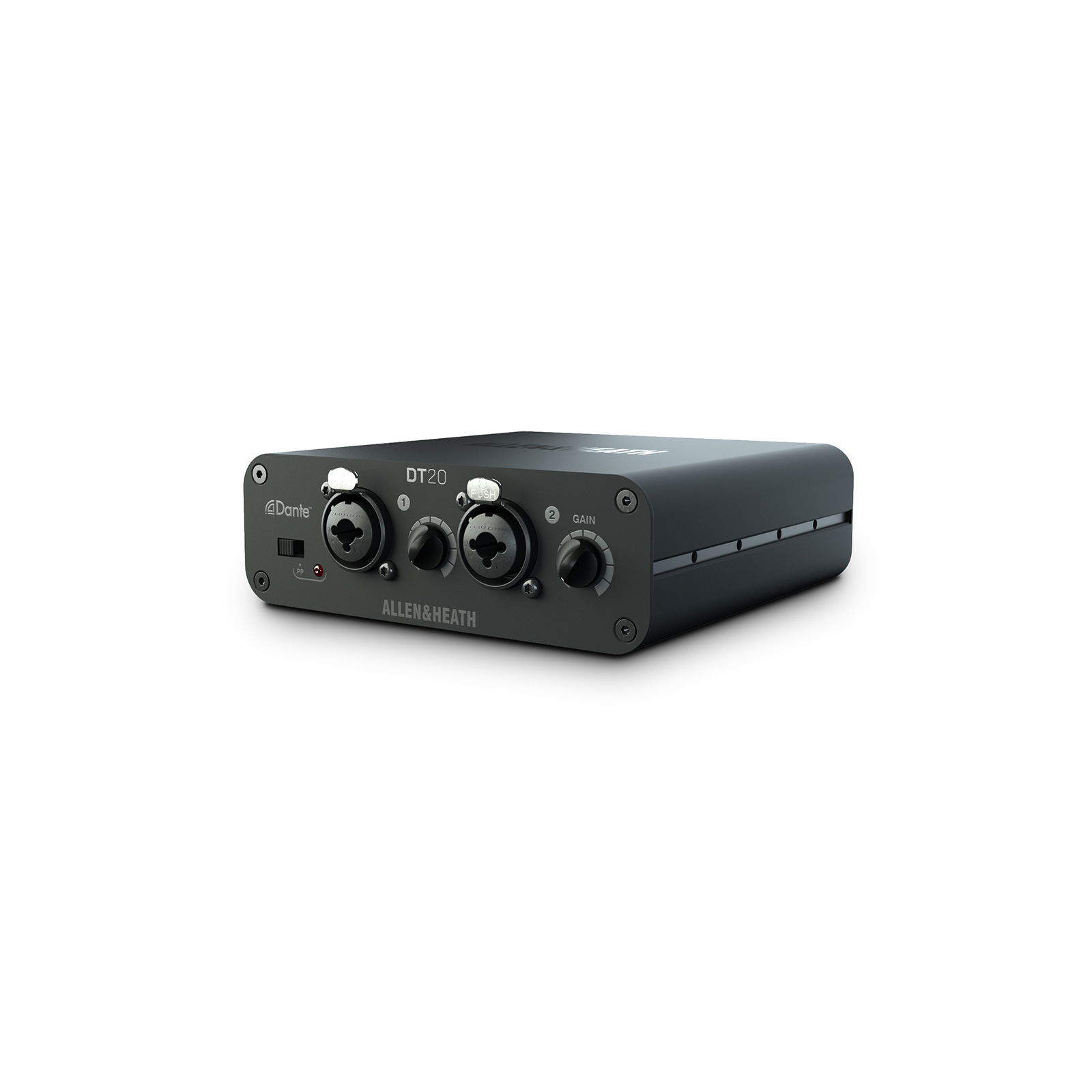

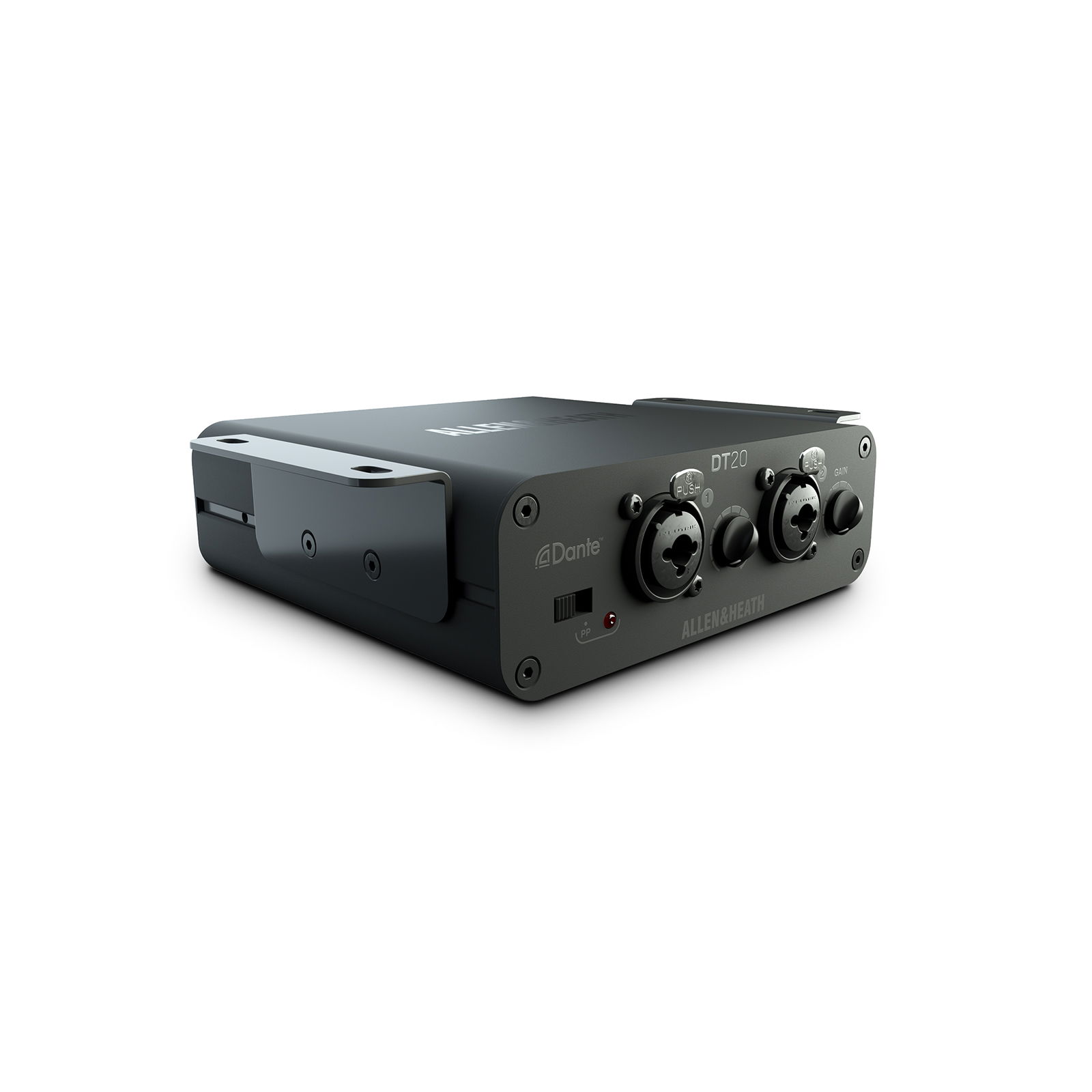

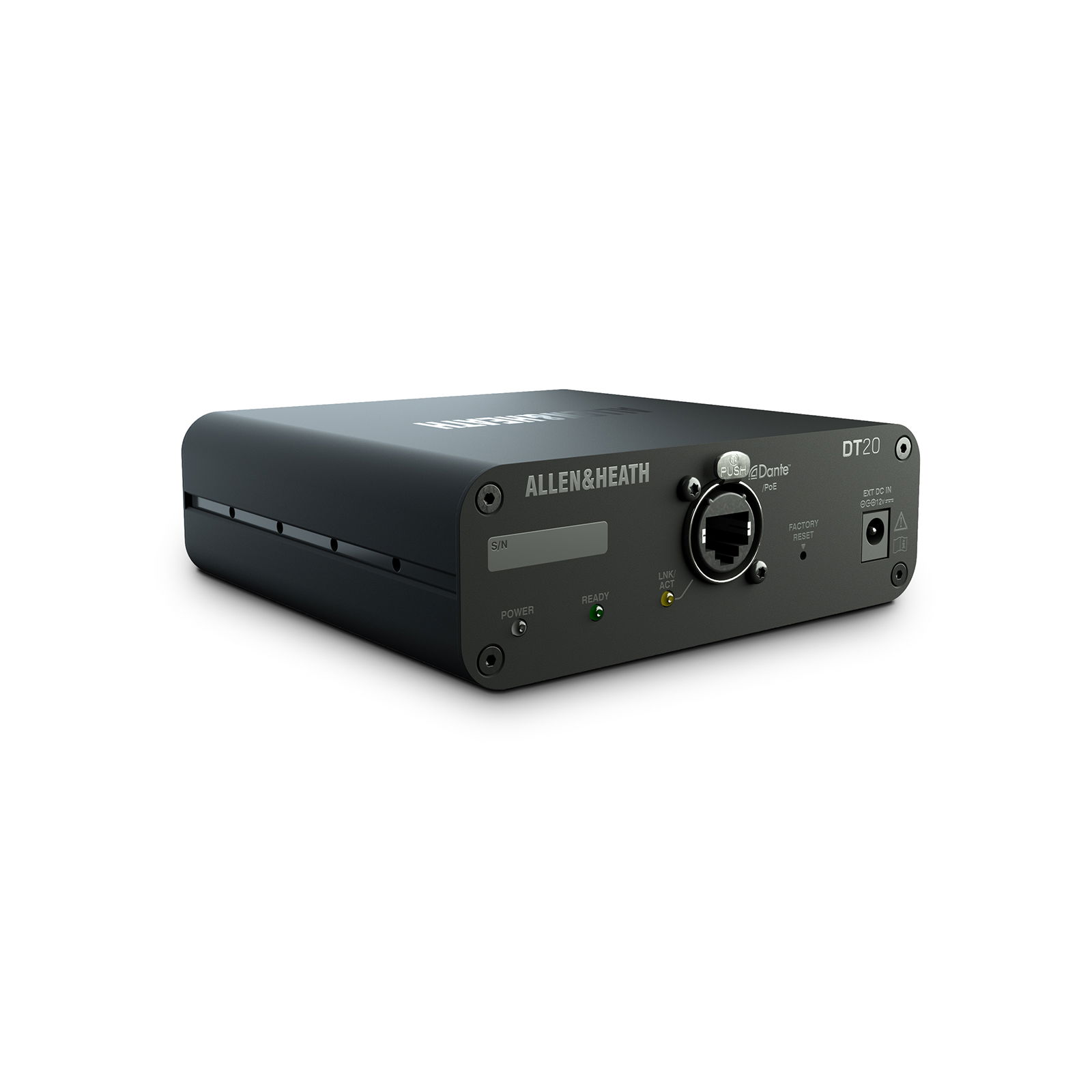

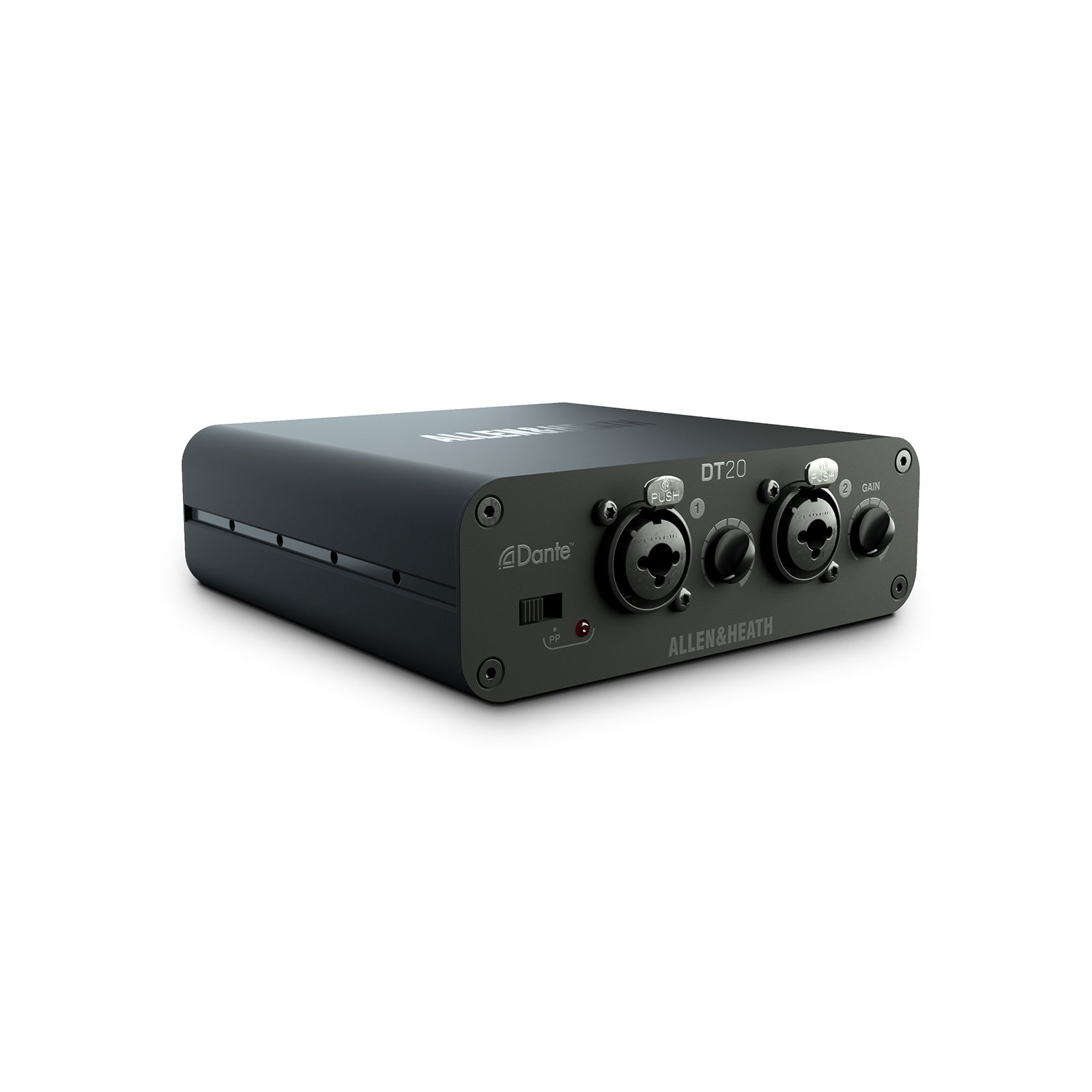

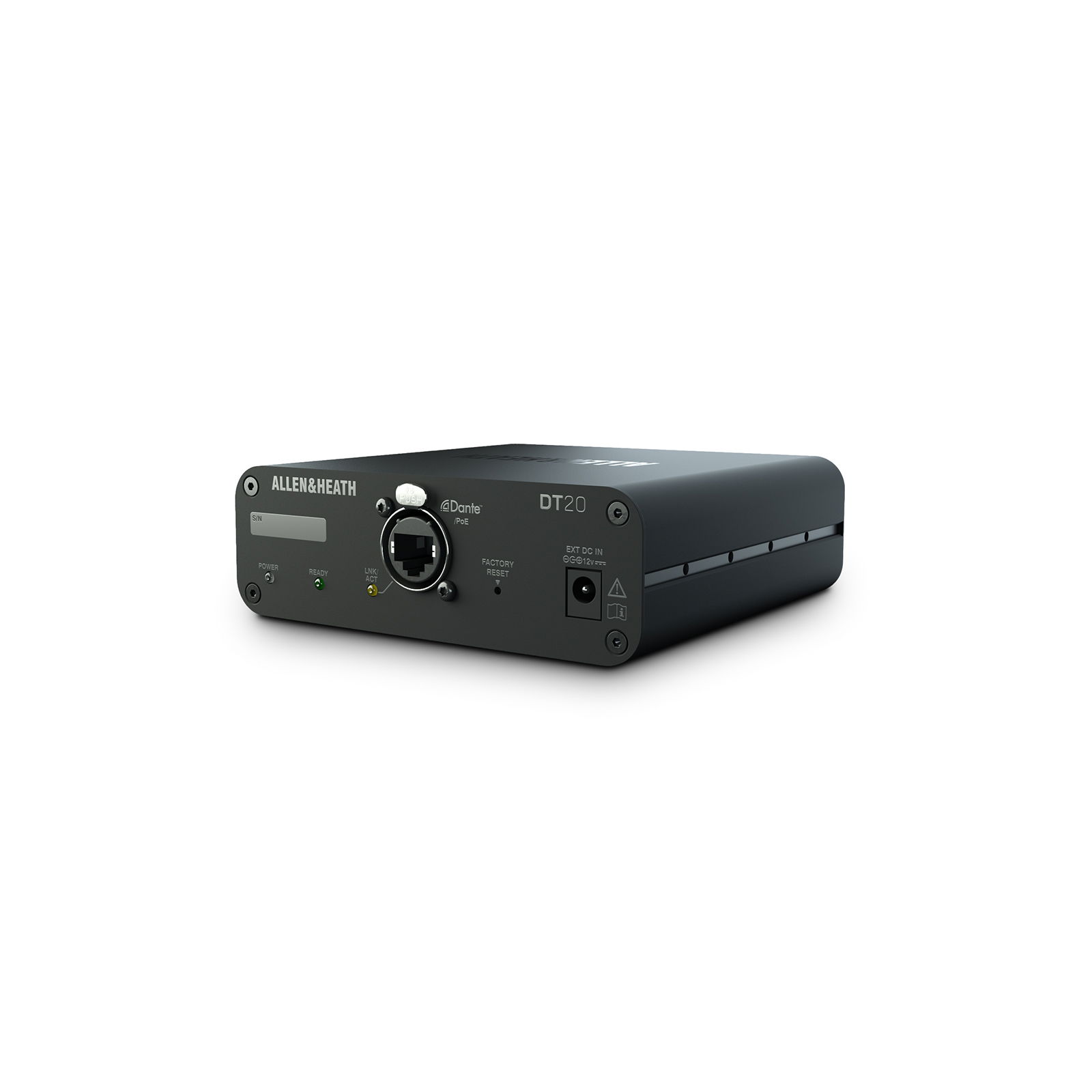

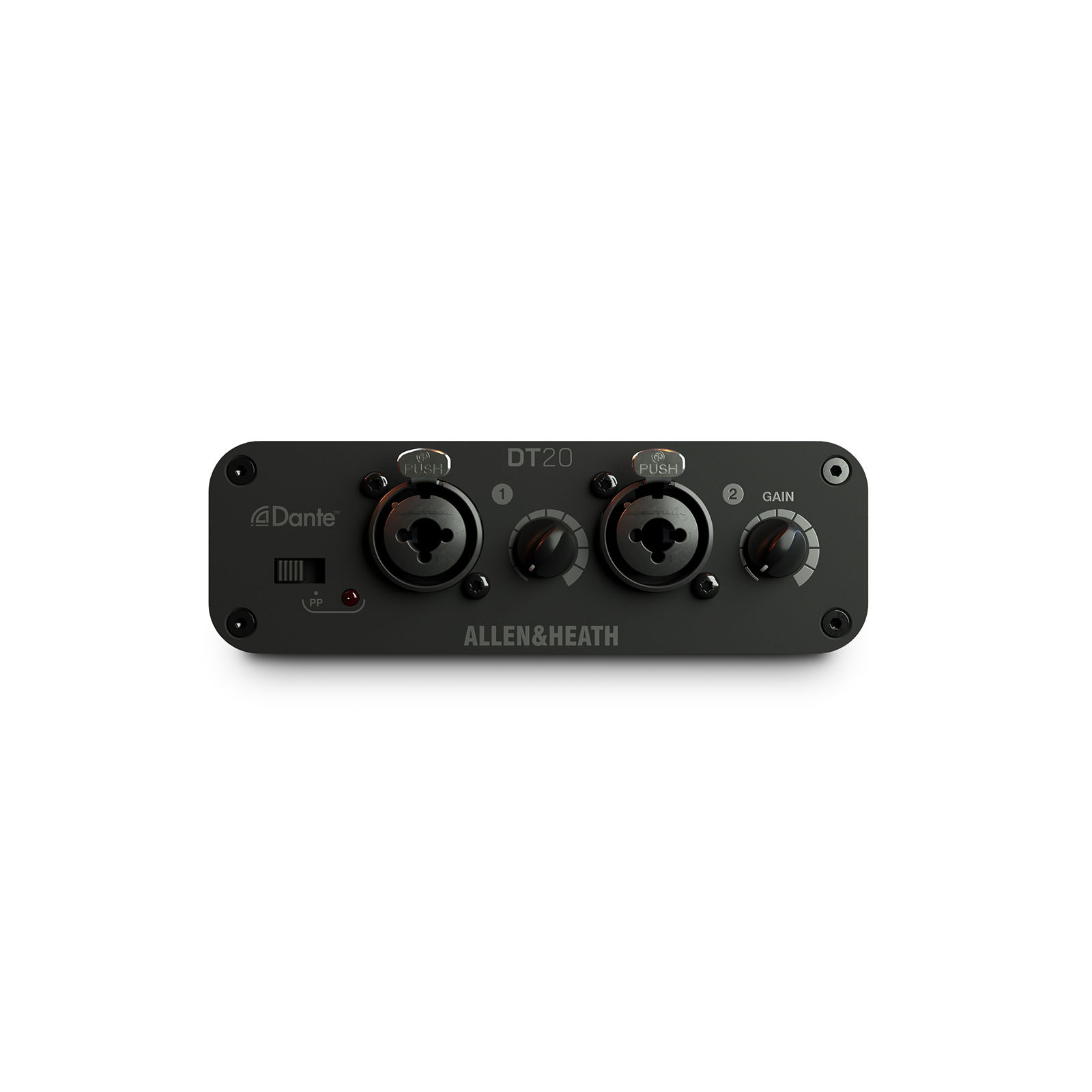

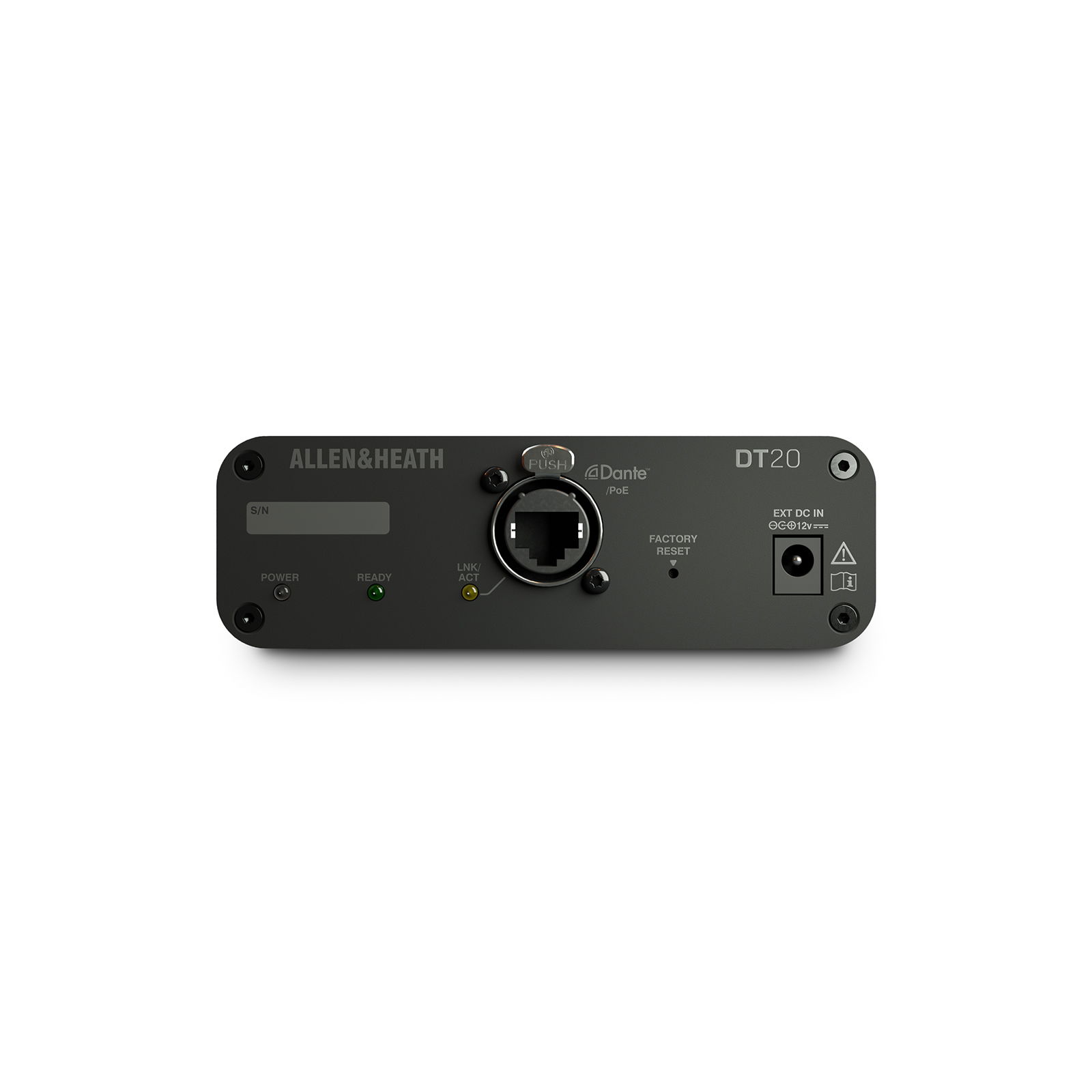

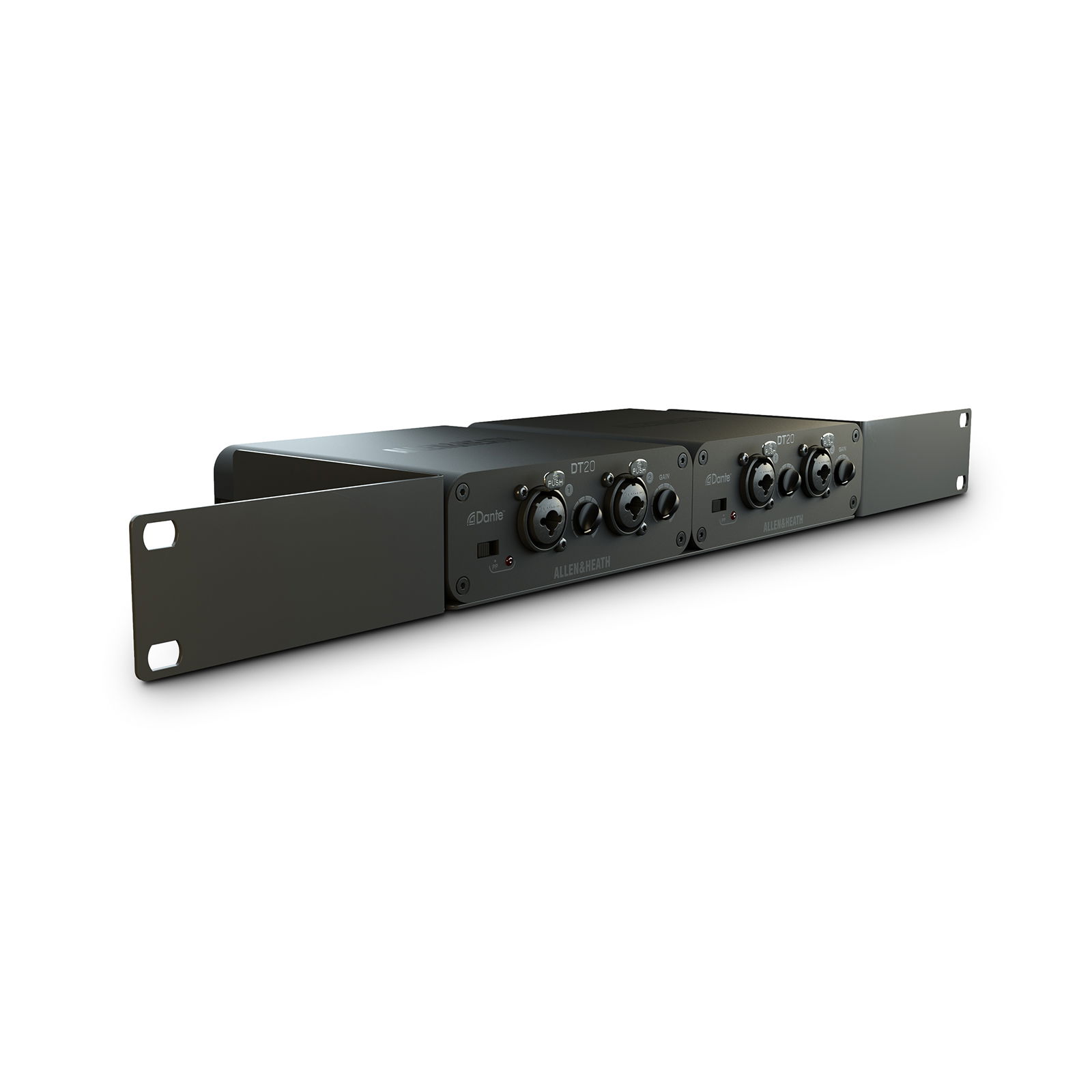

The Allen & Heath DT20M is a compact Dante input interface featuring 2 balanced XLR mic/line inputs for seamlessly integrating analogue audio sources into Dante and AES67 networks. Designed for permanent AV installs, the DT20M is ideal where Power over Ethernet (PoE) is available, offering flexible deployment without a PSU. With a rugged metal housing and wall/floor mounting capability, the DT20M is perfect for corporate, education, and hospitality environments requiring low-profile Dante audio inputs.

  • Product Code: DT20M
  • Inputs: 2 x XLR (mic/line)
  • Network: 1 x Dante (RJ45)
  • Sample Rate: 48kHz
  • Compatibility: Dante and AES67 networks
  • Power: PoE (no PSU included)
  • Form Factor: Wall/Floor mountable
  • Material: Metal housing
  • Dimensions: 138 x 103 x 43mm
  • Weight: Approx. 0.7kg
Stock code AH0066
Order Code: AH0066

Dante Input Interface – 2 In (No PSU), DT20M
