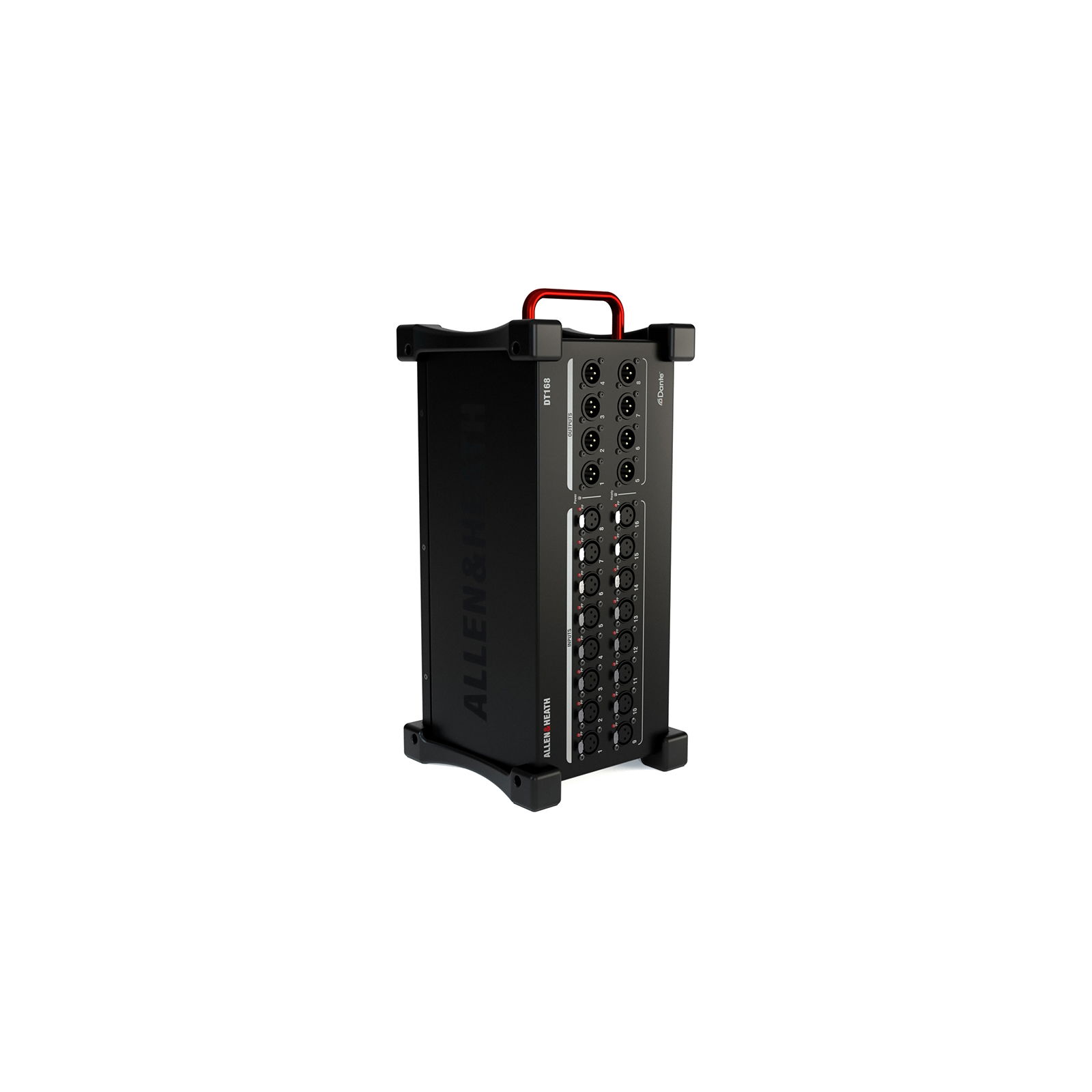

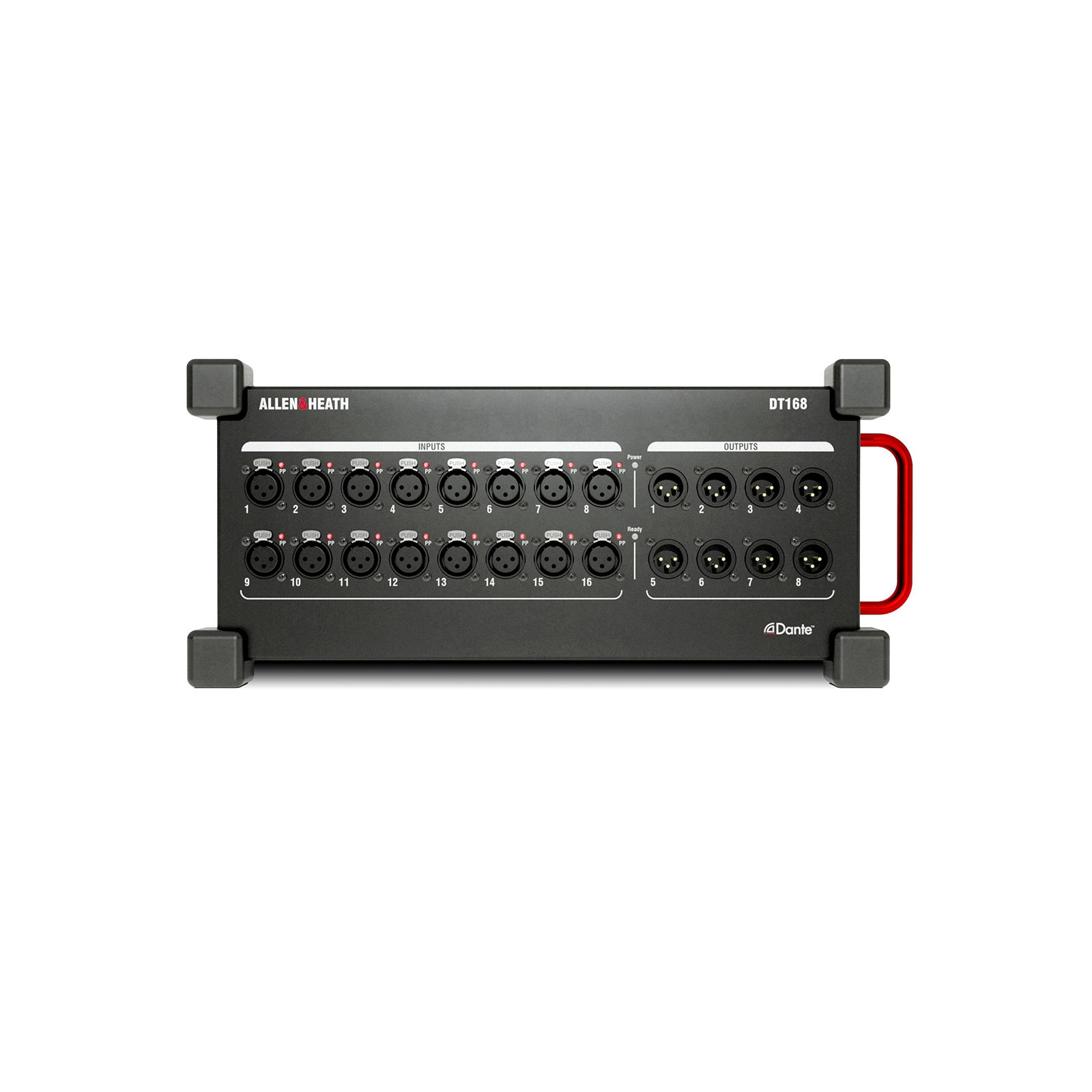

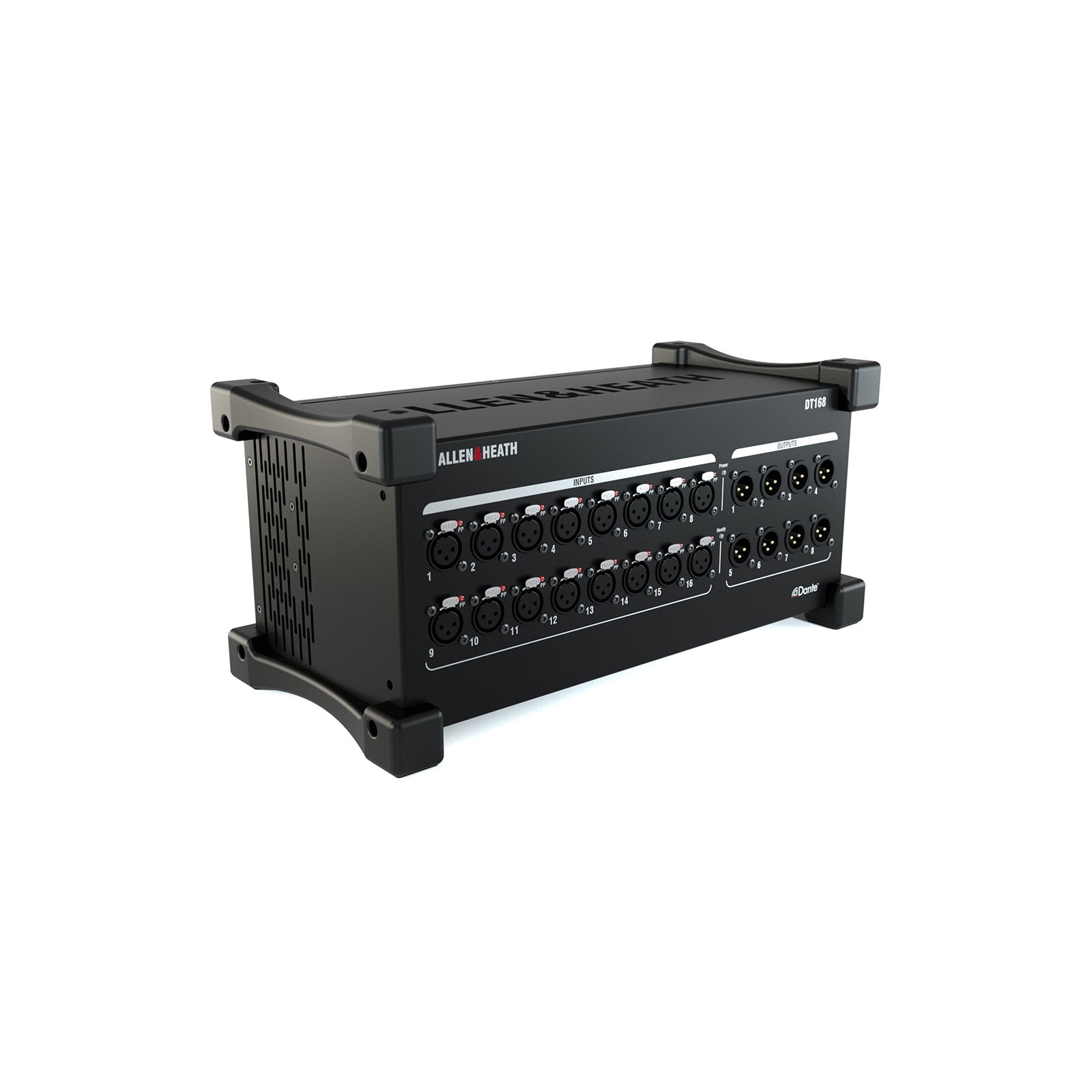

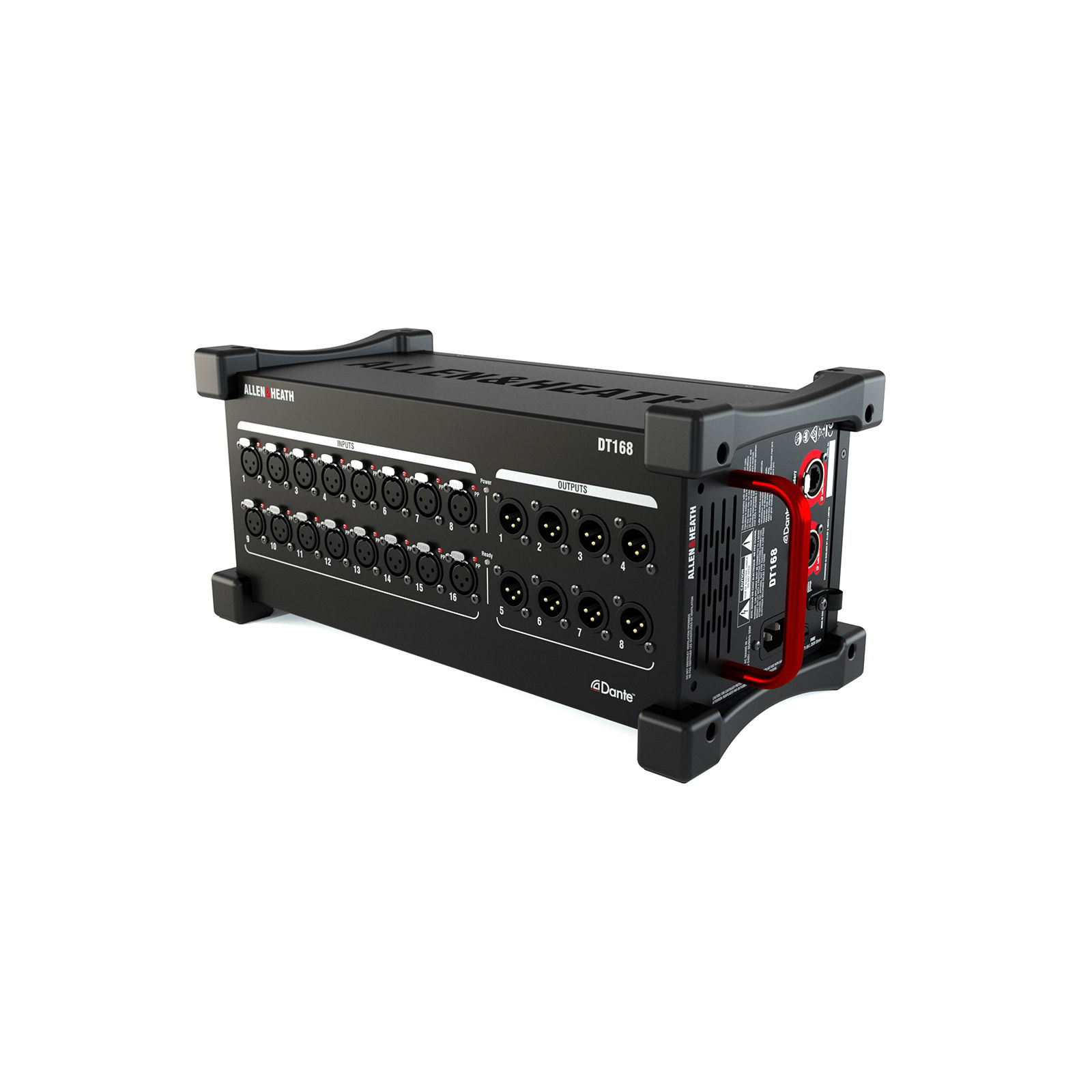

The Allen & Heath DT168 is a rugged, fanless 96 kHz Dante/AES67 I/O expander, offering 16 remote-controlled mic/line XLR inputs with phantom power and 8 balanced XLR line outputs. Housed in a portable stagebox with rubber bumpers and carry handle, it features dual locking EtherCon ports for redundant or daisy-chain operation, integrates directly with dLive, Avantis, or SQ Dante networks, and includes a built-in universal PSU (100–240 V AC, 40 W max)

• Inputs: 16 × XLR mic/line; phantom, pad, gain +5–+60 dB; sensitivity –60 to +15 dBu
• Outputs: 8 × balanced XLR, max +22 dBu; impedance < 75 Ω
• Sample Rates: 48/96 kHz, 24‑bit (32-bit conversion internally)

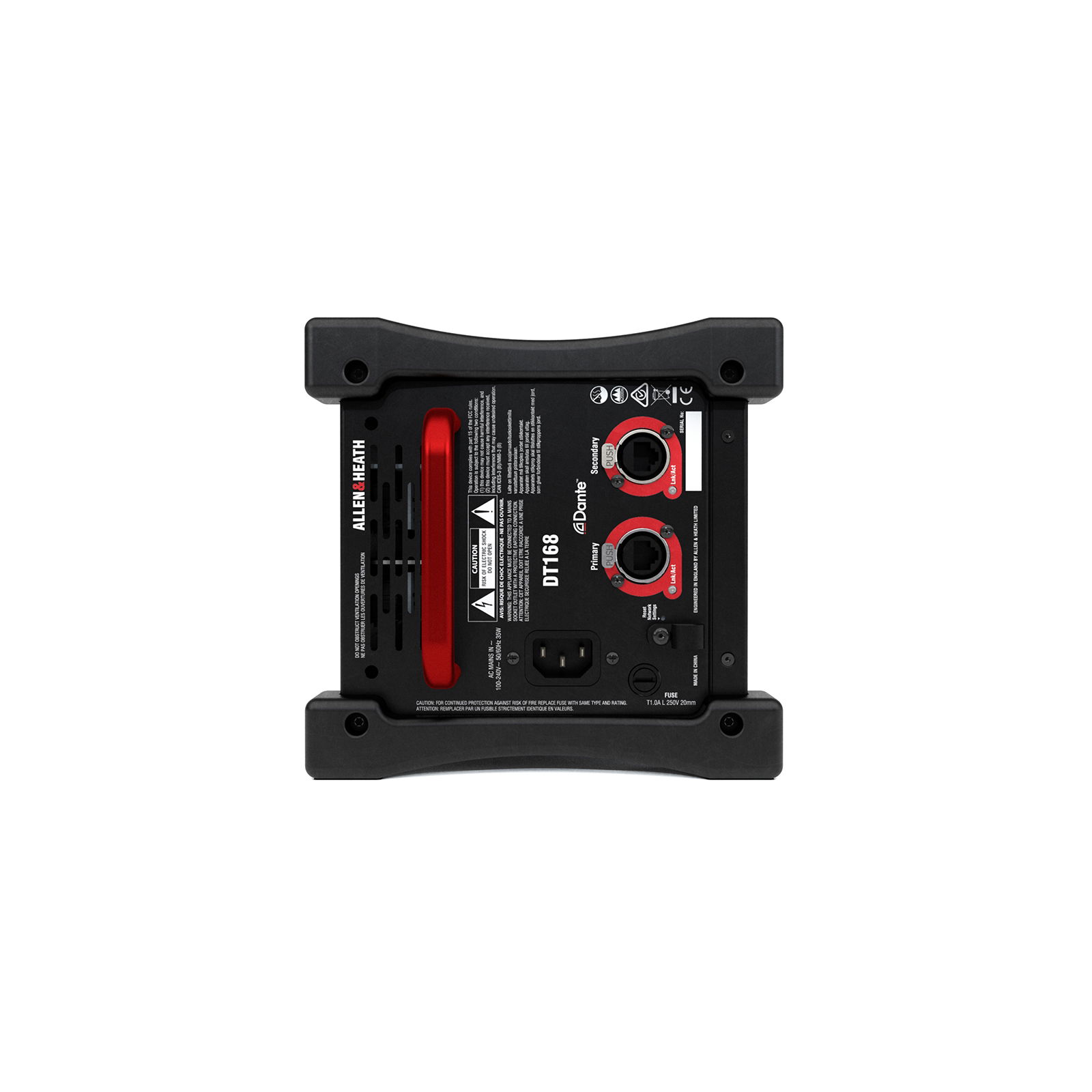

• Network: Dual EtherCon Dante Primary/Secondary
• Power: Built-in PSU 100–240 V AC, max 40 W
• Form Factor: Portable stagebox with carry handle and bumpers; rack kit optional
• Material: Powder-coated steel, fanless design
• Dimensions: 410 × 190 × 185 mm; Weight: 4.6 kg
• Operating Temp: 0–40 °C
