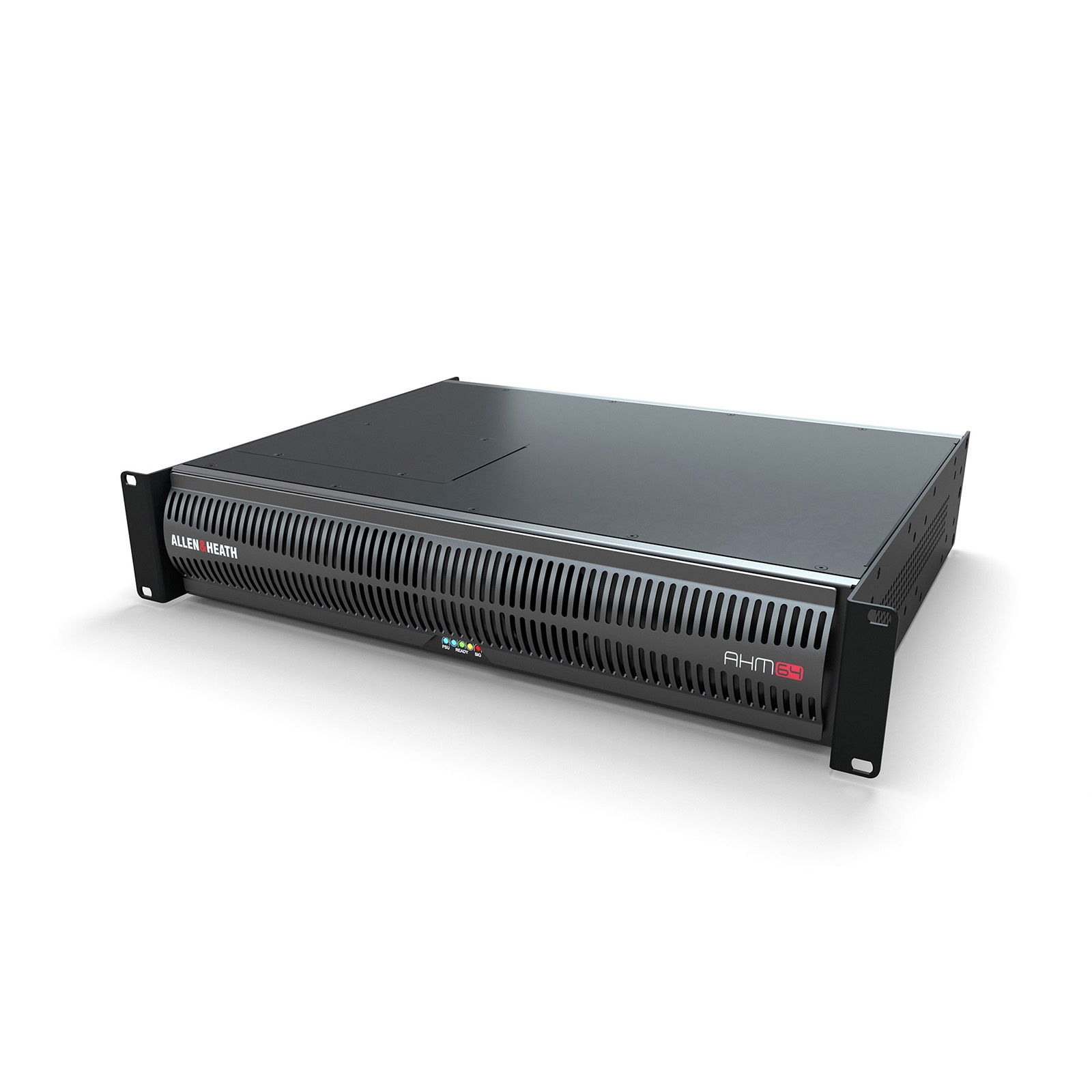

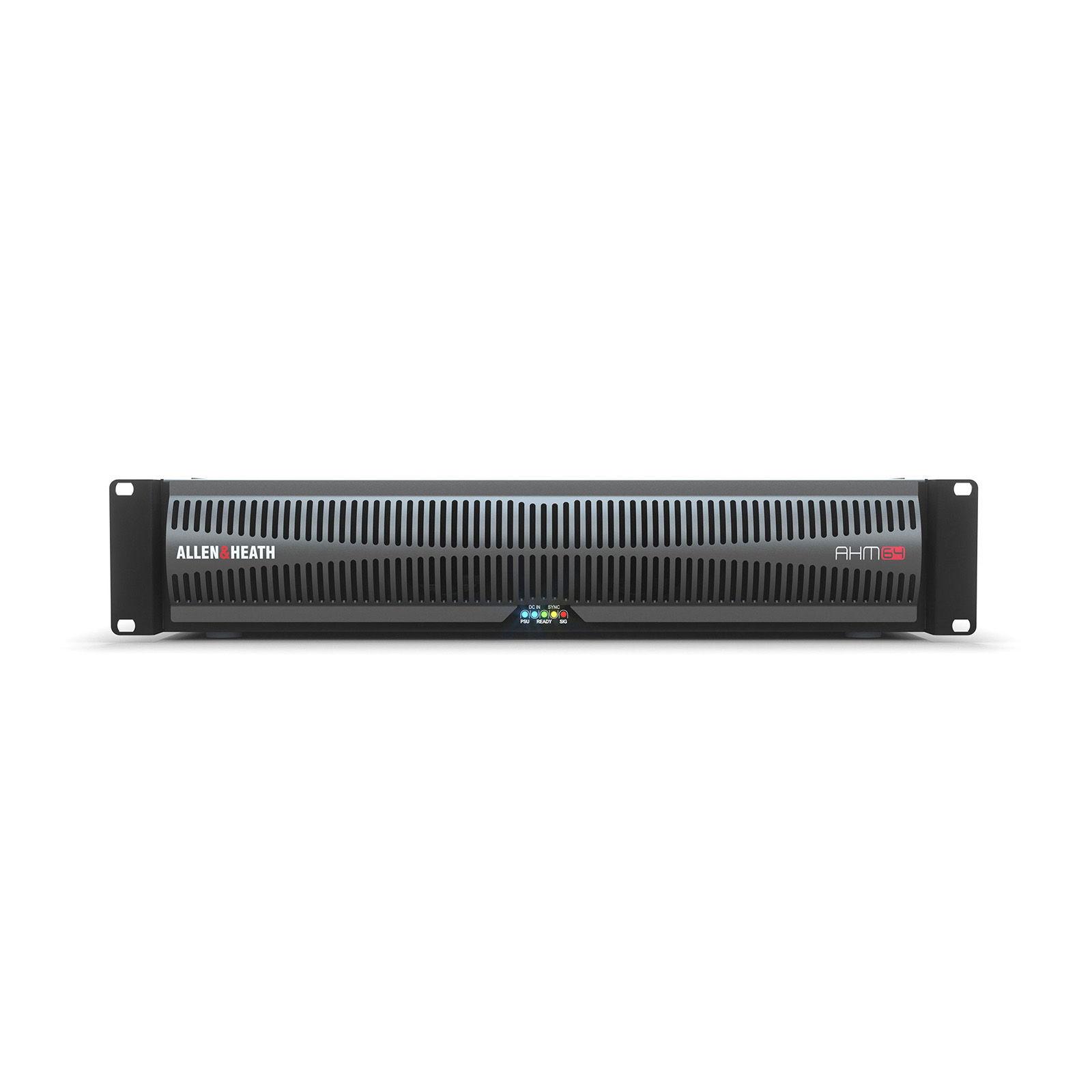

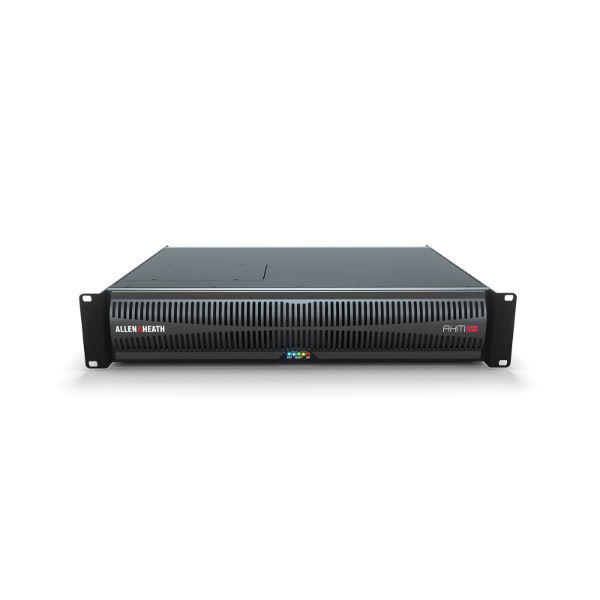

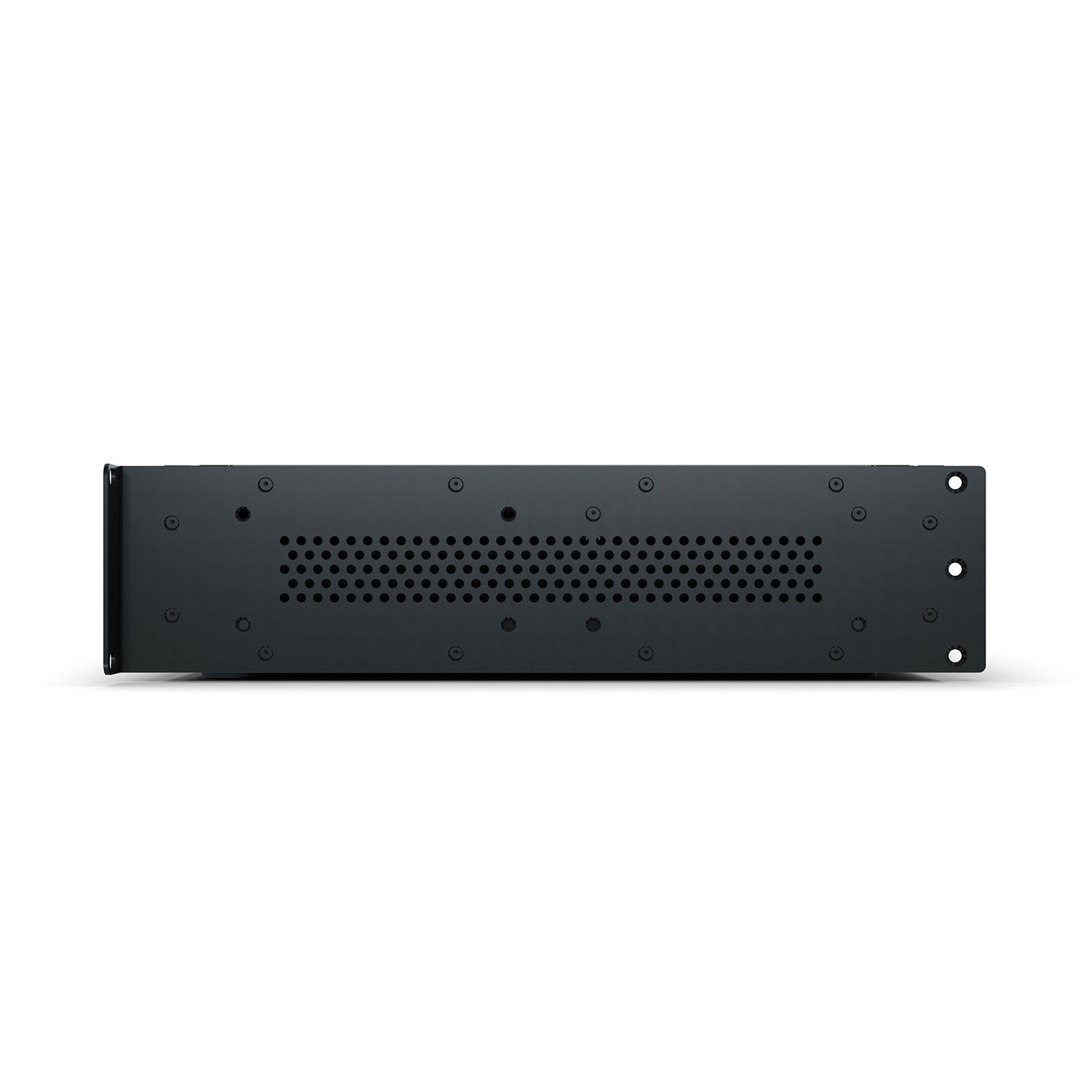

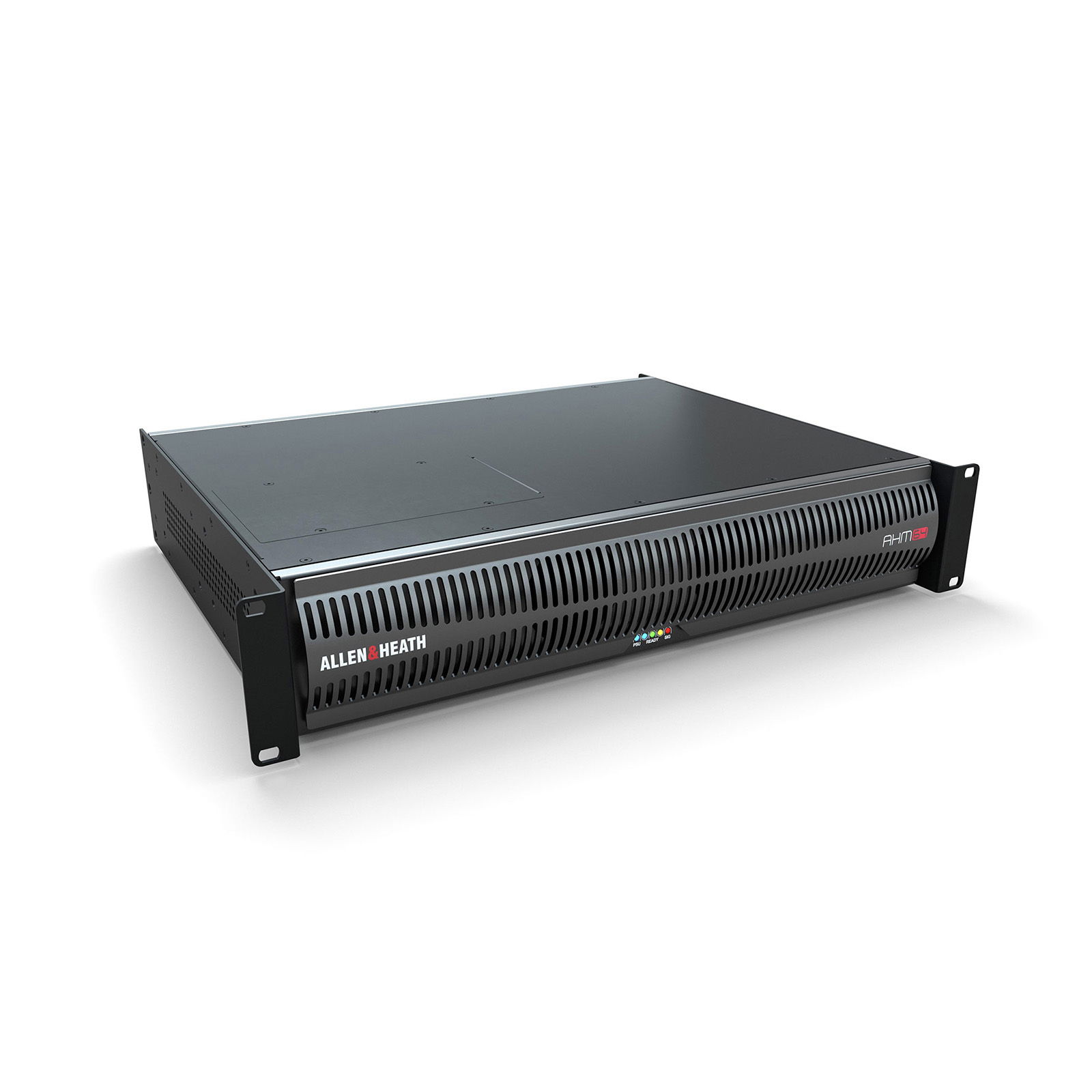

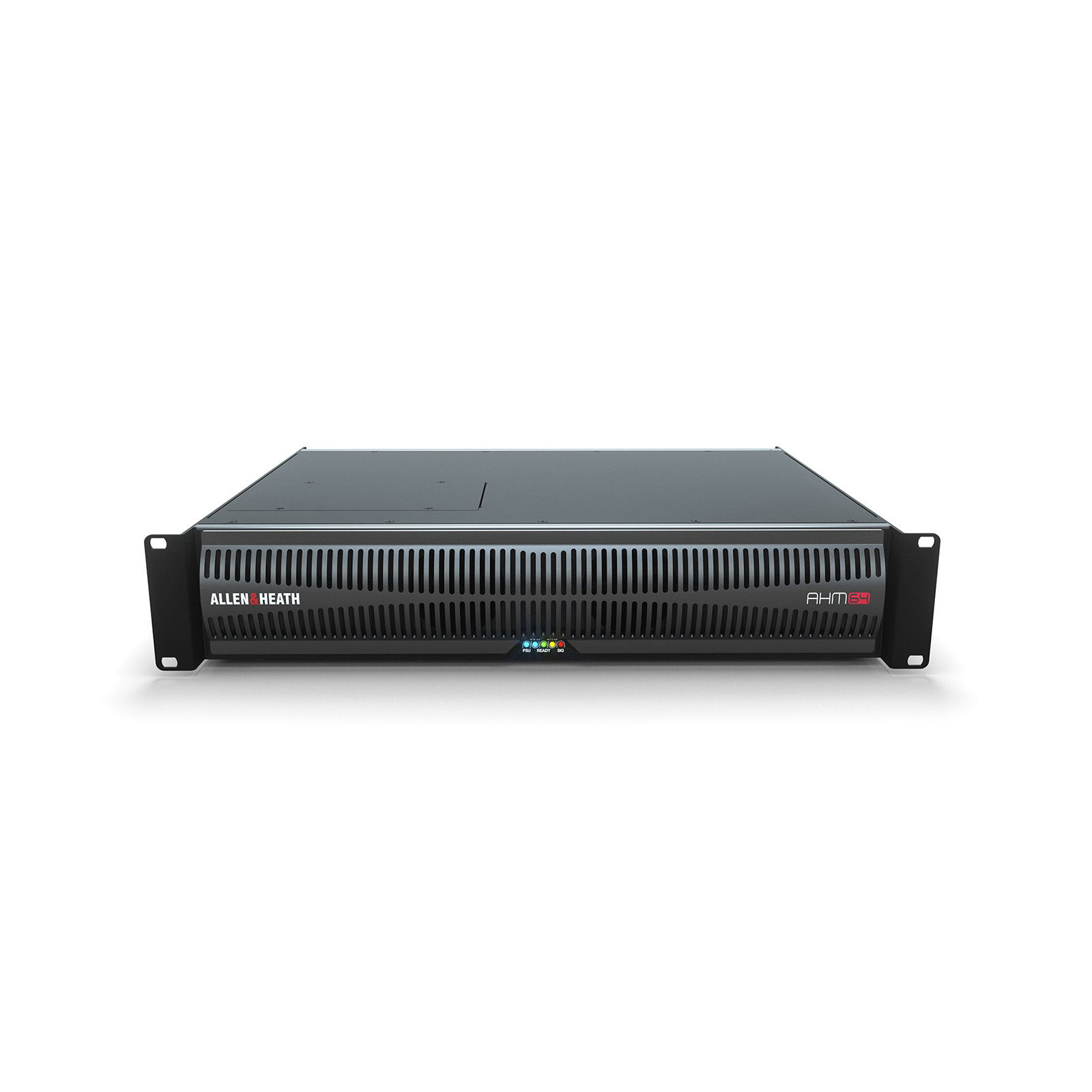

The Allen & Heath AHM-64 is a powerful 64x64 digital matrix processor featuring a 96kHz FPGA core, 12x12 local analog I/O, and extensive audio networking capabilities. Designed for scalable sound management and installation, it offers advanced features like automatic mic mixing, ambient noise compensation, and speaker processing, making it ideal for corporate, hospitality, education, and house of worship environments.

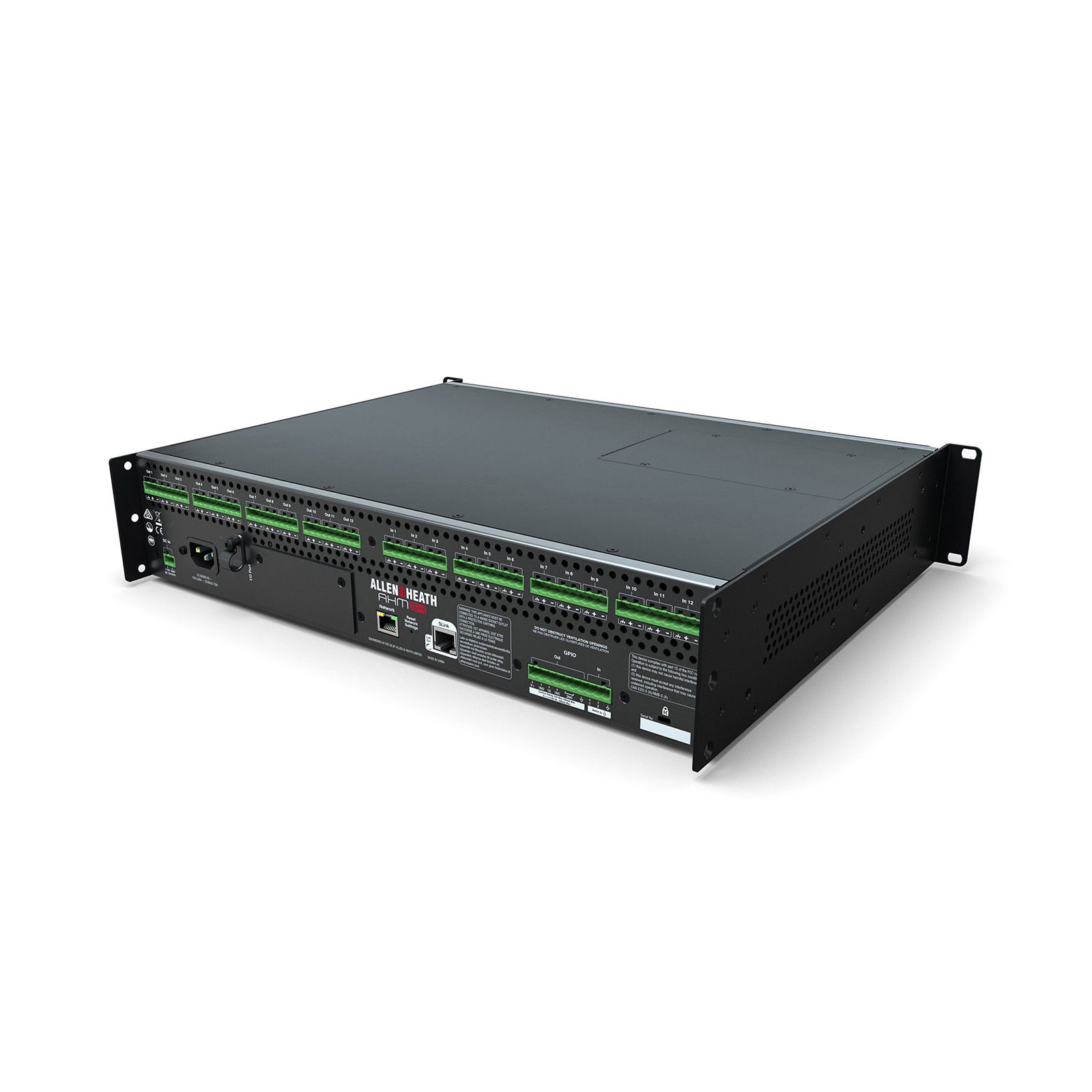

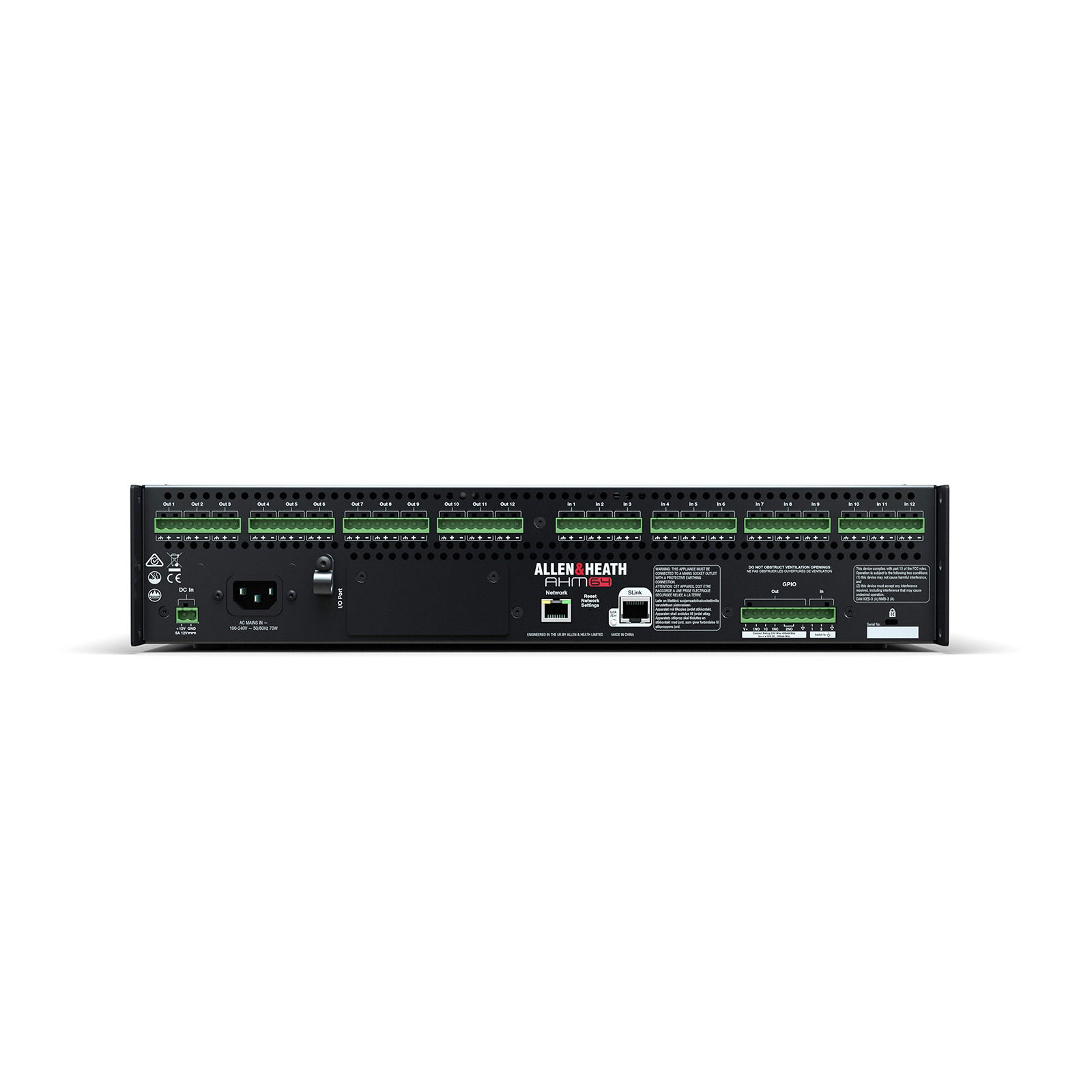

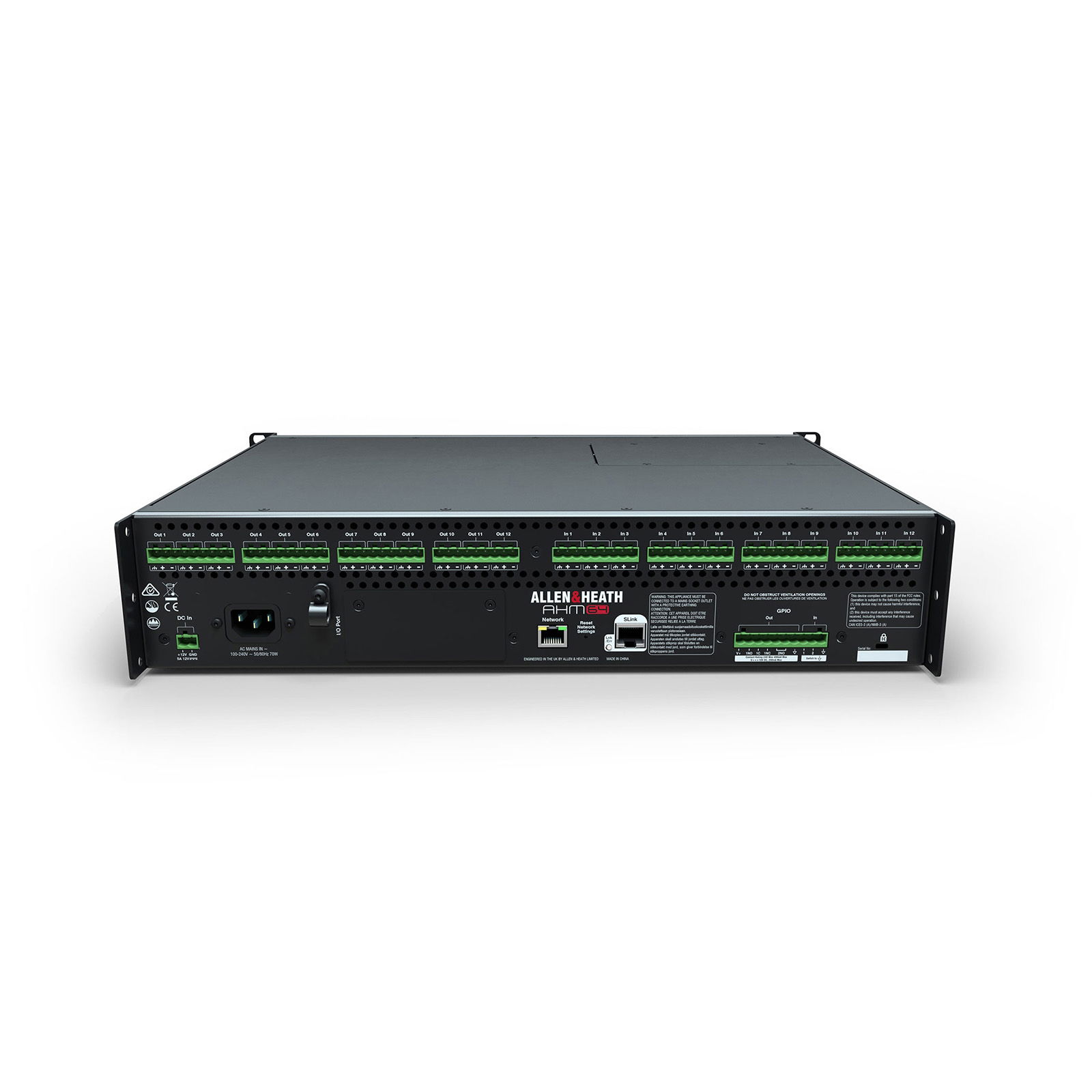

• Mic/Line Inputs: 12 x 3-pin Euroblock (balanced, +48V phantom power)
• Line Outputs: 12 x 3-pin Euroblock (balanced, relay protected)
• Input Sensitivity: -60 to +15dBu
• Analog Gain: +5 to +60dB in 1dB steps
• Maximum Input Level: +30dBu (PAD in)
• Output Impedance: <75Ω
• Maximum Output Level: +21dBu
• Dynamic Range: 108dB
• Frequency Response: 20Hz - 20kHz (+0/-0.5dB)
• THD+N: 0.005% @ +16dBu output, 1kHz, +5dB gain
• Sampling Rate: 96kHz ±20 PPM
• Power Supply: 100-240V AC, 50-60Hz, 70W max
• DC Input: 12V DC backup power supply
• Dimensions (H x W x D): 88mm x 482.6mm x 270mm
• Weight: 7kg (15.5 lbs)
