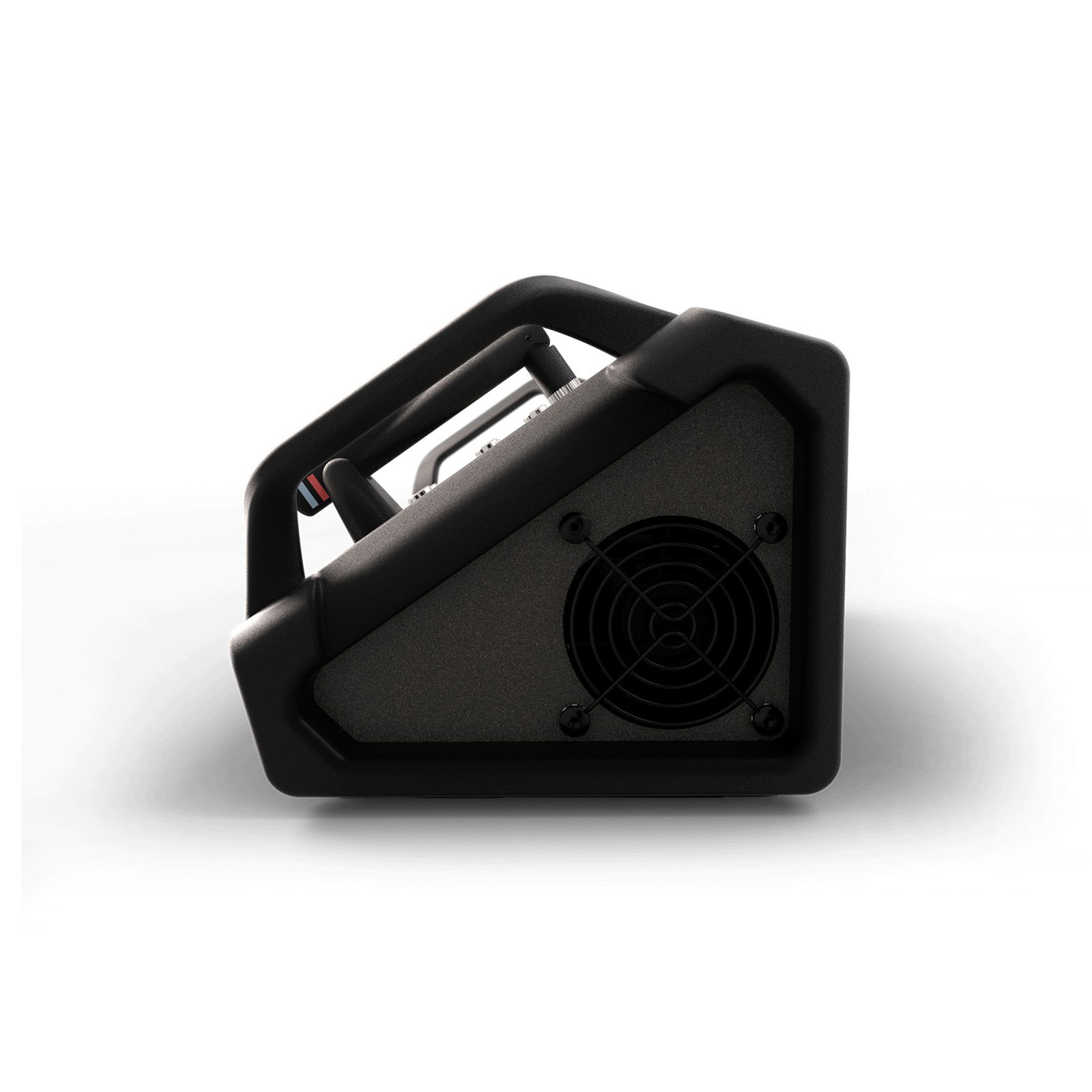

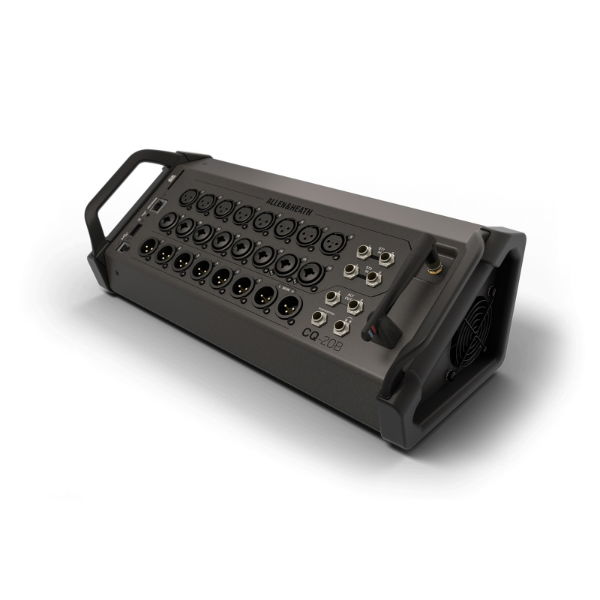

The Allen & Heath CQ-20B is a compact 20-channel digital mixer featuring 96kHz FPGA processing, 16 mic/line inputs, built-in dual-band Wi-Fi, Bluetooth connectivity, and 24x24 USB/SD multitrack recording. Designed for remote control via the CQ MixPad app, it offers advanced features like Gain Assistant, Feedback Assistant, and four Smart-FX engines, making it ideal for live sound, studio recording, and installations.

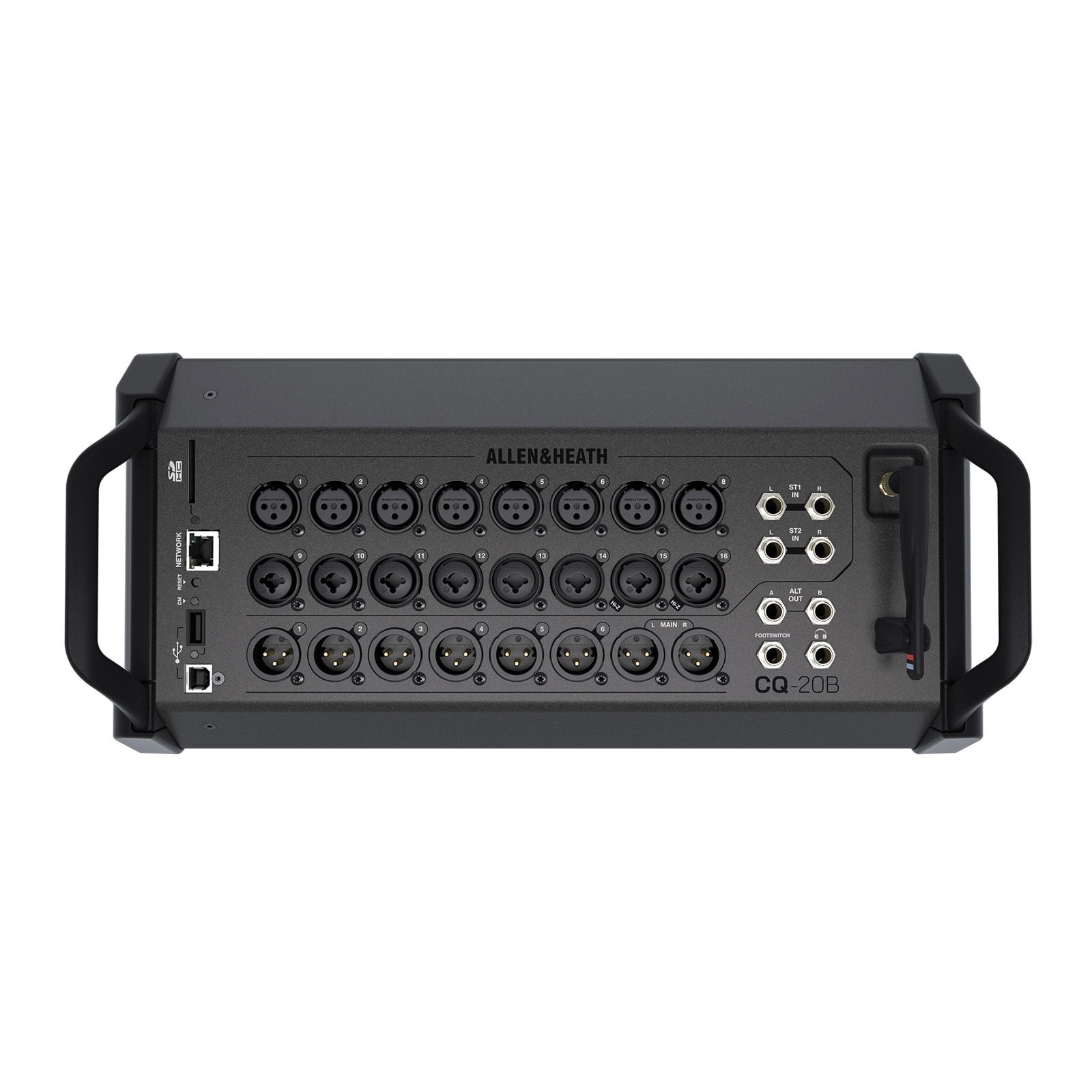

  • Mic/Line Inputs: 16 x XLR (8 combo XLR/TRS, 8 XLR)
  • Line Inputs: 4 x 1/4" TRS (2 stereo pairs)
  • Main Outputs: 2 x XLR
  • Monitor Outputs: 6 x XLR
  • Alt Outputs: 2 x 1/4" TRS
  • Headphone Output: 1 x 1/4" TRS (assignable)
  • USB: 1 x Type B (24-in/24-out), 1 x Type A
  • SD Card Slot: Yes (24-in/24-out recording/playback)
  • Network: 1 x RJ45 Ethernet
  • Wireless: Built-in dual-band Wi-Fi (2.4GHz/5GHz)
  • Bluetooth: Stereo input
  • Processing: 96kHz FPGA
  • Dimensions (H x W x D): 133.8mm x 372mm x 153.7mm
  • Weight: 2.6kg (5.8 lbs)
Stock code AH0016
Order Code: AH0016

Small Format Digital Mixing Console, CQ20B

Features
