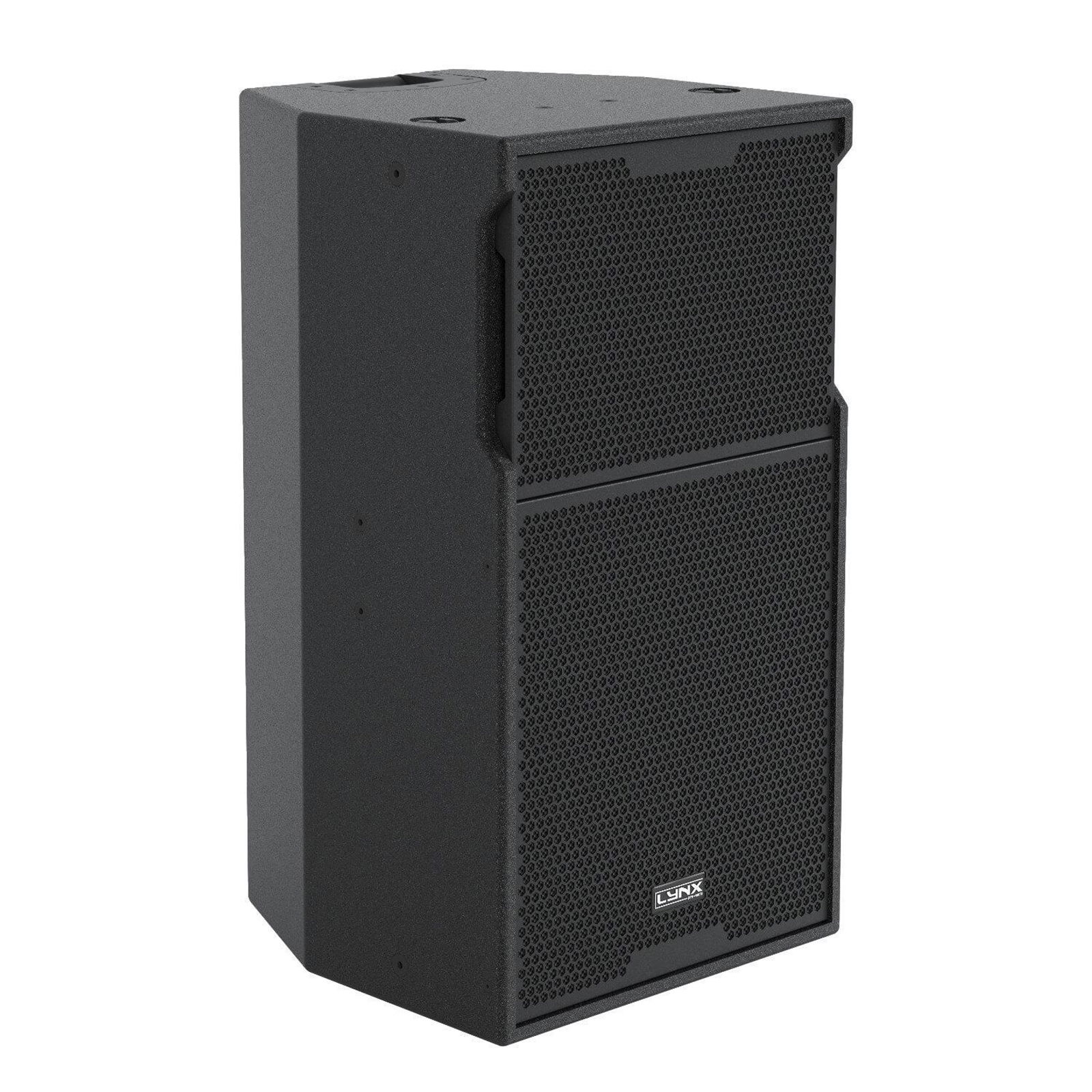

The Lynx Pro Audio CPS-14/96 is a powerful tri-amplified coaxial point source loudspeaker featuring a 14" neodymium woofer and 1.4" dual-diaphragm coaxial compression driver. With a rotatable 90° x 60° horn, integrated 3000W Class D amplification, and a 64-bit/96kHz FIR DSP engine, this high-performance 3-way speaker delivers pristine, linear sound ideal for touring, theatres, houses of worship, and fixed installations.

• Frequency Response: 55Hz – 22kHz (-6dB)
• Maximum SPL: 138dB (peak)
• LF Driver: 14" neodymium with 4" voice coil
• MF Driver: 3" VC diaphragm (300Hz–7kHz)
• HF Driver: 2" VC diaphragm (6kHz–22kHz)
• Amplifier Power: 3000W total (LF: 1500W, MF: 750W, HF: 750W)

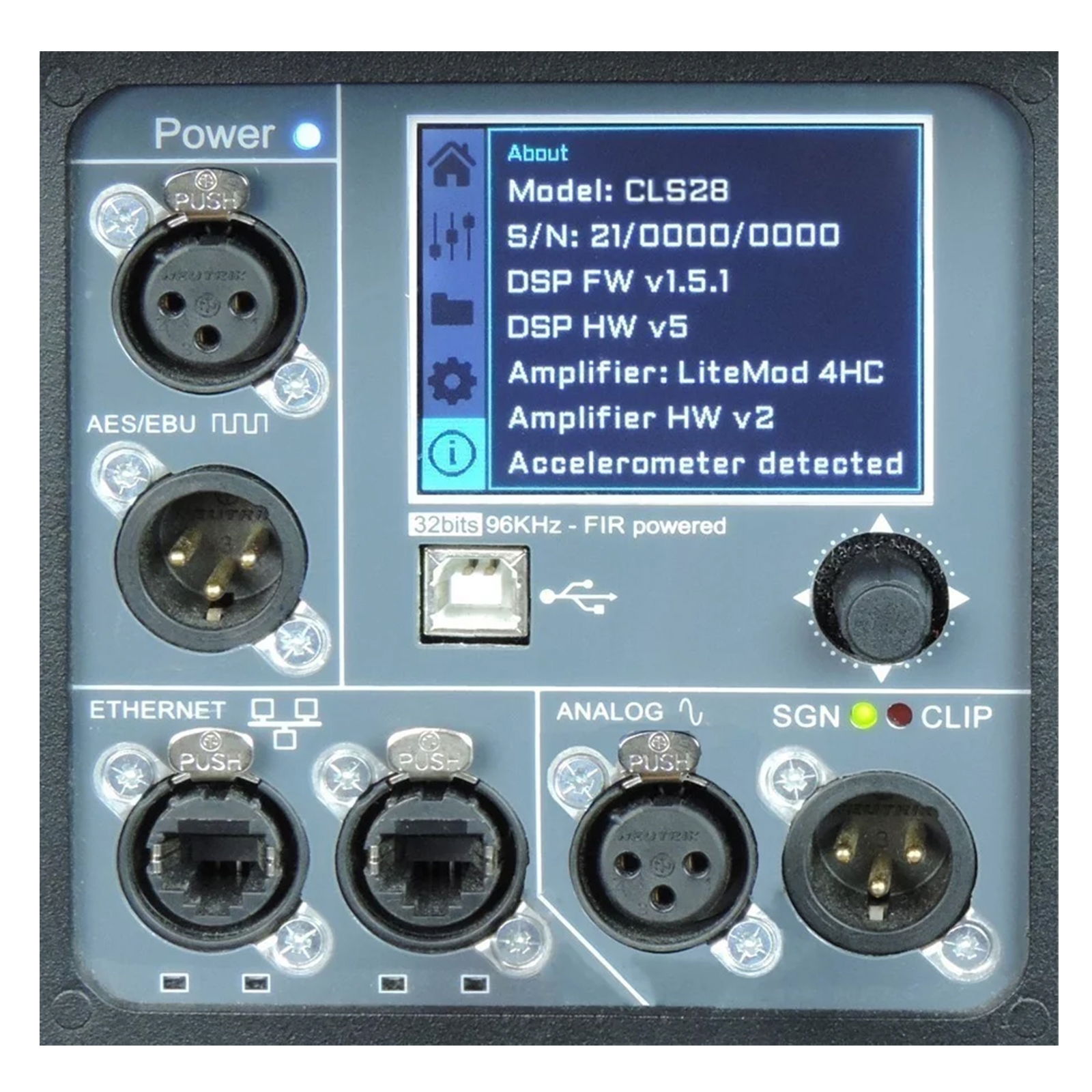

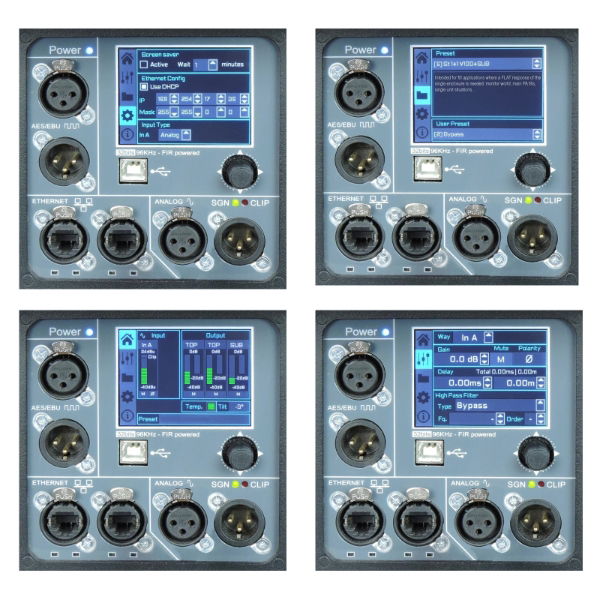

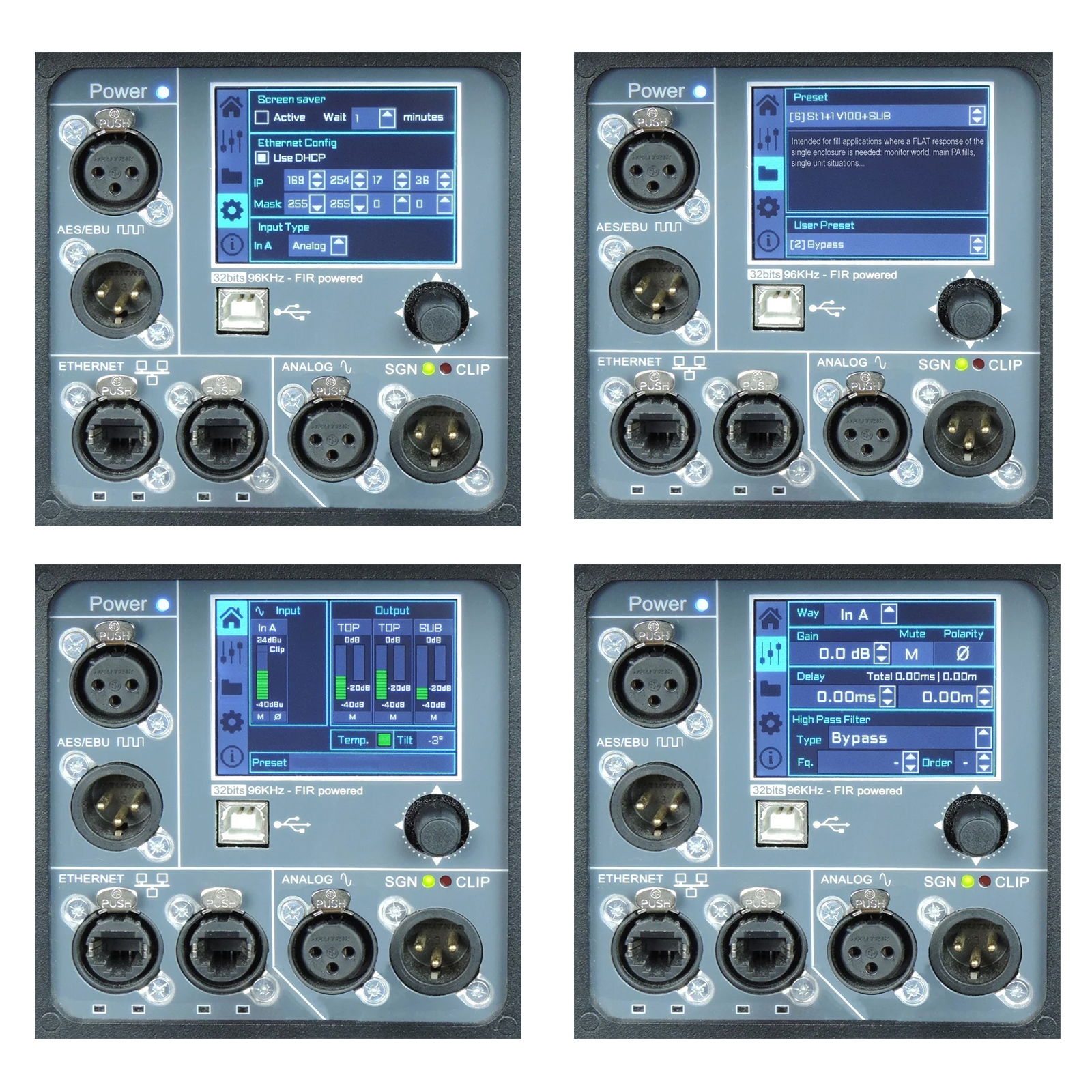

• DSP: 64-bit/96kHz FIR with user control via display and Ethernet
• Dispersion: 90° horizontal x 60° vertical (rotatable horn)
• Construction: 15mm birch plywood with polyurea coating
• Dimensions: 755 x 415 x 430mm
• Weight: 33kg
