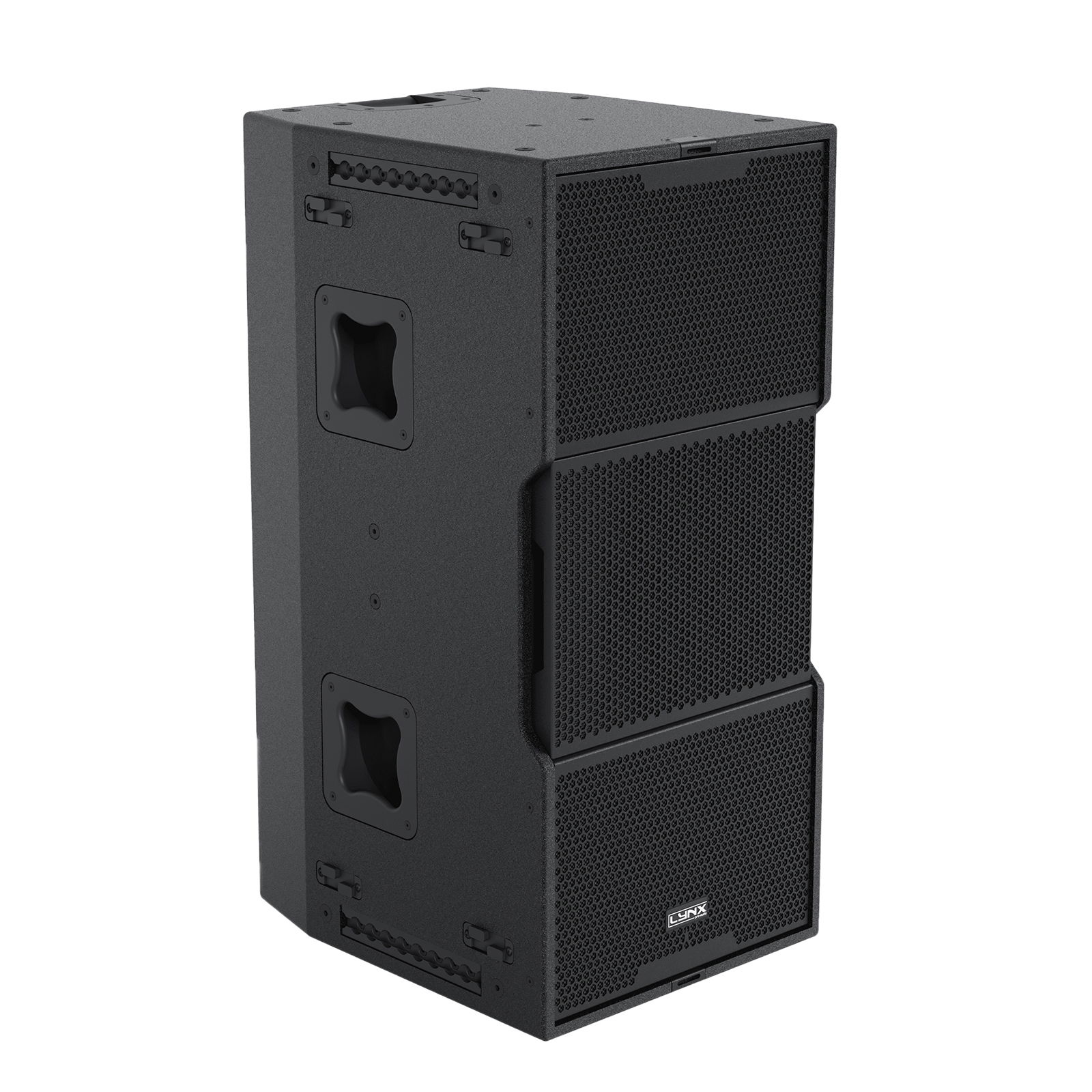

The Lynx Pro Audio CPS-214 is a high-output 3-way coaxial point source loudspeaker featuring dual 14″ neodymium LF drivers and a coaxial MF/HF compression driver. Delivering up to 6000W of Class D amplification with integrated 64-bit/96kHz FIR DSP and a rotatable 60° x 40° horn, it ensures outstanding clarity and power for large-scale sound reinforcement. Ideal for touring, fixed installations, stadiums, and demanding live environments.

• LF Drivers: 2 x 14″ neodymium, 4″ dual-layer voice coils (2000W AES each)
• MF Driver: 3.5″ voice coil diaphragm
• HF Driver: 1.5″ voice coil diaphragm
• Frequency Response: 55Hz – 22kHz (–6dB)
• Maximum SPL (Peak): LF up to 143dB, MF/HF up to 142.6dB
• Dispersion: 60° horizontal x 40° vertical (rotatable horn)
• Amplifier: Class D, 6000W total (2 x 3000W channels)
• DSP: 64-bit/96kHz FIR with EQ, delay, presets, and filtering
• Control: Ethernet, USB, joystick + IPS screen interface
• Construction: 15mm birch plywood with polyurea coating

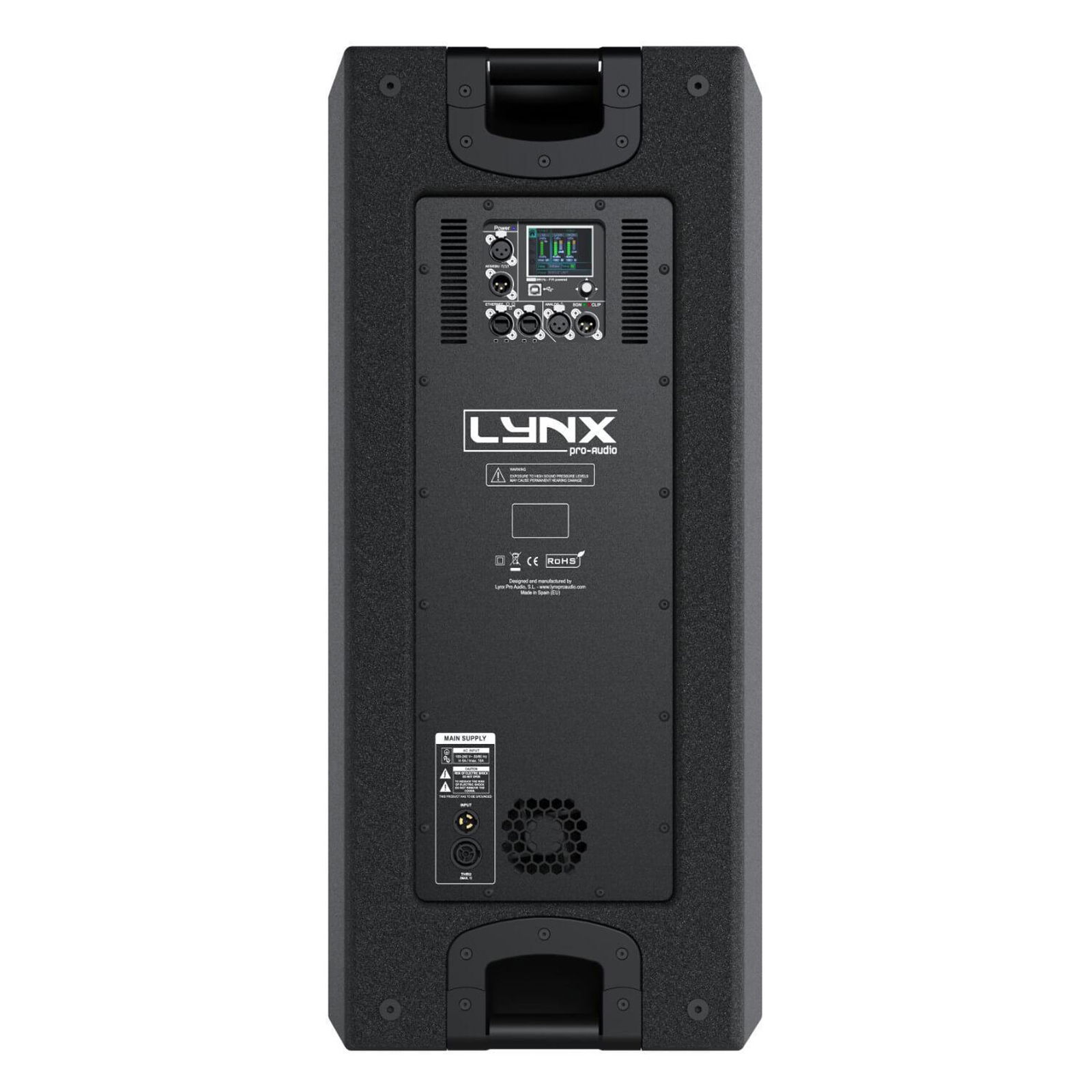

• Connectors: XLR analog, optional AES/EBU, dual Ethernet, USB, powerCON TRUE1 TOP
• Dimensions: 900 x 420 x 515mm
• Weight: 49kg
