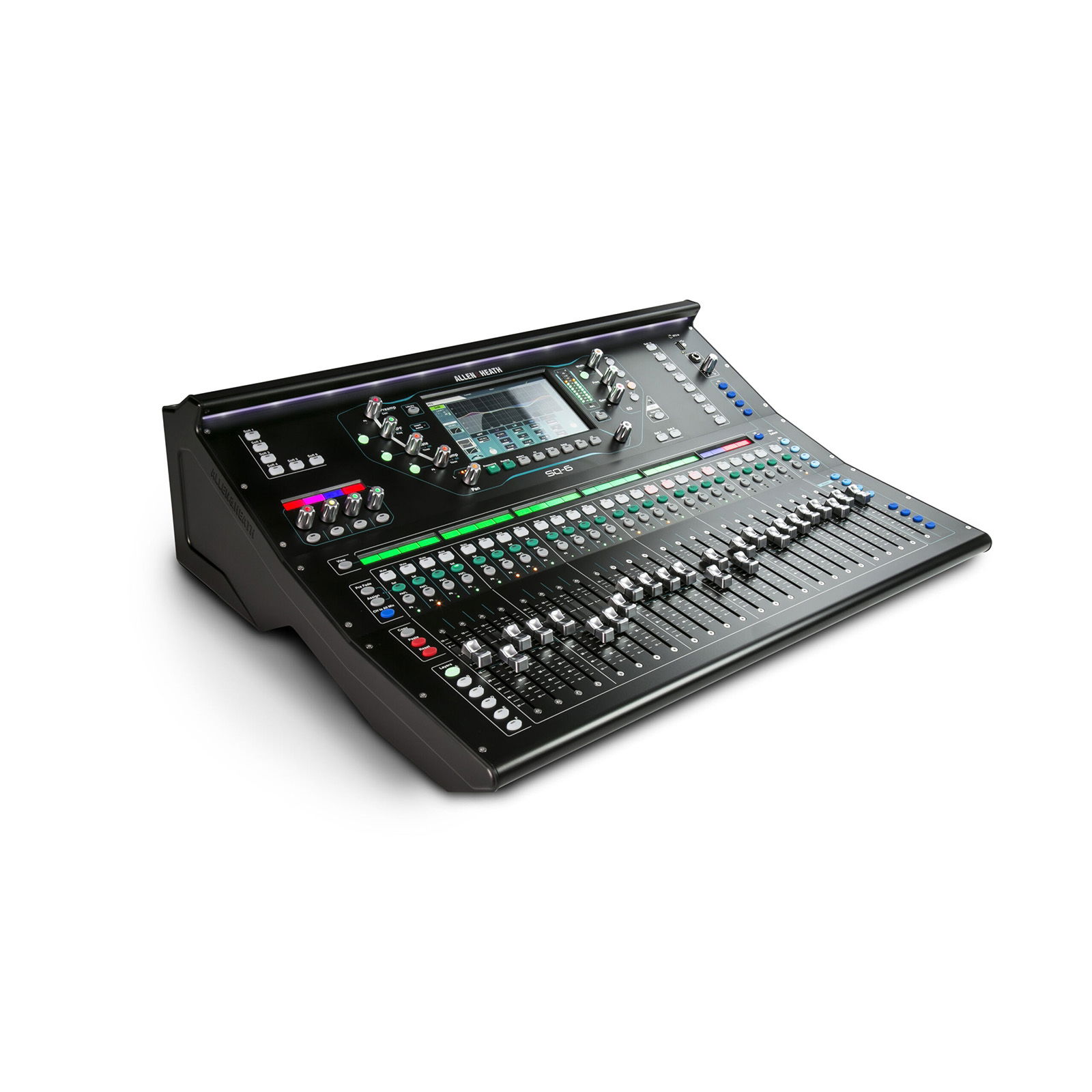

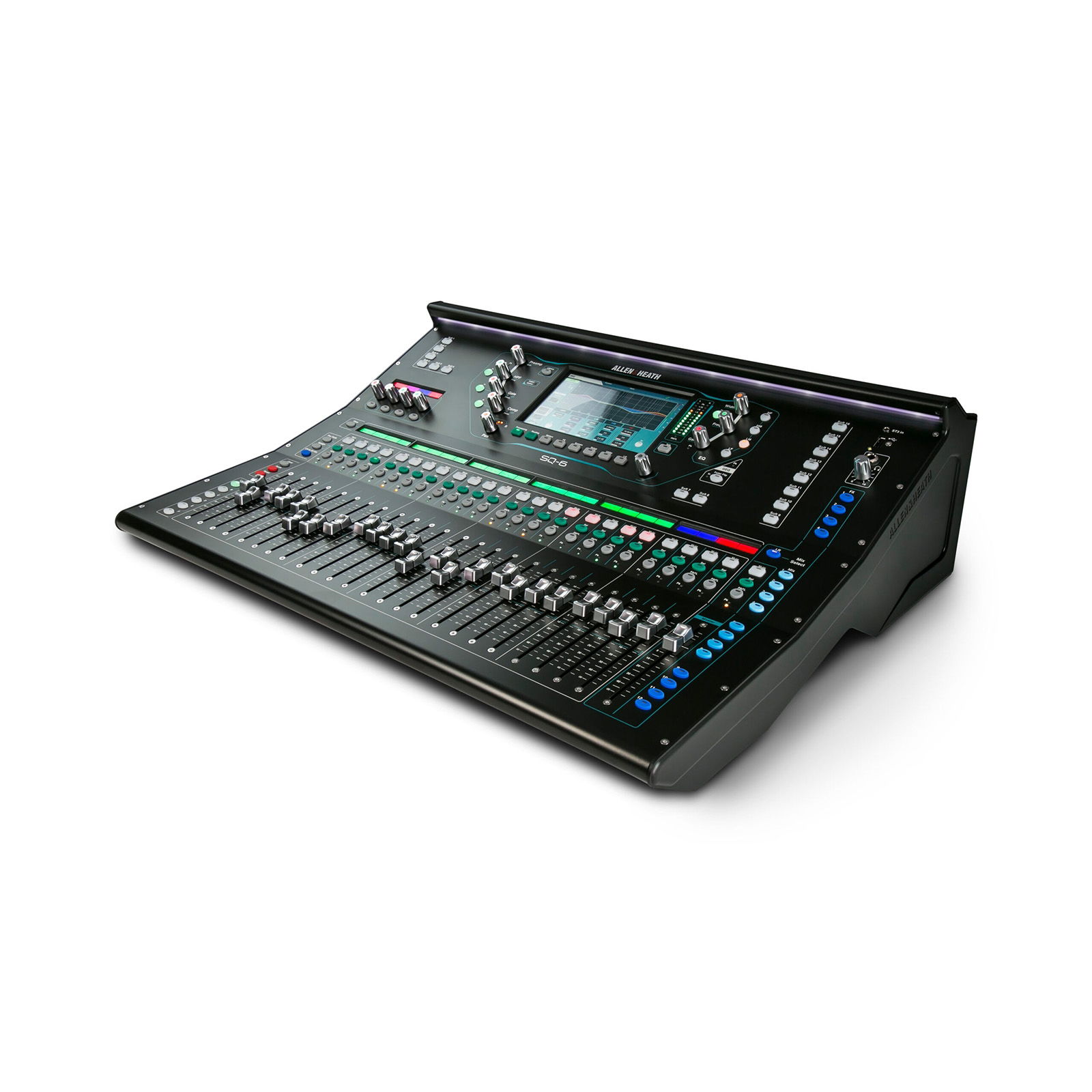

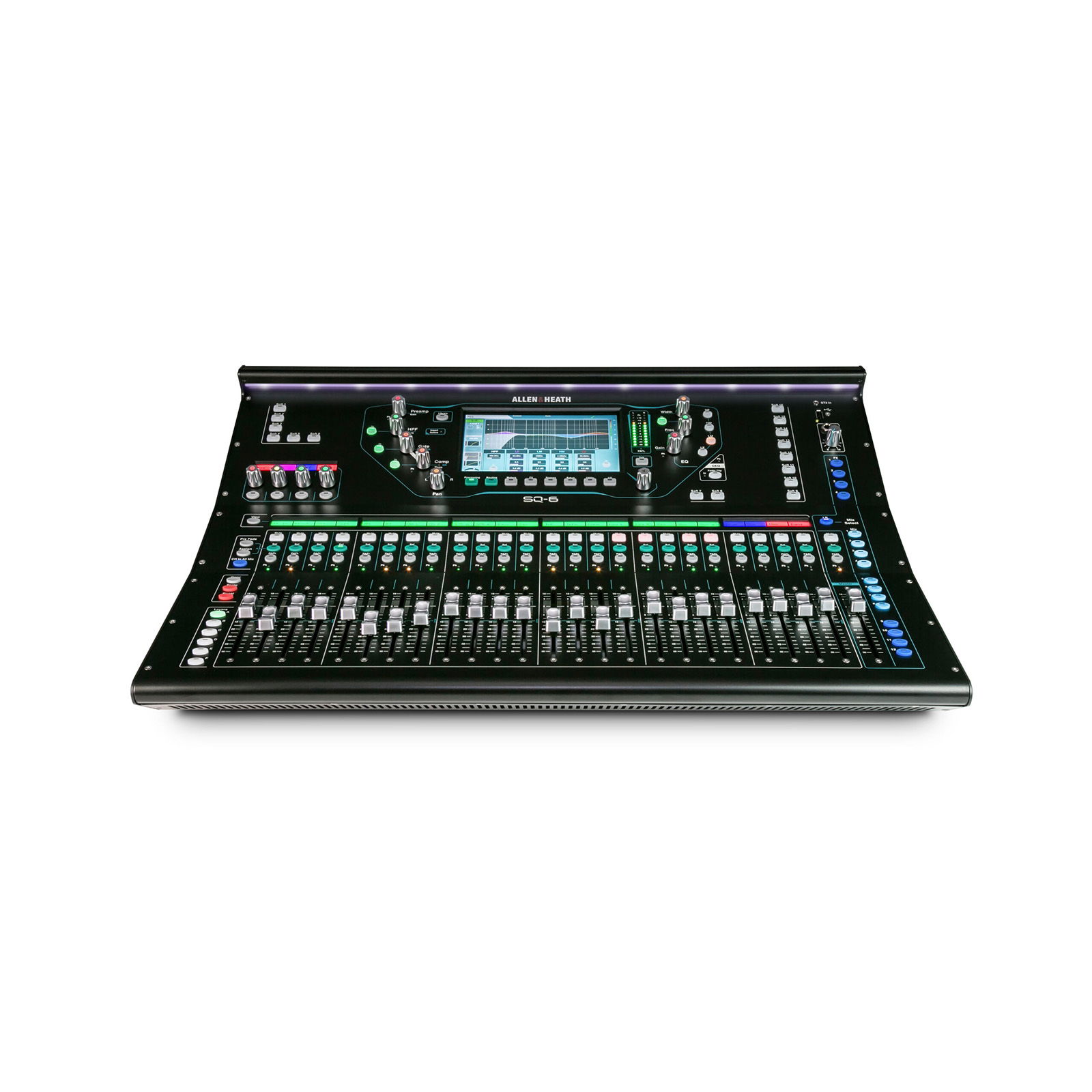

The Allen & Heath SQ-6 is a 48-channel, 36-bus digital mixer powered by a 96kHz XCVI FPGA engine, delivering ultra-low latency and high-resolution audio. Featuring 24 onboard mic preamps, 25 motorized faders, 8 stereo FX engines, and a 7" capacitive touchscreen, the SQ-6 offers extensive mixing capabilities for live sound, studio recording, and installations. With DEEP processing, SLink for remote audio, and a 32x32 USB interface, it provides flexibility and expandability for professional audio environments.

  • Mic Inputs: 24 x XLR (recallable preamps)
  • Line Inputs: 2 x 1/4" TRS stereo pairs, 1 x 1/8" stereo
  • Analog Outputs: 14 x XLR, 2 x 1/4" TRS
  • Digital Outputs: 1 x XLR AES
  • USB Interface: 32-in/32-out, 96kHz
  • Faders: 25 x 100mm motorized
  • Touchscreen: 7" capacitive, 800x480 resolution
  • Processing: DEEP processing, 8 RackFX engines
  • Latency: <0.7ms
  • Dimensions (H x W x D): 198mm x 638mm x 514mm
  • Weight: 13.3kg (29.3 lbs)
Stock code AH0002
Commodity Code 85437006
Order Code: AH0002

48 Channel / 36 Bus Digital Mixing Console, SQ6
