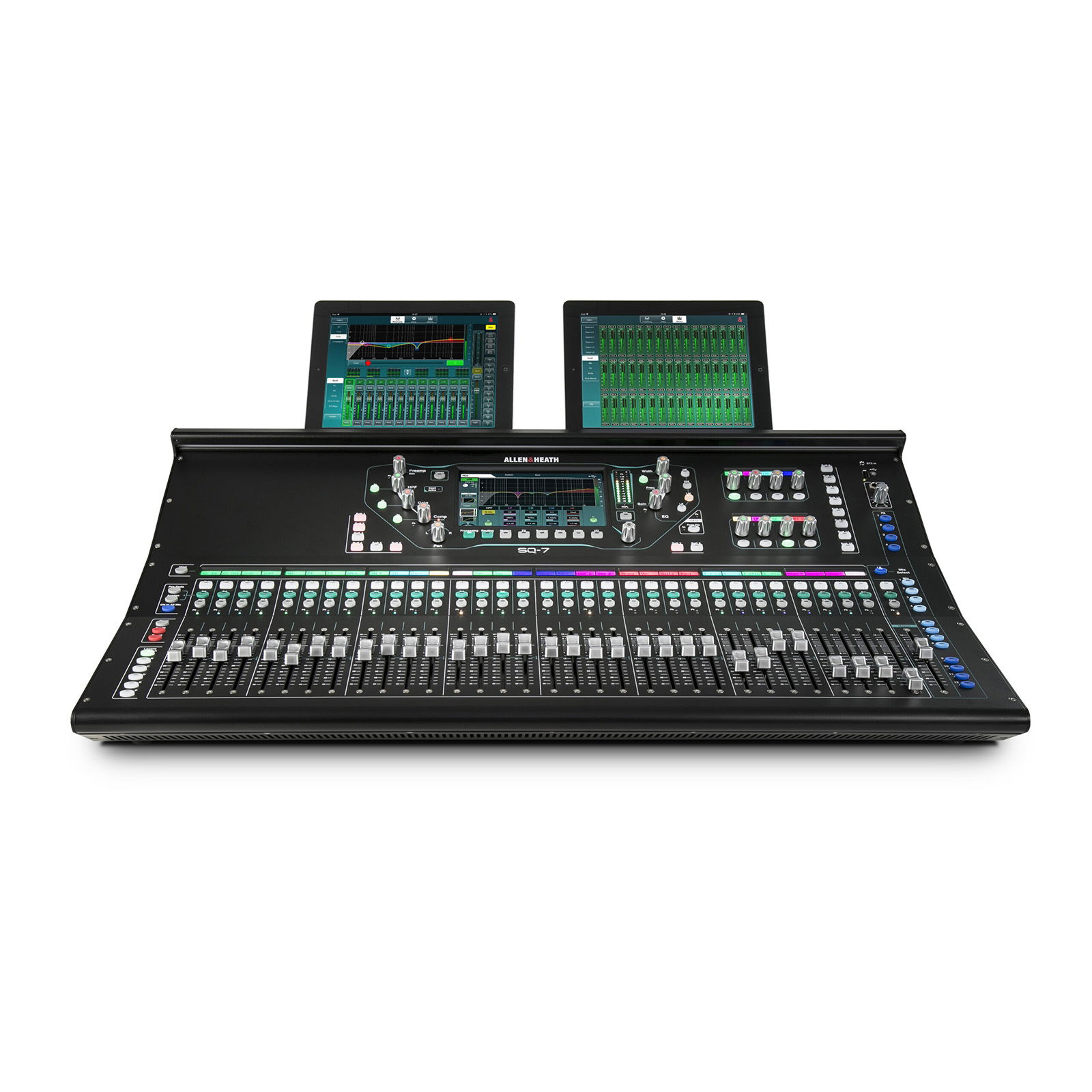

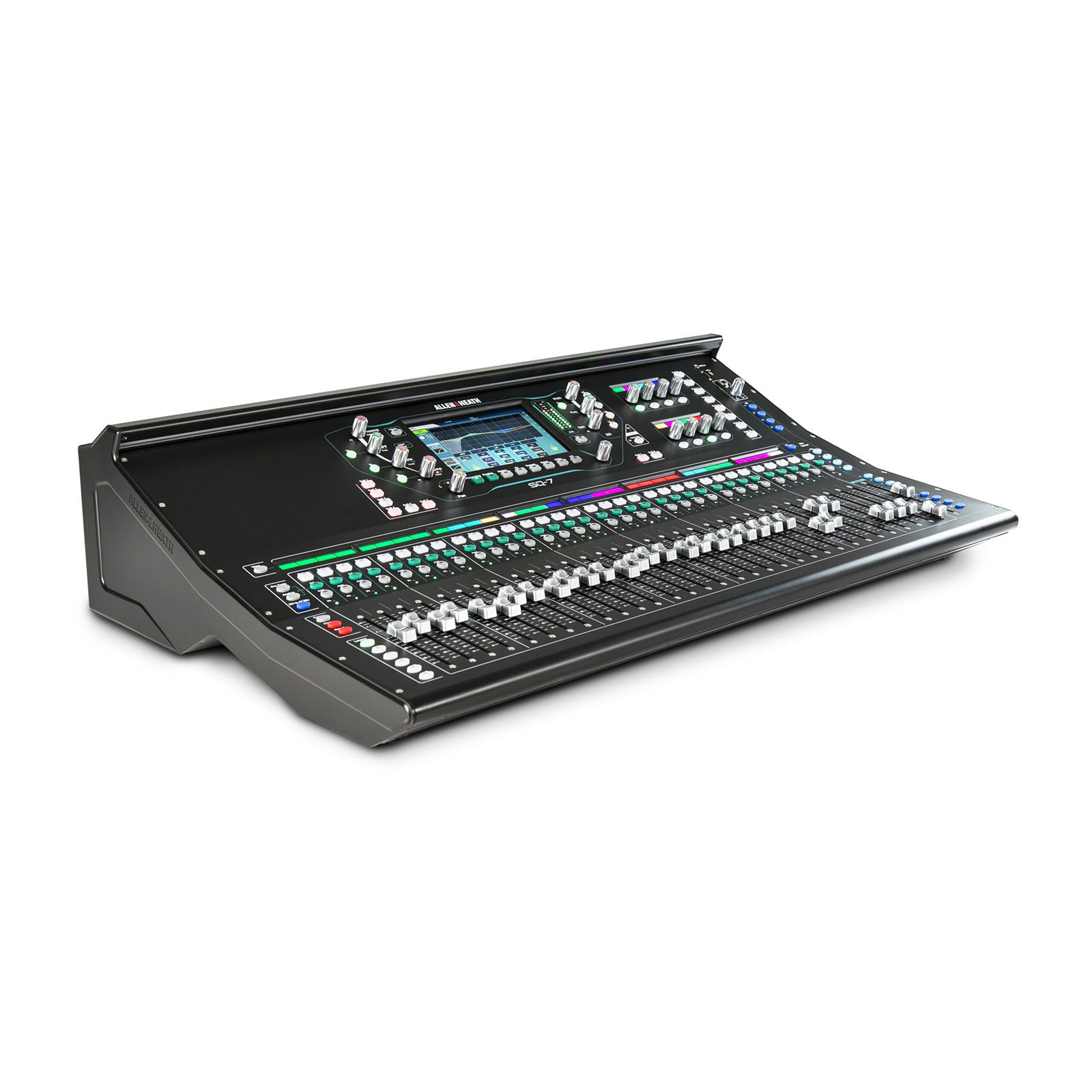

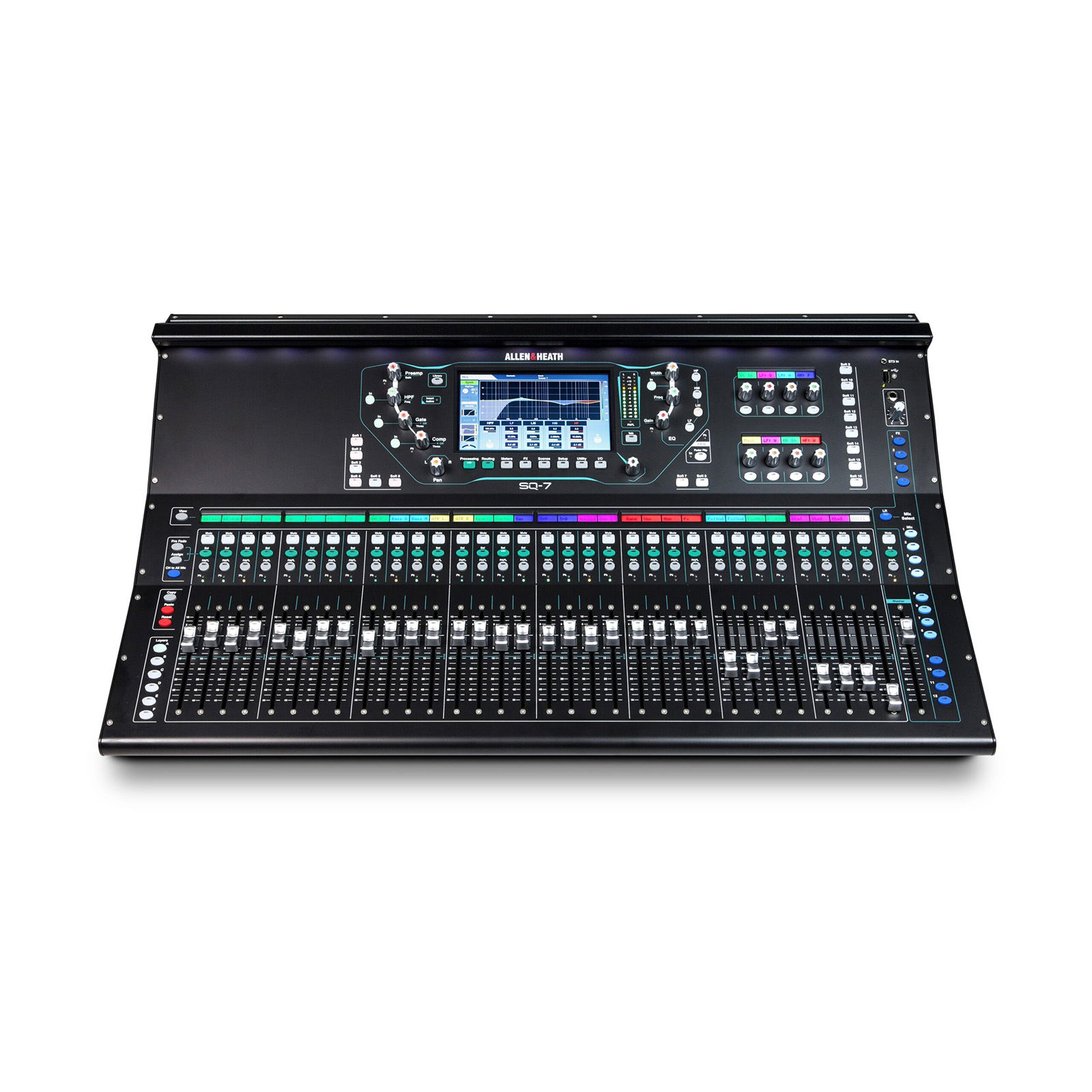

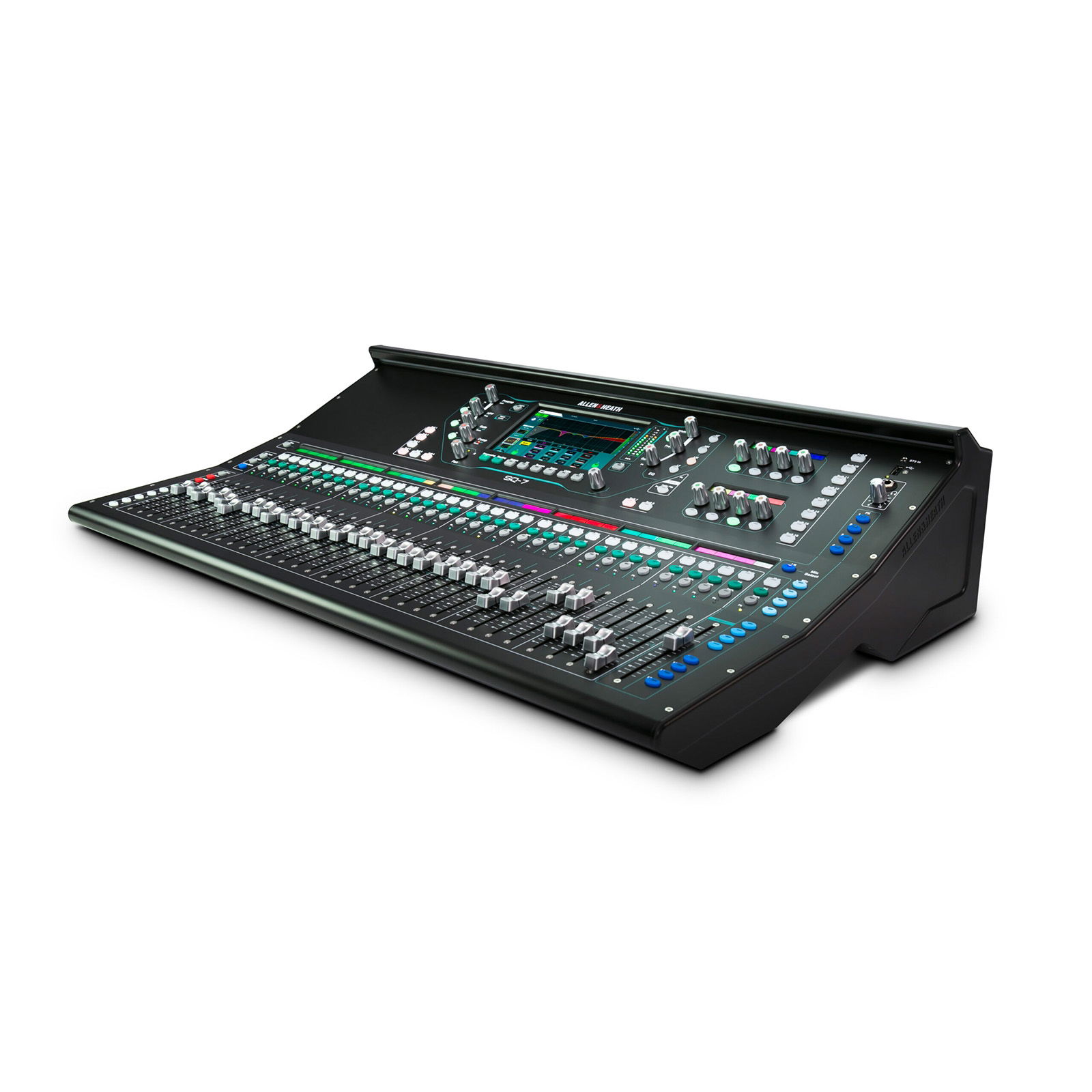

The Allen & Heath SQ-7 is a flagship 48-channel digital mixer powered by a 96kHz XCVI FPGA engine, offering ultra-low latency and high-resolution audio. Featuring 33 motorized faders, 32 onboard mic preamps, 8 stereo FX engines, and a 7" capacitive touchscreen, the SQ-7 is designed for professional live sound, studio recording, and installations. With DEEP processing, SLink for remote audio, and a 32x32 USB interface, it provides extensive flexibility and expandability for demanding audio environments.

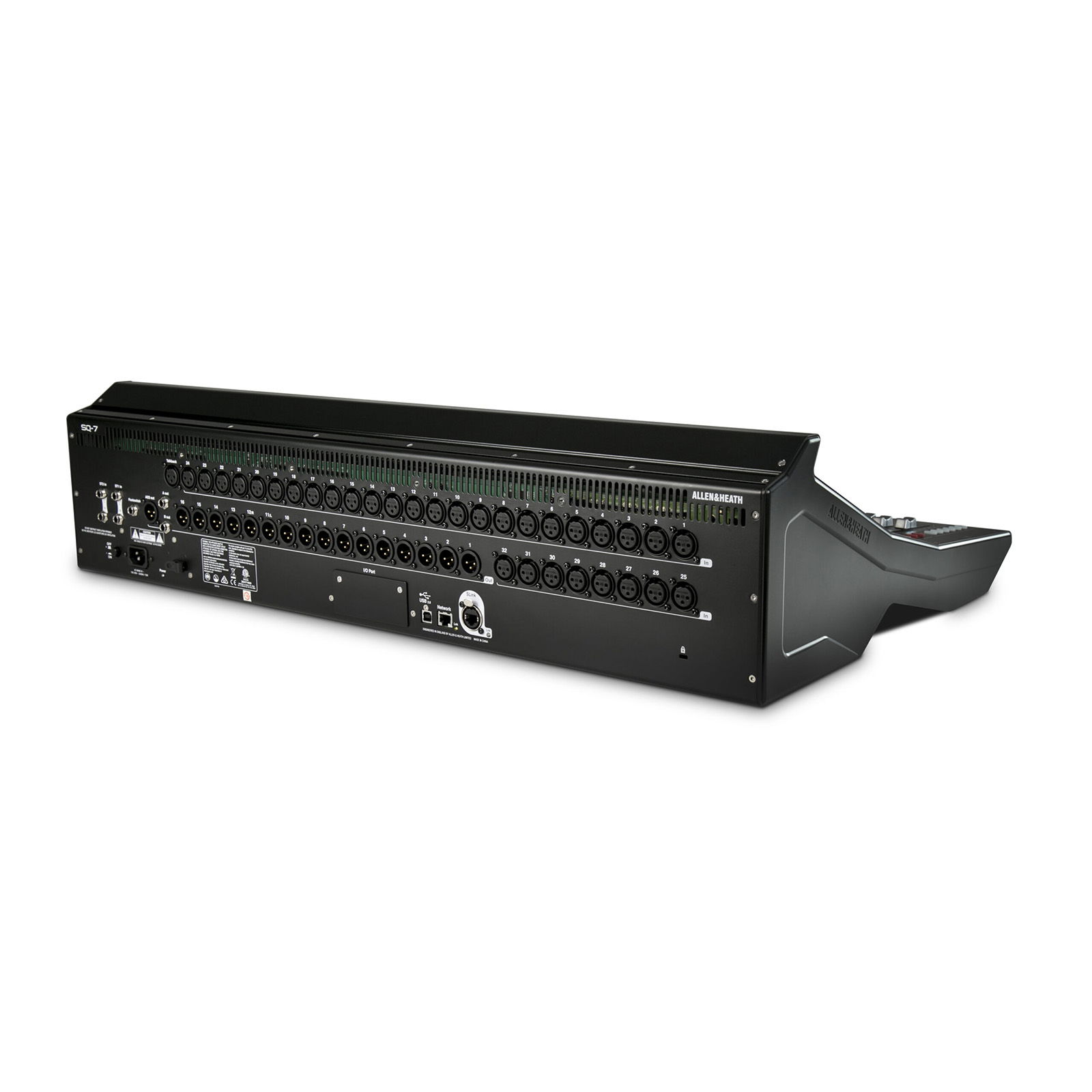

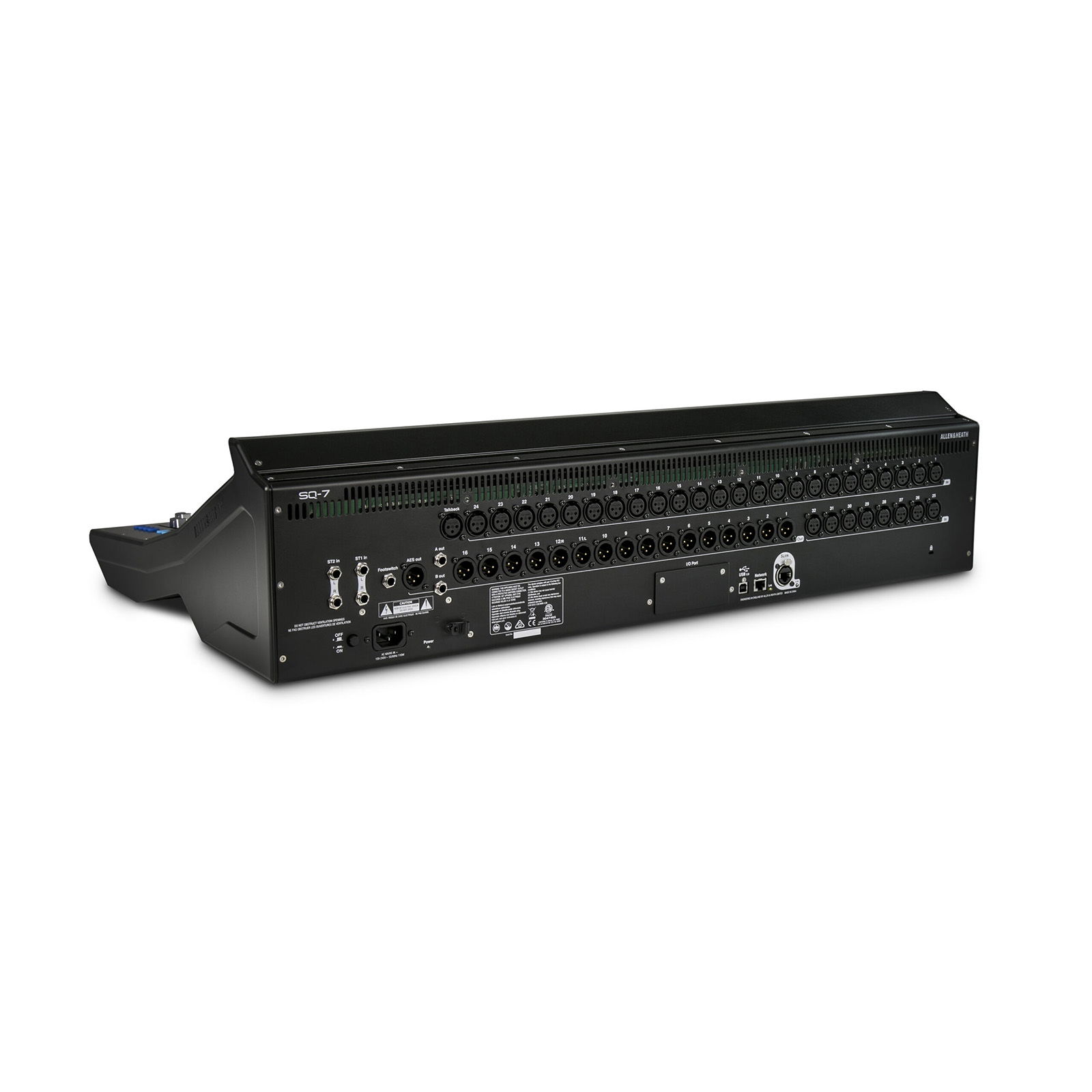

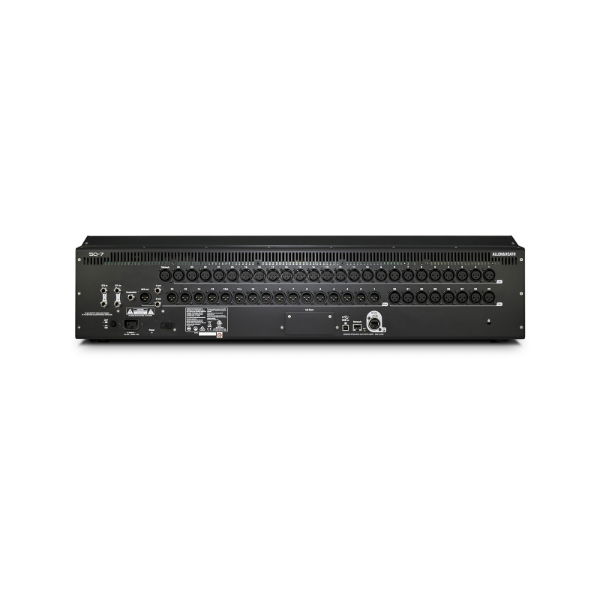

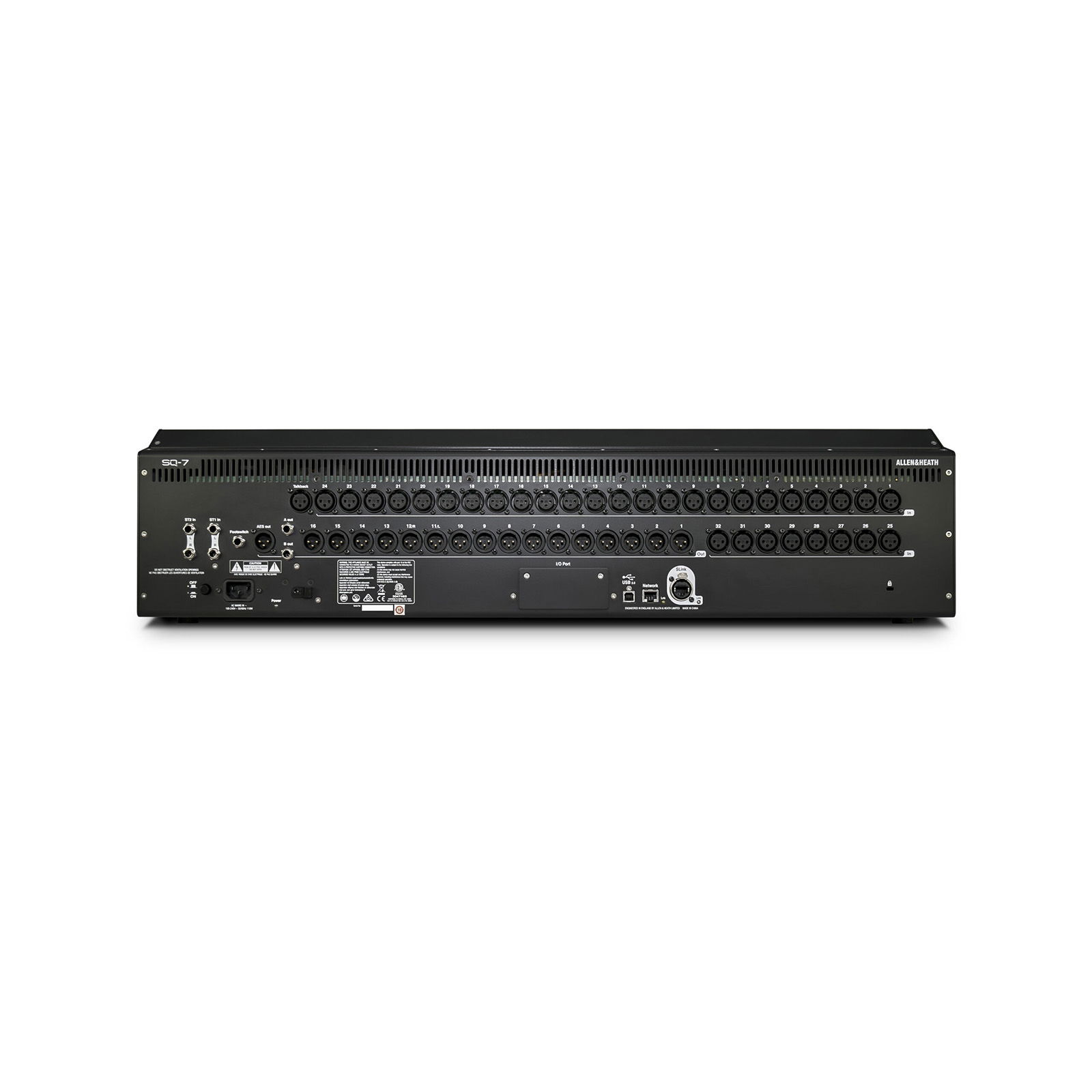

• Mic Inputs: 32 x XLR (recallable preamps)
• Line Inputs: 2 x 1/4" TRS stereo pairs, 1 x 1/8" stereo
• Analog Outputs: 16 x XLR, 2 x 1/4" TRS
• Digital Outputs: 1 x XLR AES
• USB Interface: 32-in/32-out, 96kHz
• Faders: 33 x 100mm motorized
• Touchscreen: 7" capacitive, 800x480 resolution
• Processing: DEEP processing, 8 RackFX engines
• Latency: <0.7ms

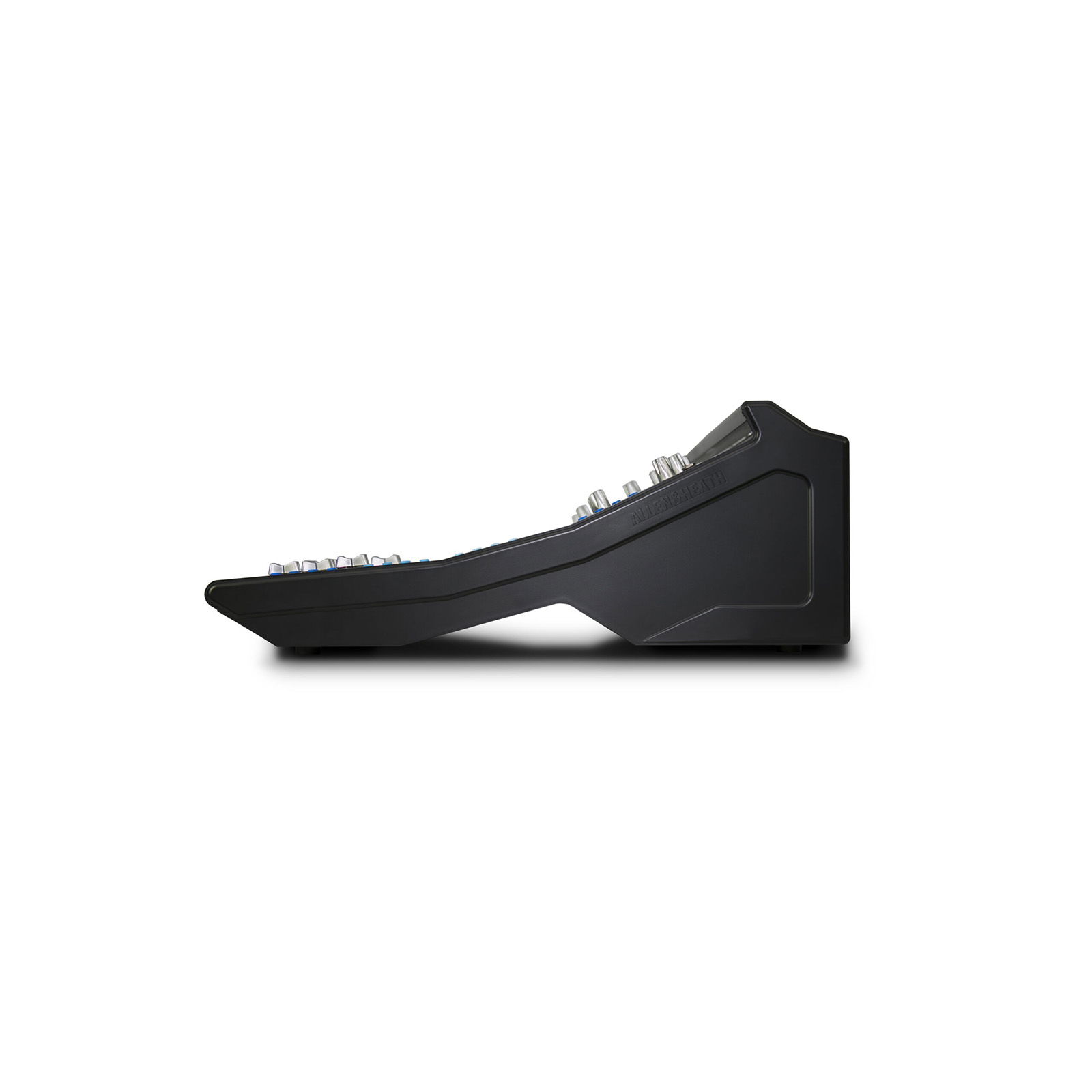

• Dimensions (H x W x D): 198mm x 804mm x 514mm
• Weight: 17.8kg (39.3 lbs)
