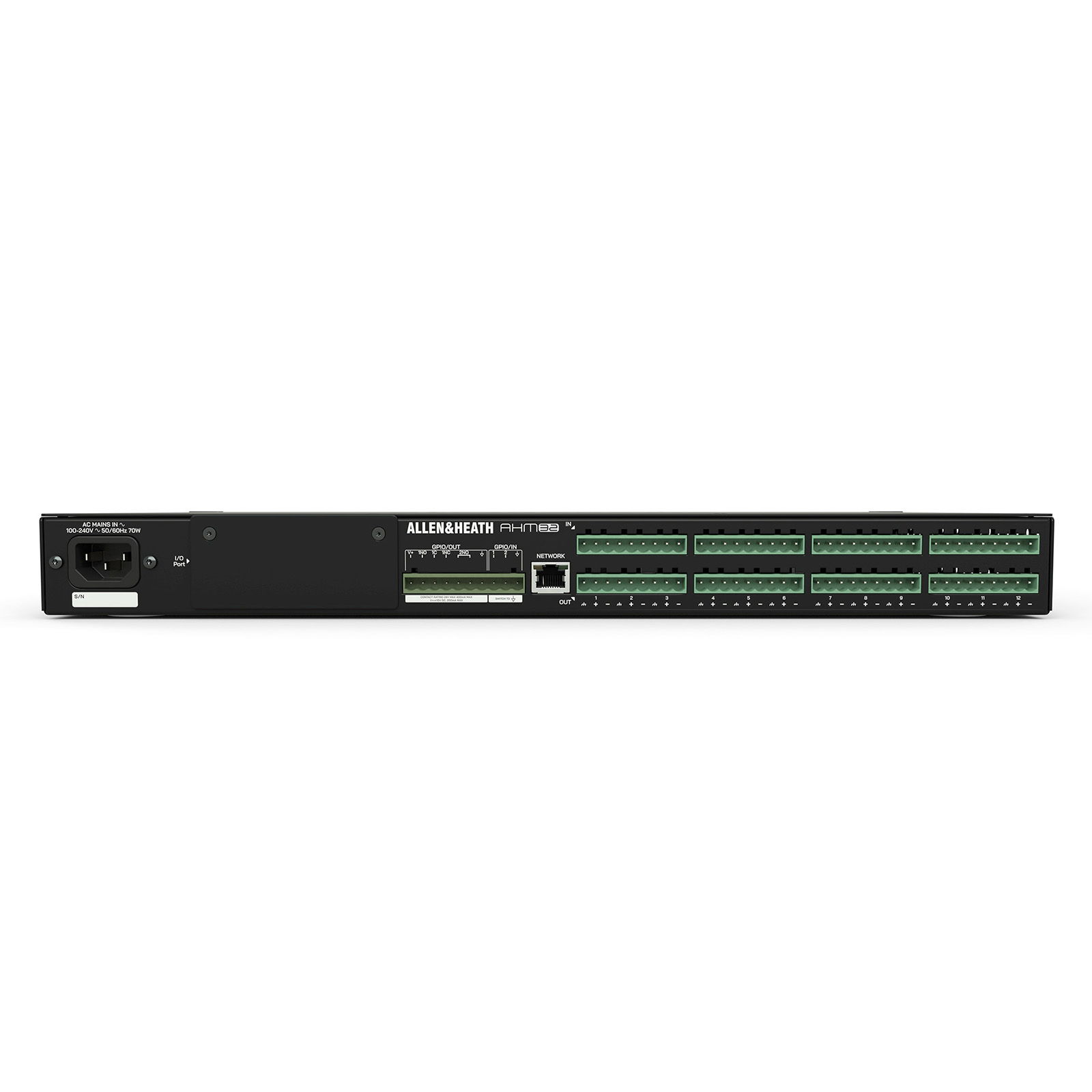

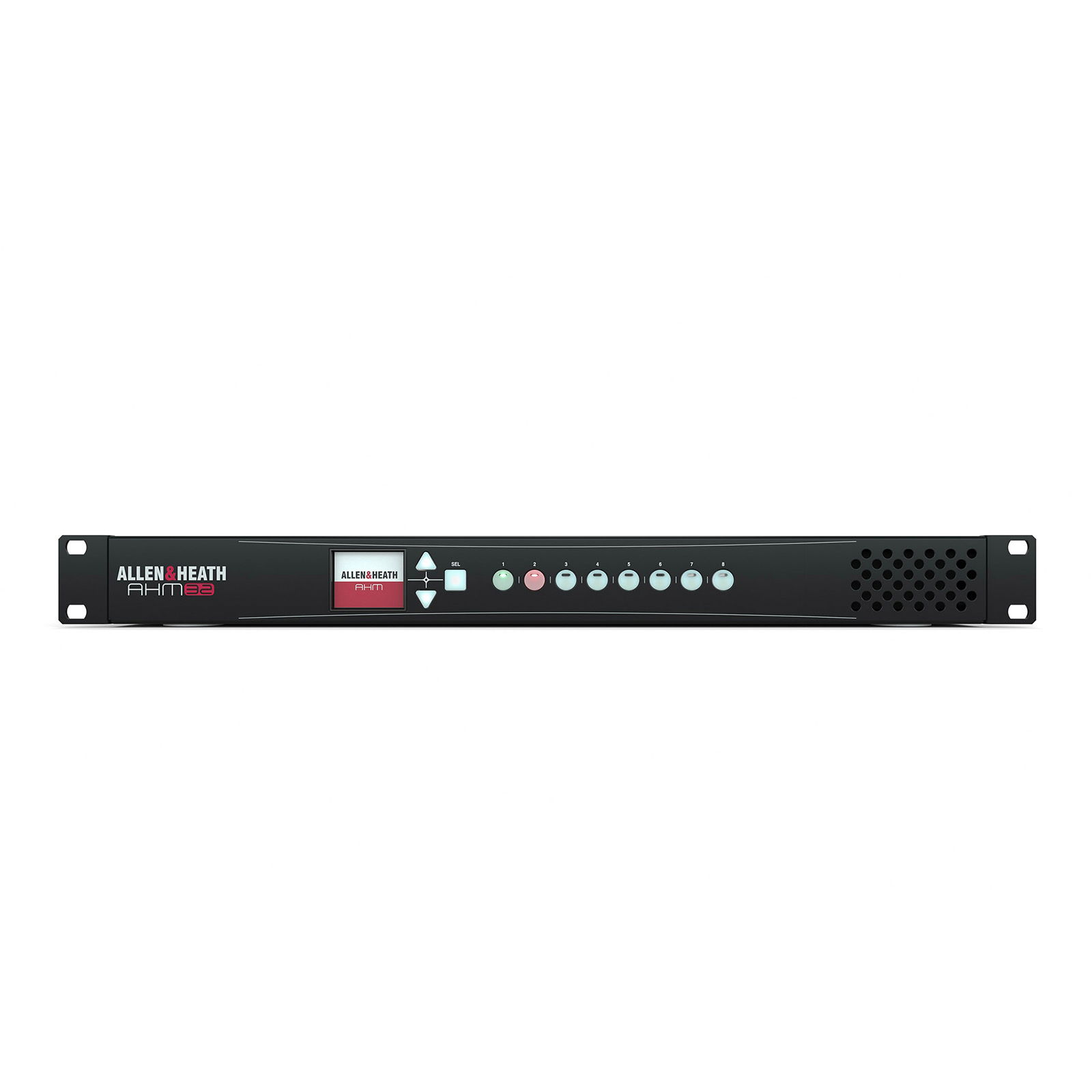

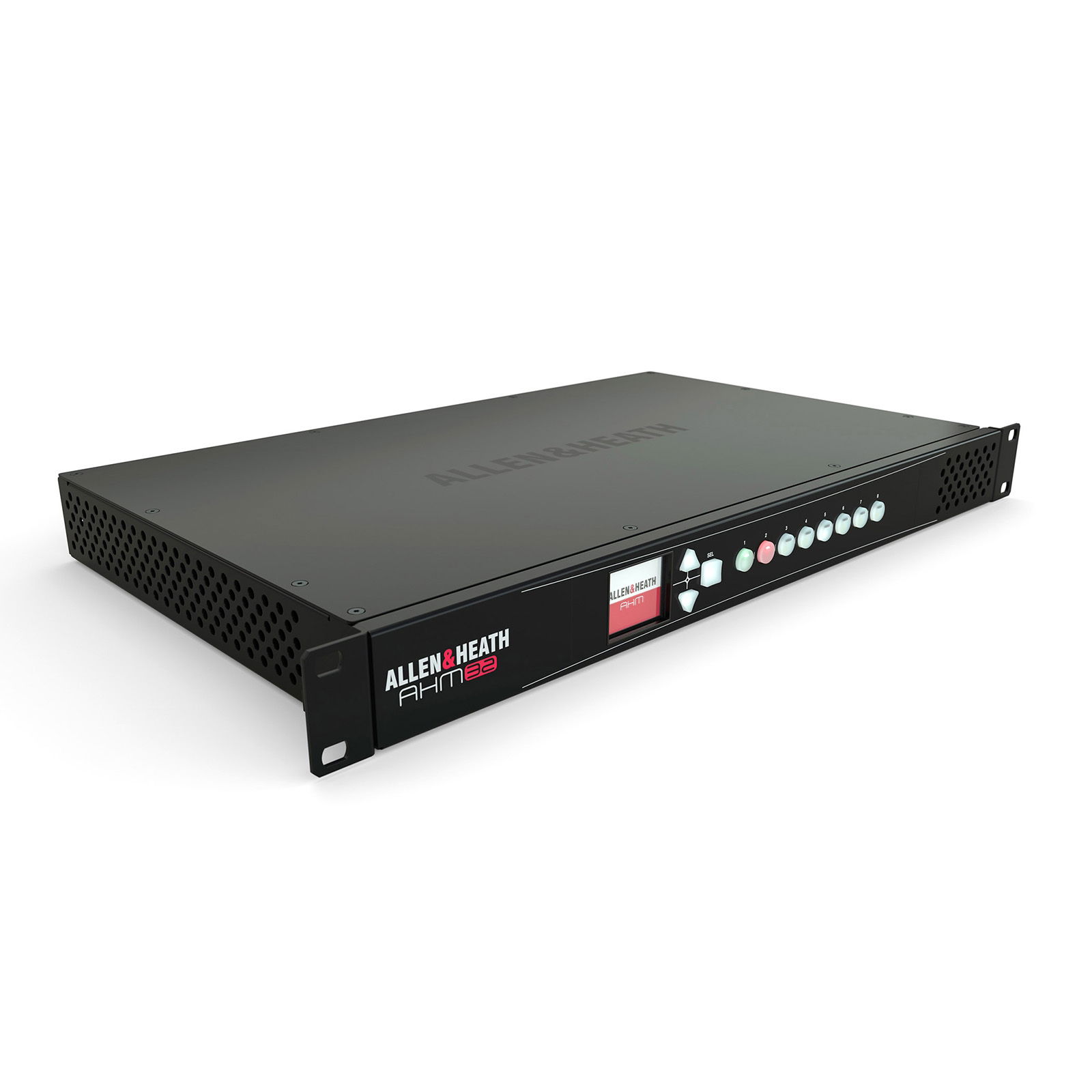

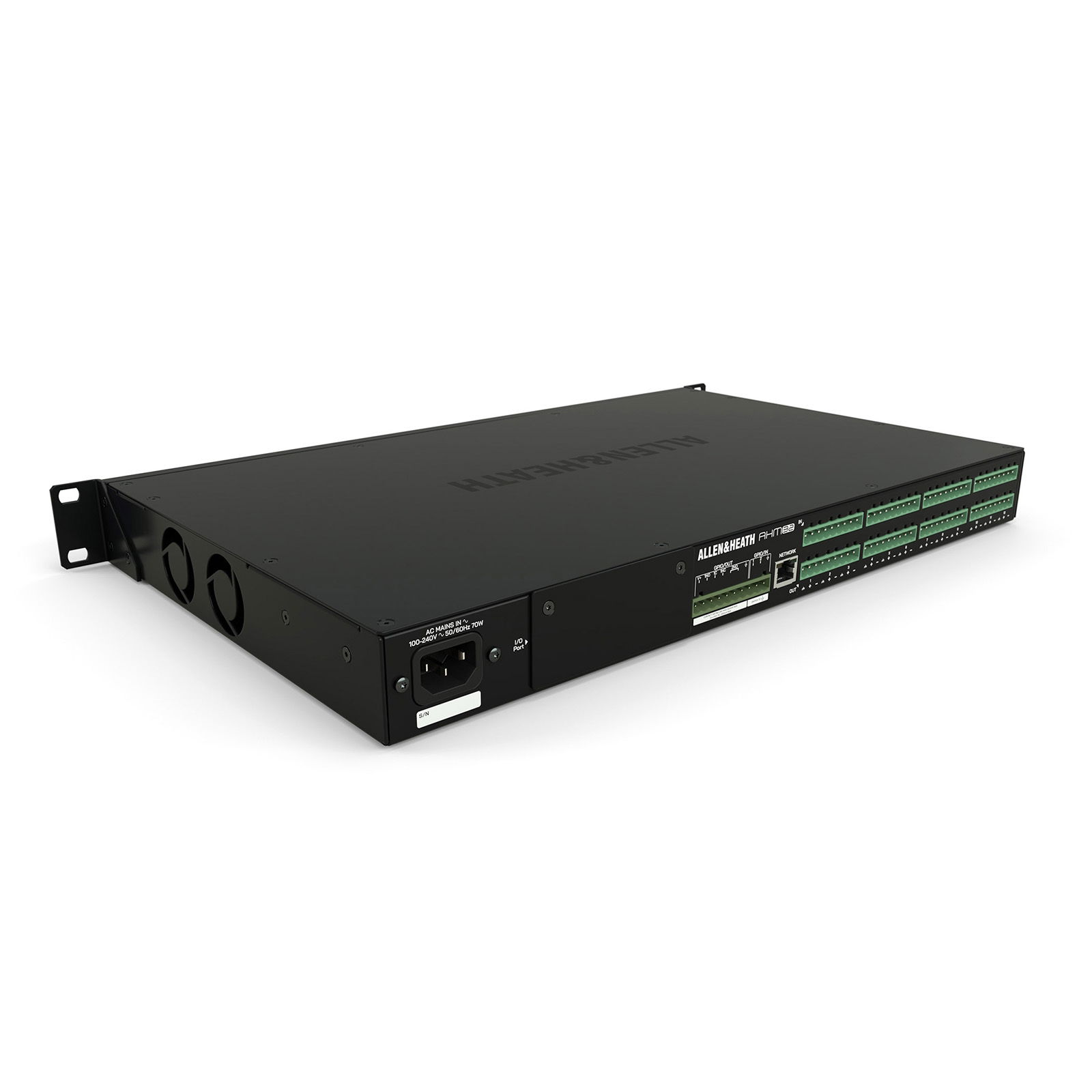

The Allen & Heath AHM-32 is a 1U rackmount 32x32 digital matrix processor featuring a 96kHz FPGA core, 12x12 local analog I/O, and an I/O port supporting up to 128x128 audio networking. Designed for sound management and installation, it offers advanced features like automatic mic mixing, ambient noise compensation, and speaker processing, making it ideal for corporate, hospitality, education, and house of worship environments.

• Mic/Line Inputs: 12 x 3-pin Euroblock (balanced, +48V phantom power)
• Line Outputs: 12 x 3-pin Euroblock (balanced, relay protected)
• Input Sensitivity: -60 to +15dBu
• Analog Gain: +5 to +60dB in 1dB steps
• Maximum Input Level: +30dBu (PAD in)
• Output Impedance: <75Ω
• Maximum Output Level: +21dBu
• Dynamic Range: 108dB
• Frequency Response: 20Hz - 20kHz (+0/-0.5dB)
• THD+N: 0.005% @ +16dBu output, 1kHz, +5dB gain
• Sampling Rate: 96kHz ±20 PPM
• Power Supply: 100-240V AC, 50-60Hz, 70W max
• Dimensions (H x W x D): 44mm x 482.6mm x 270mm
• Weight: 4kg (8.8 lbs)
