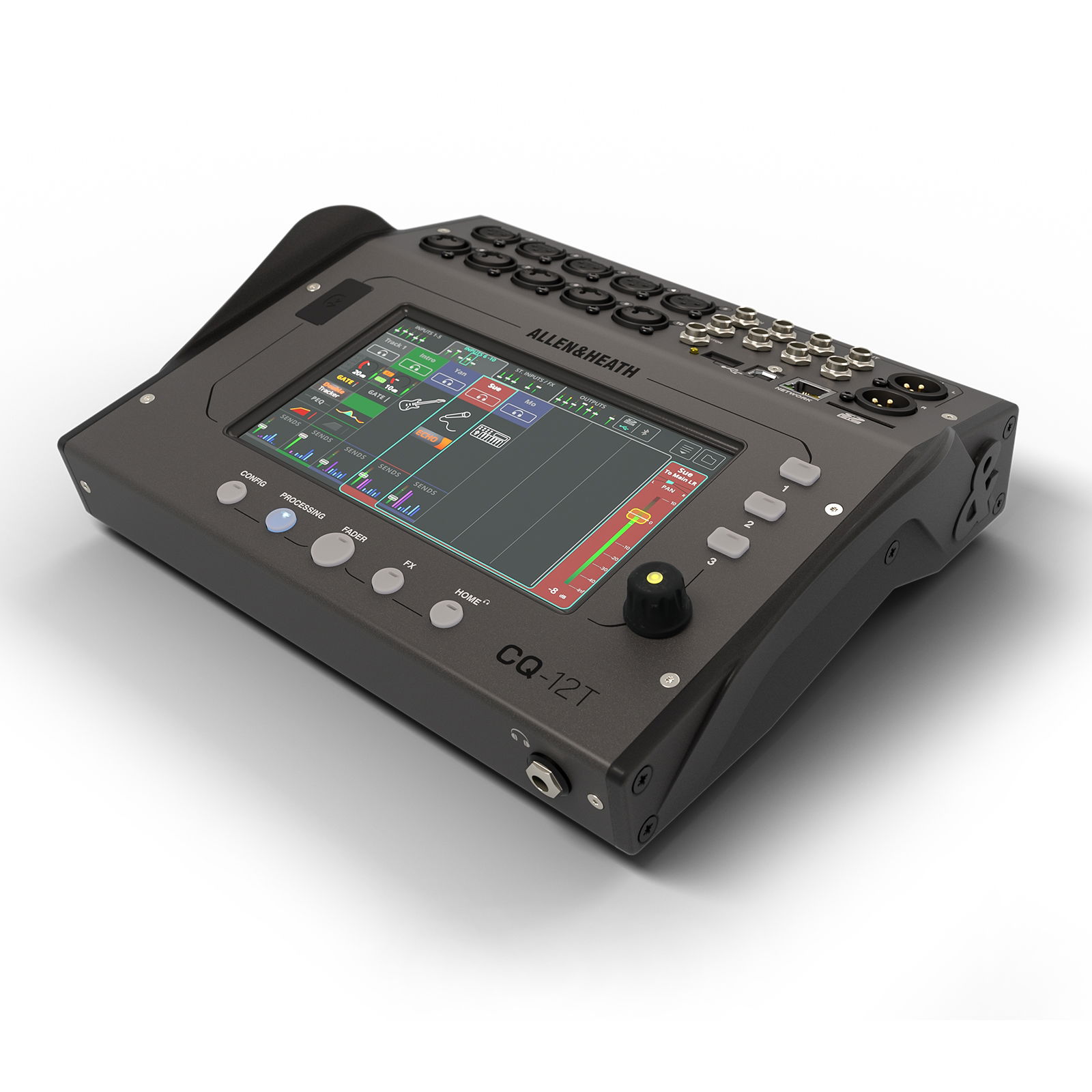

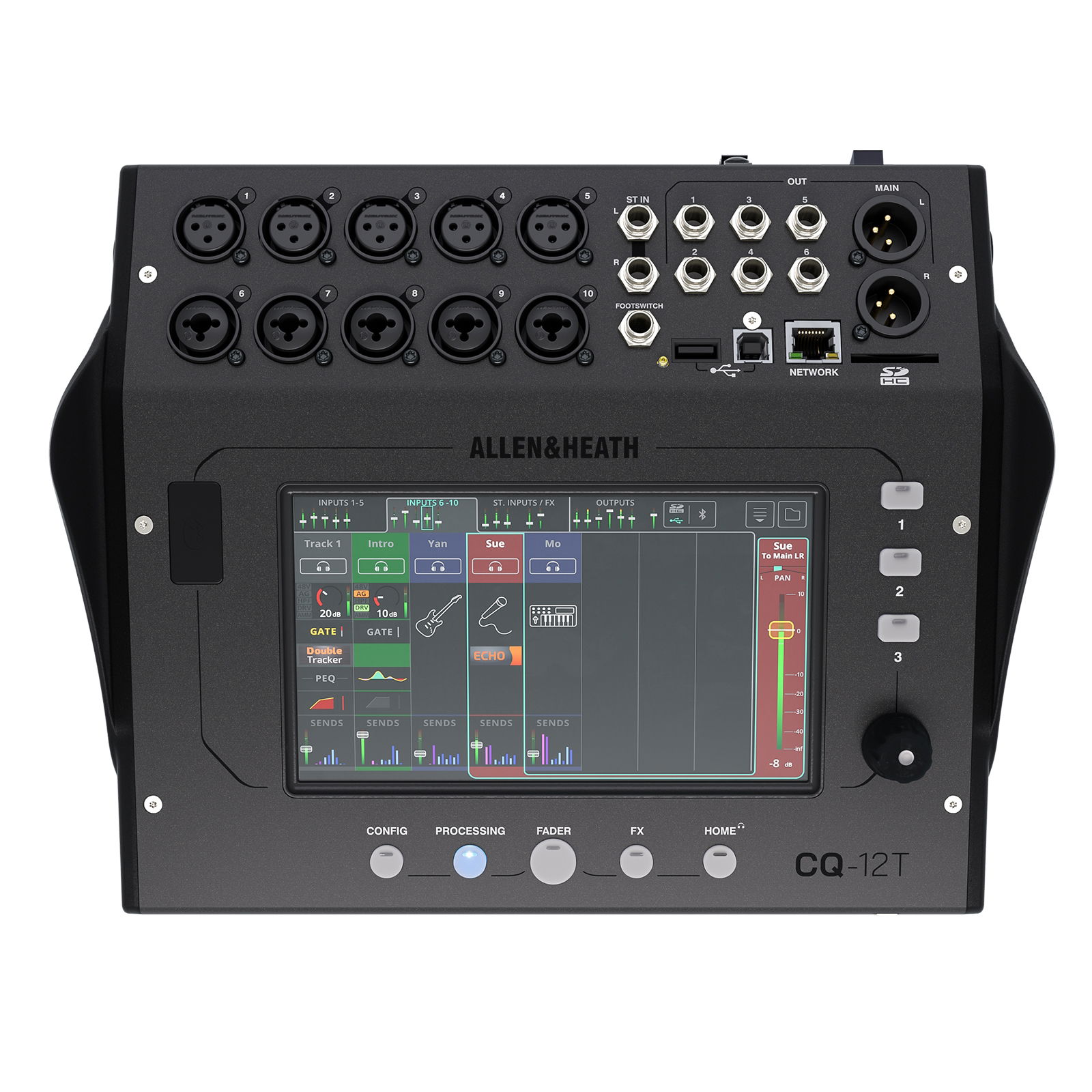

The Allen & Heath CQ-12T is a compact 12-channel digital mixer featuring 96kHz FPGA processing, a 7" capacitive touchscreen, built-in Bluetooth, and versatile recording options via USB and SD card. Designed for live performances, studio recording, streaming, and fixed installations, the CQ-12T provides intuitive control, advanced assistive mixing tools, and professional-grade audio quality—all in a portable, app-controllable package when paired with an external Wi-Fi router.

  • Mic/Line Inputs: 10 x XLR (5 combo XLR/TRS, 5 XLR)
  • Line Inputs: 2 x 1/4" TRS (stereo pair)
  • Main Outputs: 2 x XLR
  • Monitor Outputs: 6 x 1/4" TRS
  • Headphone Output: 1 x 1/4" TRS (assignable)
  • USB: 1 x Type B (16-in/18-out), 1 x Type A
  • SD Card Slot: Yes (16-in/18-out recording/playback)
  • Network: 1 x RJ45 Ethernet (requires external router for Wi-Fi control)
  • Bluetooth: Stereo input
  • Processing: 96kHz FPGA
  • Dimensions (H x W x D): 88mm x 290mm x 242mm
  • Weight: 2.4kg (5.3 lbs)
Stock code AH0010
Order Code: AH0010

Small Format Digital Mixing Console, CQ12T

Features
