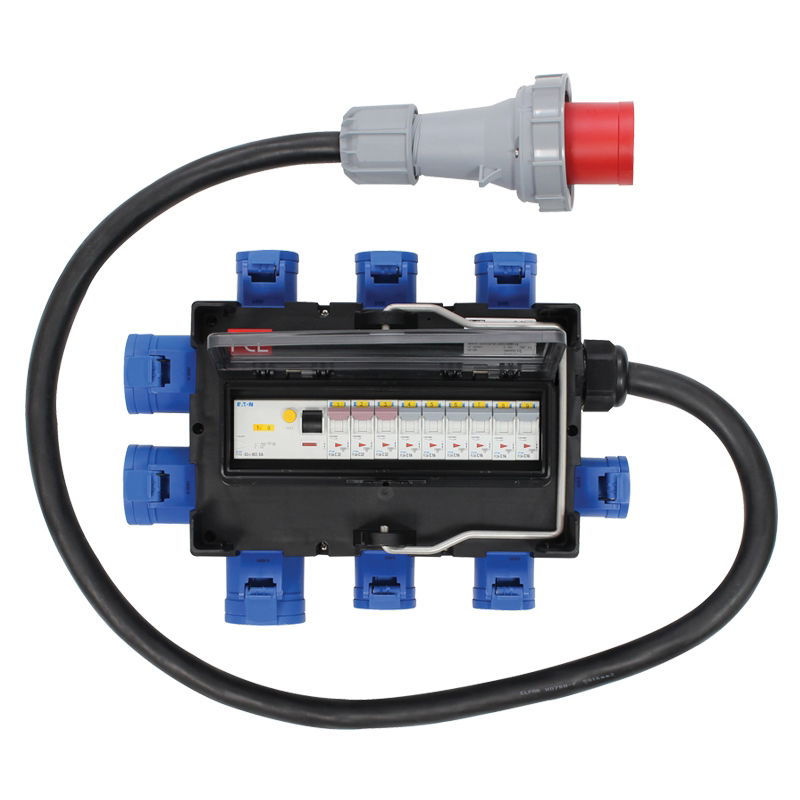

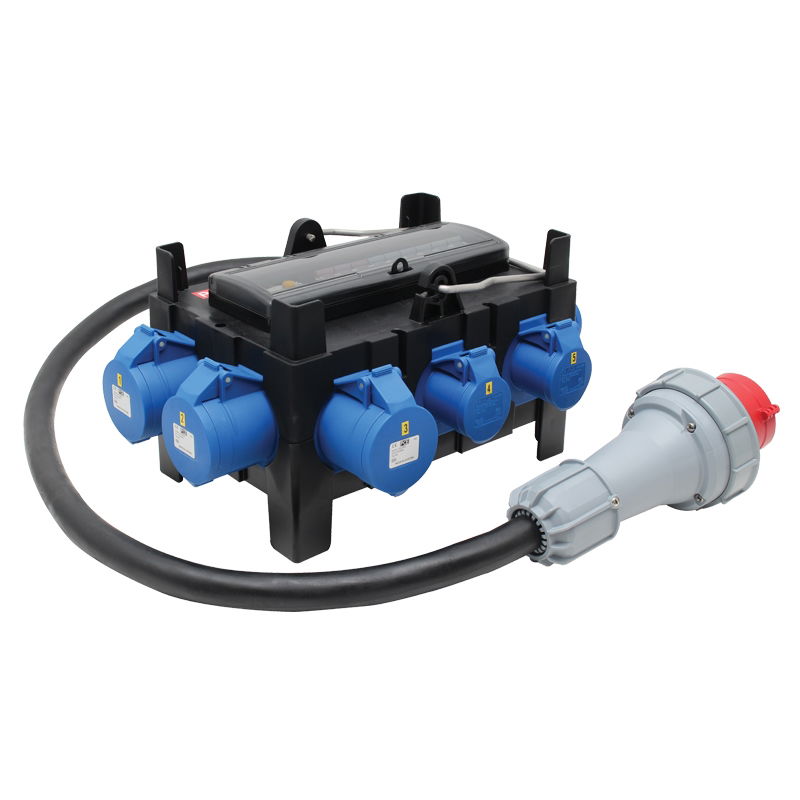

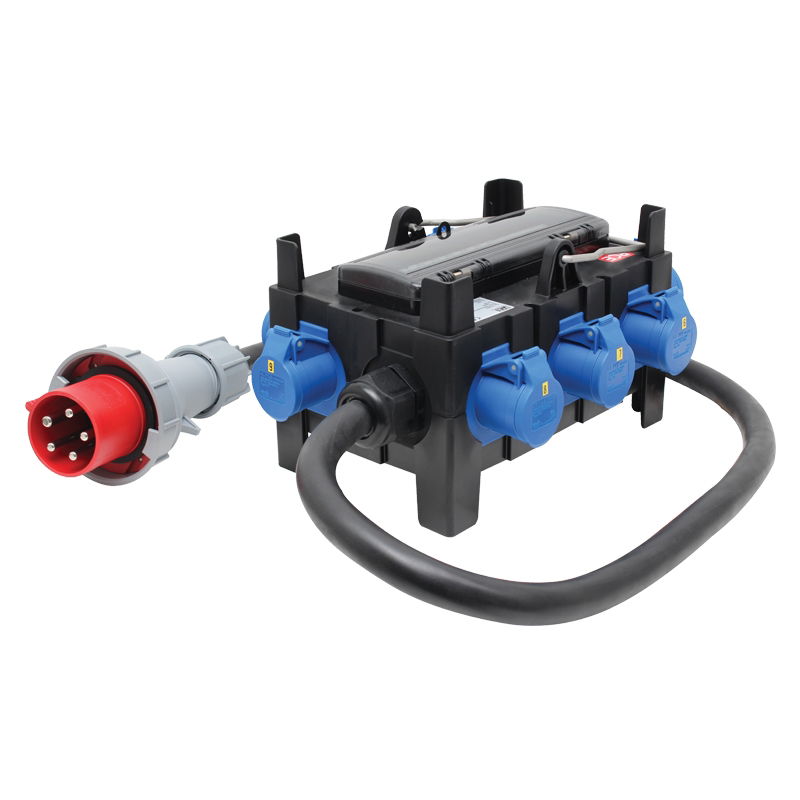

These PCE ISCHL distribution boxes are compact, robust, lightweight and made of shock-resistant polyamide. Suitable for events and rental they are IP44 splash proof rated.

  • Input: 63A 415V~50/60Hz 5-Pin 3P+N+E via 1.2m trailing cable (plug fitted)
  • Outputs: 3 x 32A 220-250V~50/60Hz 2P+E sockets and 6 x 16A 220-250V~50/60Hz 2P+E sockets each protected by a C type MCB. Overall protection via 30mA 4-Pole RCD
  • Dimensions (H x W x D): 200 x 400 x 320mm
  • Weight: 8kg
Stock code CONN080
Barcode / EAN 0759478550516
Packed Dims (H x W x D) 28 x 50 x 39cm
Packed Weight 8.9kg
Outer Carton Quantity 1
Commodity Code 8536699099
Country Of Origin Austria
Order Code: CONN080

ISCHL Distribution Box 63A 415V In, 3 x 32A + 6 x 16A Out (9130026)
