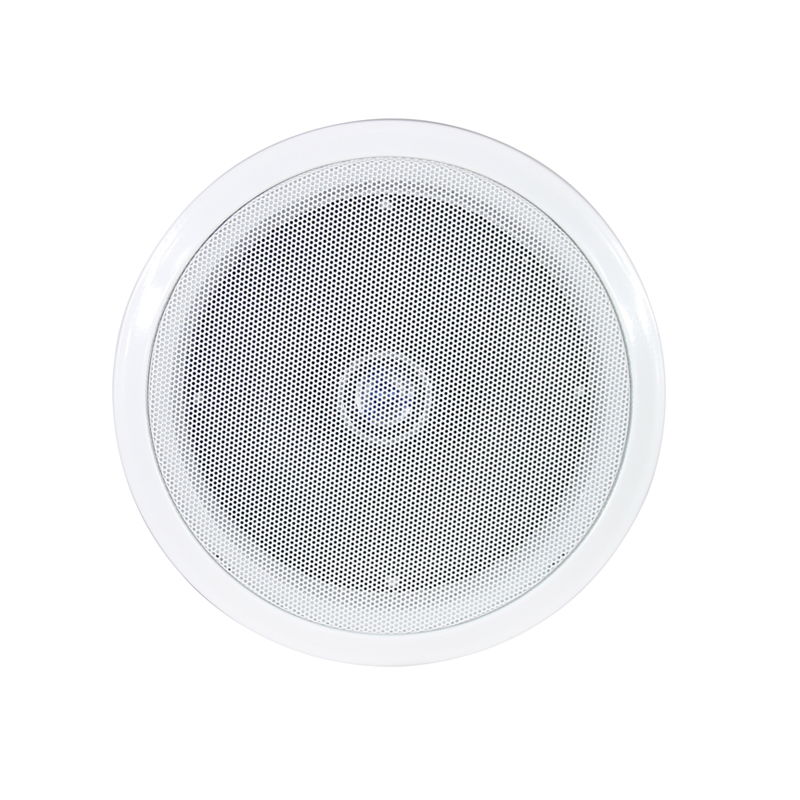

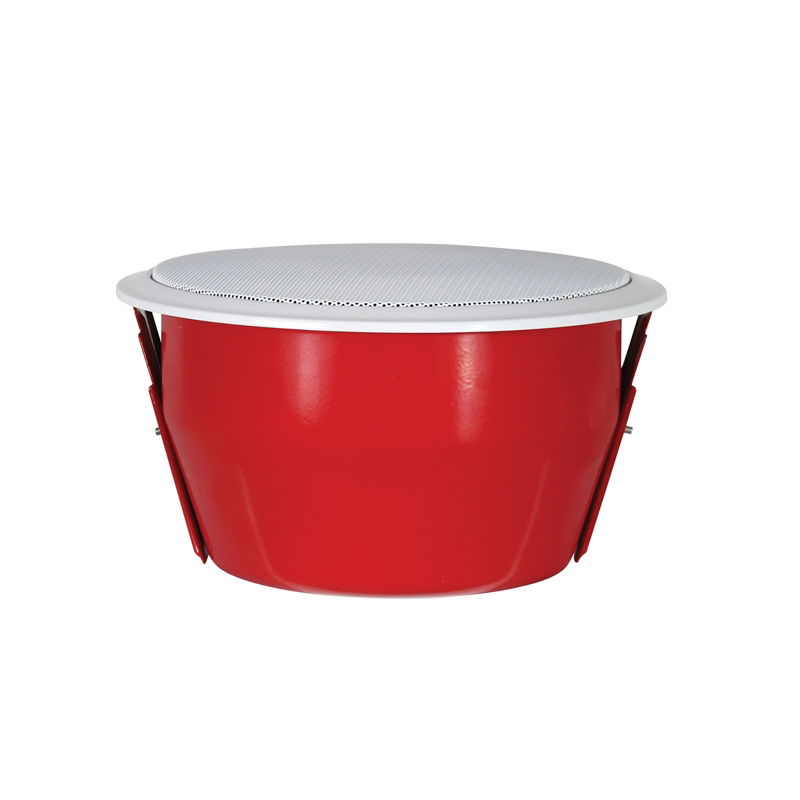

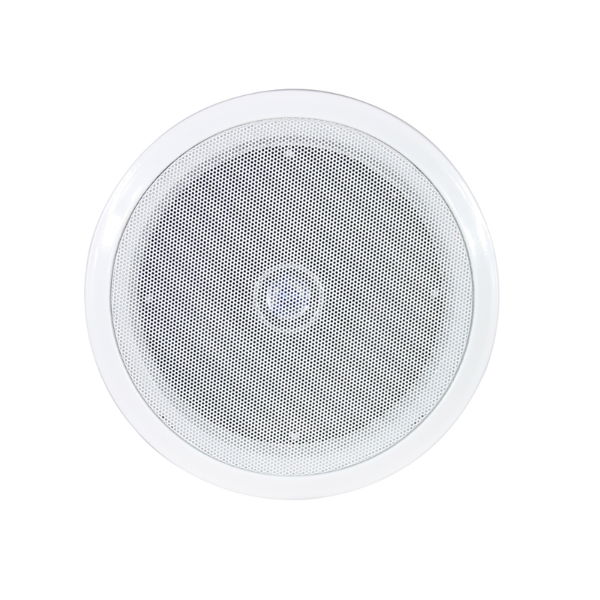

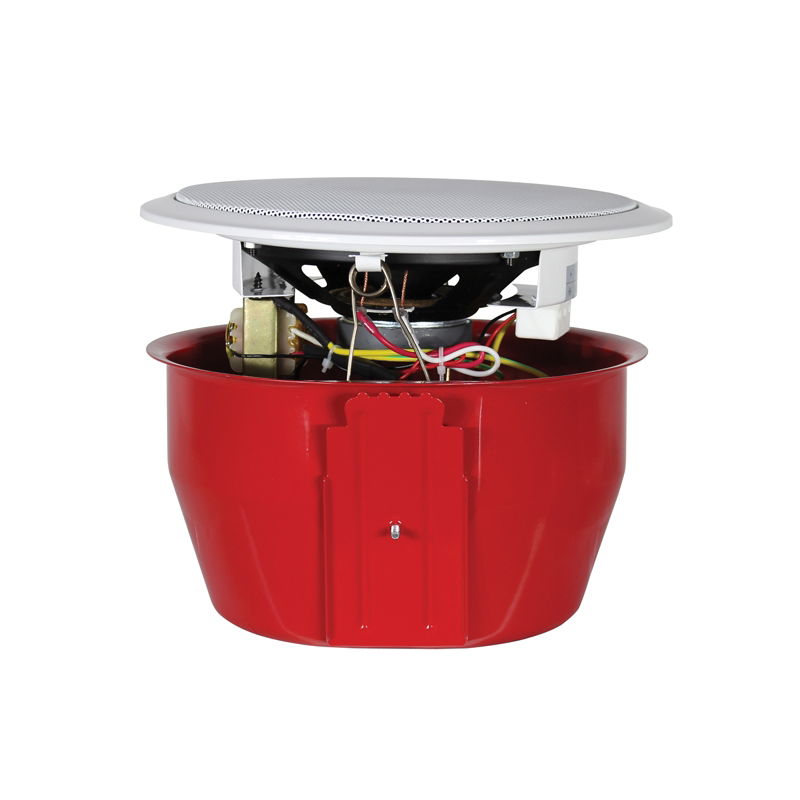

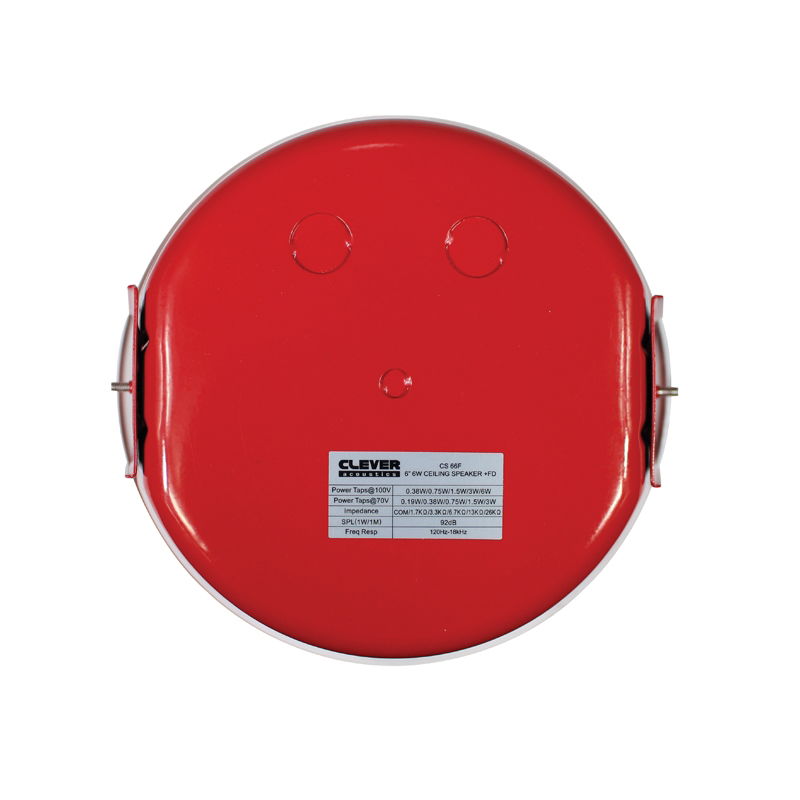

Ceiling mounted loudspeakers ideal for the playback of music and speech reinforcement where audio quality is important. The CS F series utilise a coaxial design complete with HF tweeter for crystal clear high tones. The loudspeakers feature a full fire dome and ceramic connector block suitable for installations requiring fire resistant specification.(During a fire, the ceiling cavity can allow fire or smoke to spread throughout a building. To inhibit fire entering the cavity via the ceiling loudspeaker a suitable product should chosen for installation such as the Clever Acoustics CS 66F.)

  • Input: 100V, 70V
  • Power taps @ 100V: 0.38W, 0.75W, 1.5W, 3W, 6W
  • Power taps @ 70V: 0.19W, 0.38W, 0.75W, 1.5W, 3W
  • Impedance: 26KΩ, 13KΩ, 6.7KΩ, 3.3KΩ, 1.7KΩ
  • Sensitivity (1W/1m): 92dB (±3dB)
  • Maximum SPL (Rated W/1m): 100dB
  • Frequency response: 120Hz-18kHz
  • Drivers: 6" LF, 1.5" HF
  • Connections: Ceramic terminal block
  • Cutout: 207mmØ
  • Mounting depth: 115mm
  • Dimensions: 126 x 230mmØ
  • Weight: 1.6kg
Stock code CRSP15
Barcode / EAN 0723175521186
Packed Dims (H x W x D) 15.7 x 25 x 25cm
Packed Weight 1.9kg
Outer Carton Quantity 8
Commodity Code 8518290090
Country Of Origin China
Order Code: CRSP15

CS 66F 100V 6" 6W Ceiling Speaker +FD
