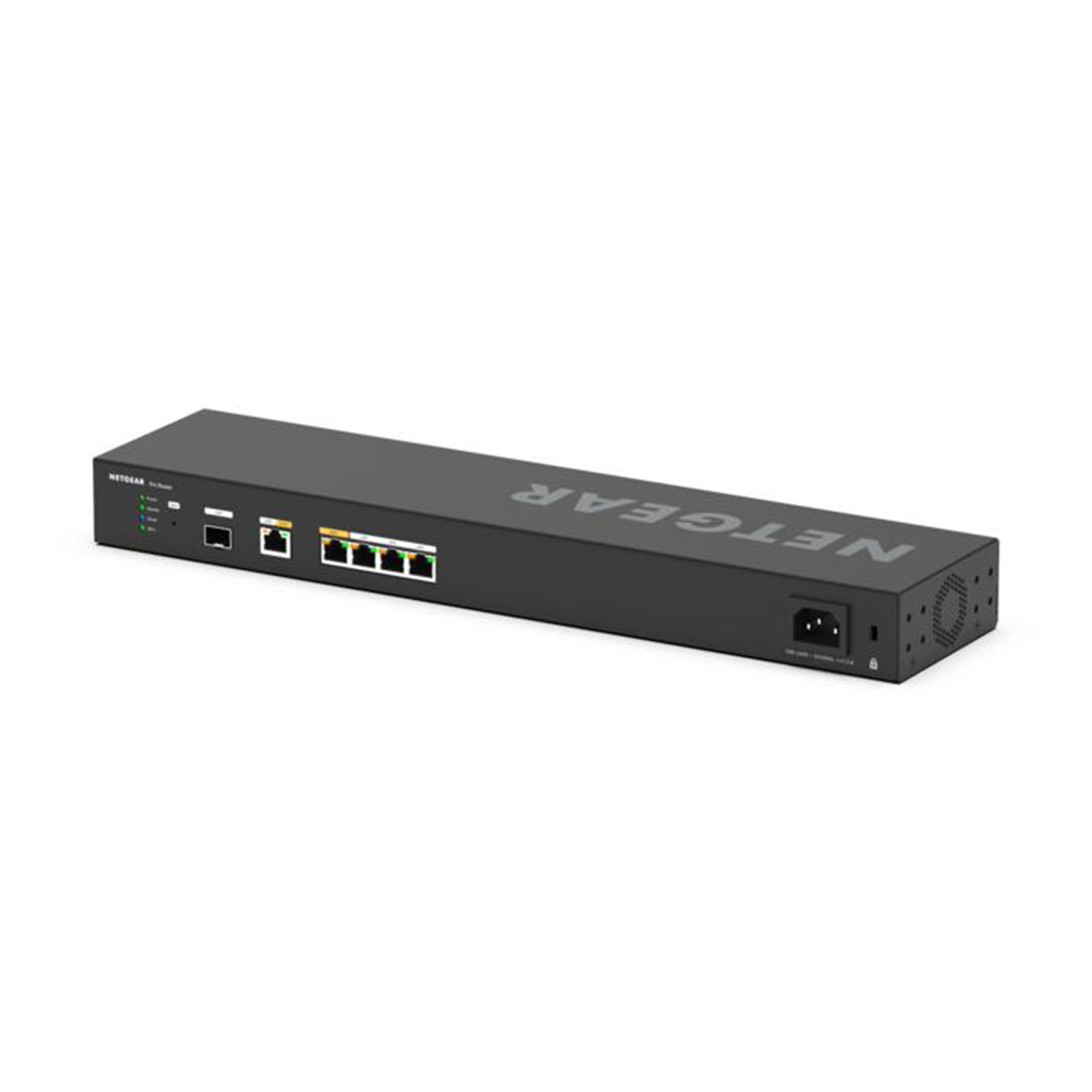

The PR460X is a 1U dual-WAN pro router designed for demanding AV-over-IP, commercial, and integrator environments. It offers a configurable 10G/Multi-Gig copper port (LAN/WAN), a 10G SFP+ LAN port, a 2.5G/1G WAN port, and three 2.5G/1G LAN ports. With quad-core performance, VPN (IPsec/OpenVPN), firewall, dual-WAN failover, VLAN/DHCP segmentation, and 4‑year Insight Cloud management, it delivers reliable, high-speed connectivity and remote management. Reversible rackmount design, 5-year hardware warranty.

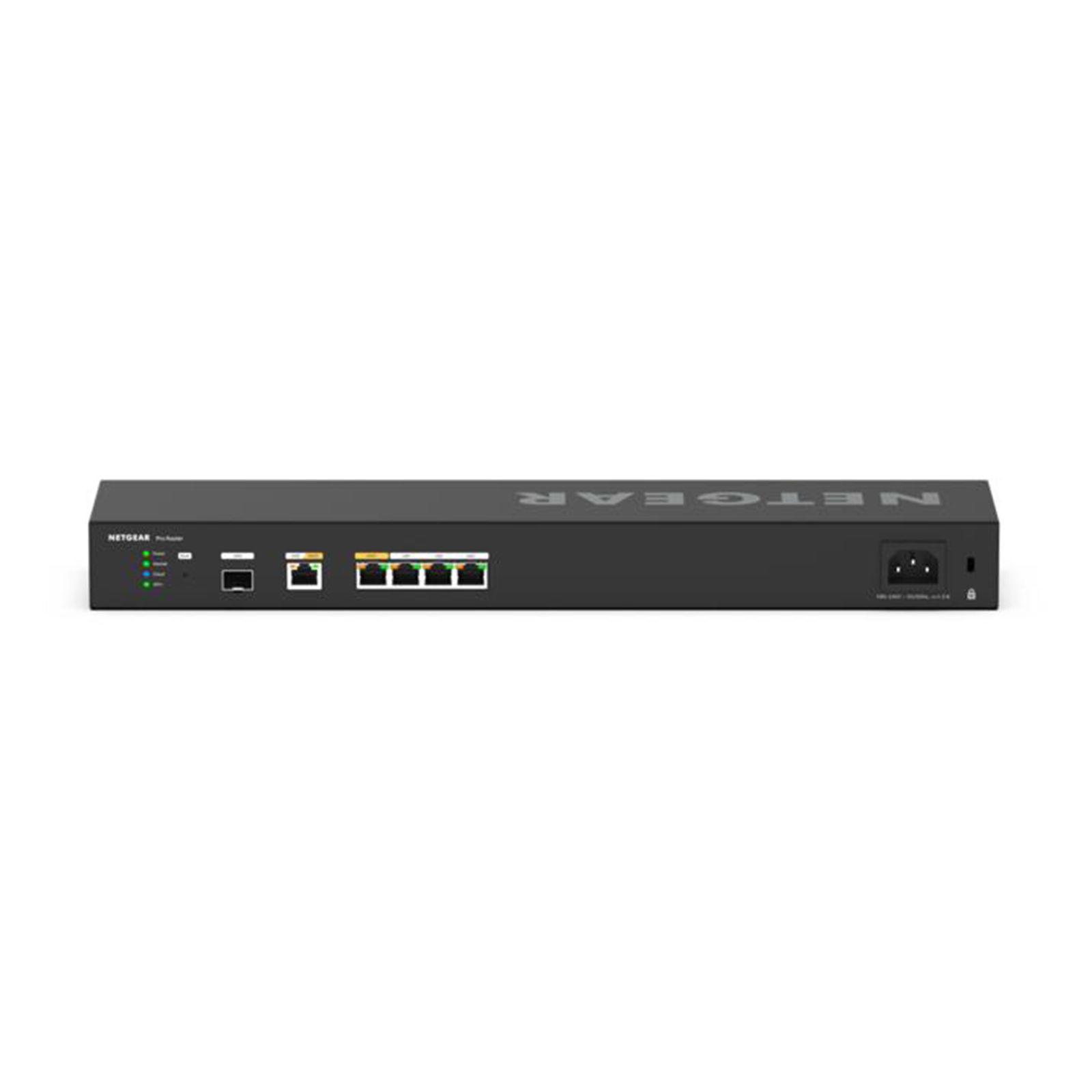

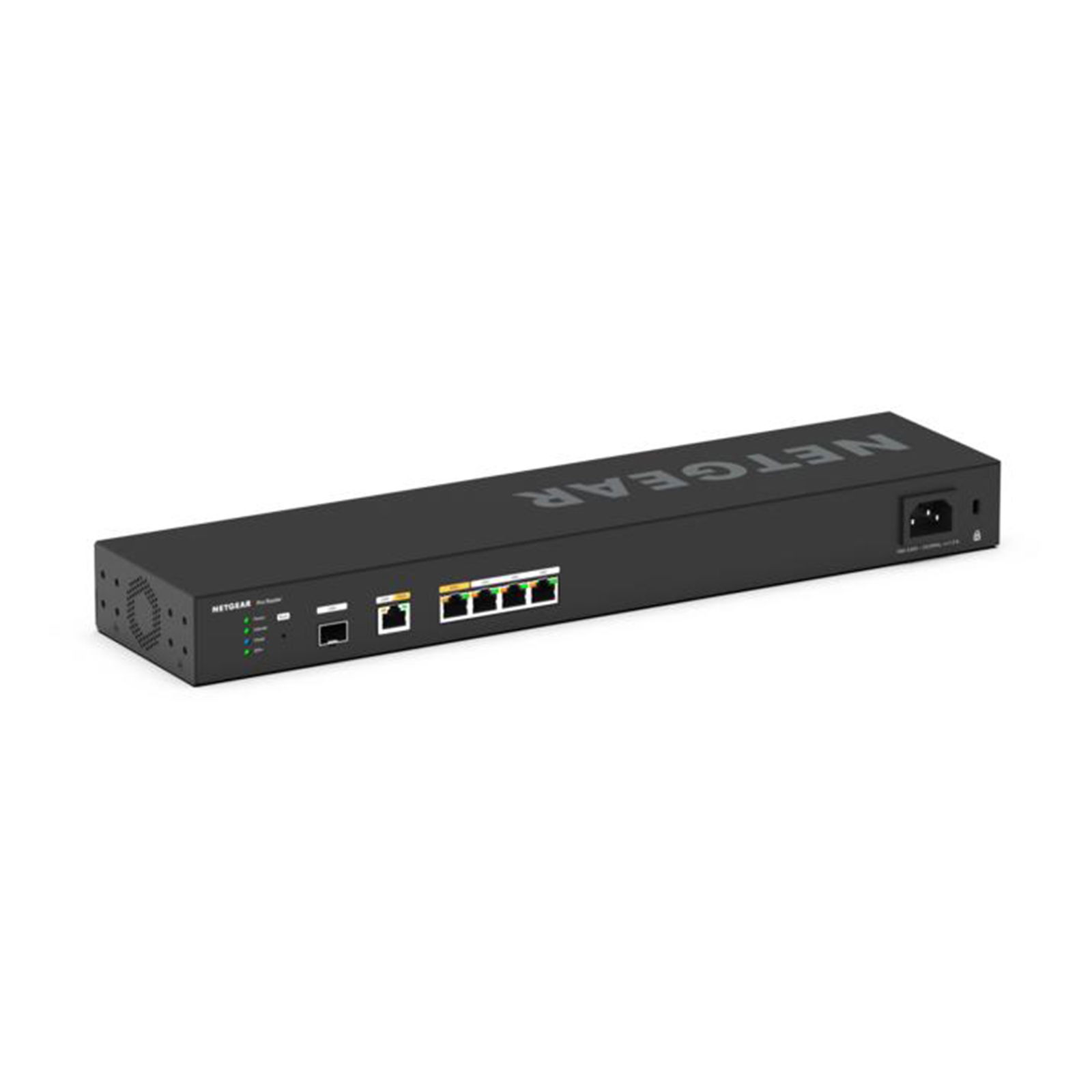

• Ports: 1 × 10G/Multi‑Gig RJ45, 1 × 10G SFP+, 1 × 2.5G/1G WAN, 3 × 2.5G/1G LAN
• CPU/RAM: Quad‑core ARM A73 @2.2 GHz, 2 GB DDR4, 4 GB flash
• Throughput: ~9.4 Gbps via 10G WAN; ~2.4 Gbps via 2.5G WAN
• Routing/VLAN: static, RIPv1/2; VLAN (802.1Q), 8 DHCP servers
• Security: Stateful firewall, SPI, DoS prevention, SIP ALG
• VPN: IPsec (30 site‑to‑site), OpenVPN
• Management: Insight Cloud & mobile app, device UI, CLI, SNMP
• Form Factor: 1U rackmount, 440 × 100 × 43mm, 1.48 kg
• Power: Internal 100–240 V AC PSU
• Warranty: 5 years hardware, 4 years Insight
