The Hollyland HL-ATN04 is a 1.9GHz dual-polarized panel antenna designed to enhance signal strength and transmission stability in full-duplex wireless intercom systems. With a wide frequency range of 1786–1930MHz, 12dBi high gain, and RP-SMA connectors, it’s ideal for extending communication range in professional applications. Easy to mount with its 3/8"-16 thread and included accessories, this antenna ensures optimal performance across challenging environments.

  • Frequency Range: 1786–1930MHz
  • Gain: 12dBi
  • VSWR: ≤1.8
  • Impedance: 50Ω

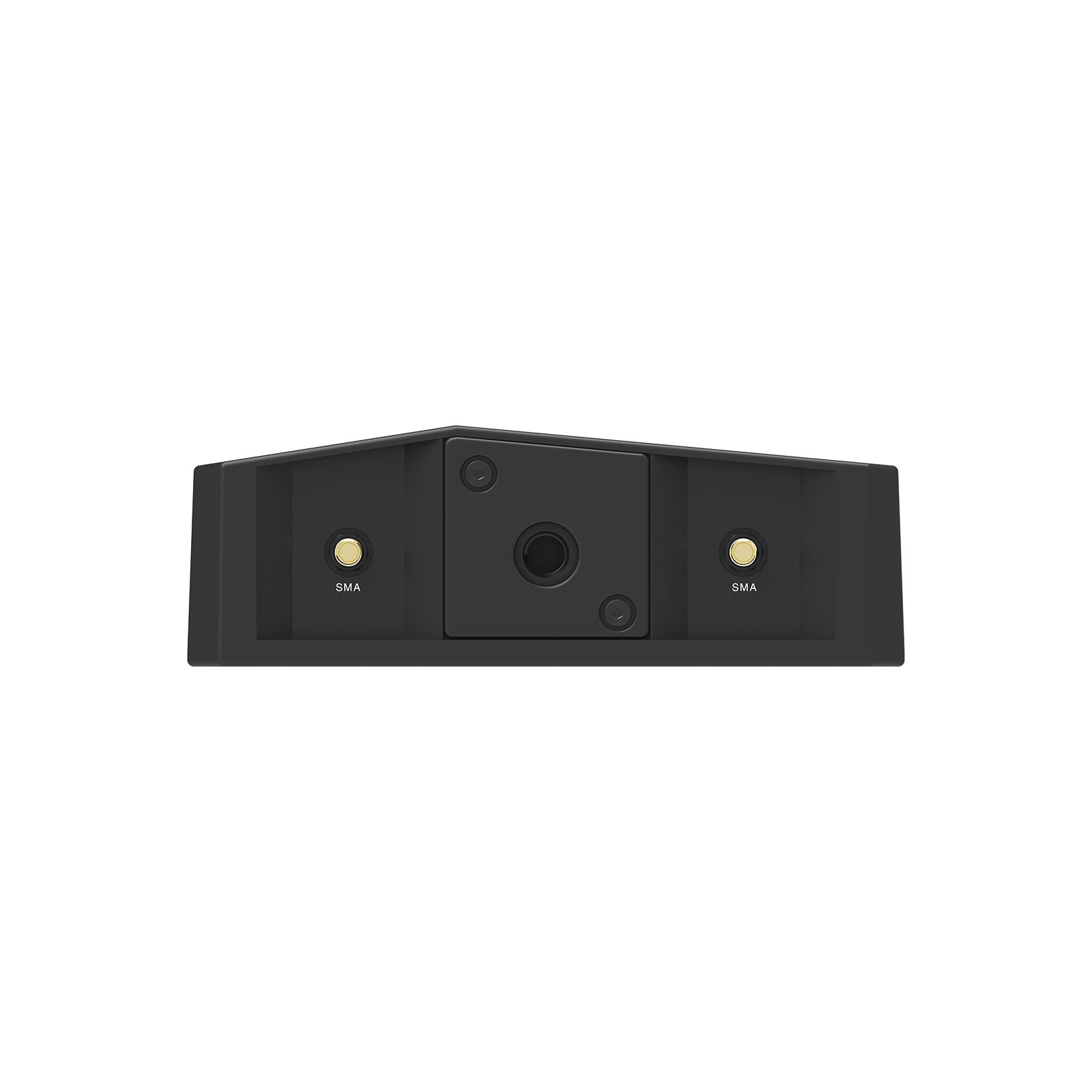

  • Connectors: 2 x RP-SMA Male
  • Cable Length: 2m
  • Mounting: 3/8"-16 Female
  • Material: Plastic
  • Dimensions: 193 x 160 x 54mm
  • Net Weight: 445g
Stock code HL0072
Outer Carton Quantity 1
Commodity Code 8529104040
Order Code: HL0072

Intercom Panel Antenna, HL-ATN04
