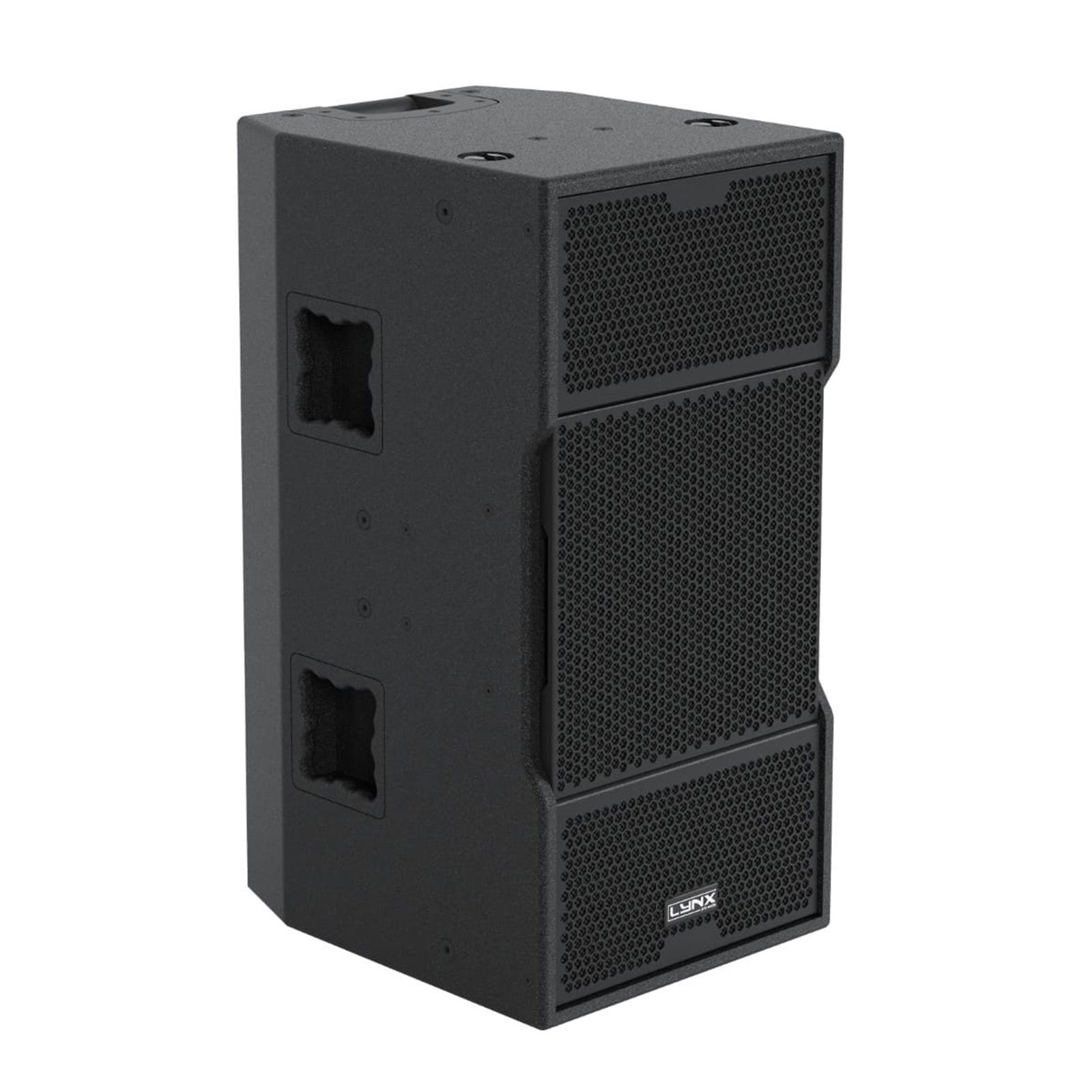

The CPS-210/96 from Lynx Pro Audio is a compact, high-performance 3-way coaxial point source loudspeaker featuring dual 10″ neodymium drivers and a coaxial MF/HF compression driver. With a rotatable 90° x 60° horn, integrated 3000W Class D amplification, and 64-bit/96kHz FIR DSP, it delivers precise, phase-coherent coverage for touring, theatres, houses of worship, and high-quality installations.

• LF Drivers: 2 x 10″ neodymium, 3″ dual-layer voice coils
• MF Driver: 3″ voice coil diaphragm
• HF Driver: 2″ voice coil diaphragm
• Frequency Response: 63Hz – 20kHz (-6dB)
• Maximum SPL (Peak): LF up to 136.5dB, MF/HF up to 137dB
• Dispersion: 90° horizontal x 60° vertical (rotatable horn)
• Amplifier Power: 3000W Class D (LF: 1500W, MF: 750W, HF: 750W)
• DSP: 64-bit/96kHz FIR processing with EQ, delay, crossover

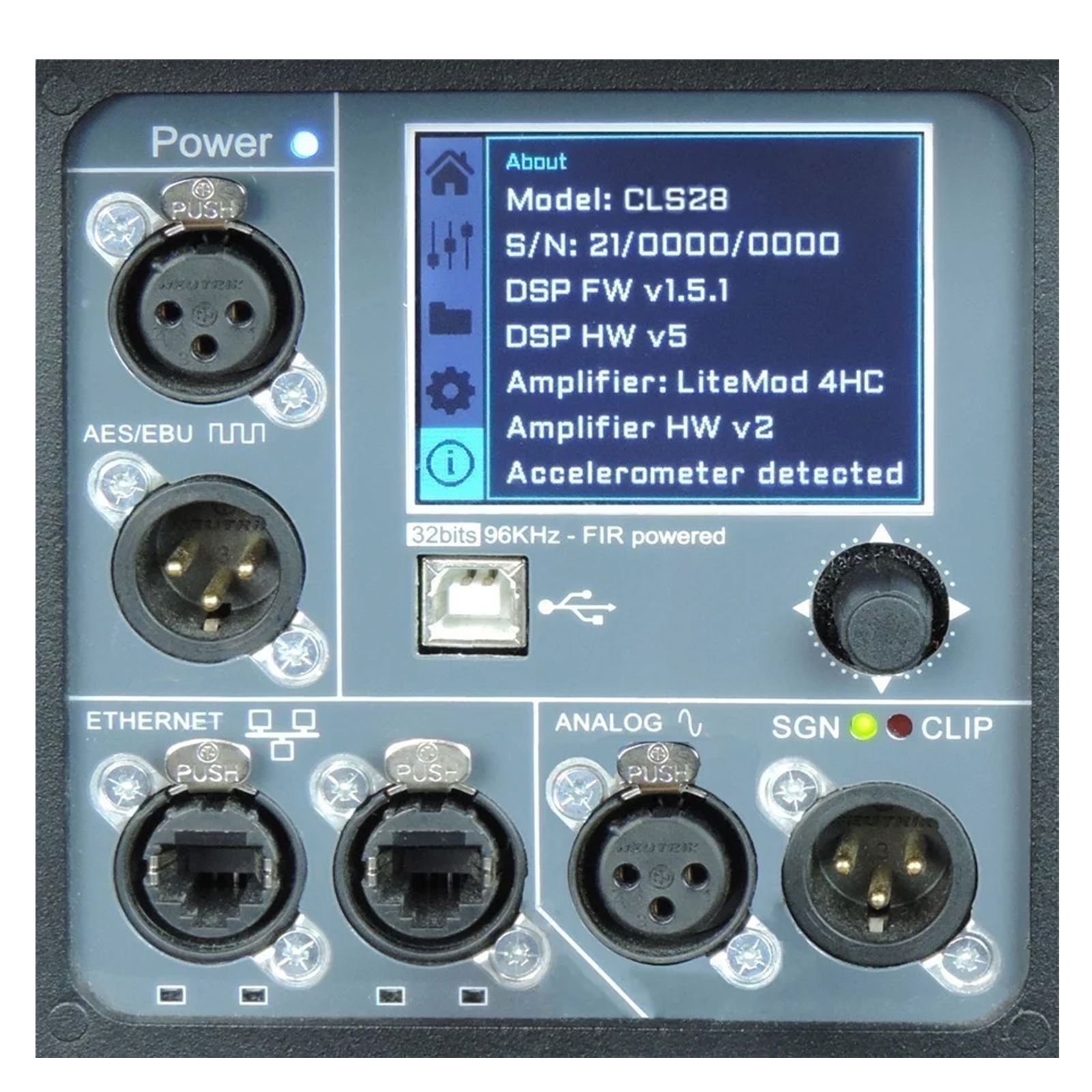

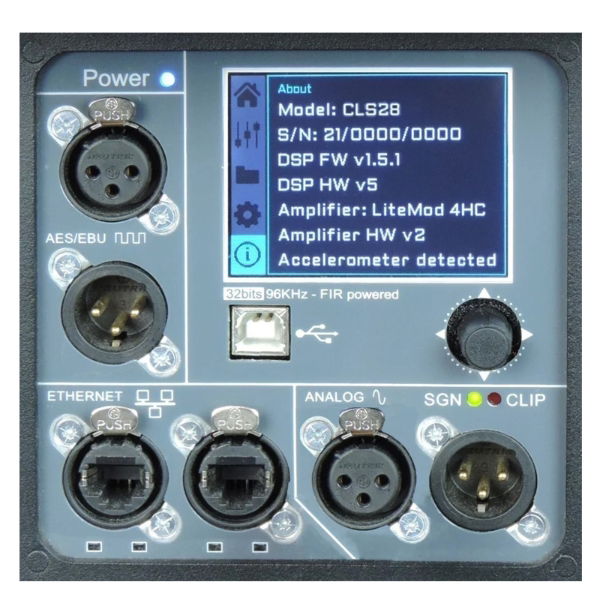

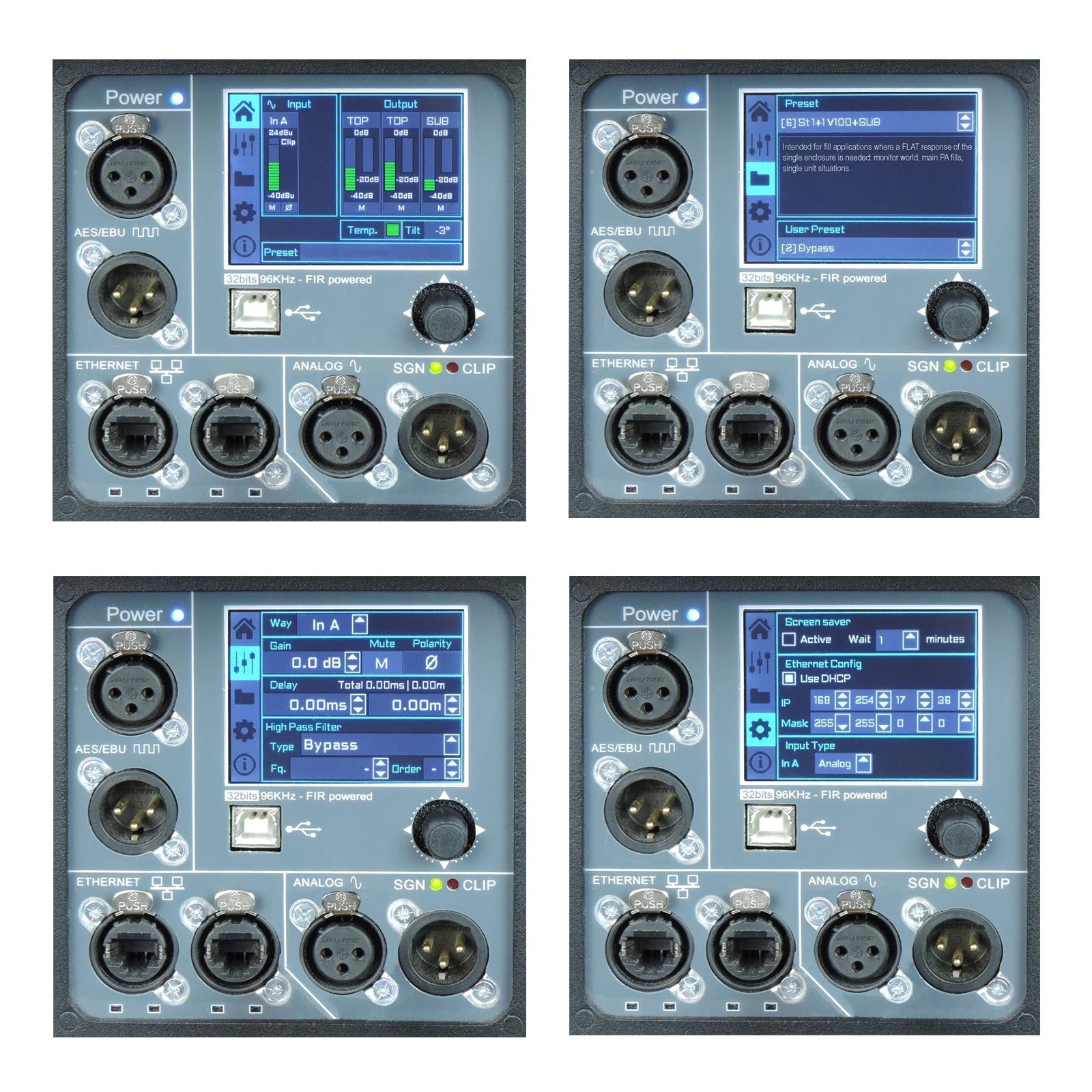

• Control: 2.8″ IPS screen with joystick, Ethernet, USB
• Inputs: XLR analog, AES/EBU digital (optional)
• Enclosure: 15mm birch plywood with polyurea coating
• Power Supply: 100–240V AC with PFC
• Connectors: Neutrik powerCON TRUE1 TOP
• Dimensions: 710 x 350 x 428mm
• Weight: 35kg
