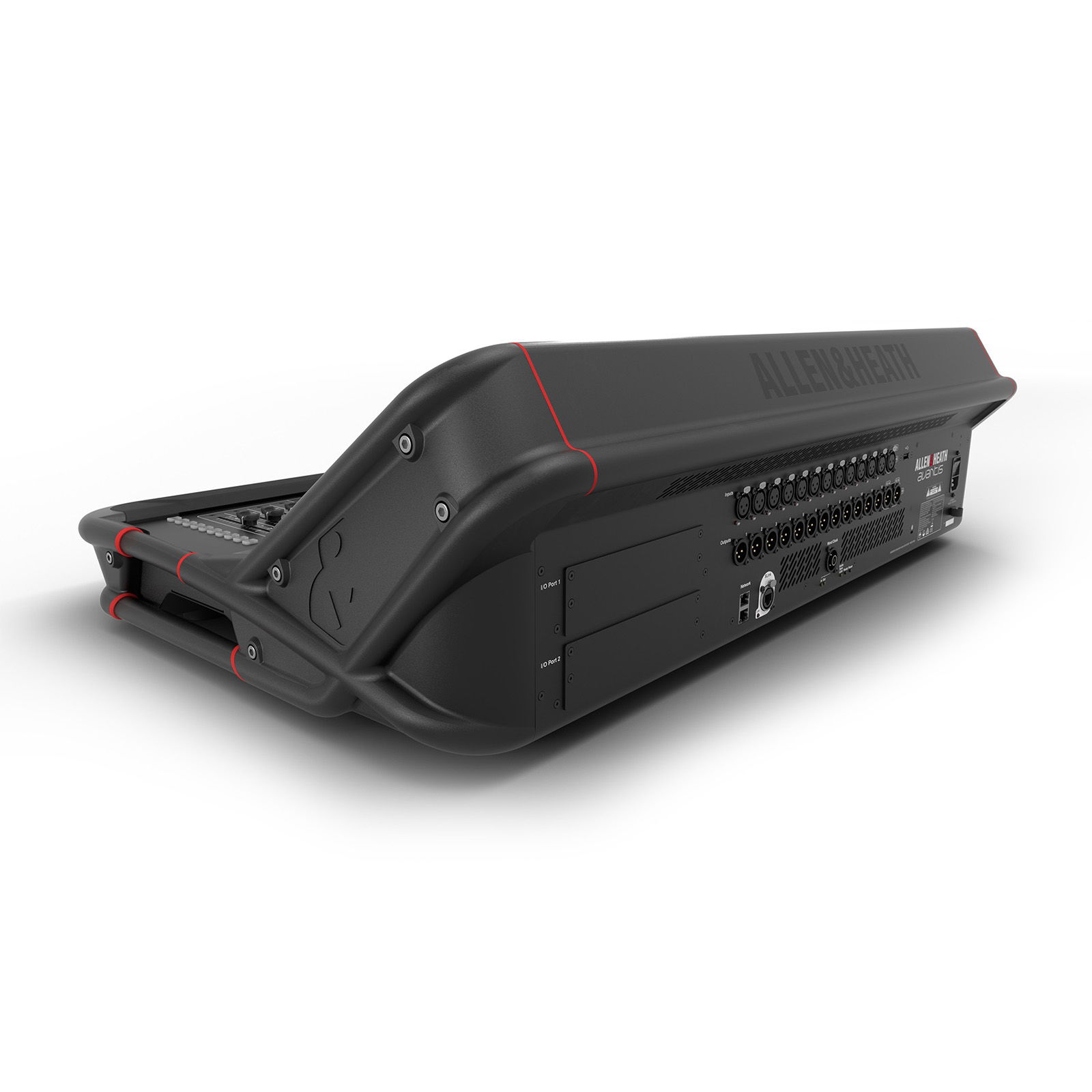

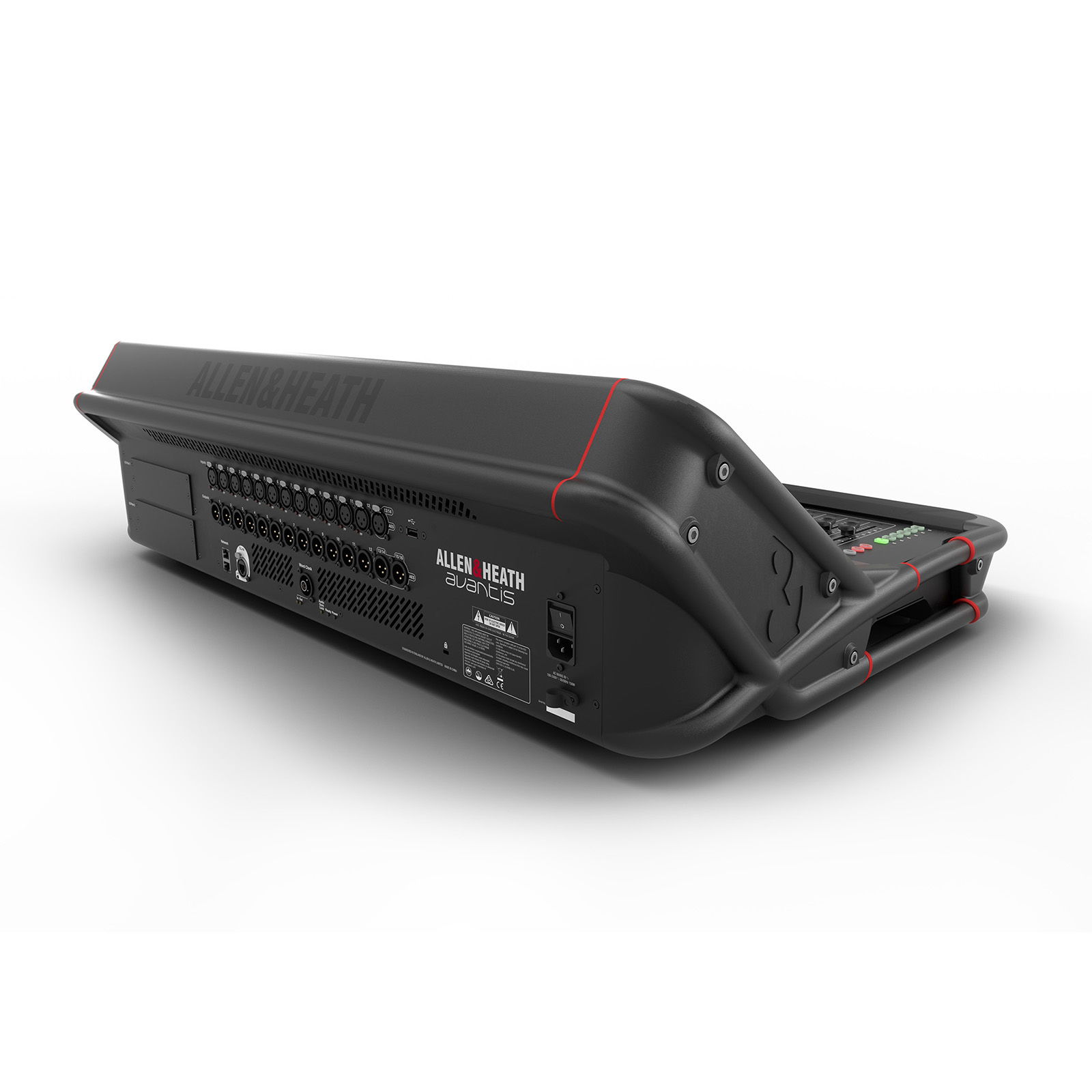

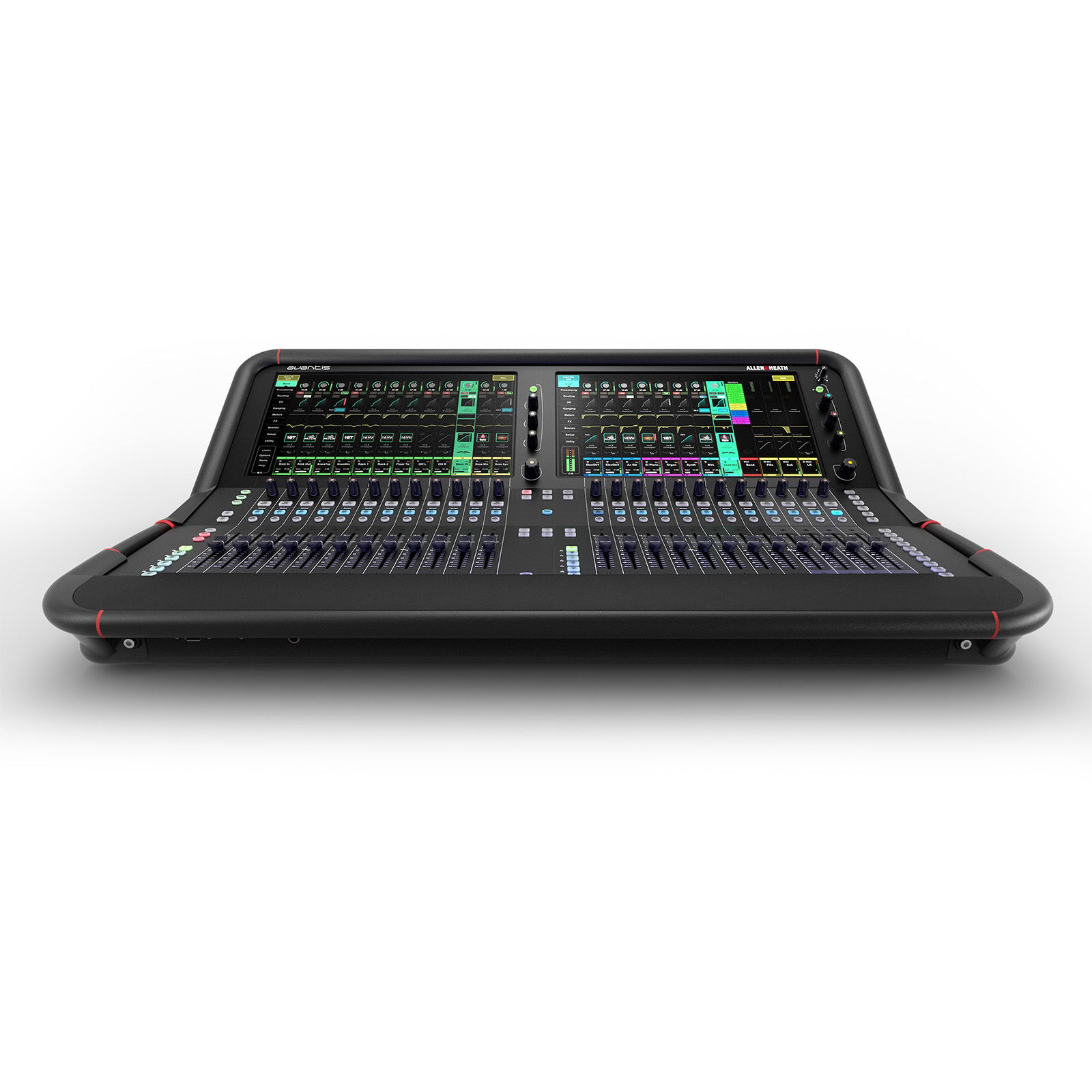

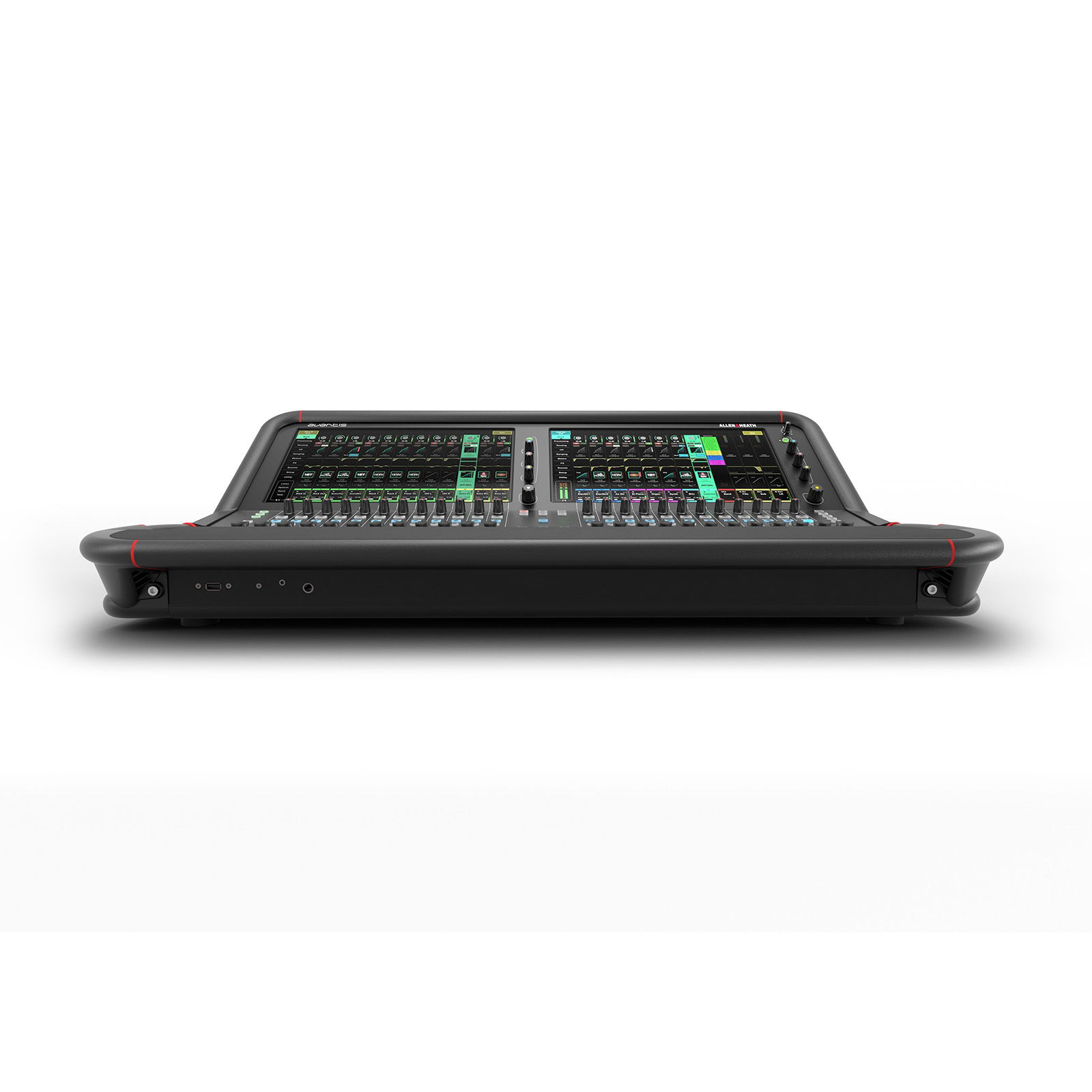

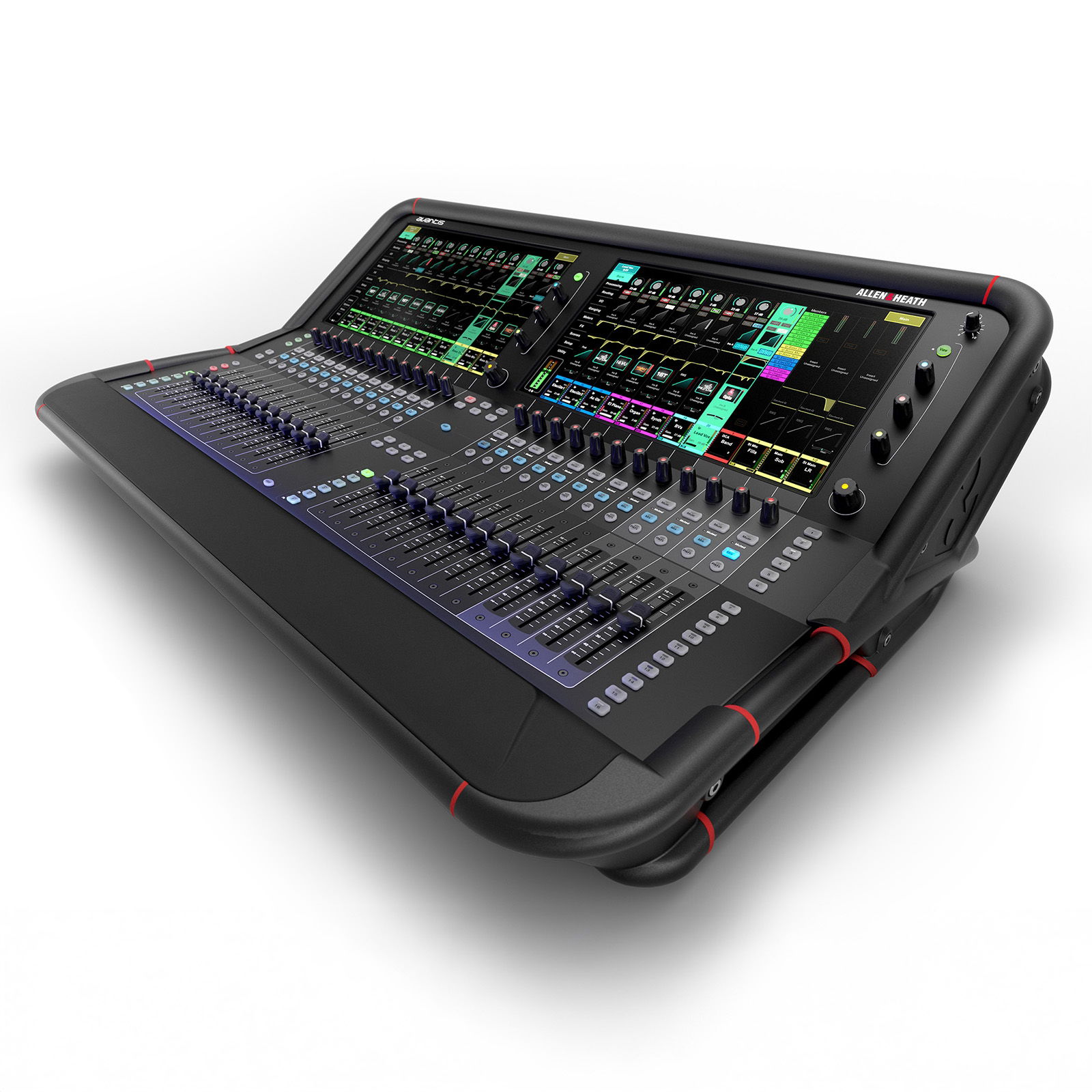

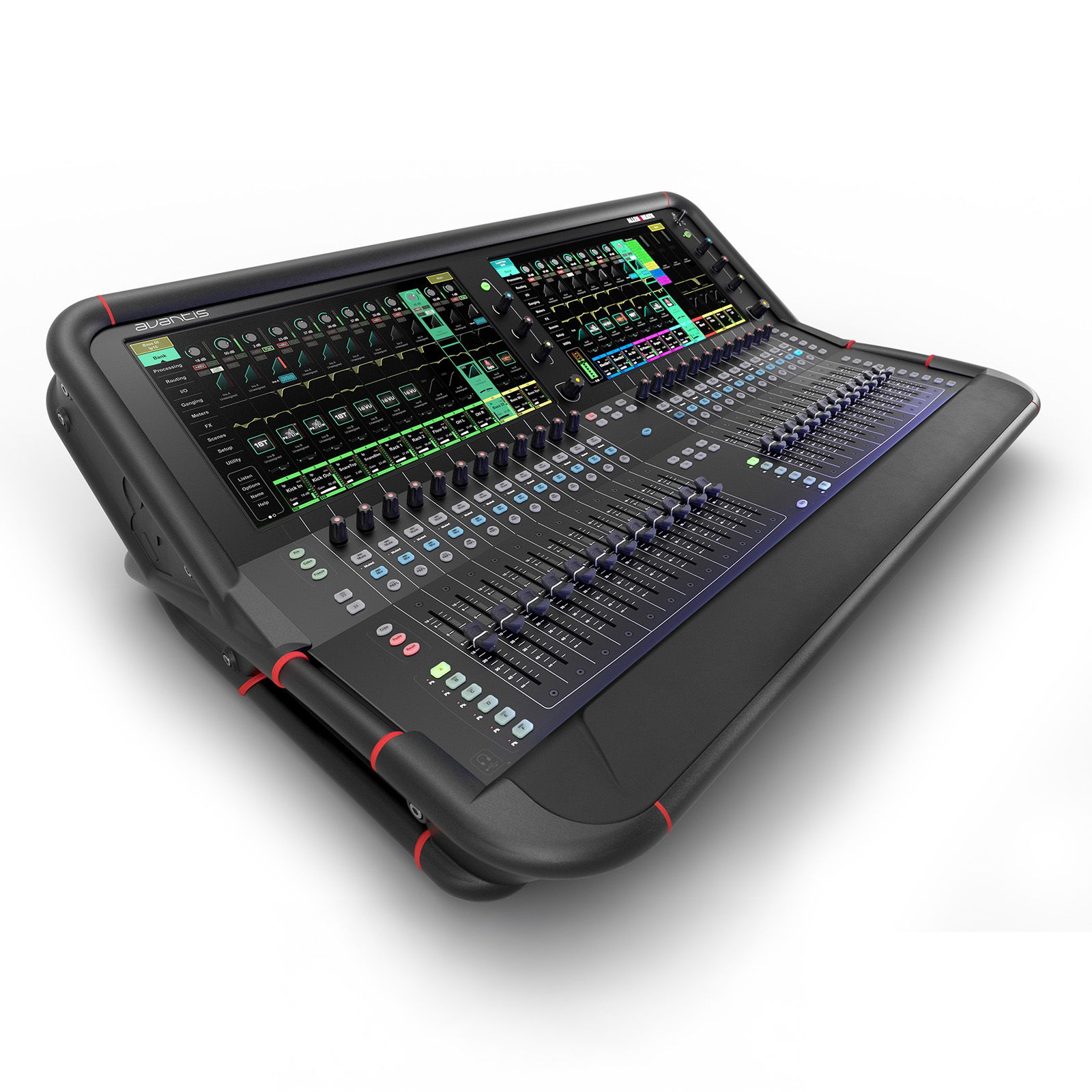

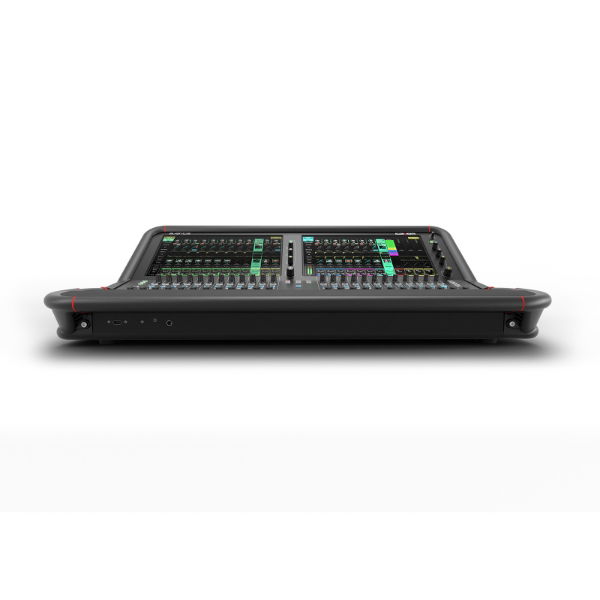

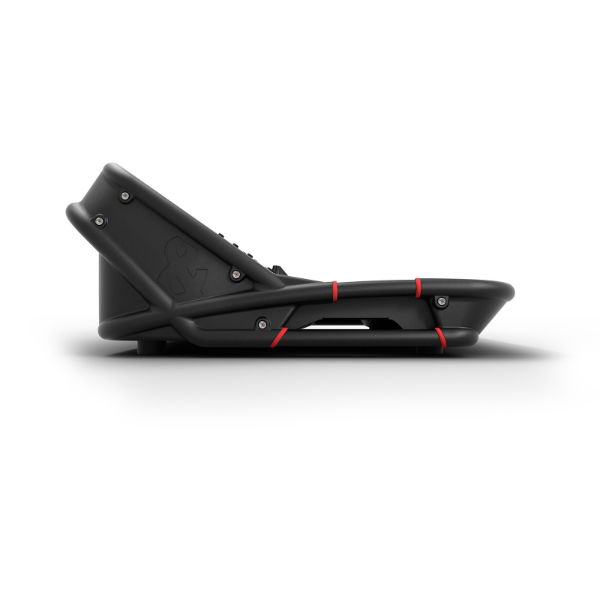

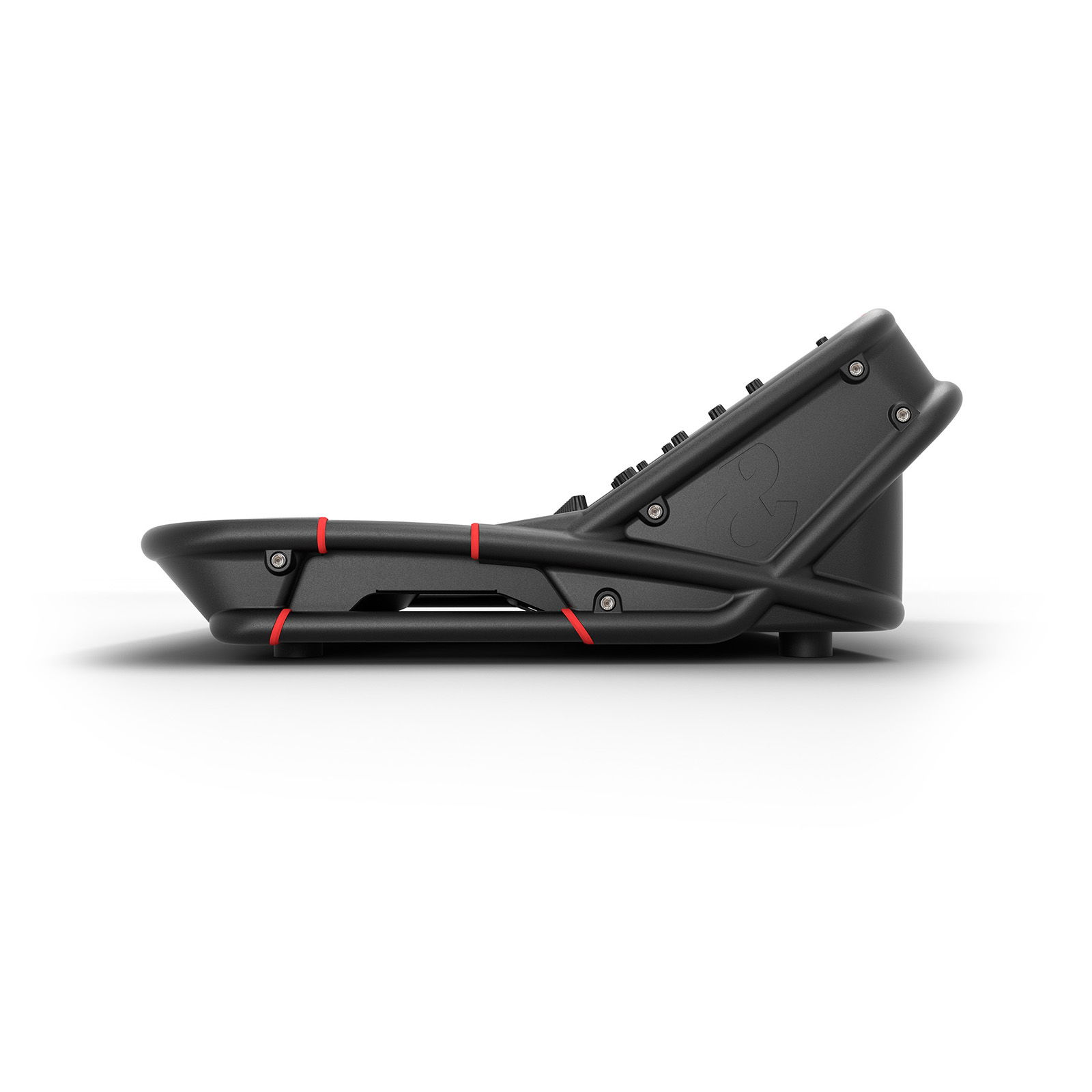

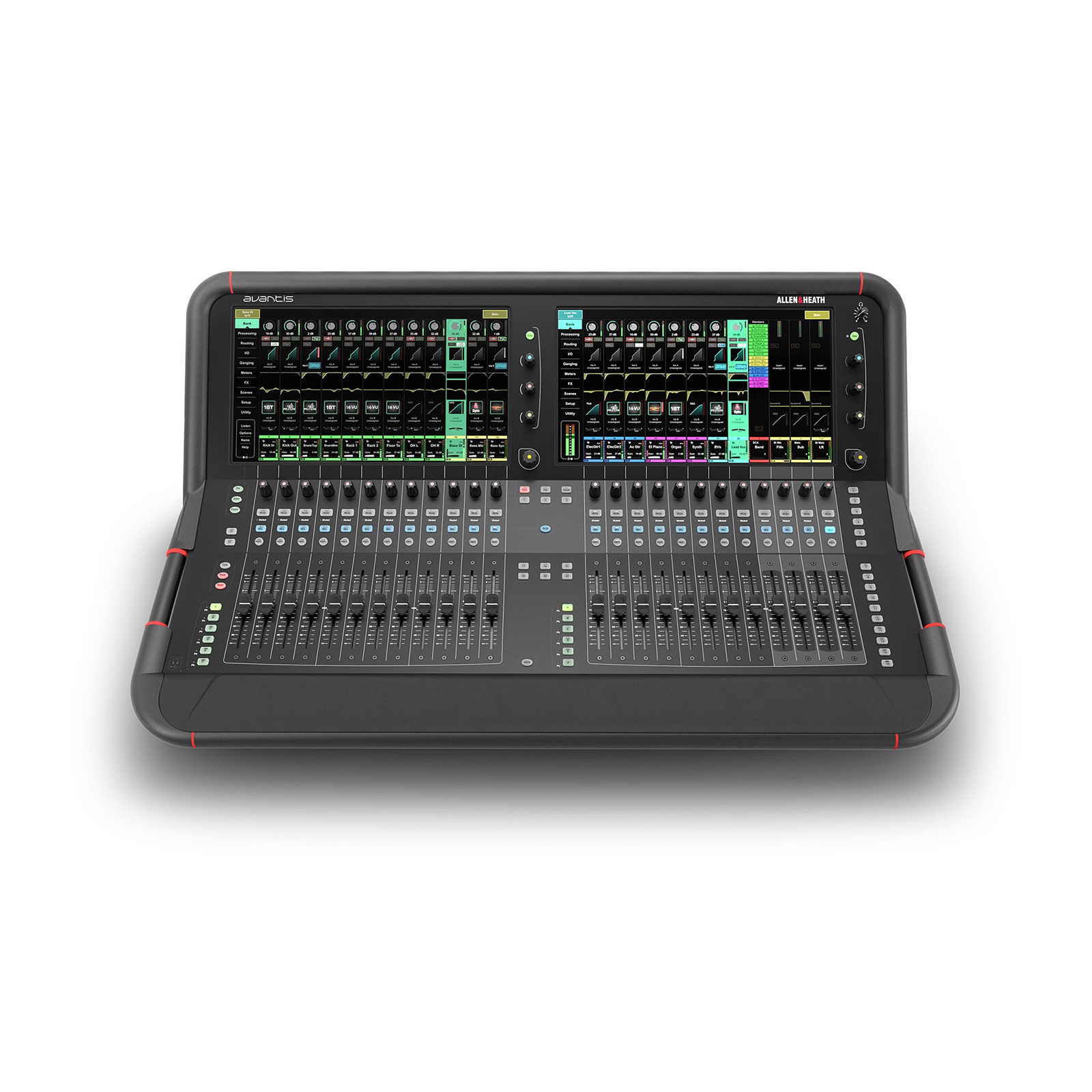

The Allen & Heath Avantis is a professional 64-channel digital mixing console featuring 96kHz XCVI FPGA processing, dual 15.6" Full HD touchscreens, and a flexible 42-bus architecture. With ultra-low 0.7ms latency, DEEP processing capabilities, and extensive I/O options, including 12 XLR inputs/outputs and dual I/O ports for Dante, Waves, and more, the Avantis delivers exceptional audio quality and intuitive control for live sound, broadcast, and installations.

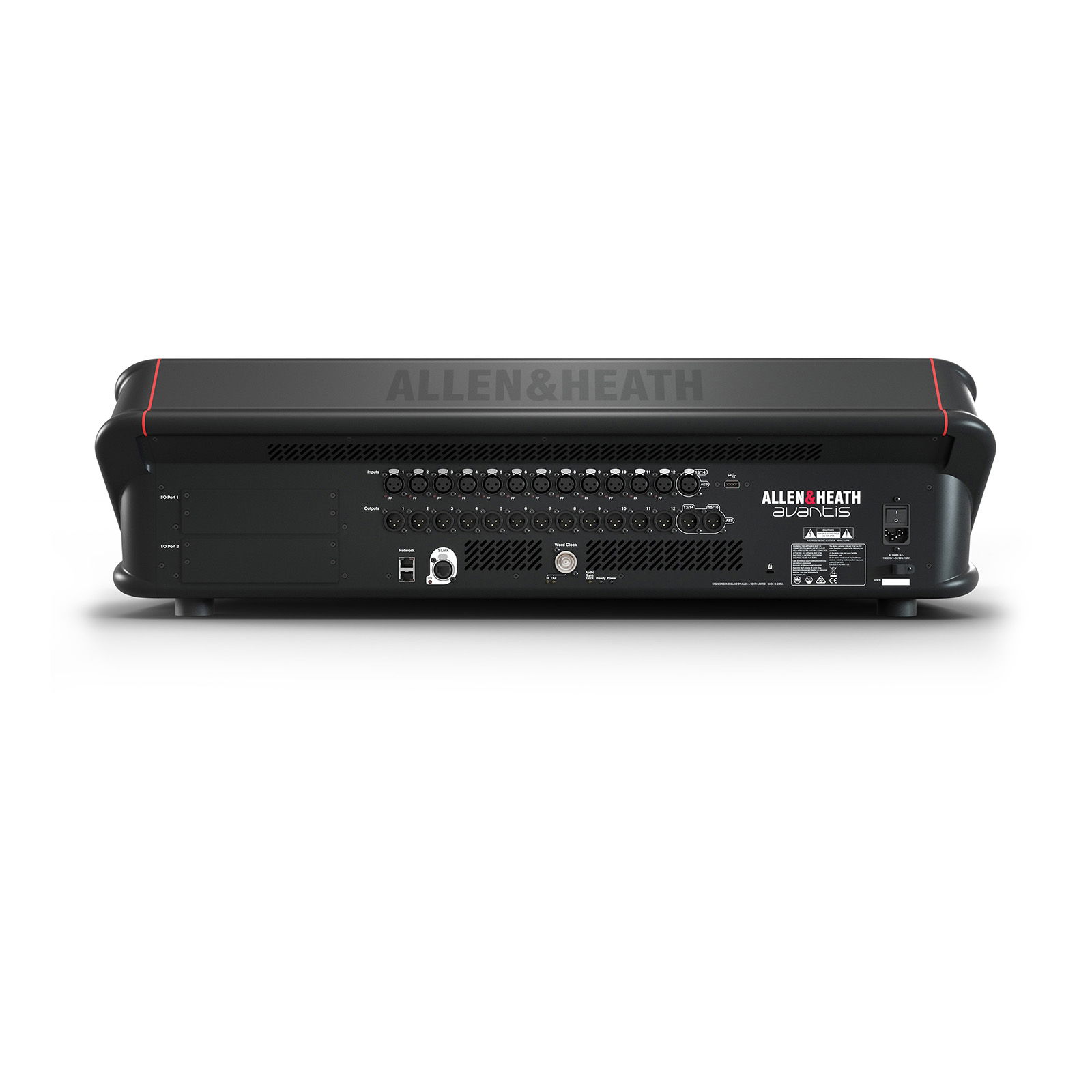

• Mic/Line Inputs: 12 x XLR
• Line Outputs: 12 x XLR
• Digital Inputs: 1 x XLR (AES/EBU)
• Digital Outputs: 2 x XLR (AES/EBU)
• USB: 2 x Type A for stereo recording and playback
• Network: 2 x RJ45 (network), 1 x Locking Ethernet (SLink)
• I/O Expansion Slots: 2 x 128x128 at 96kHz
• Headphone Outputs: 1 x 1/4", 1 x 1/8"
• Faders: 24 x 100mm motorized
• Touchscreen: Dual 15.6” Full HD capacitive with gesture control
• Processing: 96kHz XCVI FPGA with optional dPack for DEEP processing
• Latency: <0.7ms
• Dimensions (H x W x D): 269mm x 916mm x 627mm
• Weight: 26kg (57.4 lbs)
