The AM-TOP series of IP44 CEE industrial cable connectors are robust, reliable and easy to connect. Featuring open terminal screws, all facing in the same direction, the AM-TOP series of plugs are terminated quickly in the field. A rugged cable gland at the rear of the plug, when tightened, grips the cable and seals the gasket at the same time, while the integral strain relief prevents cable kinking. Constructed from a heavy-duty Amaplast casing including nickel plated contacts with high heat resistant contact carriers offering excellent corrosion resistance. Ergonomically designed the AM-TOP series of industrial BS4343 plugs perform exceptionally well in the most demanding environments.

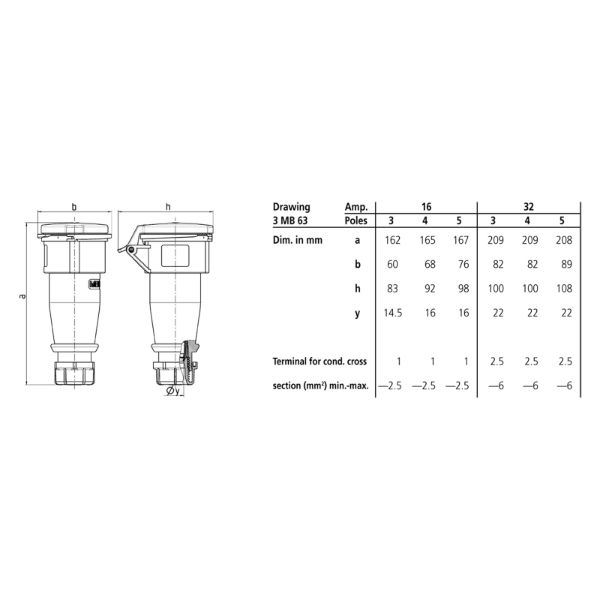

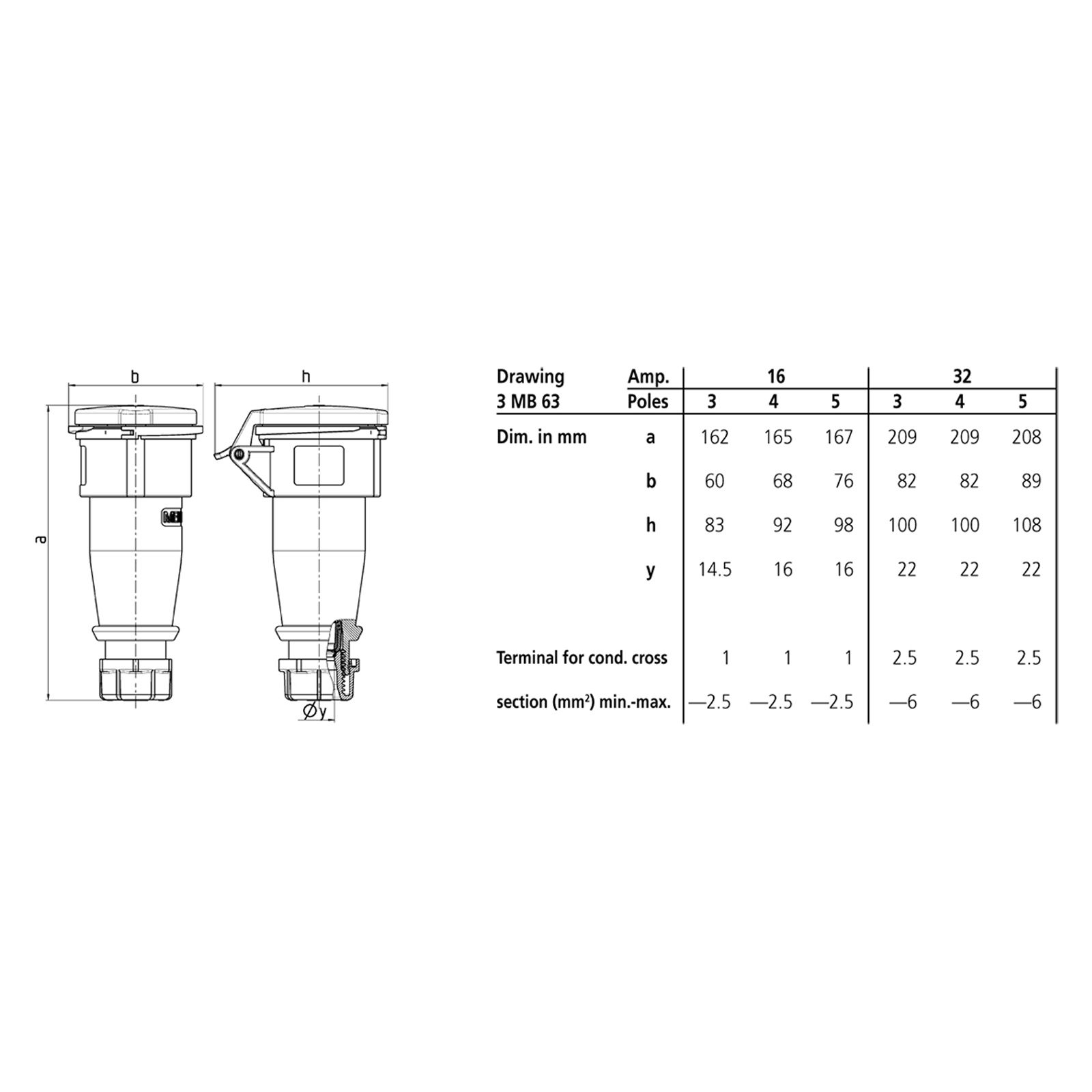

  • Dimensions: 162 x 83 x 60mm
  • Weight: 0.18kg
Stock code CONN459
Barcode / EAN 0735202933282
Packed Dims (H x W x D) 8.5 x 6.5 x 16cm
Packed Weight 0.1kg
Outer Carton Quantity 1
Commodity Code 8536699099
Country Of Origin Germany
Order Code: CONN459

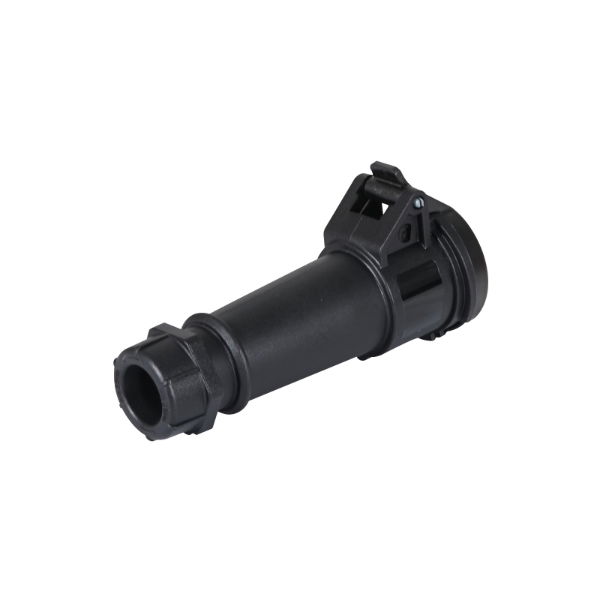

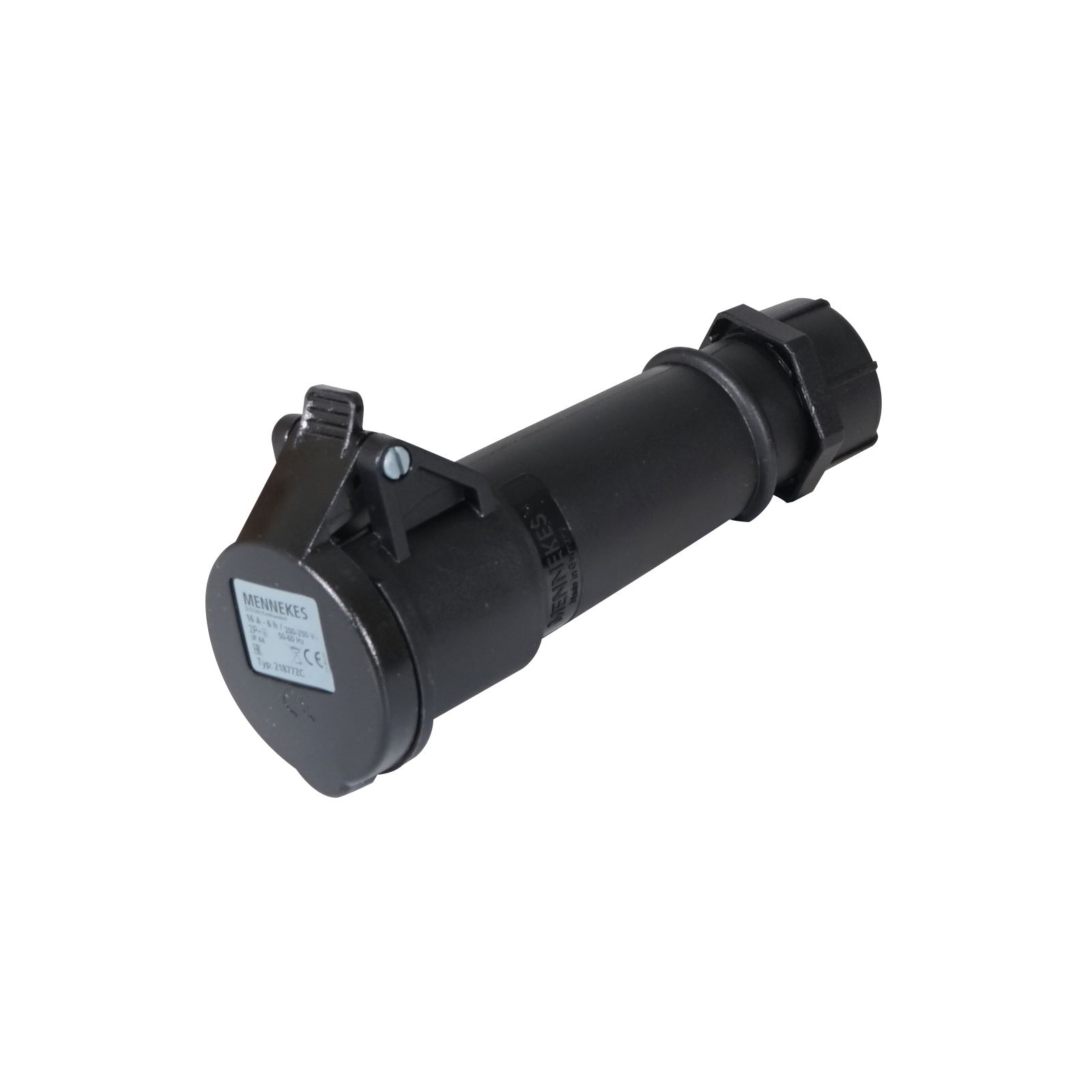

16A 230V 2P+E IP44 AM-TOP Connector, Black (21877ZC)

Features
