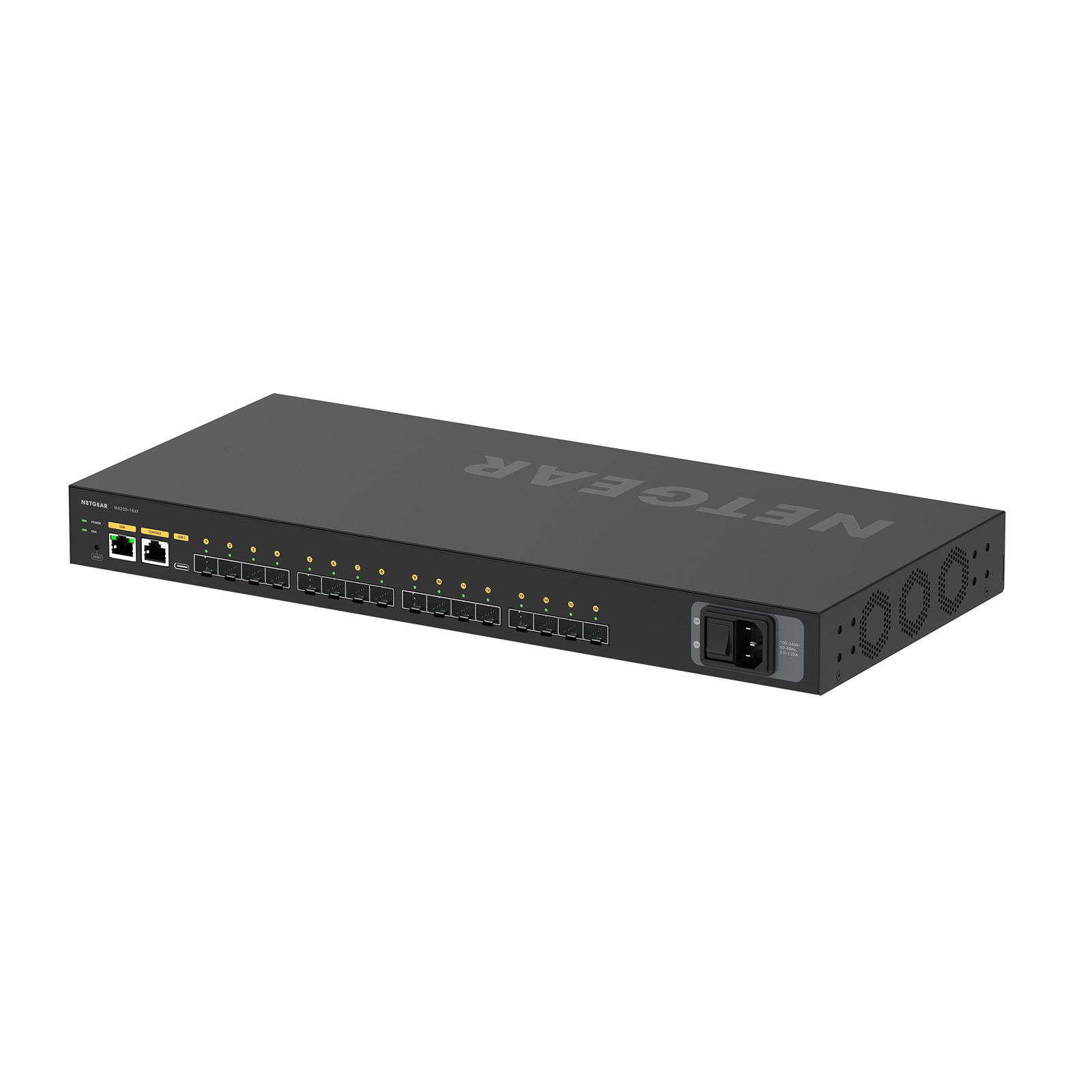

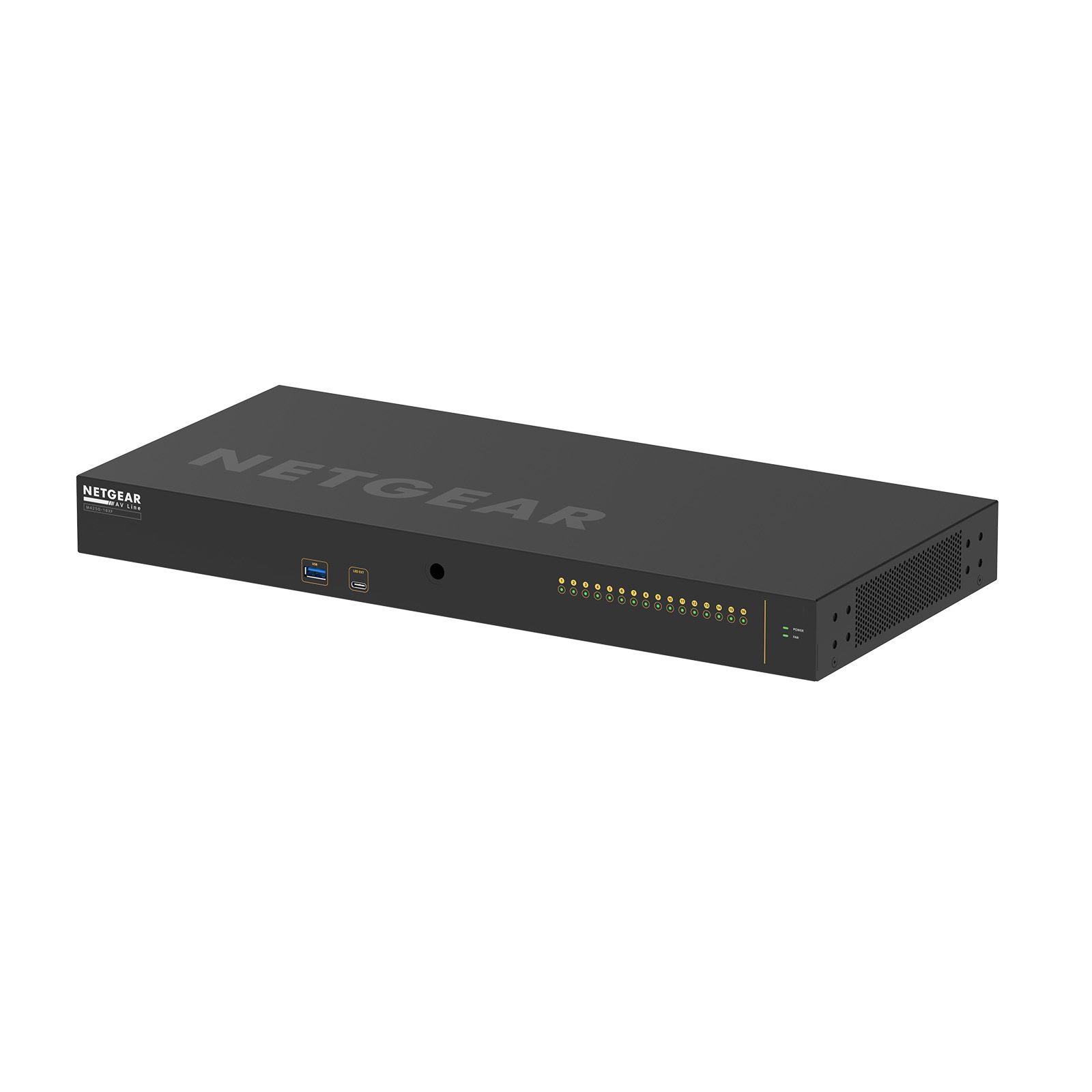

The NETGEAR AV Line M4250-16XF (XSM4216F) is a fully managed 16-port 1G/10G fiber switch, designed for pro AV over IP applications. With 16 x SFP+ fiber ports, this high-performance switch is ideal for high-bandwidth AV networking, supporting NDI, Dante, AES67, and other audio-video IP protocols.

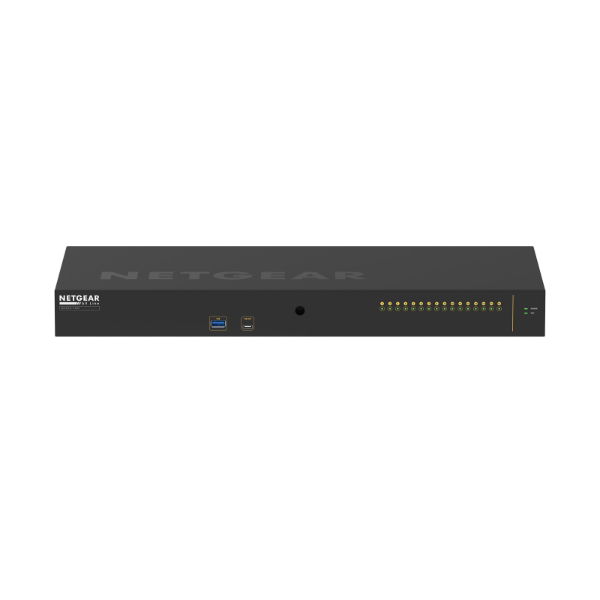

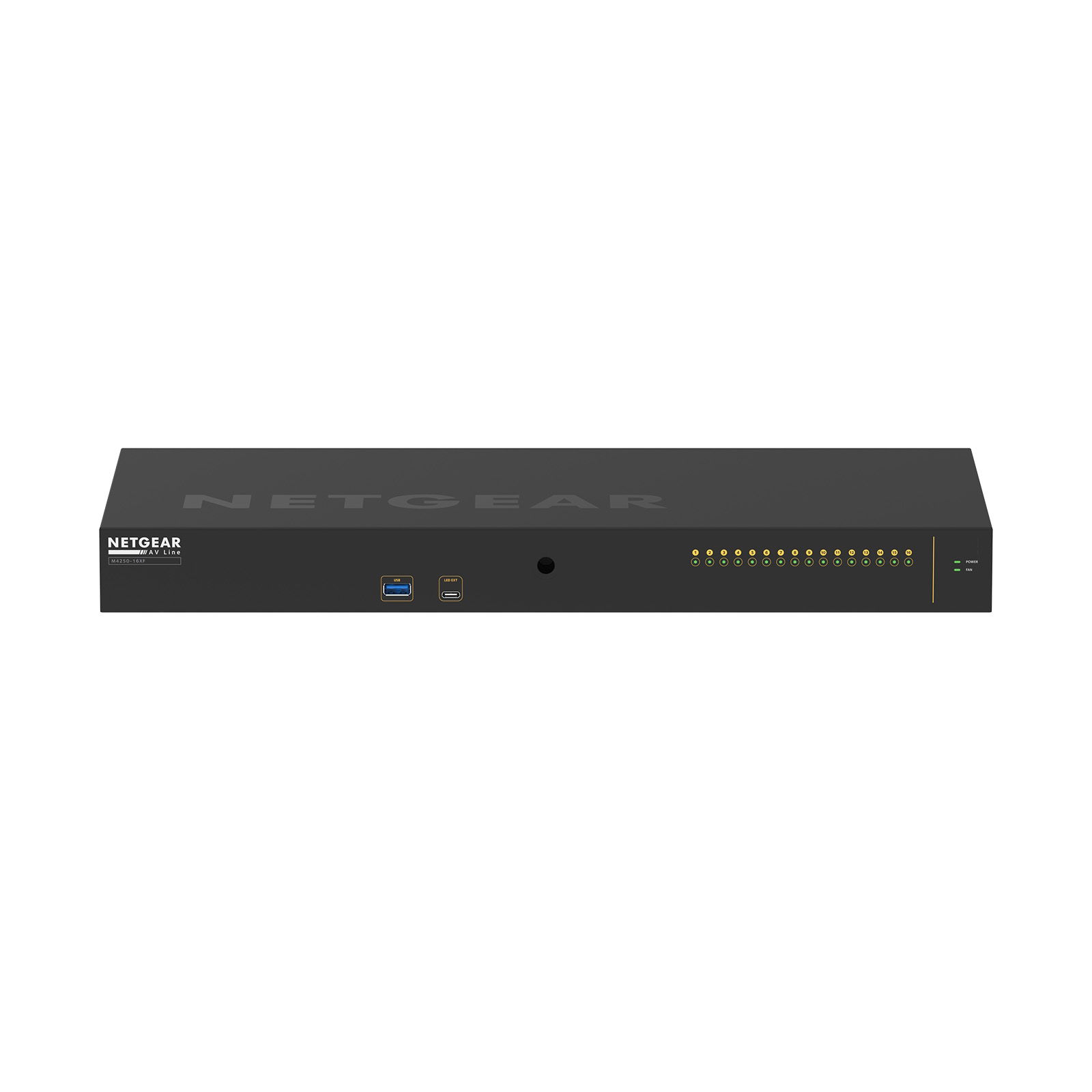

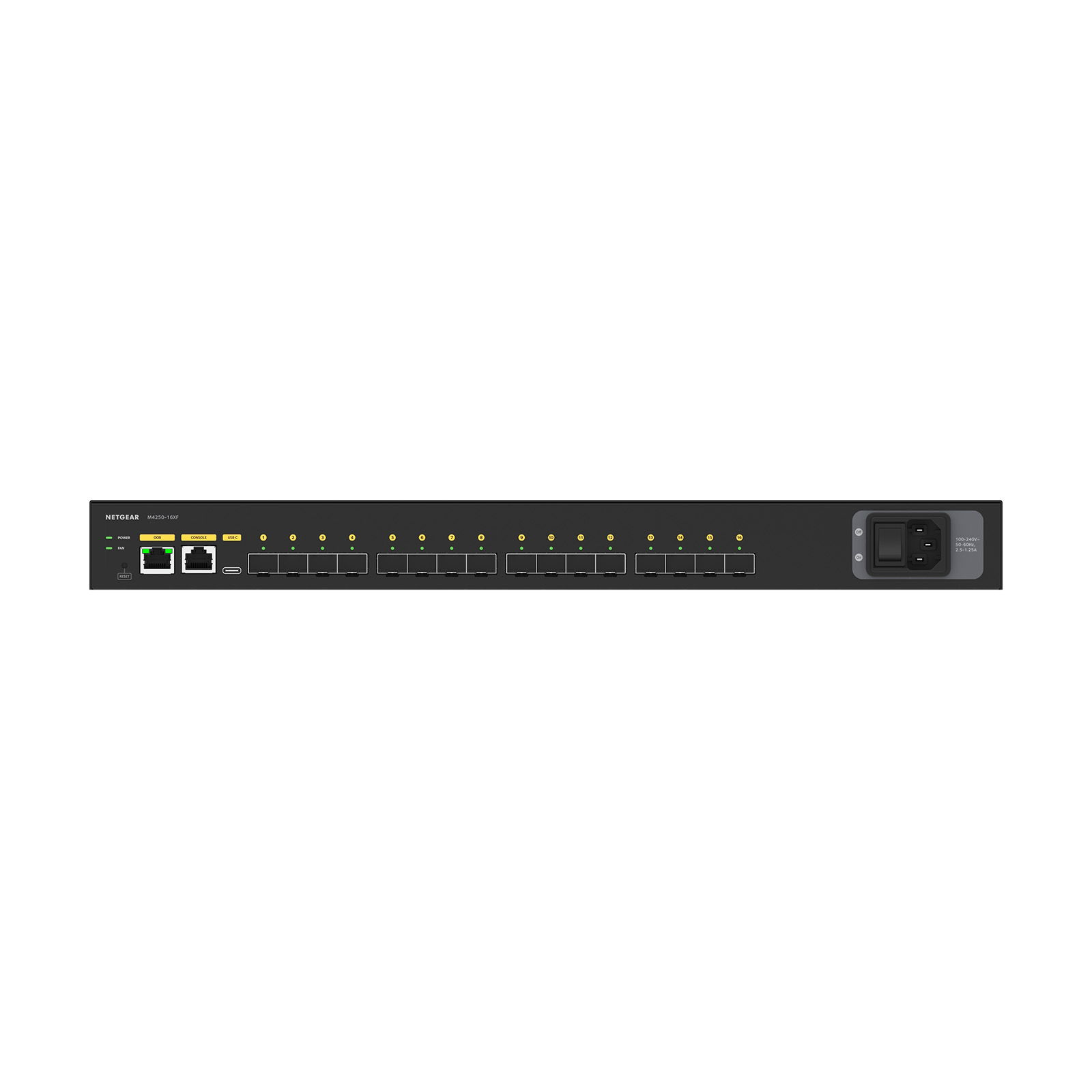

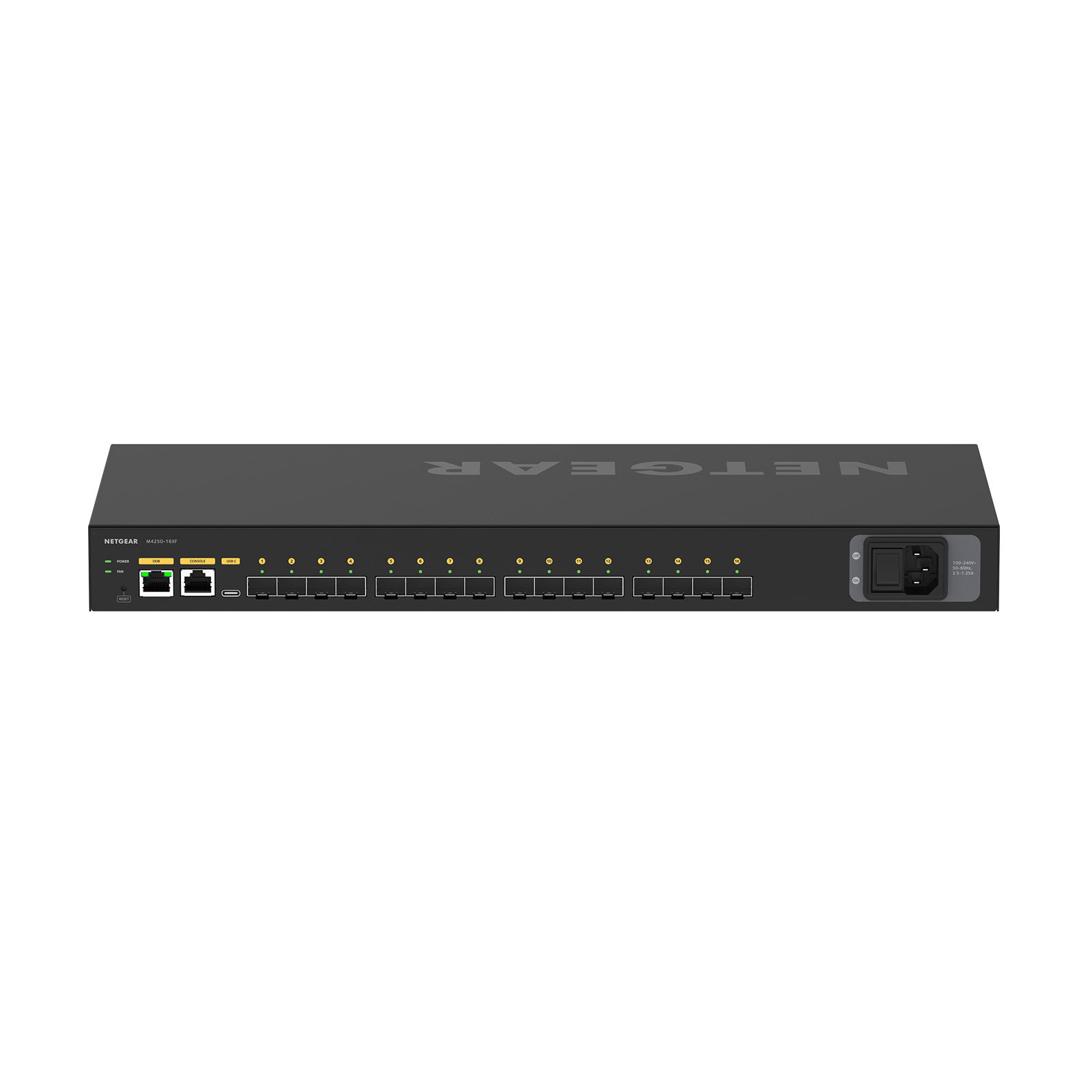

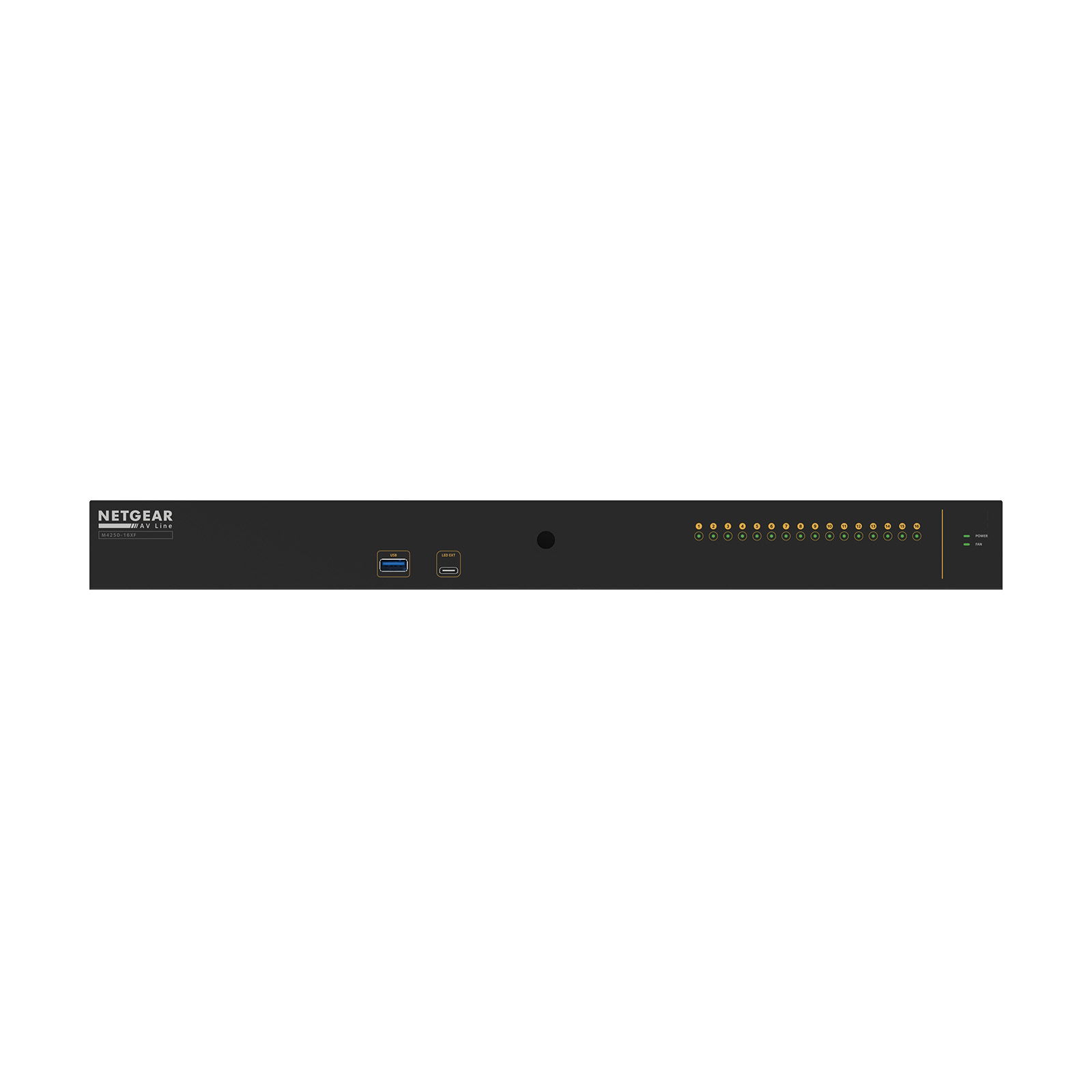

Developed with insights from AV professionals, the M4250 series features customized AV profiles for seamless network integration. The sleek, rackmount-ready design ensures a clean AV installation, with all cabling routed at the rear for clutter-free rack setups. Reversible mounting allows ports to face forward when required.

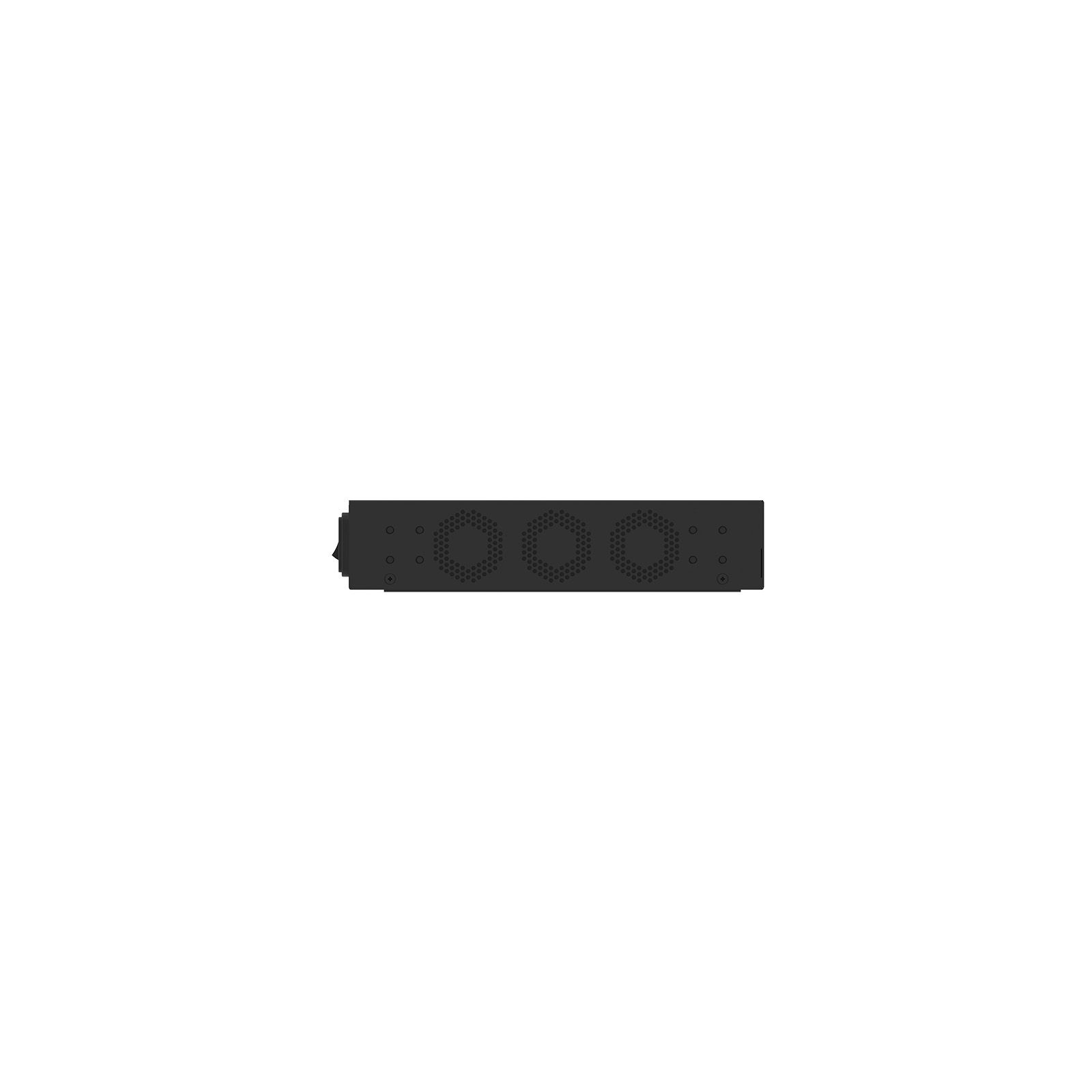

With software-controlled fan adjustments, the M4250-16XF offers silent fanless operation when conditions allow, making it perfect for studio, broadcast, and live production environments. Designed for scalability and flexibility, this 10G fiber switch ensures smooth, high-speed data transmission for demanding AV and IT applications.

  • Primary Port Speed: 1 Gigabit / 10 Gigabit Fiber
  • Number of Ports: 16 x 1G/10G Fiber SFP+
  • PoE Ports / Budget: None
  • IGMP Support: Enhanced (NETGEAR IGMP Plus™)
  • Jumbo Frame Support: Yes, up to 12kb
  • Acoustics: Fanless or 56.7dB@25ºC
  • Power Consumption: System Full Load: 47.84W / 163.33Btu/hr; Standby without any port connection: 19.269W / 65.78Btu/hr
  • AVB Support: Yes. Electronic license required, activation key sent via email (AVB4216F-10000S)
  • Dimensions (W x D x H): 440 x 200 x 43.2mm
  • Weight: 2.80kg
Stock code NETG003
Barcode / EAN 606449149708
Commodity Code 8517620000
Country Of Origin Taiwan, Republic of China
Order Code: NETG003

M4250-16XF Managed Switch, XSM4216F-100EUS
