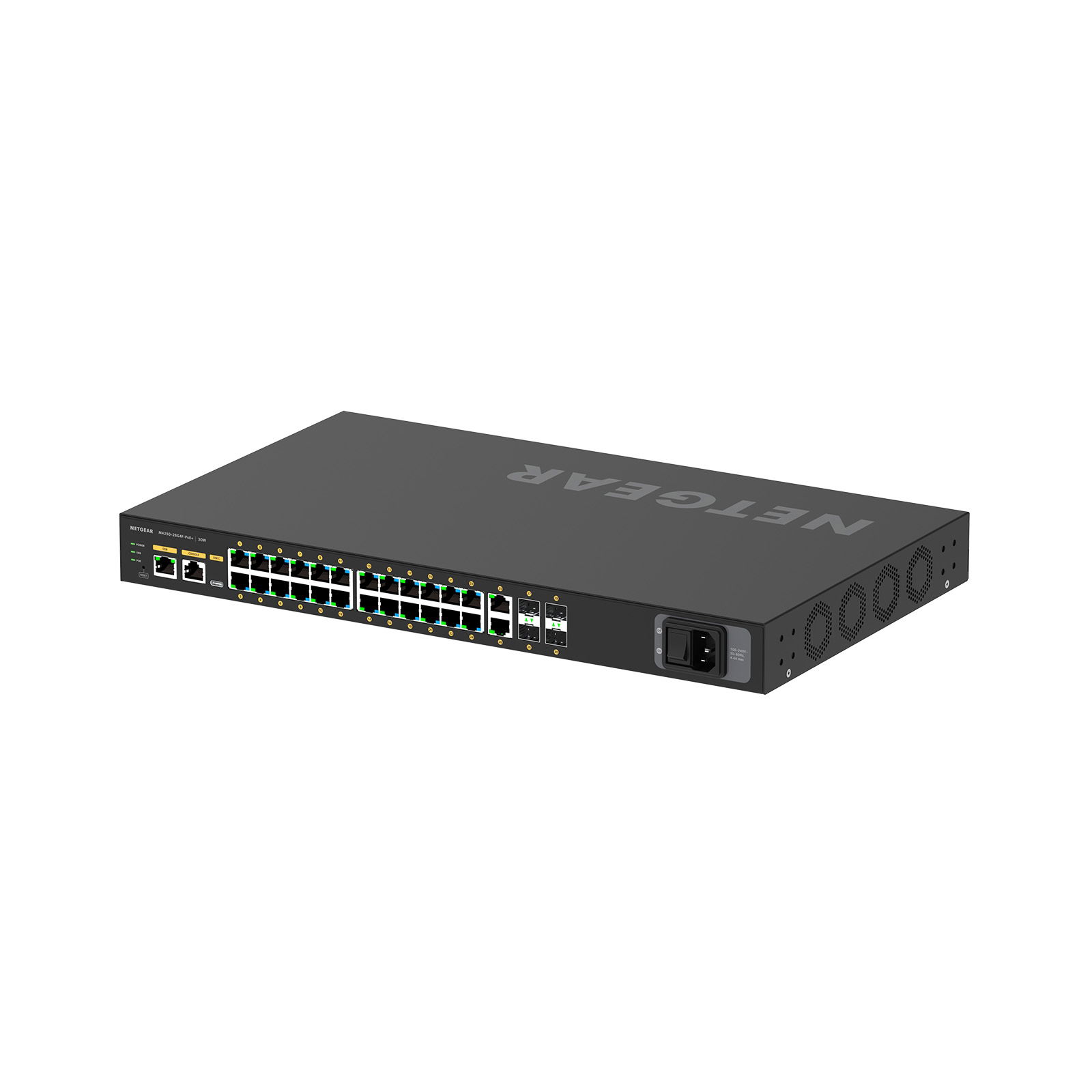

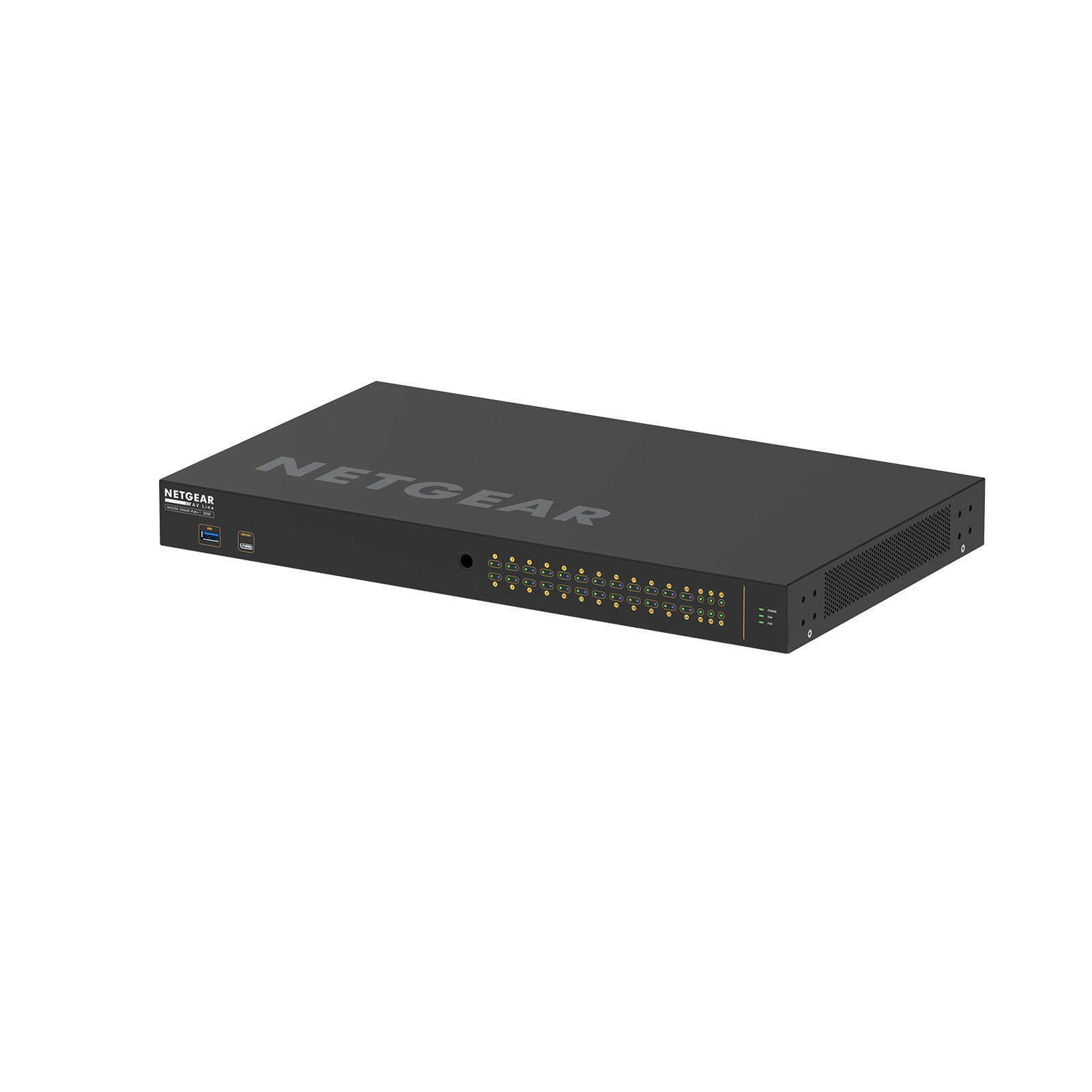

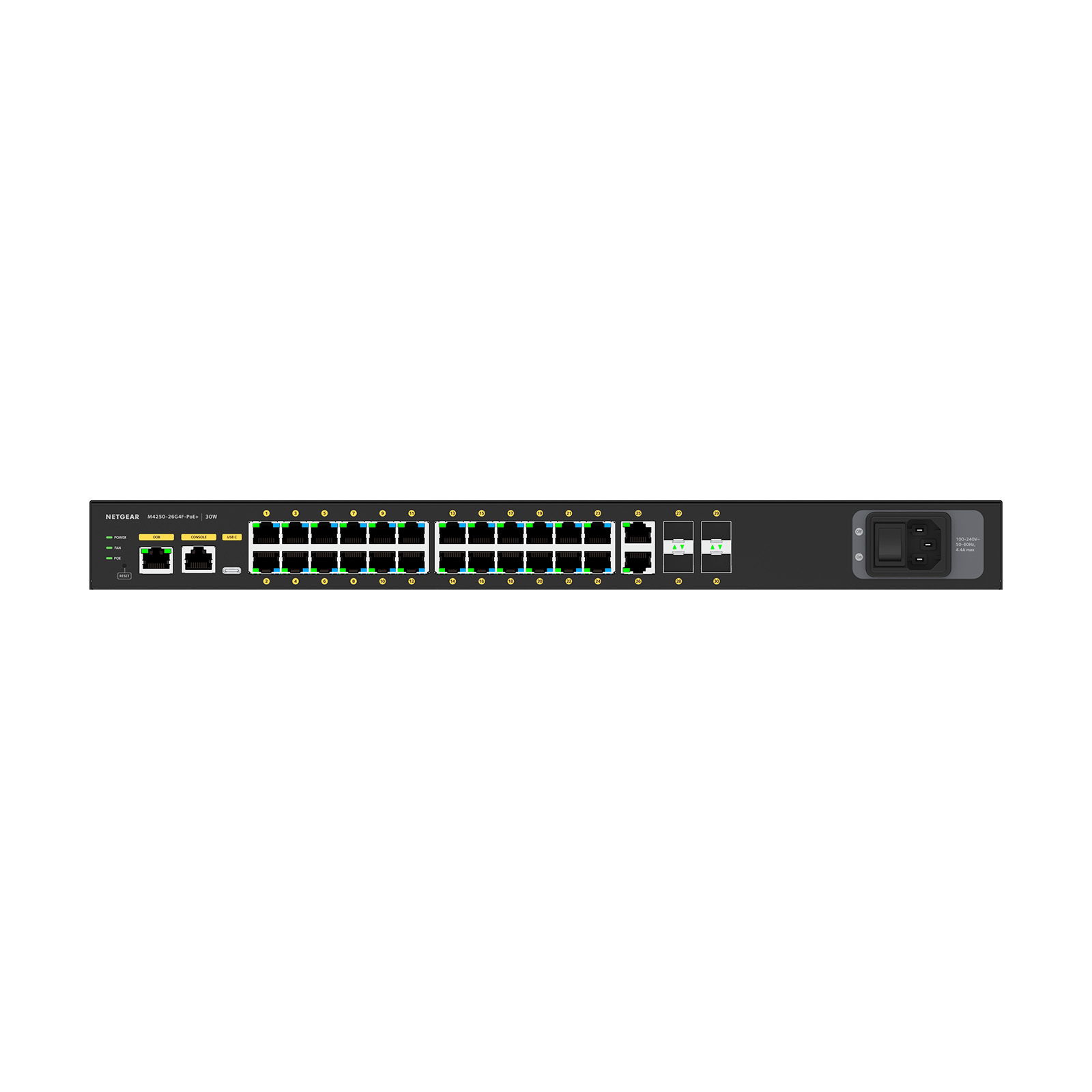

The NETGEAR AV Line M4250-26G4F-PoE+ (GSM4230P) is a fully managed 24-port 1G PoE+ switch designed for professional AV over IP applications. It delivers 300W of PoE+ power across 24 x 1G ports, with 2 additional 1G uplinks and 4 SFP fiber ports for high-bandwidth networking in AV and IT environments.

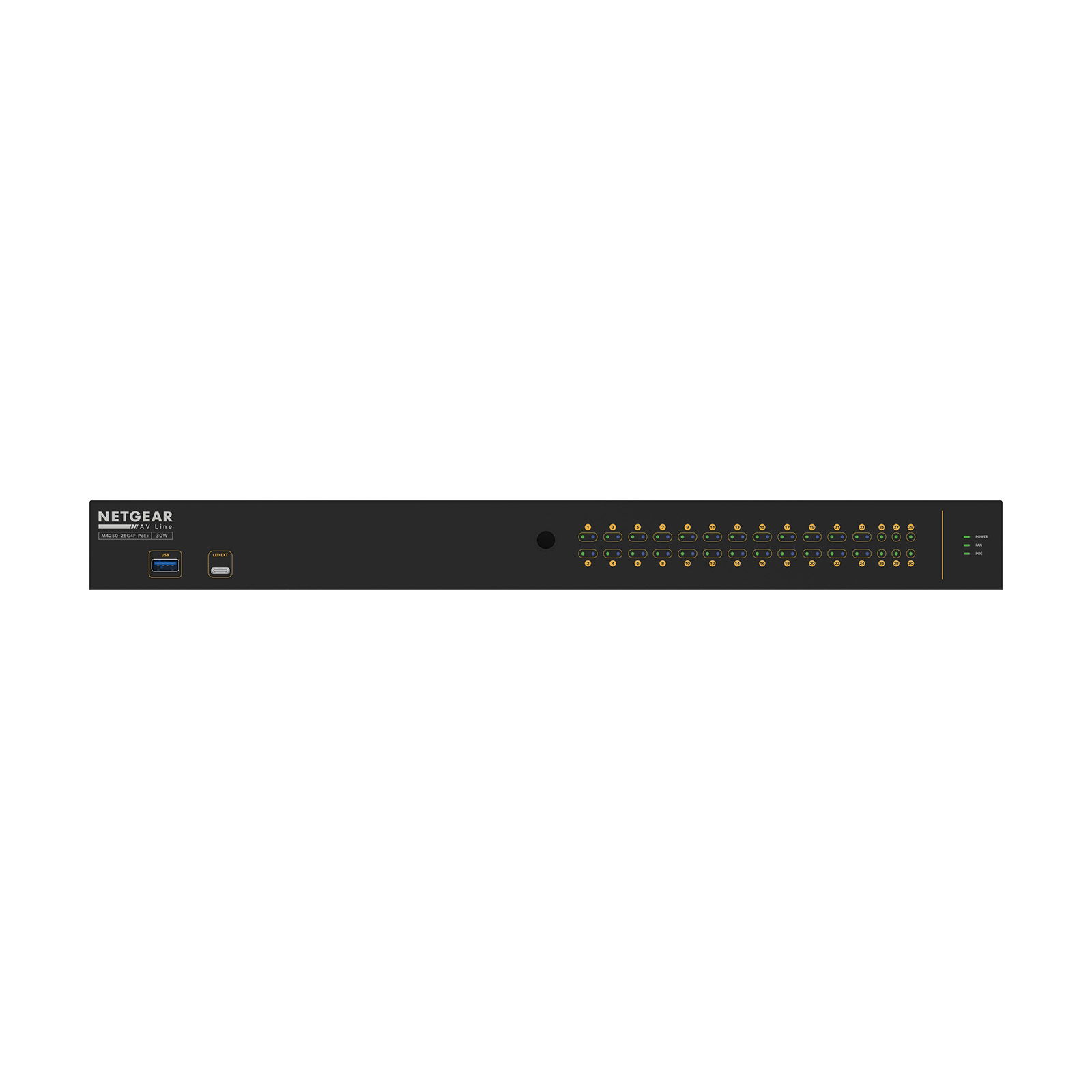

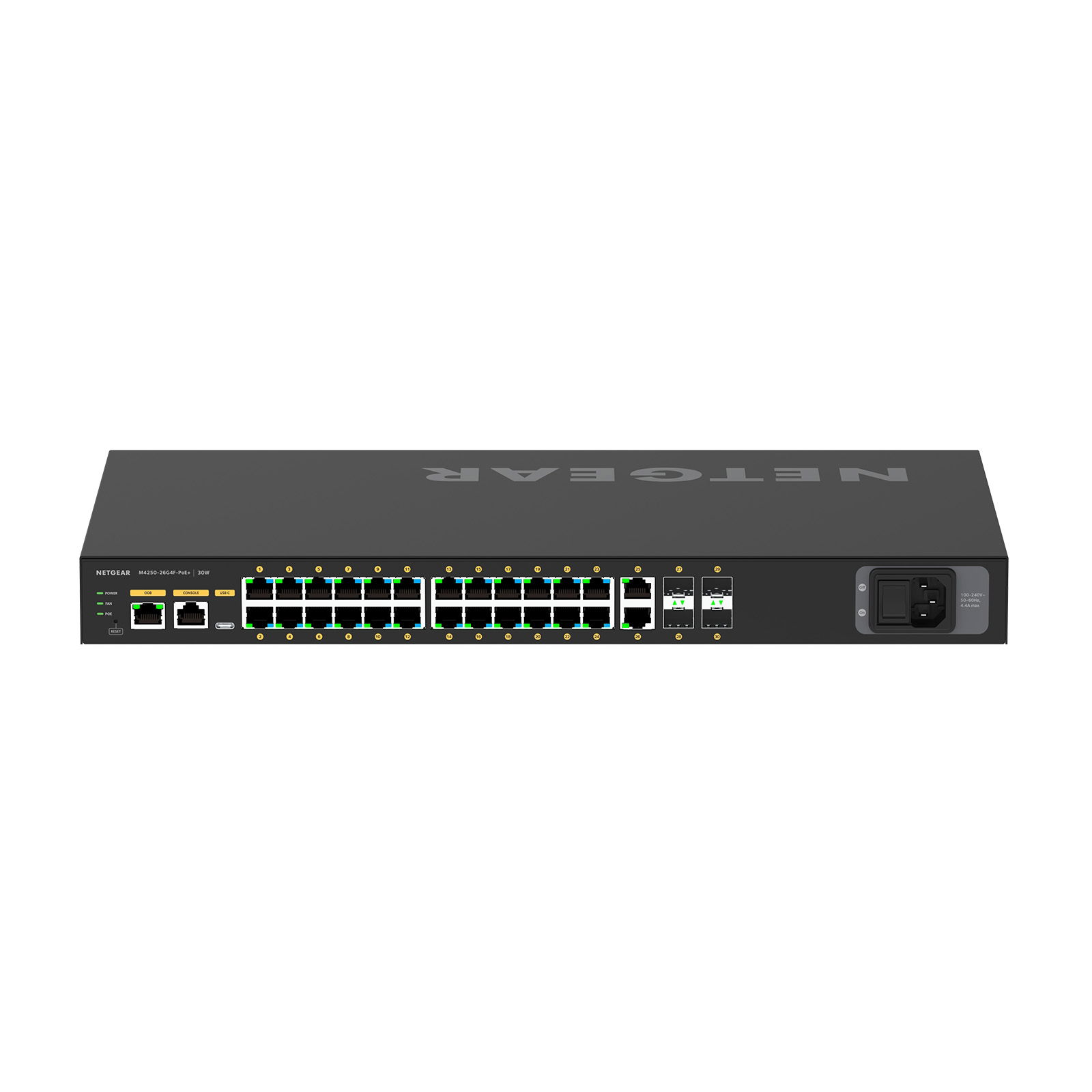

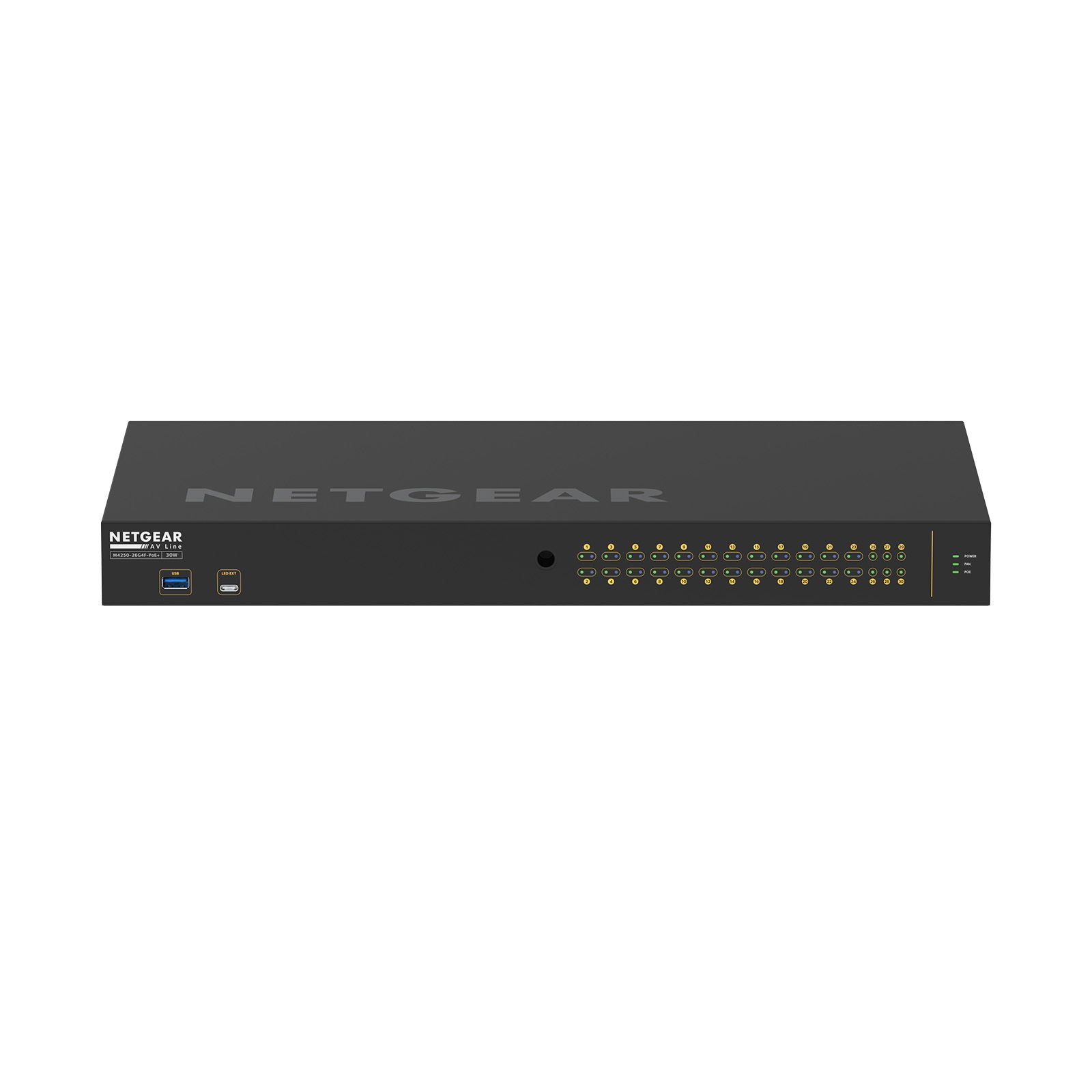

Developed with insights from AV professionals, the M4250 series offers dedicated AV profiles to ensure seamless integration with NDI, Dante, AES67, and AVB protocols. Its sleek rackmount-ready design keeps status indicators at the front while all cabling is managed at the rear, allowing for clean, professional AV setups.

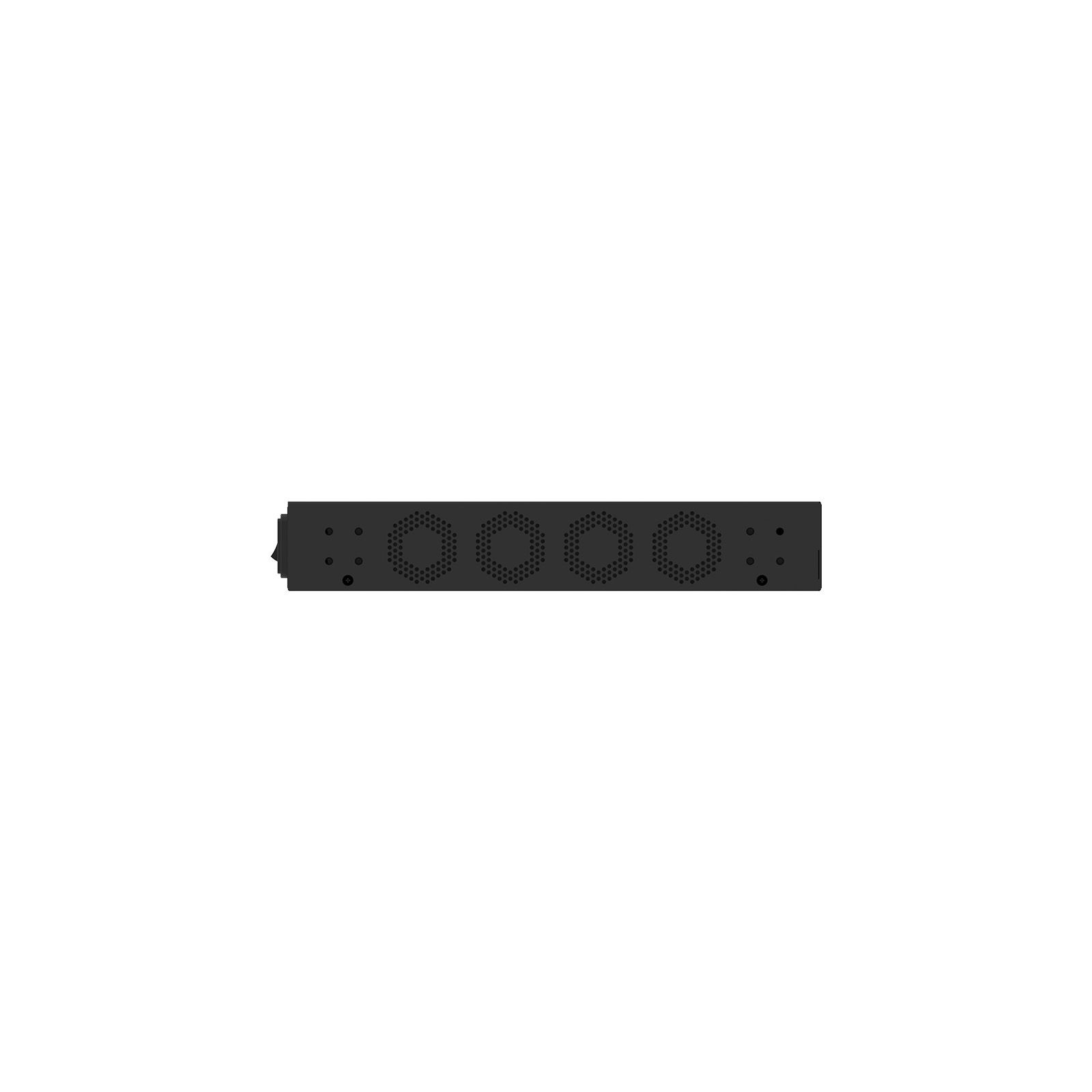

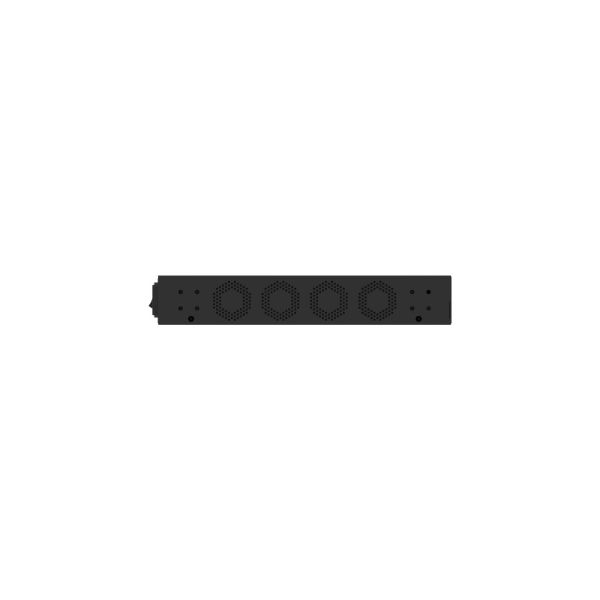

For flexibility in installation, the switch supports reversible mounting, allowing ports to face forward when required. Silent fanless operation is achievable with software-controlled cooling, making it ideal for studio, broadcast, and quiet AV environments. Whether for live production, digital signage, conferencing, or AV distribution, the M4250-26G4F-PoE+ provides a powerful, reliable, and scalable networking solution.

  • Primary Port Speed: 1 Gigabit
  • Number of Ports: 30 (24 x 1G PoE+, 2 x 1G, 4 x SFP)
  • PoE Ports / Budget: 24 PoE+ (30W/port), 300W Budget
  • IGMP Support: Enhanced (NETGEAR IGMP Plus™)
  • Jumbo Frame Support: Yes, up to 12kb
  • AVB Support: Yes, included
  • Acoustics: Quiet Mode 34.4dB@25ºC
  • Power Consumption: With PoE: 81.1W / 254.65Btu/hr; Standby without any port connection: 30.5W / 95.77Btu/hr
  • Dimensions (W x D x H): 440 x 257 x 43.2mm
  • Weight: 3.65kg
Stock code NETG004
Barcode / EAN 606449151671
Commodity Code 8517620000
Country Of Origin Thailand
Order Code: NETG004

M4250-26G4F-POE+ Managed Switch, GSM4230P-100EUS
