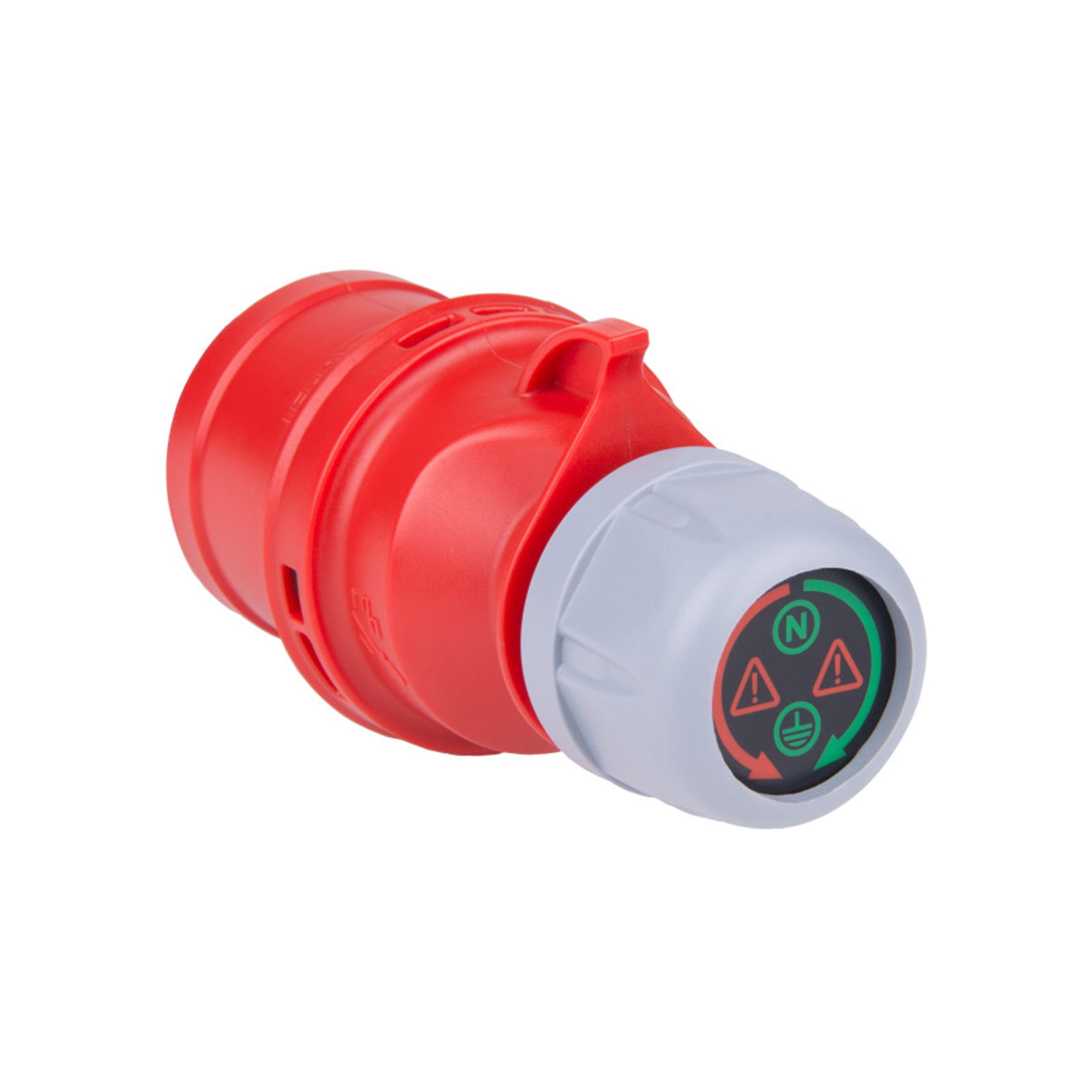

The PCE 9434152 is a 16A 5-pin 6h 400V diagnostic plug featuring multiple built-in LED indicators for comprehensive testing of three-phase industrial power connections. Designed for professionals, it provides real-time diagnostics of rotating field direction, phase presence, neutral, and earth continuity. Lightweight and easy to use, this tool is essential for electricians working on CEE installations in workshops, construction sites, or industrial settings.

  • Model: 9434152
  • Connection Type: CEE 5-pin, 16A, 6h
  • Voltage Rating: 400V~
  • Frequency: 50–60 Hz
  • Ingress Protection: IP20
  • Operating Temperature: ~ +25°C
  • Standards: EN60309-2, EN61000-6-3, EN61000-6-2, EN55022
  • Indication: LED
  • Rotary Field Tester: Yes
  • Weight: 0.161 kg
Stock code CONN442
Commodity Code 8536699099
Country Of Origin Austria
Order Code: CONN442

16A 415V 3P+E Diagnostic Plug (9434152)

Features

Read More
