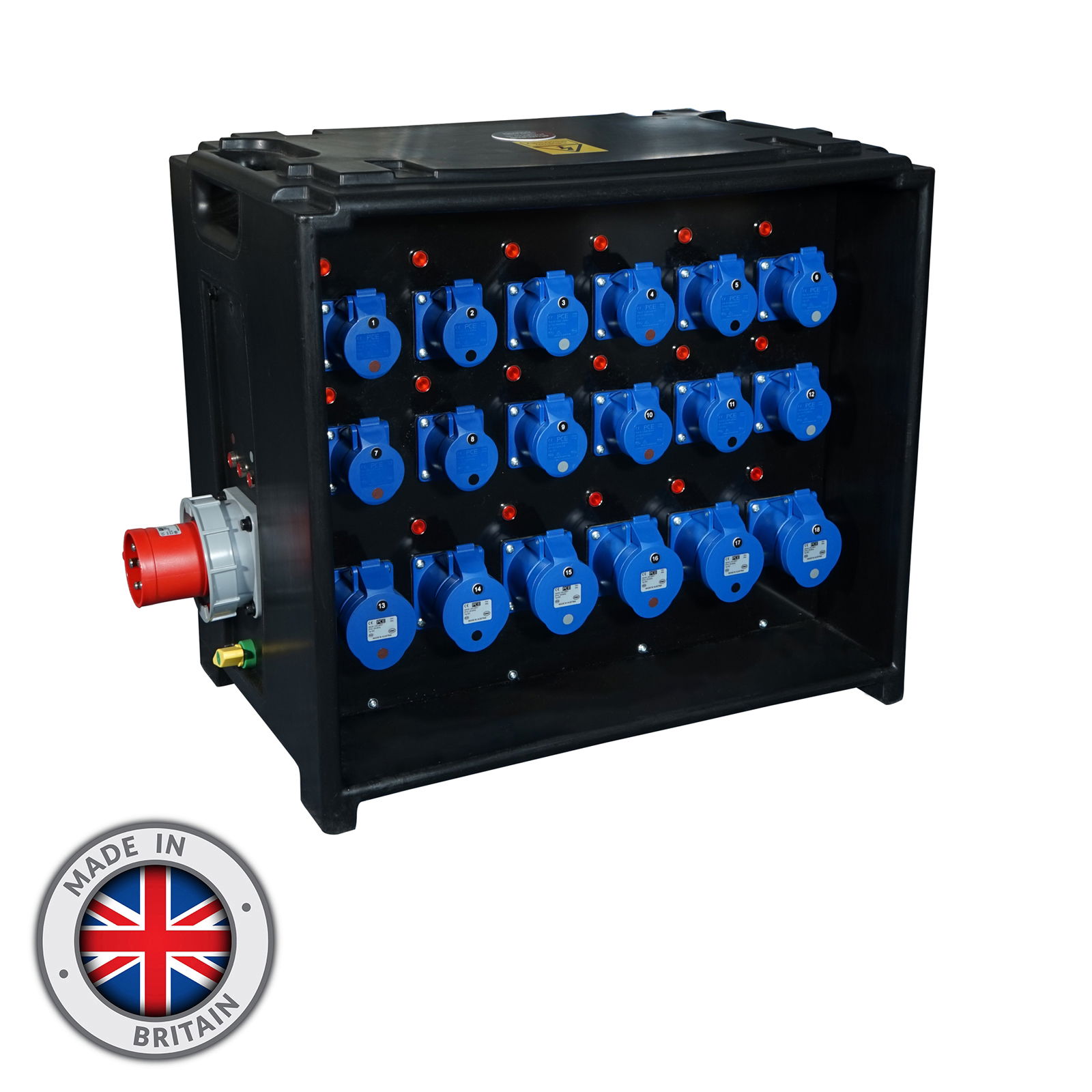

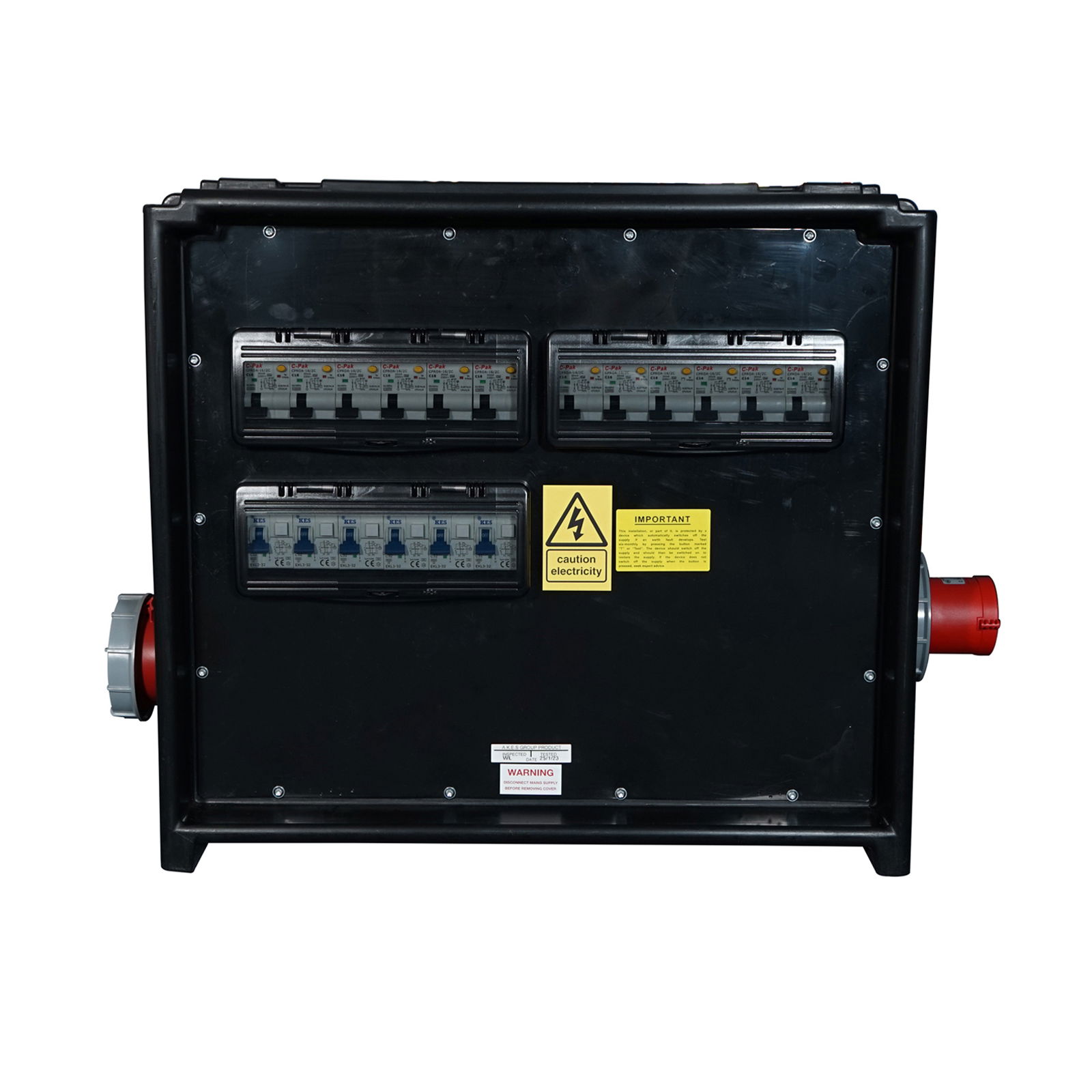

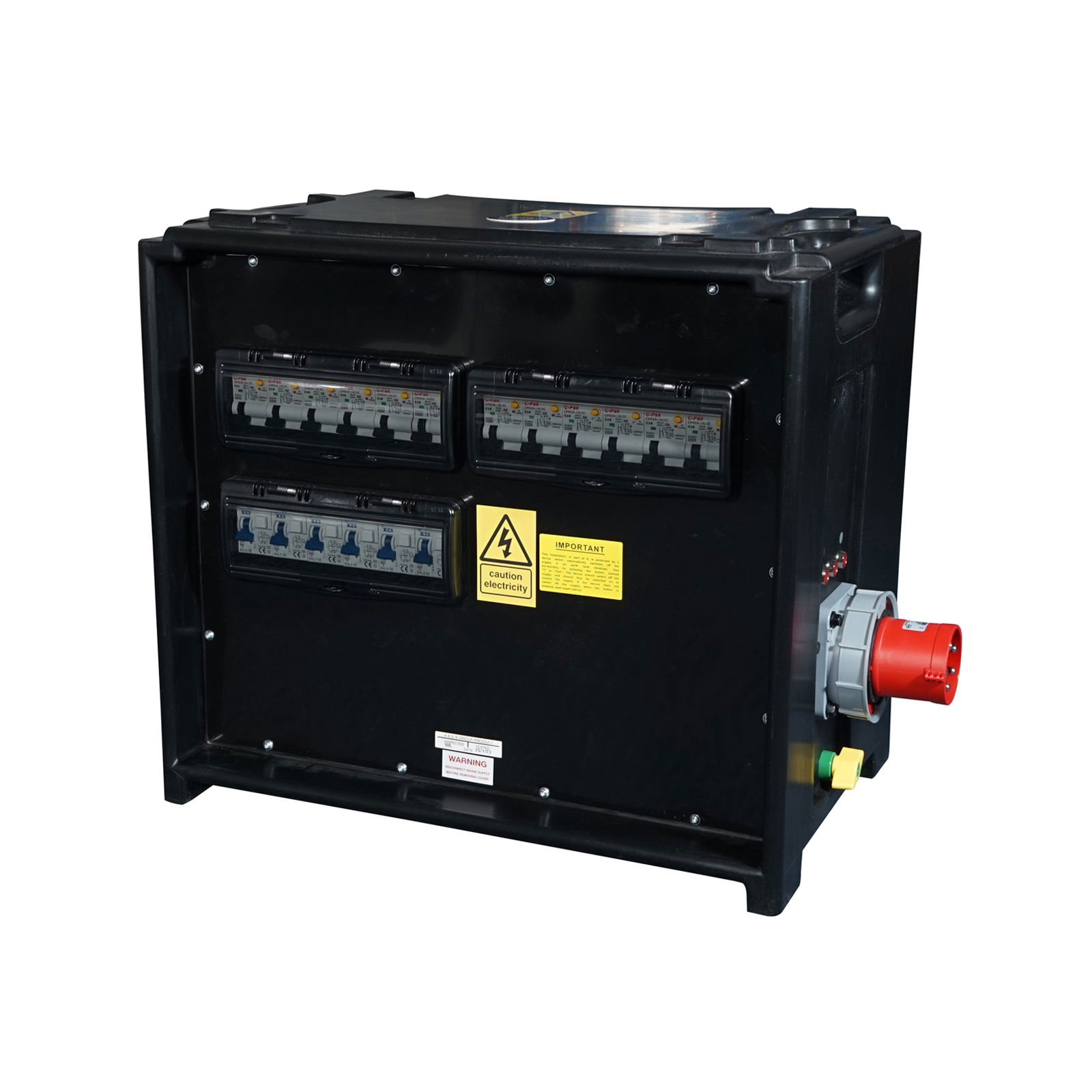

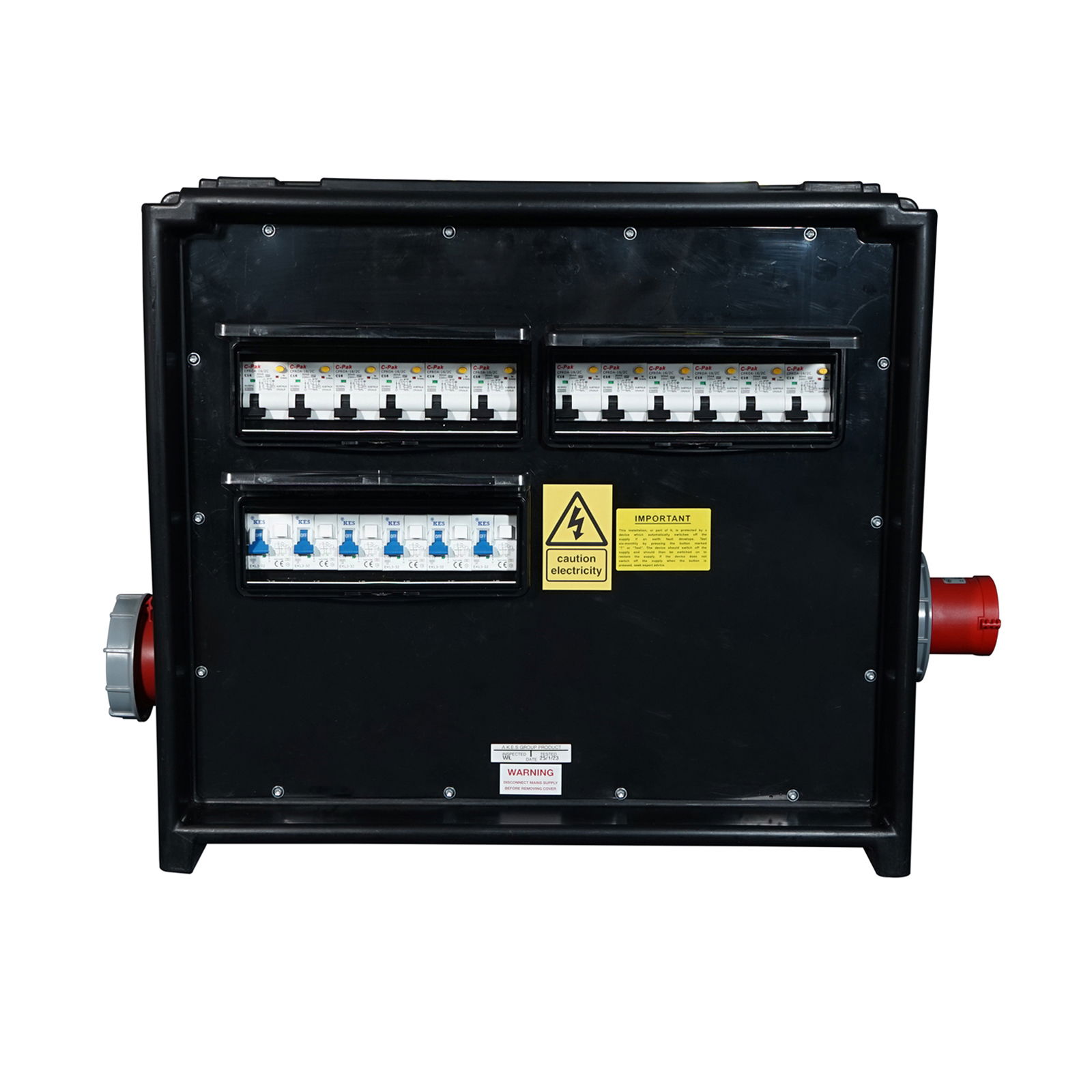

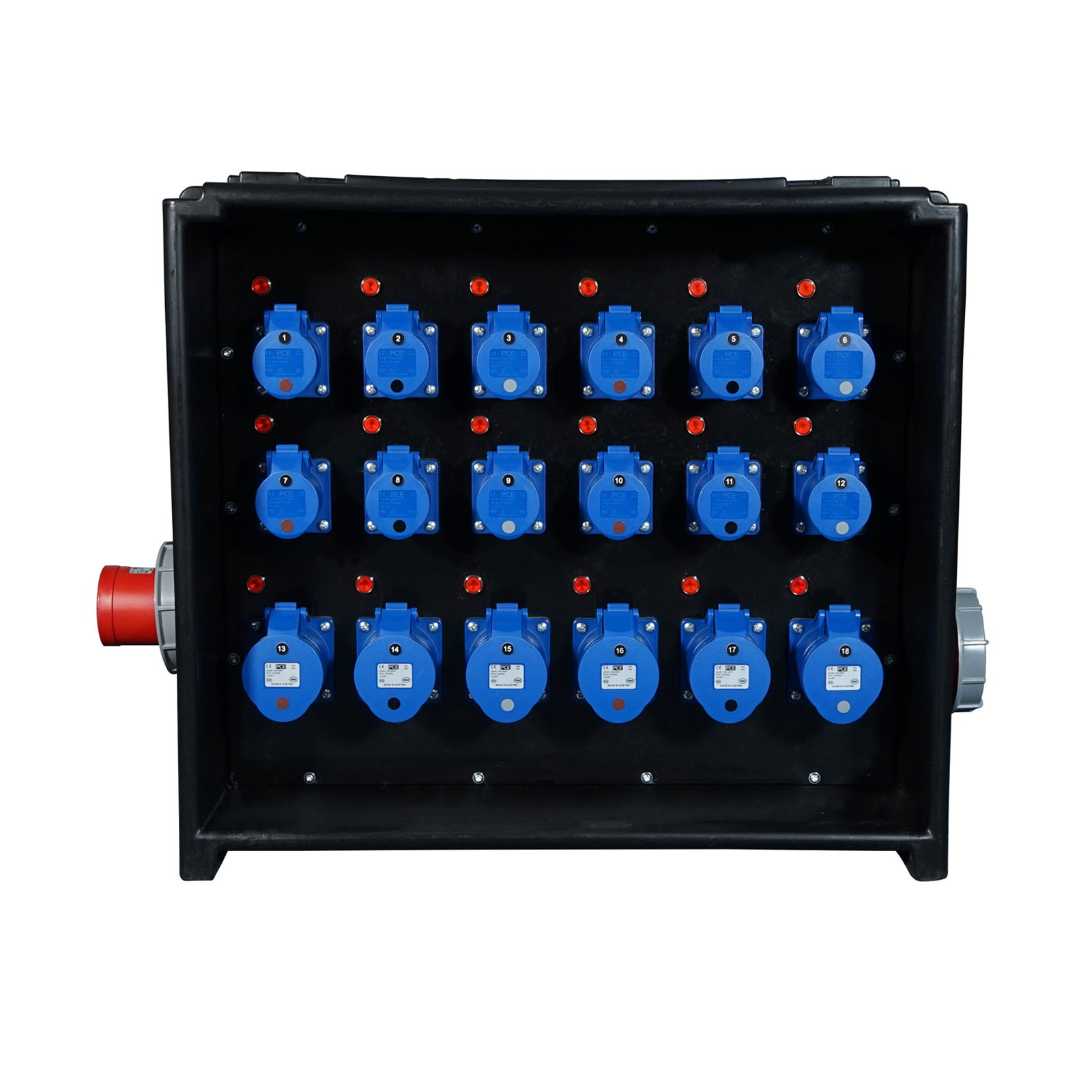

The Elumen8 63A distribution boxes are manufactured using PCE components fitted into a MERZ enclosure creating a robust, lightweight unit made of shock-resistant thermoplastic. Suitable for events and rental they are IP44 splash proof rated.

  • Input: 63A 400V 3P+N+E IP67 appliance inlet
  • Pass Through: 63A 415V~50/60Hz 5-Pin 3P+N+E IP44 chassis socket
  • Outputs: 6 x 32A 230V 2P+E IP44 sockets each protected by 32A 30mA 2-Pole RCBO, 12 x 16A 230V 2P+E IP44 sockets each protected by 16A 30mA 2-Pole RCBO
  • Dimensions (H x W x D): 545 x 770 x 400mm
  • Weight: 23.1kg
Stock code CONN384
Barcode / EAN 0702338073083
Packed Dims (H x W x D) 54.5 x 77 x 40cm
Packed Weight 23.1kg
Outer Carton Quantity 1
Commodity Code 8536699099
Country Of Origin United Kingdom
Order Code: CONN384

MERZ Distribution Box 63A 3PH In/Thru to 32A/16A RCBO
