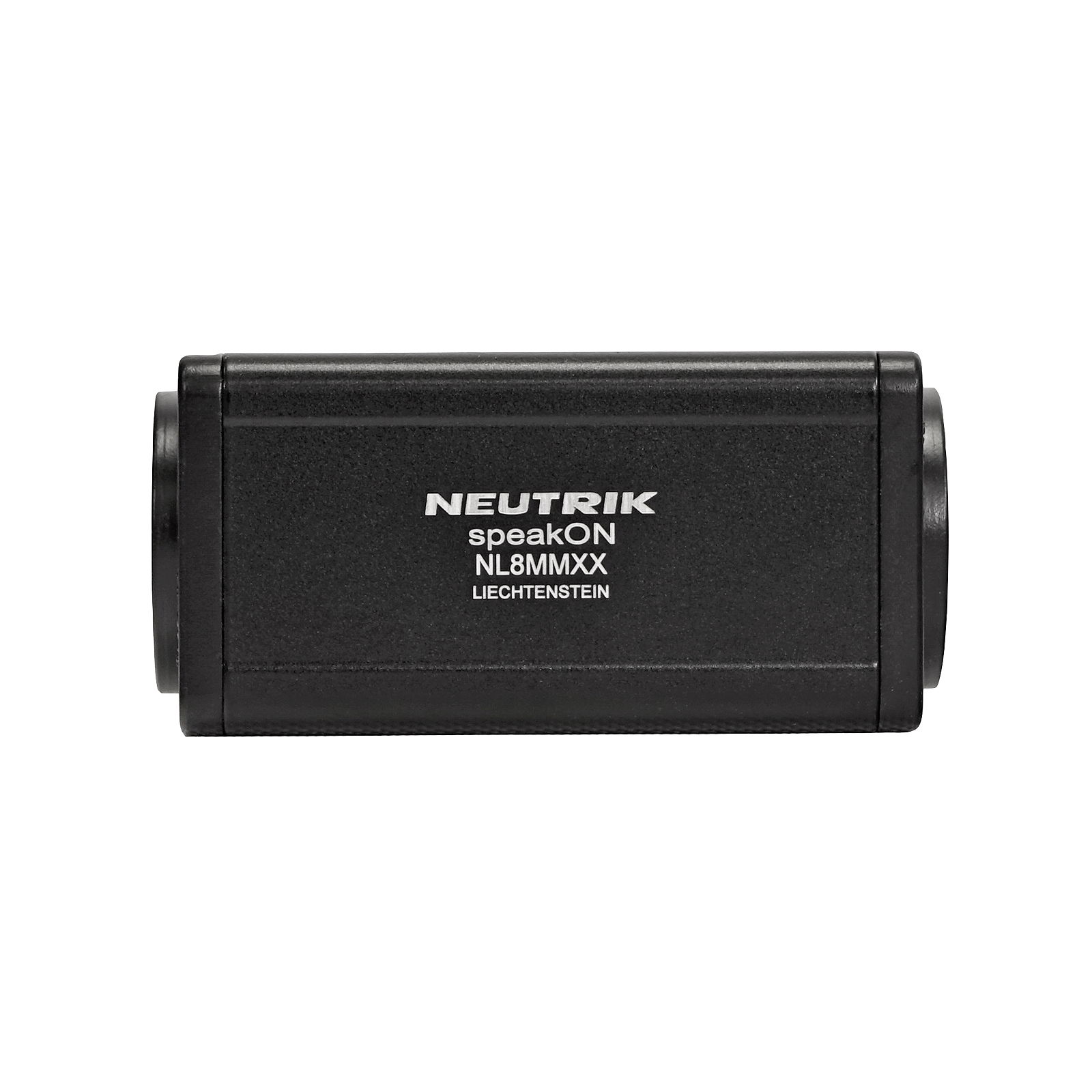

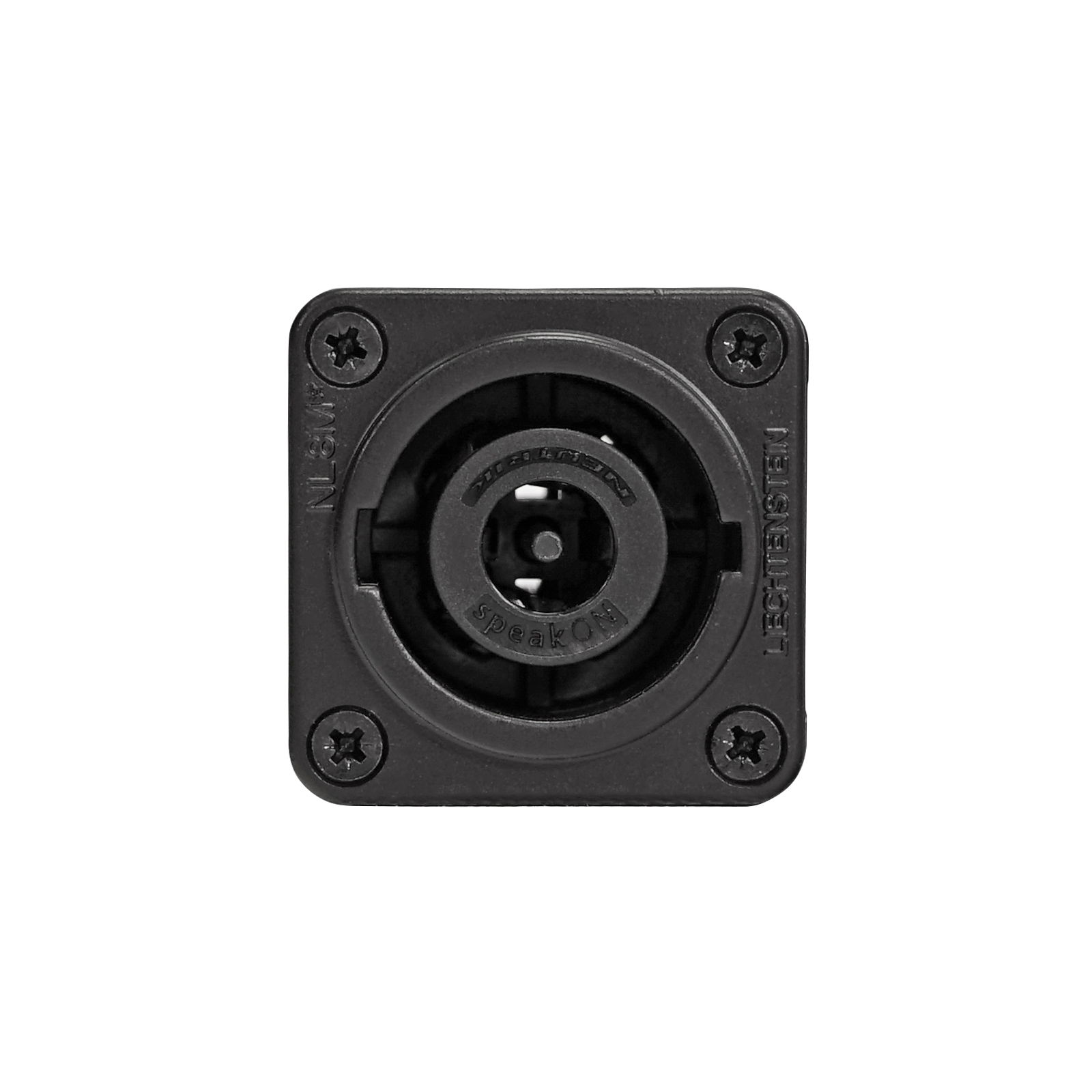

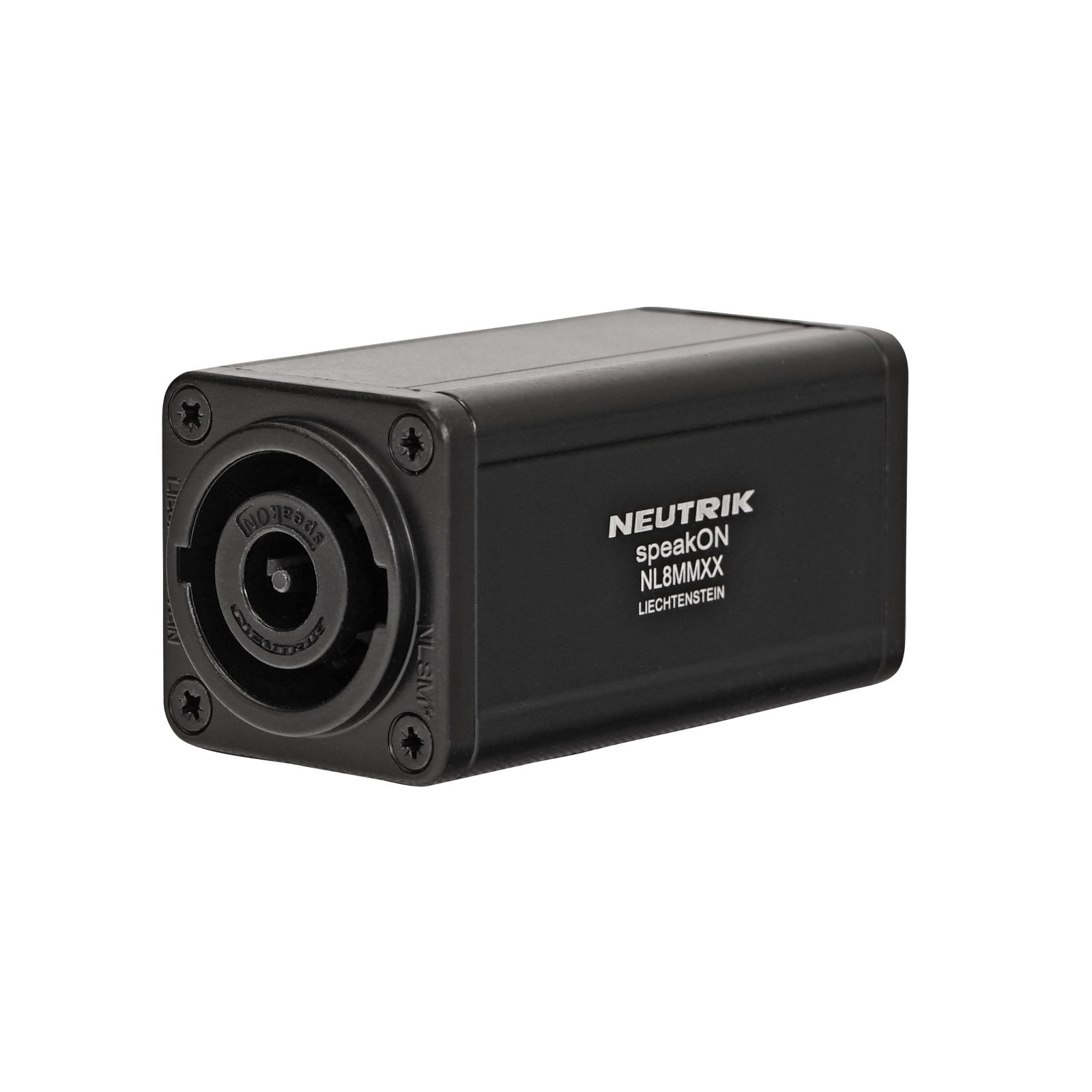

8 pole speakON feedthrough coupler for cable extensions

  • Contact plating: Ag
  • Contacts: Copper Alloy
  • Shell: Zinc diecast, black chrome plated
  • Insert: Polyamide (PA 6.6)
  • Temperature range: -30 °C to +80 °C
  • Flammability: UL 94 V-0
  • Contact resistance: < 3 mΩ
  • Dielectric strength: 1.5 kVac
  • Insulation resistance: > 0.1 GΩ (after damp heat)
  • Rated current per contact: 25 A rms continuous
  • Rated voltage: 250 V ac
  • Attention: speakON is NOT to be used as a mains or power supply connector (AC / DC)!
Stock code CONN552
Barcode / EAN 5056742208827
Commodity Code 8536901000
Country Of Origin Liechtenstein
Order Code: CONN552

8 pole speakON Cable Coupler NL8MMXX
