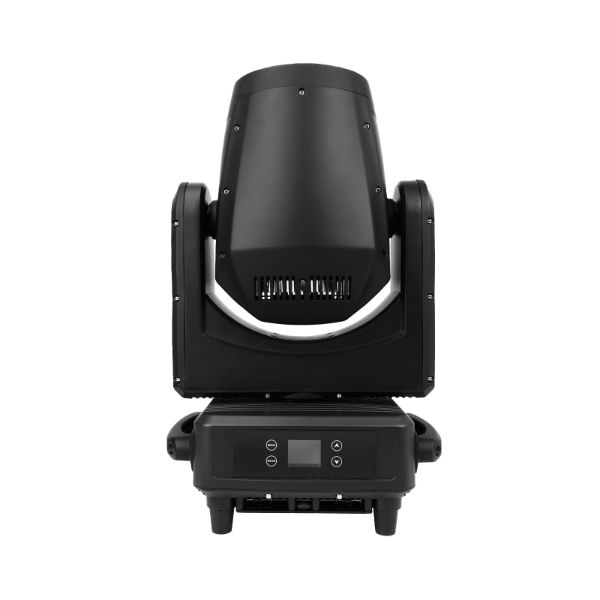

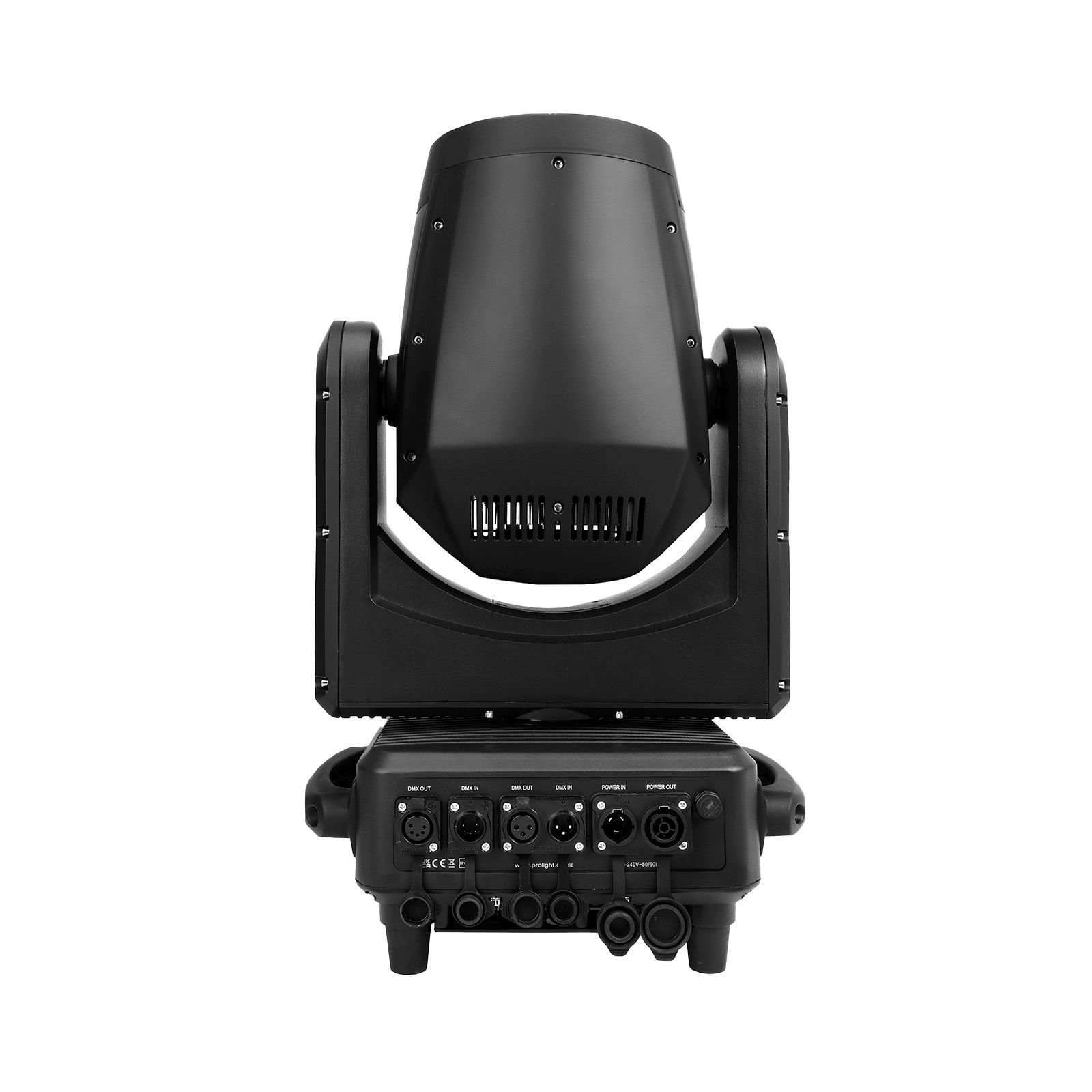

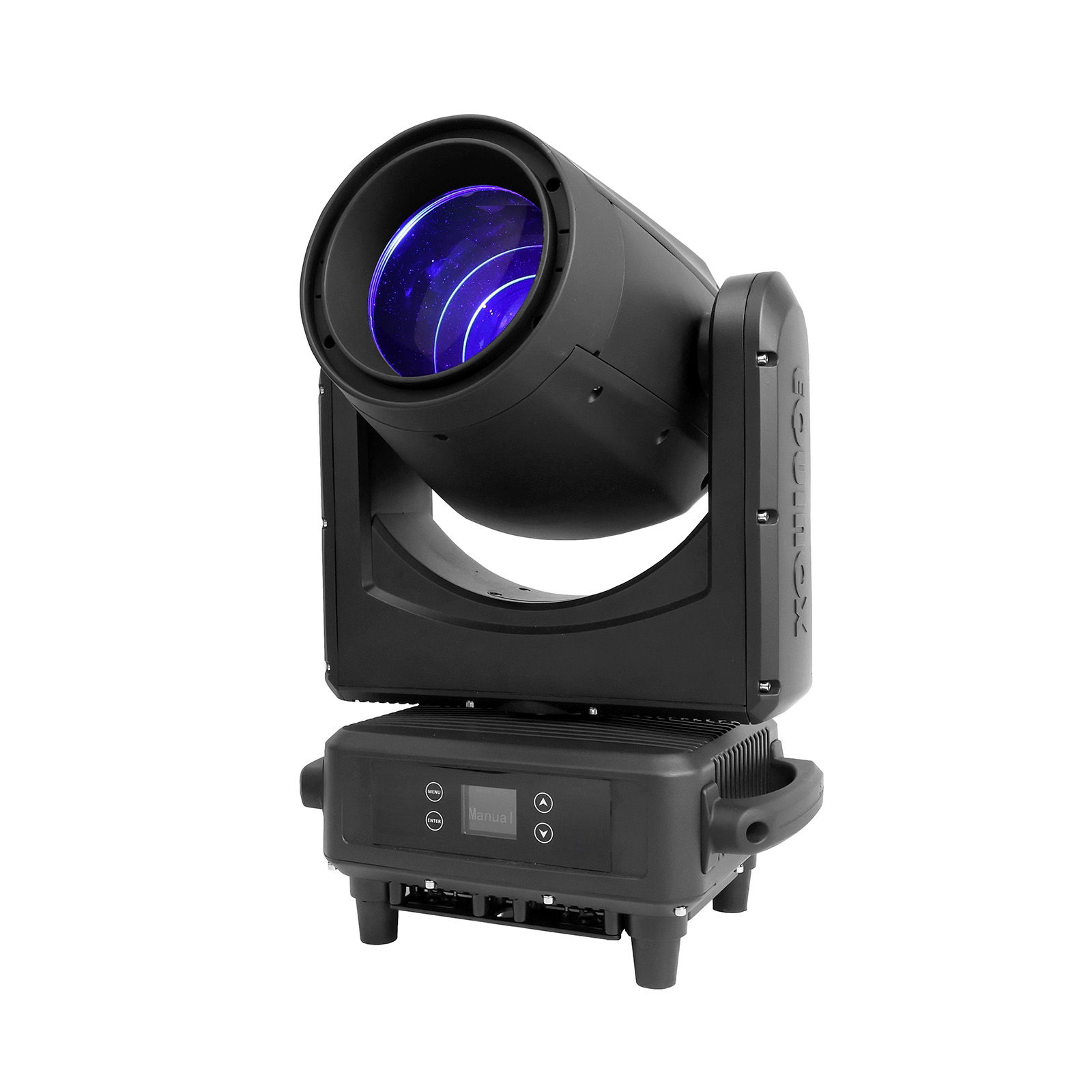

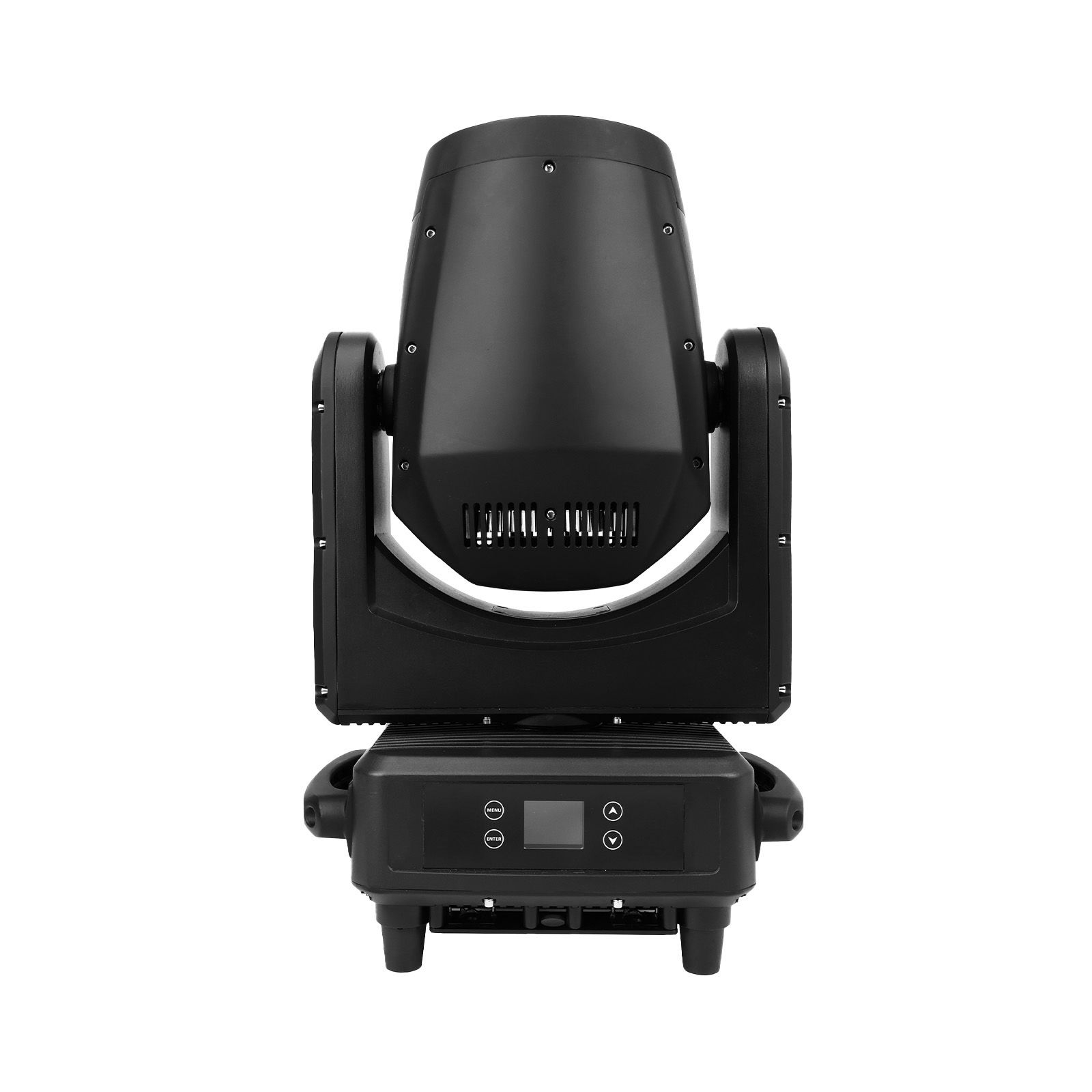

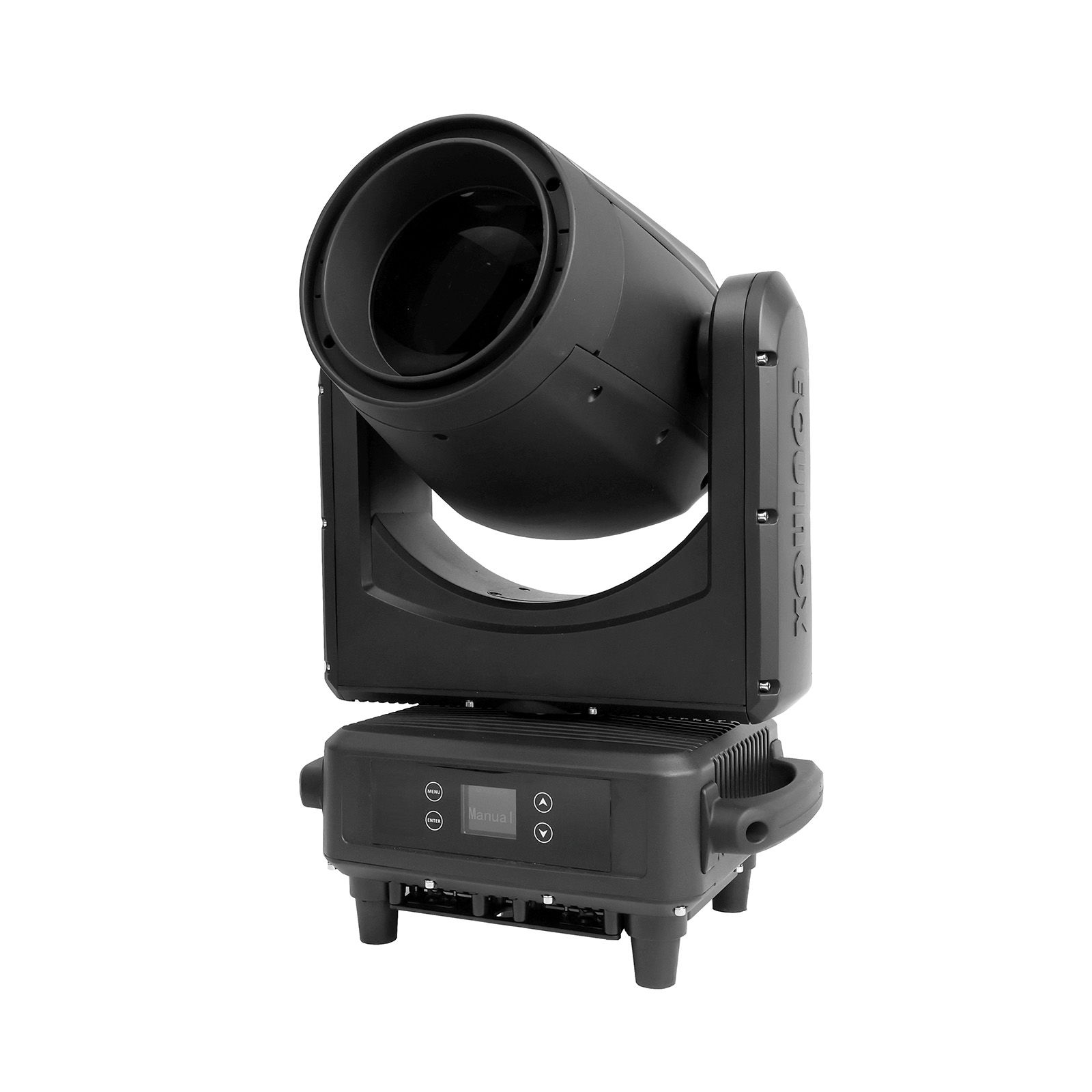

The Equinox Fusion Patriot 500 Beam is a compact yet powerful IP65-rated moving head beam designed to thrive in the toughest environments. Powered by a 50W white laser source (9200K), it delivers an intense 105,000 Lux at 10 metres through a sharp 1° beam. Packed with creative tools including 19 static gobos, a 12-colour wheel plus a rainbow effect, and two rotating prism wheels for layered aerial visuals, this fixture is ideal for professional stage and event applications. Additional features include motorised focus, frost filter, 16-bit pan/tilt with auto-correction, and selectable 14 or 18-channel DMX control. With 3/5-pin DMX, PowerTwist TR1, and quick-release omega clamps, this versatile fixture integrates seamlessly into any rig.

  • Power consumption: 120W
  • Power supply: 100~240V, 50/60Hz
  • Fuse: F4A 250V
  • IP rating: IP65
  • Dimensions (H x W x D): 545 x 344 x 227mm
  • Weight: 11.5kg
Stock code EQLED470
Commodity Code 9405421000
Country Of Origin China
Order Code: EQLED470

Fusion Patriot 500 Beam
